Acer Aspire 5100 Motherboard Replacement

Introduction

Replace motherboard in an Acer Aspire 5100.

What you need

  1. Acer Aspire 5100 Motherboard Replacement, Acer Aspire 5100 Motherboard Replacement: step 1, image 1 of 1

    • Place the laptop upside down.

    • Although the battery is missing in this photo, it is not necessary to remove.

    • Locate the largest removable panel on the back and remove the four screws connecting it.

  2. Acer Aspire 5100 Motherboard Replacement: step 2, image 1 of 1

    • Lift up and remove the panel.

  3. Acer Aspire 5100 Motherboard Replacement: step 3, image 1 of 1

    • Locate the fan and remove the two screws connecting it.

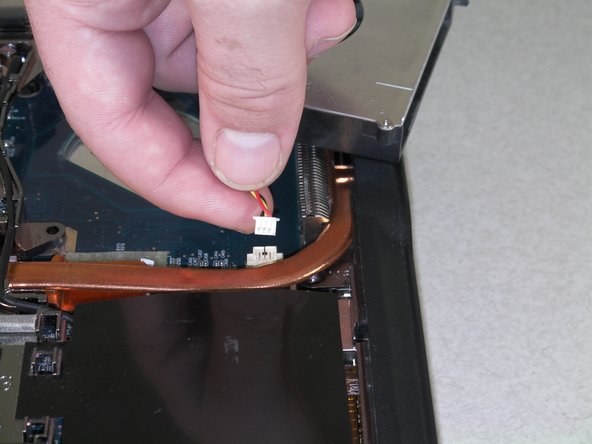

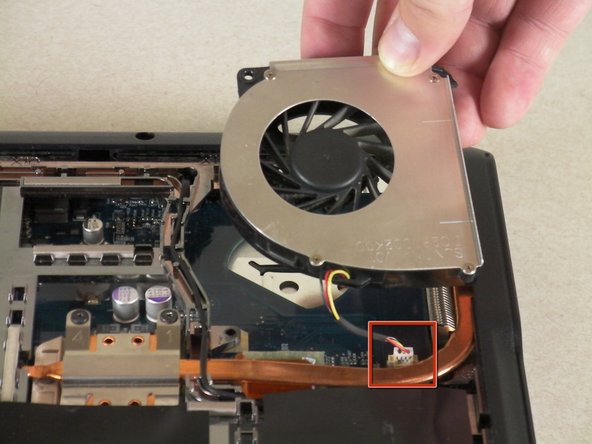

  4. Acer Aspire 5100 Motherboard Replacement: step 4, image 1 of 2 Acer Aspire 5100 Motherboard Replacement: step 4, image 2 of 2

    • Lift out the fan CAREFULLY and detach the cable that connects the fan to the motherboard.

    • When detaching the cable, do not pull on the cable itself. Instead, use a small spudger to detach it at the white section that connects it to the motherboard.

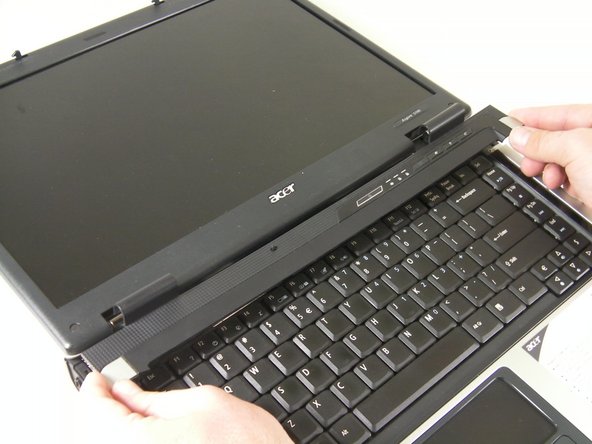

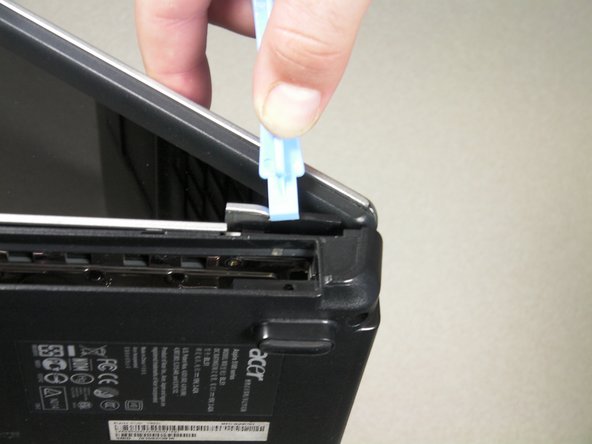

  5. Acer Aspire 5100 Motherboard Replacement: step 5, image 1 of 2 Acer Aspire 5100 Motherboard Replacement: step 5, image 2 of 2

    • Open and push the screen back all the way until it is horizontal with the rest of the laptop.

    • Locate the panel above the keyboard that has the power button on it.

    • Remove this panel by using a spudger to pry up the sides.

    • You are using the spudger to release tabs holding the panel in place.

    • After you have used the spudger to release the tabs, lift up the panel.

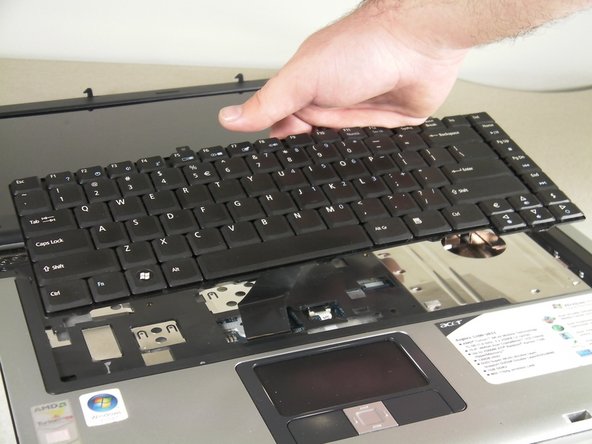

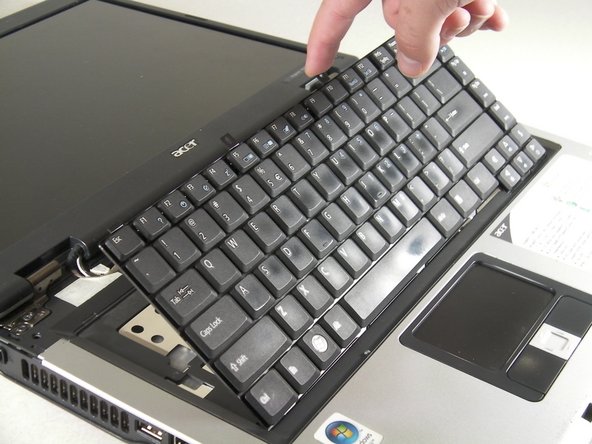

  6. Acer Aspire 5100 Motherboard Replacement: step 6, image 1 of 3 Acer Aspire 5100 Motherboard Replacement: step 6, image 2 of 3 Acer Aspire 5100 Motherboard Replacement: step 6, image 3 of 3

    • Under the panel, locate and remove the two screws that connect the keyboard to the laptop. One screw is located above the F5 button, and the other one is located above the F10 button.

    • Lift up the keyboard CAREFULLY because there is a ribbon that connects the keyboard to the motherboard.

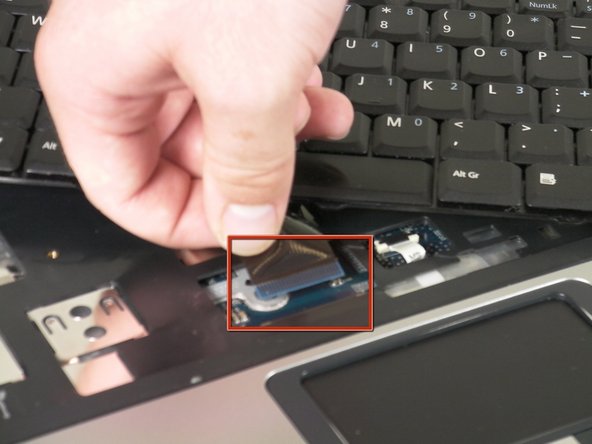

  7. Acer Aspire 5100 Motherboard Replacement: step 7, image 1 of 1

    • Release the catch on the ribbon socket, by sliding the two tabs toward the ribbon, then pull the ribbon, which is located under the keyboard, to detach it from the motherboard.

    • Remove the keyboard.

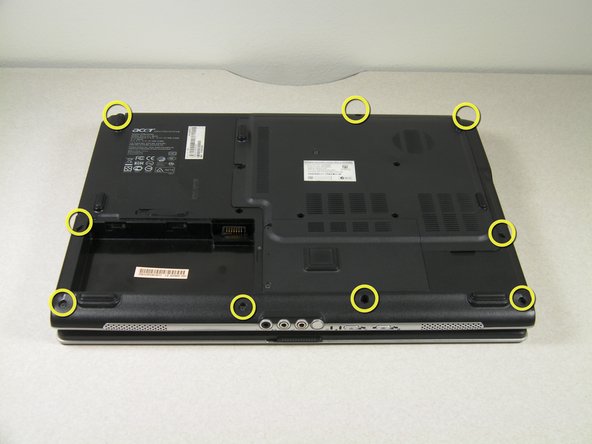

  9. Acer Aspire 5100 Motherboard Replacement: step 8, image 1 of 1

    • On the back of the laptop, locate and unscrew all nine of the screws located at the edges.

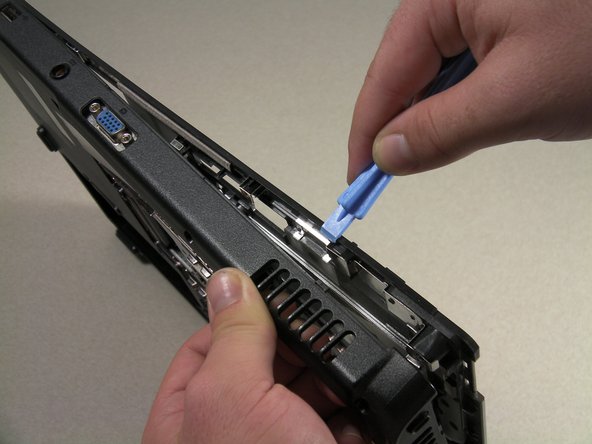

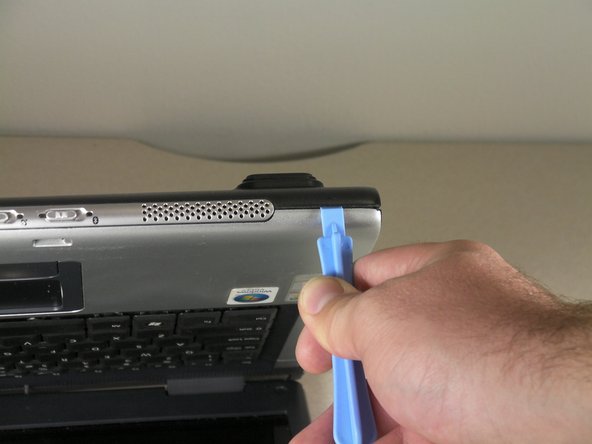

  10. Acer Aspire 5100 Motherboard Replacement: step 9, image 1 of 3 Acer Aspire 5100 Motherboard Replacement: step 9, image 2 of 3 Acer Aspire 5100 Motherboard Replacement: step 9, image 3 of 3

    • Open the lid of the laptop and locate the cover that surrounds the keyboard and track pad.

    • Use the spudger to pry open the sides of this cover.

    • You are using the spudger to release tabs holding the cover in place.

    • DO NOT lift cover off after detaching it because the track pad is connected to the motherboard.

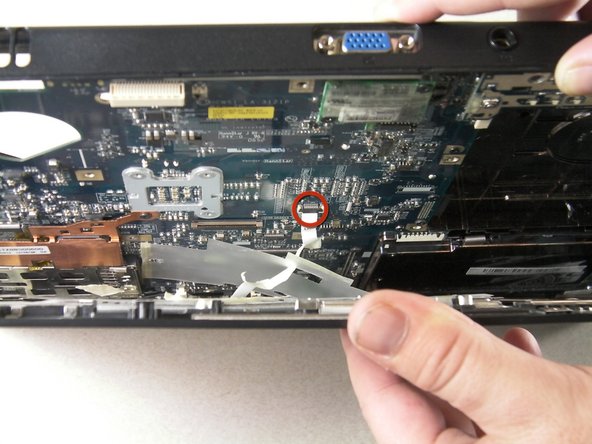

  11. Acer Aspire 5100 Motherboard Replacement: step 10, image 1 of 2 Acer Aspire 5100 Motherboard Replacement: step 10, image 2 of 2

    • Slightly lift up the cover to see the ribbon connection.

    • Release the catch by sliding the two lugs toward the ribbon, then pull the ribbon to detach it from the motherboard.

    • Lift up the cover from the laptop.

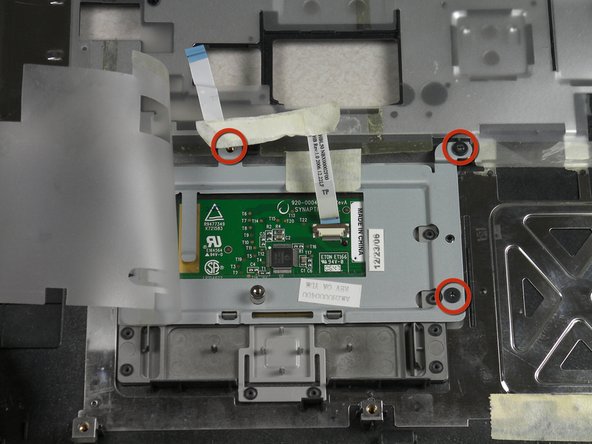

  12. Acer Aspire 5100 Motherboard Replacement: step 11, image 1 of 1

    • On the cover that was removed, flip it around and locate where the back of the track pad is.

    • Remove the three screws located at the corners.

    • Lift up the bracket that you just unscrewed and remove track pad.

  13. Acer Aspire 5100 Motherboard Replacement: step 12, image 1 of 1

    • Unscrew the 2 screws at each corner located underneath the LCD screen.

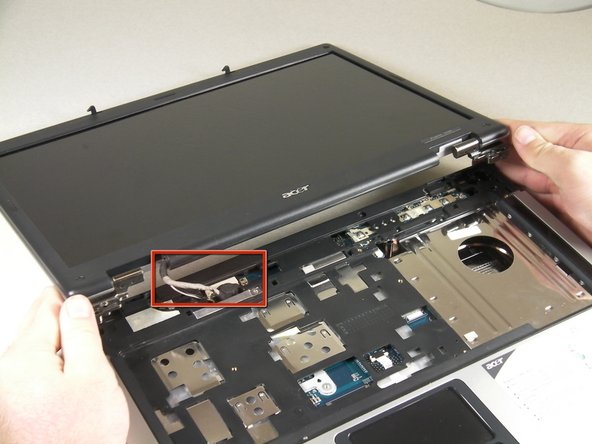

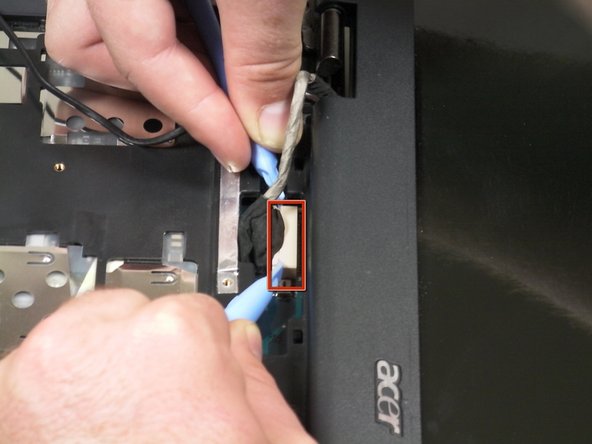

  14. Acer Aspire 5100 Motherboard Replacement: step 13, image 1 of 2 Acer Aspire 5100 Motherboard Replacement: step 13, image 2 of 2

    • Locate the wire connecting the LCD screen to the motherboard.

    • Detach the white rectangle located on the motherboard at the end of the wire.

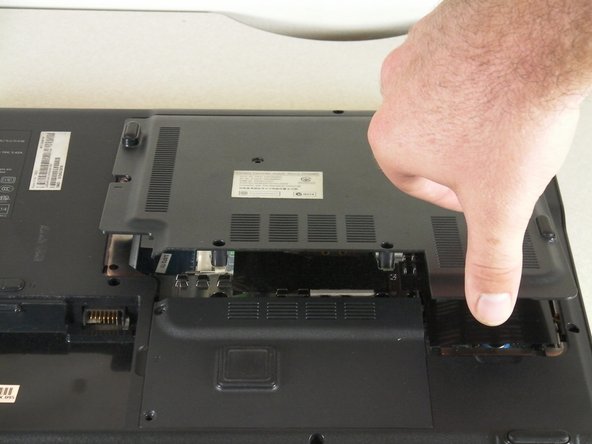

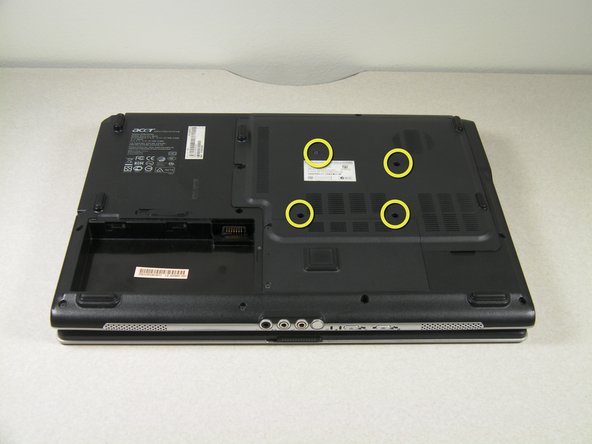

  15. Acer Aspire 5100 Motherboard Replacement: step 14, image 1 of 2 Acer Aspire 5100 Motherboard Replacement: step 14, image 2 of 2

    • Place the laptop upside down.

    • Locate the largest removable panel on the back and remove the four screws connecting it.

    • Lift up and remove the panel.

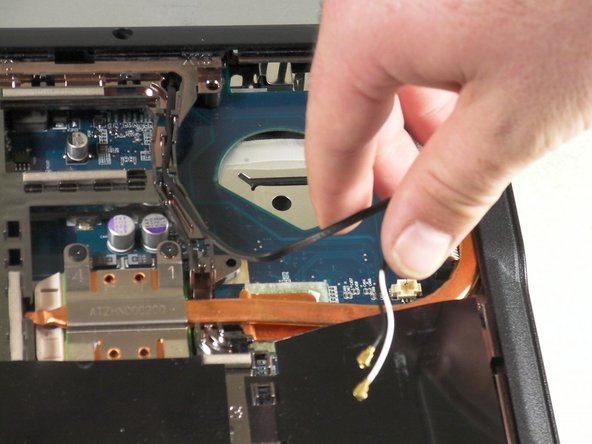

  16. Acer Aspire 5100 Motherboard Replacement: step 15, image 1 of 1

    • Locate the black and white wire and detach it.

    • You do not need to remove the cooling fan

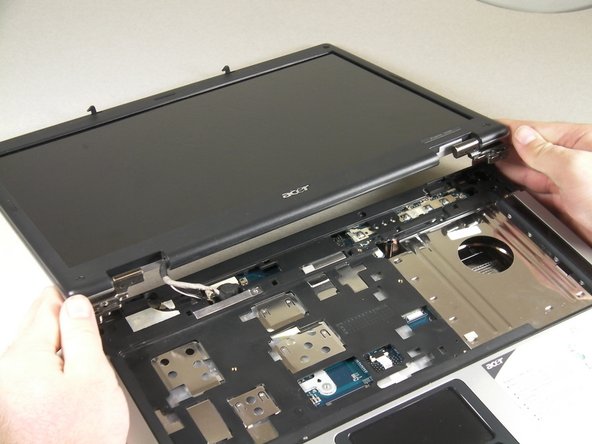

  17. Acer Aspire 5100 Motherboard Replacement: step 16, image 1 of 1

    • Lift up the monitor to detach it

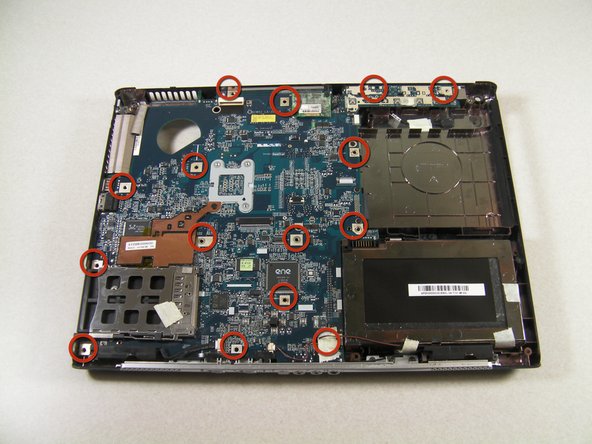

  18. Acer Aspire 5100 Motherboard Replacement: step 17, image 1 of 1

    • Locate and remove the screws on the motherboard.

    • There is normally only one remaining screw holding the board. Bottom right (sometimes under tape).

    • All the other screw holes except screws holding the base cover on and are kept empty.

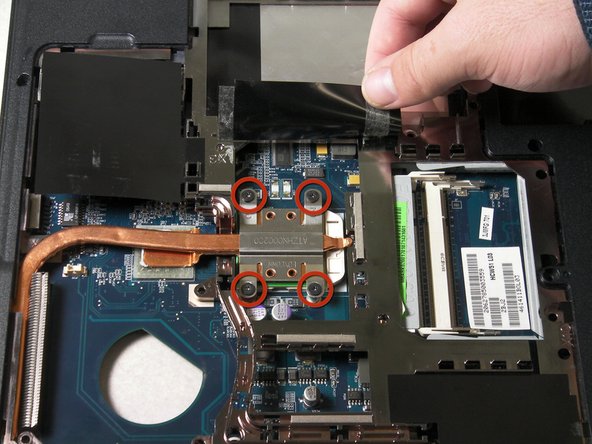

  19. Acer Aspire 5100 Motherboard Replacement: step 18, image 1 of 1

    • Flip the laptop upside down.

    • Locate the heat sink, which is the copper "L" shaped component, and unscrew the four screws that connect it to the motherboard.

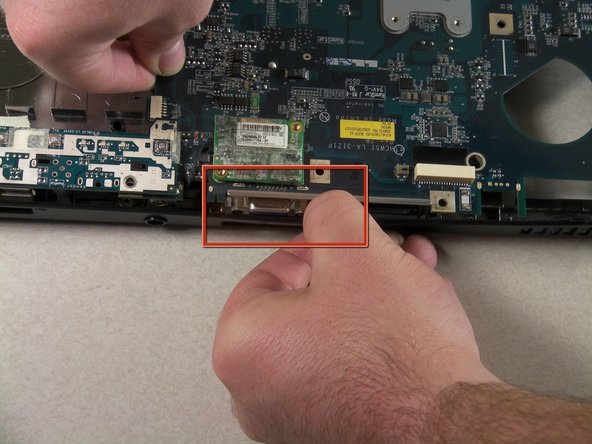

  20. Acer Aspire 5100 Motherboard Replacement: step 19, image 1 of 1

    • Find the VGA connector located next to the USB ports.

    • Push out the back of the casing by the VGA connector to be able to get the motherboard out.

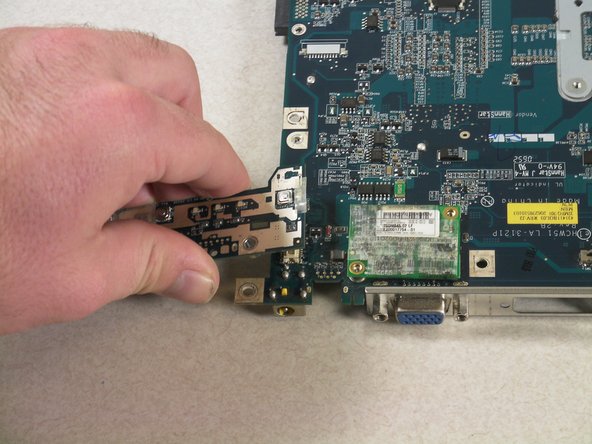

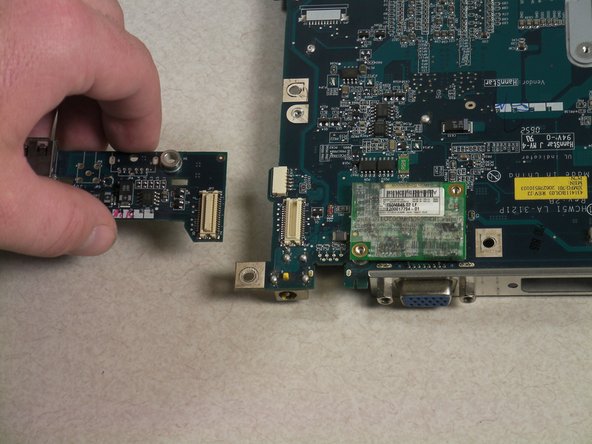

  21. Acer Aspire 5100 Motherboard Replacement: step 20, image 1 of 2 Acer Aspire 5100 Motherboard Replacement: step 20, image 2 of 2

    • Lift up and remove the motherboard from the laptop casing.

    • Remove the USB add-on card to use it with the new motherboard.

    • To remove, grab on the sides and lift upward.

Conclusion

To reassemble your device, follow these instructions in reverse order.
