Acer Aspire 5100 USB Add-on Card Replacement

Step 1 Acer Aspire 5100 USB Add-on Card Replacement

• Locate and remove the 5 screws that secure the panel over the RAM and CPU cover on the upper right hand side. These can be found in the center towards the corner opposite the battery compartment.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

• Lift up and remove the RAM and CPU cover.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

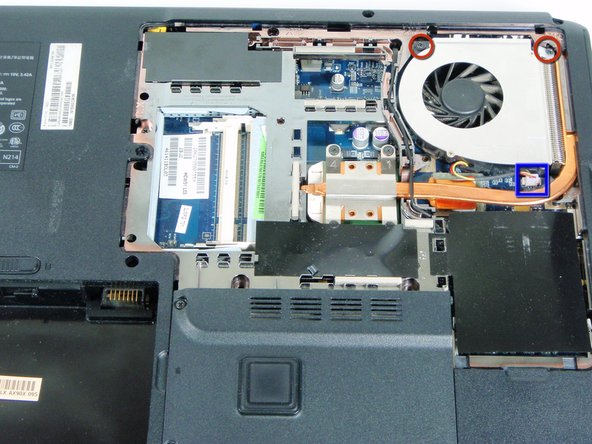

• Remove the two Phillips screws securing the fan.
• Carefully disconnect the fan cable from the motherboard.
• Lift up and remove the fan.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

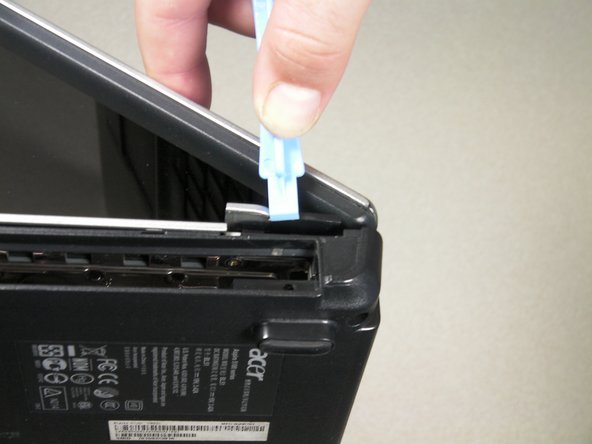

Step 4

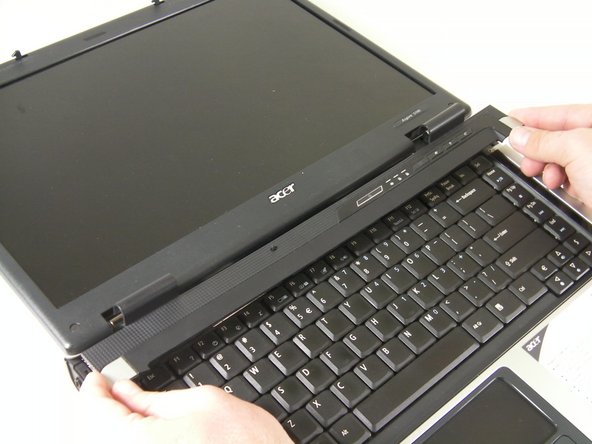

• Open and push the screen back all the way until it is horizontal with the rest of the laptop.
• Locate the panel above the keyboard that has the power button on it.
• Remove this panel by using a spudger to pry up the sides.
• You are using the spudger to release tabs holding the panel in place.
• After you have used the spudger to release the tabs, lift up the panel.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

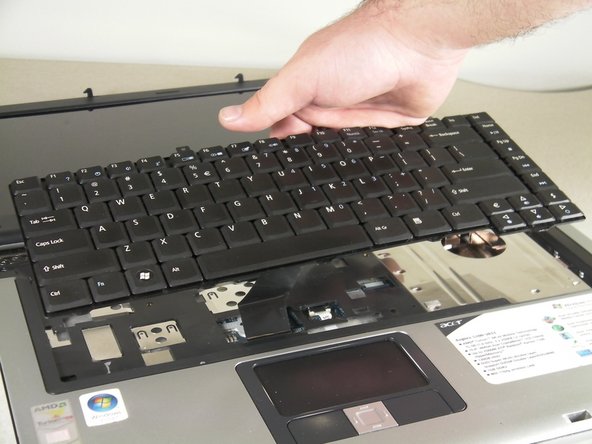

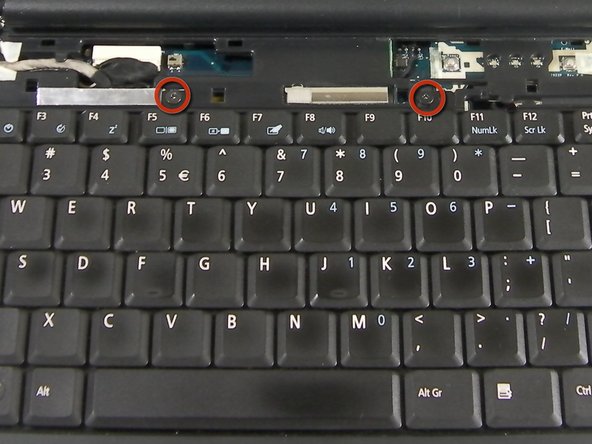

Step 5

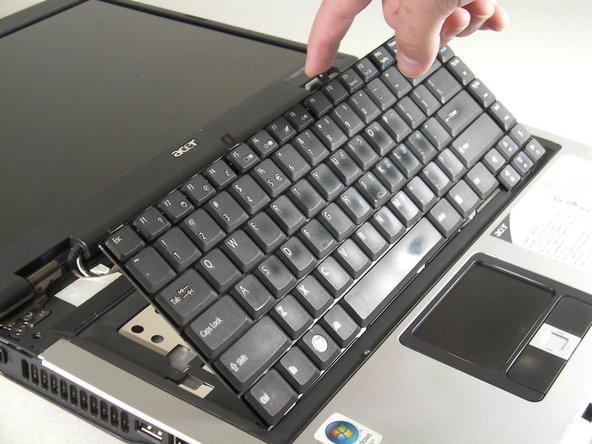

• Under the panel, locate and remove the two screws that connect the keyboard to the laptop. One screw is located above the F5 button, and the other one is located above the F10 button.
• Lift up the keyboard CAREFULLY because there is a ribbon that connects the keyboard to the motherboard.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 6

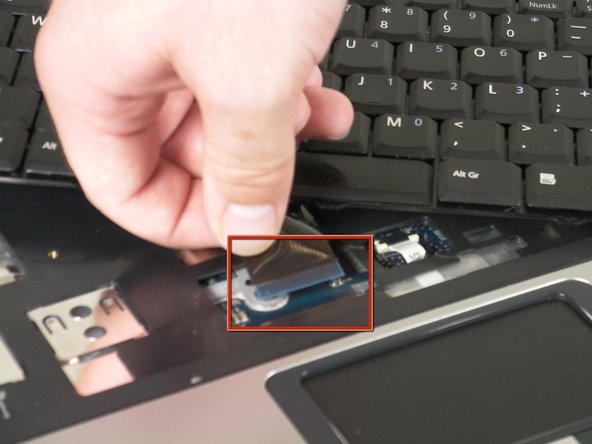

• Release the catch on the ribbon socket, by sliding the two tabs toward the ribbon, then pull the ribbon, which is located under the keyboard, to detach it from the motherboard.
• Remove the keyboard.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 7

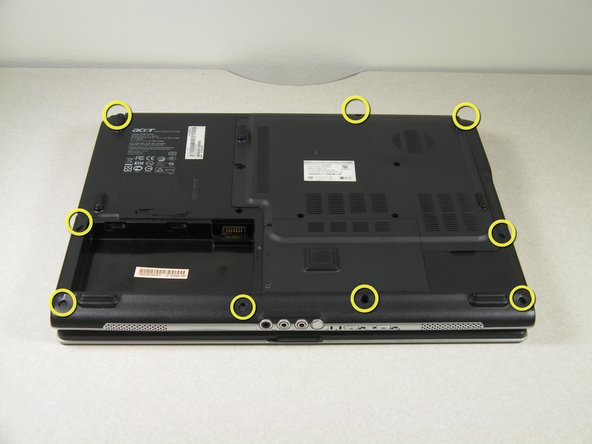

• On the back of the laptop, locate and unscrew all nine of the screws located at the edges.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

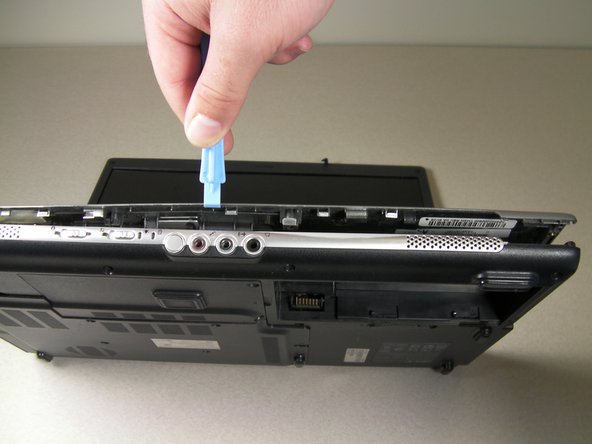

Step 8

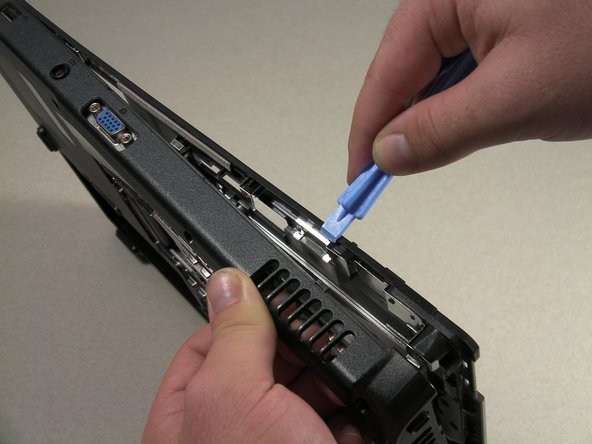

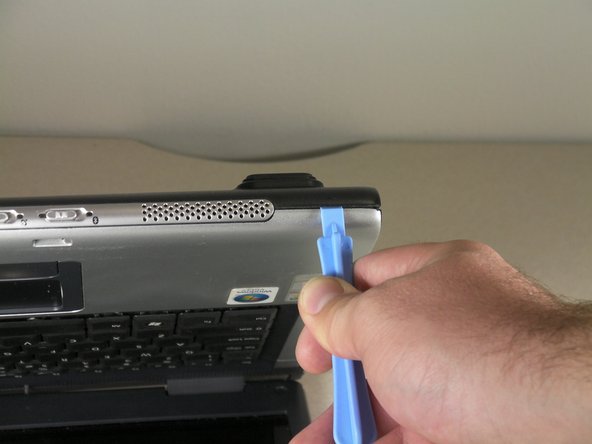

• Open the lid of the laptop and locate the cover that surrounds the keyboard and track pad.
• Use the spudger to pry open the sides of this cover.
• You are using the spudger to release tabs holding the cover in place.
• DO NOT lift cover off after detaching it because the track pad is connected to the motherboard.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

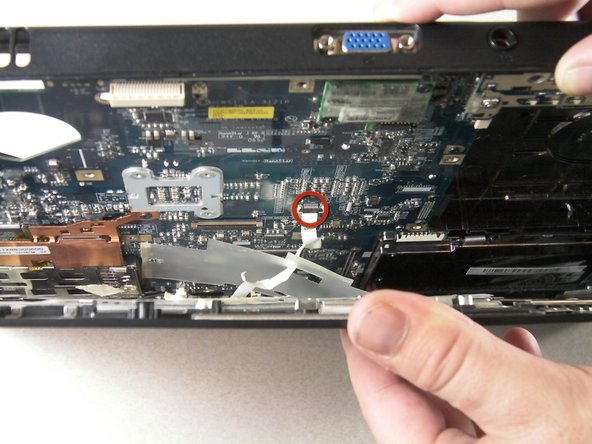

Step 9

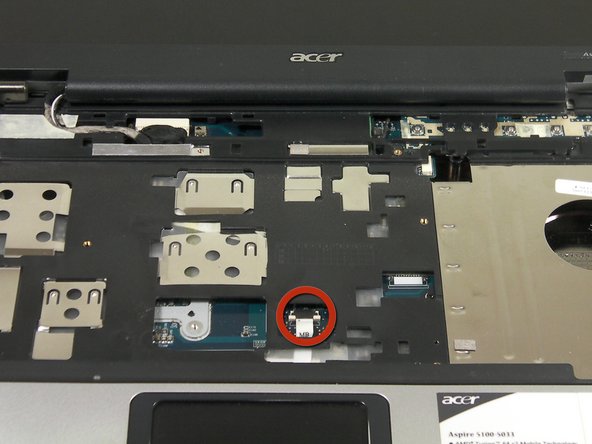

• Slightly lift up the cover to see the ribbon connection.
• Release the catch by sliding the two lugs toward the ribbon, then pull the ribbon to detach it from the motherboard.
• Lift up the cover from the laptop.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 10

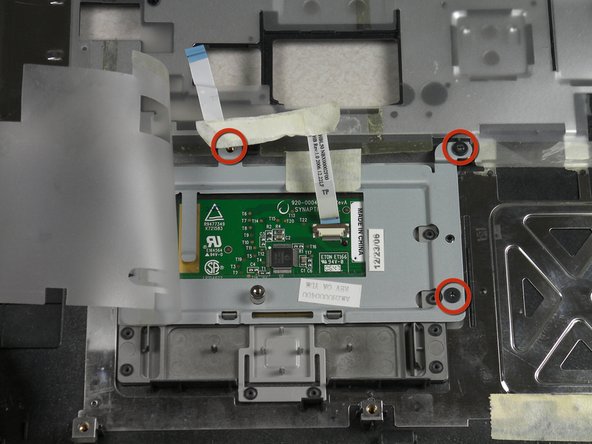

• On the cover that was removed, flip it around and locate where the back of the track pad is.
• Remove the three screws located at the corners.
• Lift up the bracket that you just unscrewed and remove track pad.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 11

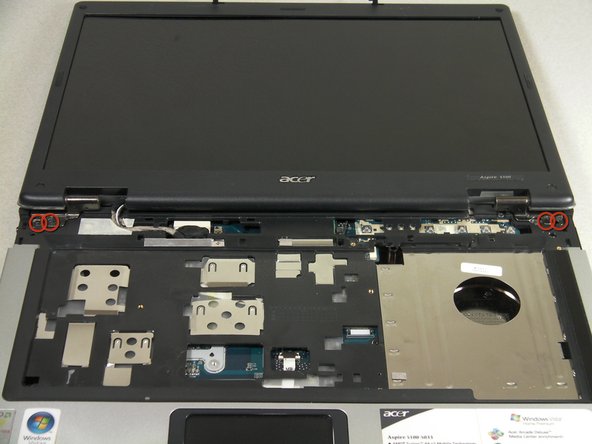

• Unscrew the 2 screws at each corner located underneath the LCD screen.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 12

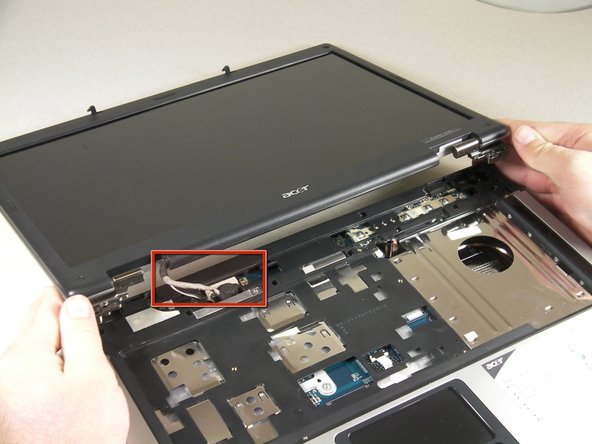

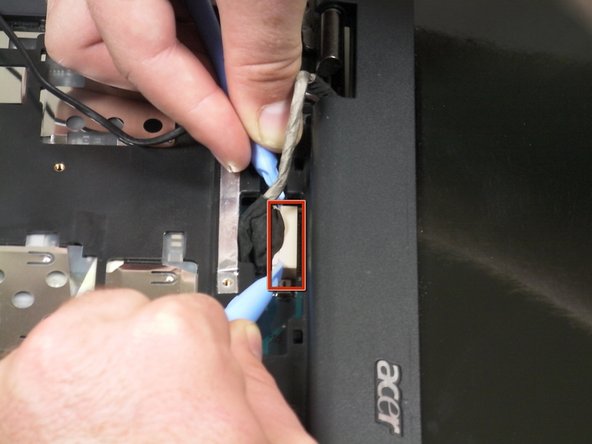

• Locate the wire connecting the LCD screen to the motherboard.
• Detach the white rectangle located on the motherboard at the end of the wire.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

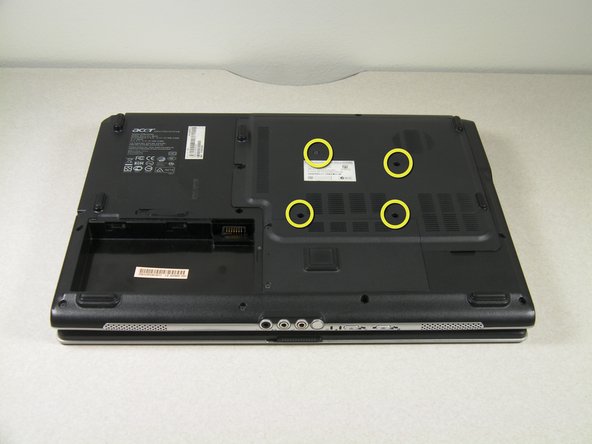

Step 13

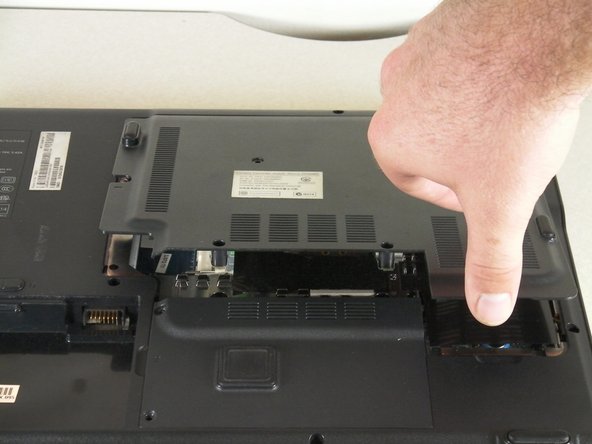

• Place the laptop upside down.
• Locate the largest removable panel on the back and remove the four screws connecting it.
• Lift up and remove the panel.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

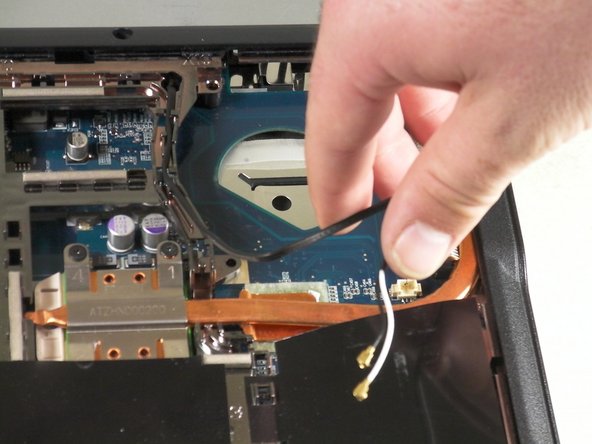

Step 14
• Locate the black and white wire and detach it.
• You do not need to remove the cooling fan
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 15

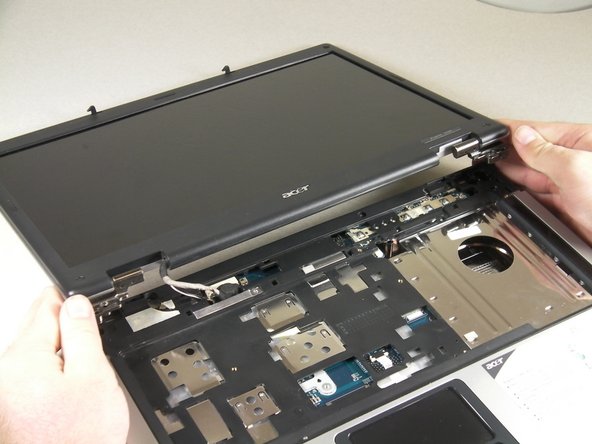

• Lift up the monitor to detach it
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 16

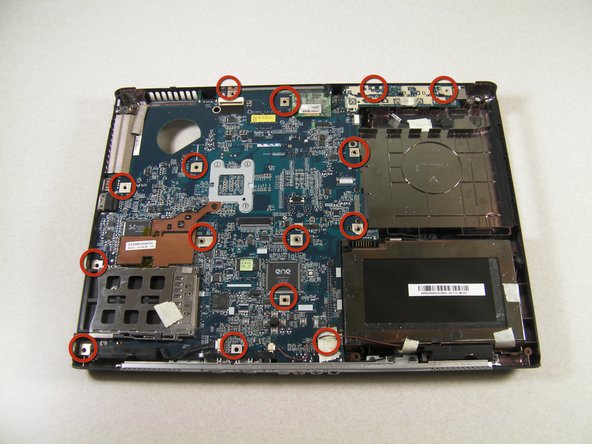

• Locate and remove the screws on the motherboard.
• There is normally only one remaining screw holding the board. Bottom right (sometimes under tape).
• All the other screw holes except screws holding the base cover on and are kept empty.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

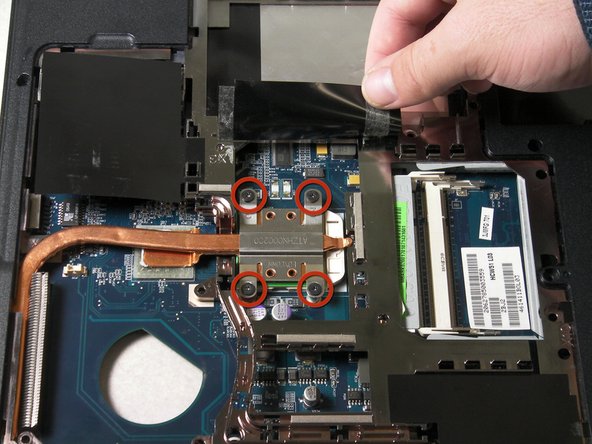

Step 17
• Flip the laptop upside down.
• Locate the heat sink, which is the copper "L" shaped component, and unscrew the four screws that connect it to the motherboard.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 18

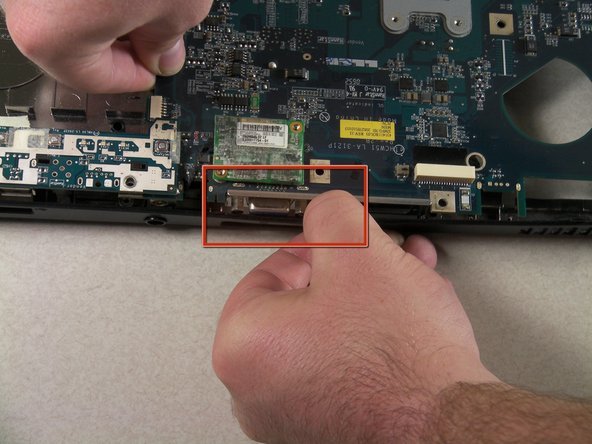

• Find the VGA connector located next to the USB ports.
• Push out the back of the casing by the VGA connector to be able to get the motherboard out.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

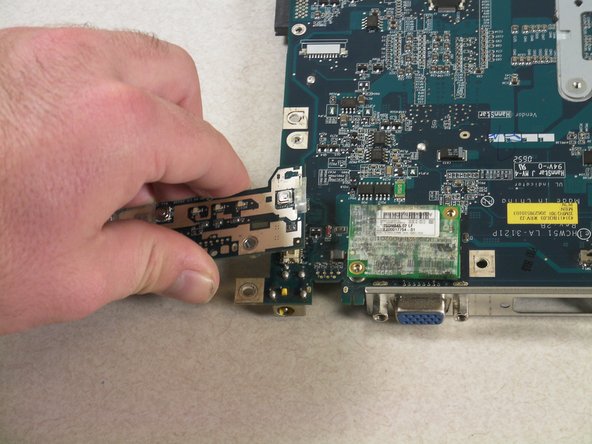

Step 19
• Lift up and remove the motherboard from the laptop casing.
• Remove the USB add-on card to use it with the new motherboard.
• To remove, grab on the sides and lift upward.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

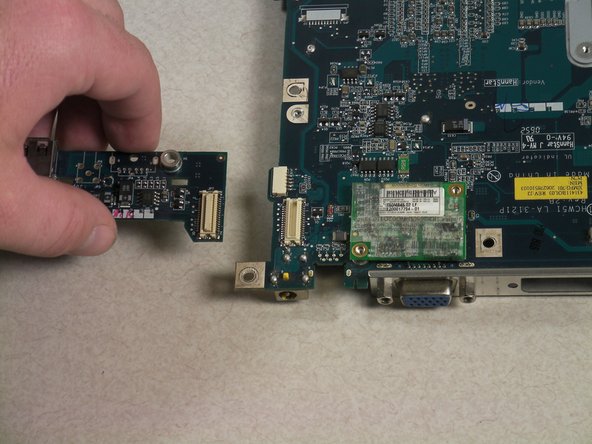

Step 20
• Put in new USB add-on card.
