Akai MPK25 Beat Pad Removal

Introduction

Problems with the beat pad are common with this device. Use this guide to replace a defective beat pad sensor.

What you need

  1. Akai MPK25 Beat Pad Removal, Akai MPK25 Beat Pad Removal: step 1, image 1 of 1

    • Remove all the selector knob covers by pulling them off.

  2. Akai MPK25 Beat Pad Removal: step 2, image 1 of 1

    • Using needle nose pliers, remove the washers from the four corner selector knobs.

  3. Akai MPK25 Beat Pad Removal: step 3, image 1 of 1

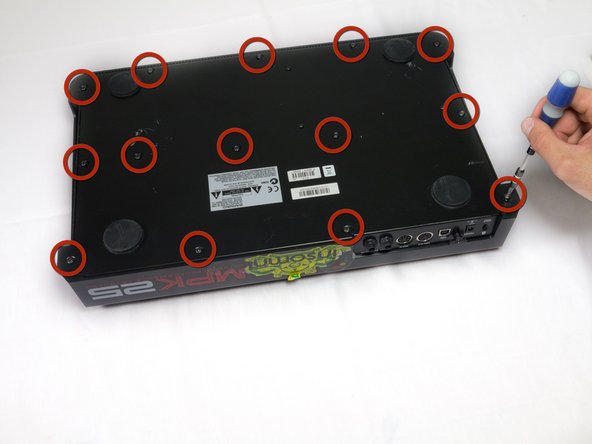

    • Flip the device over. Using a Philips #2 screw driver, remove the fourteen 10.3 mm black screws holding the back panel in place.

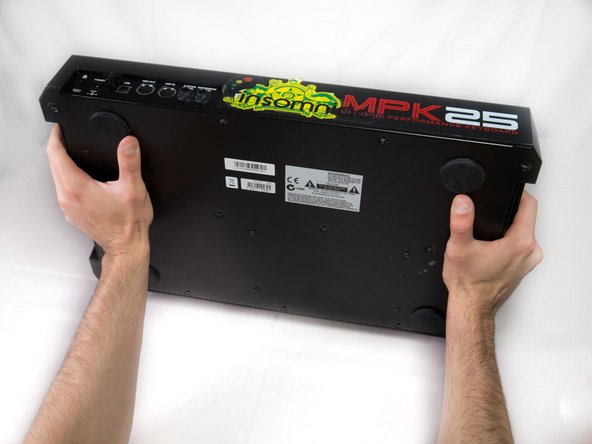

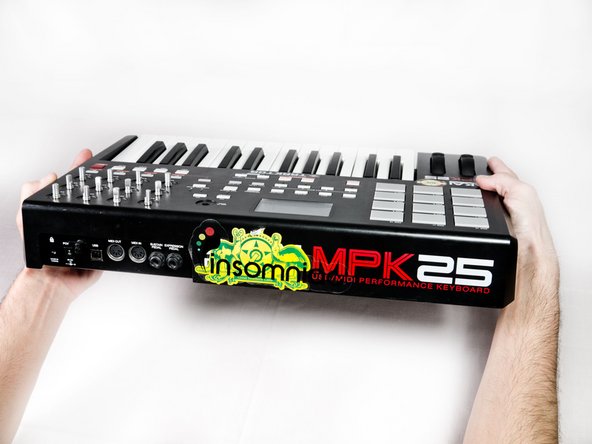

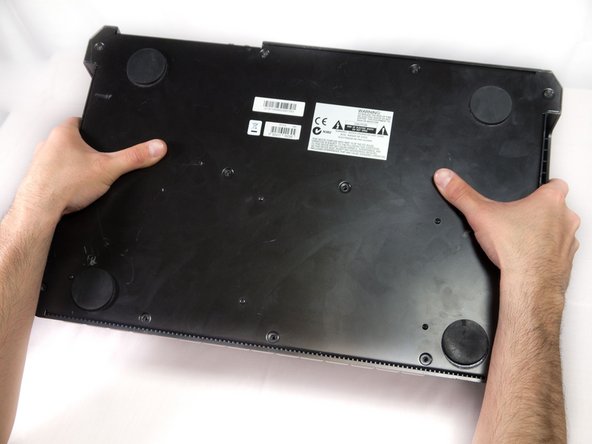

  5. Akai MPK25 Beat Pad Removal: step 4, image 1 of 3 Akai MPK25 Beat Pad Removal: step 4, image 2 of 3 Akai MPK25 Beat Pad Removal: step 4, image 3 of 3

    • Carefully flip the device to the front making sure you secure the face plate and the chassis together.

    • Please use care in following the step above to avoid ripping the ribbon cables connecting the two sides.

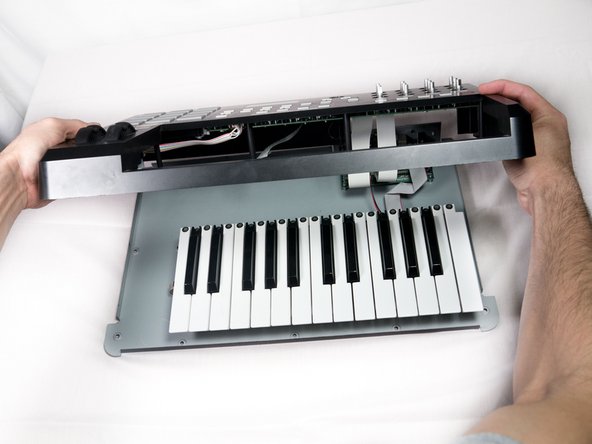

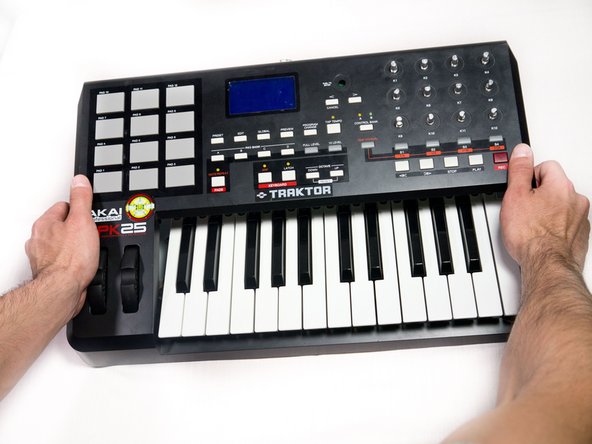

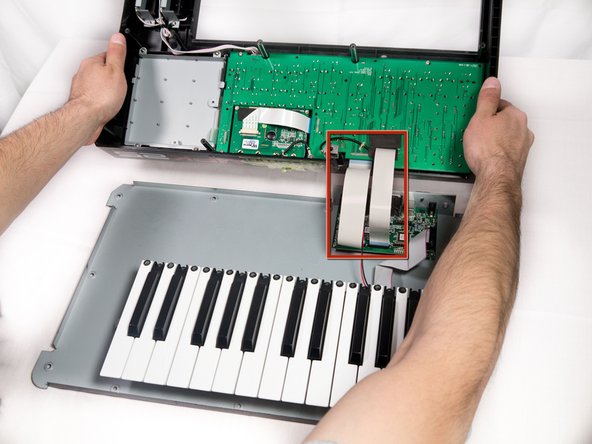

  6. Akai MPK25 Beat Pad Removal: step 5, image 1 of 3 Akai MPK25 Beat Pad Removal: step 5, image 2 of 3 Akai MPK25 Beat Pad Removal: step 5, image 3 of 3

    • Rotate the device 180 degrees and carefully remove the face plate by slightly lifting the screen side towards you and then sliding the bottom out from under the keys.

    • Use care when doing the step above so that the ribbon connectors which connect the top of the chassis to the top of the face plate are not damaged.

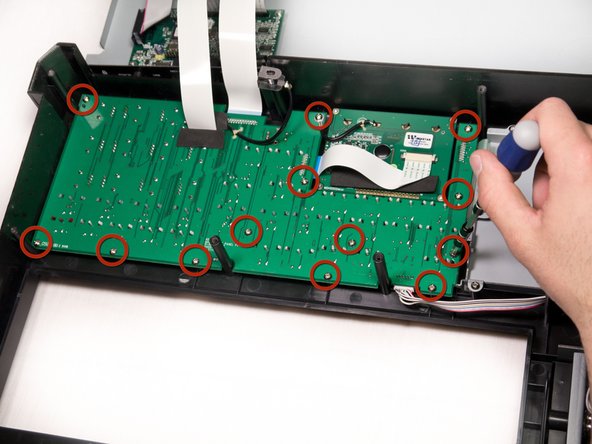

  7. Akai MPK25 Beat Pad Removal: step 6, image 1 of 1

    • Using a Phillips #2 screwdriver, remove the thirteen 9.8 mm silver screws holding the mother board to the face plate.

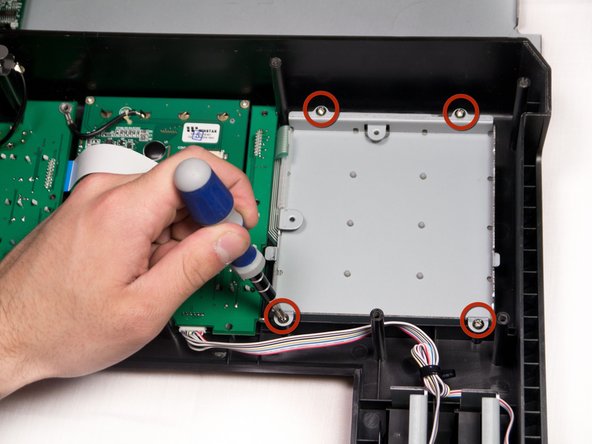

  8. Akai MPK25 Beat Pad Removal: step 7, image 1 of 1

    • Using a Phillips #2 screwdriver, remove the four 9.8mm screws holding in the base of the beat pad.

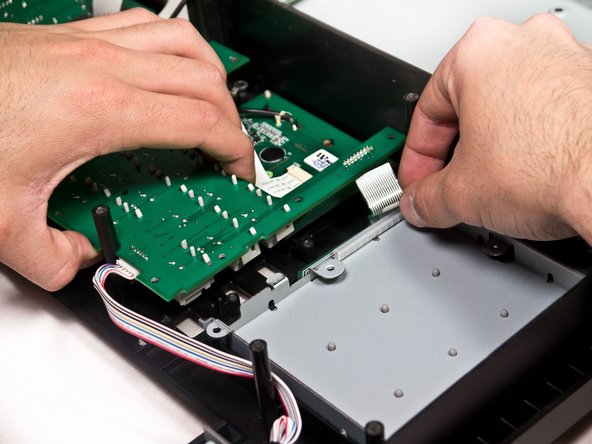

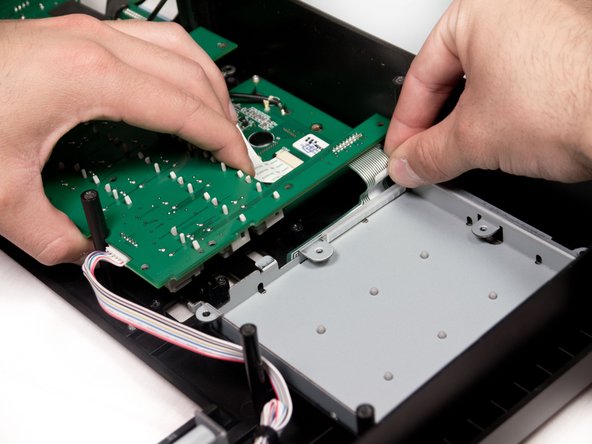

  9. Akai MPK25 Beat Pad Removal: step 8, image 1 of 2 Akai MPK25 Beat Pad Removal: step 8, image 2 of 2

    • Slightly lift the mother board near the edge of the beat pads and wiggle the beat pad ribbon connector free.

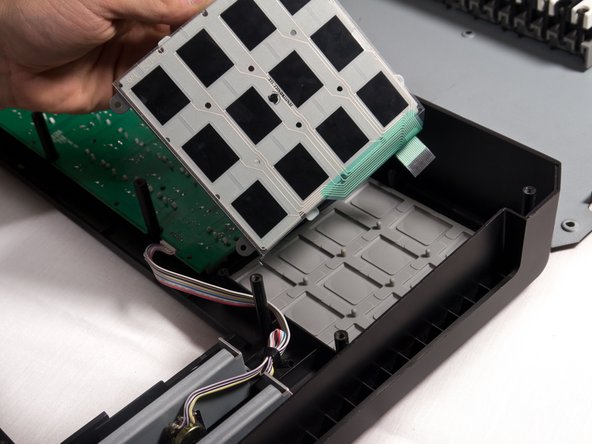

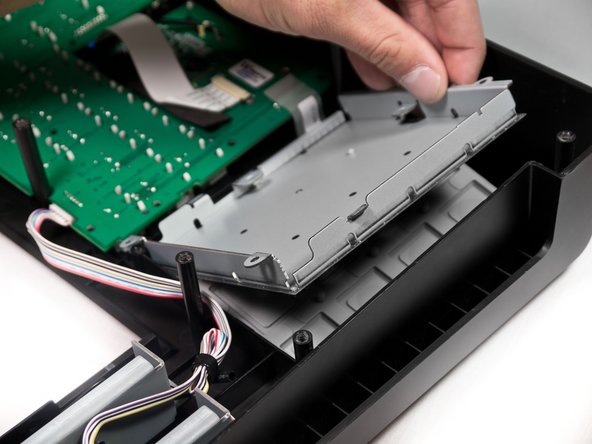

  10. Akai MPK25 Beat Pad Removal: step 9, image 1 of 2 Akai MPK25 Beat Pad Removal: step 9, image 2 of 2

    • Remove the beat pad sensor from the face plate.

Conclusion

To reassemble your device, follow these instructions in reverse order.
