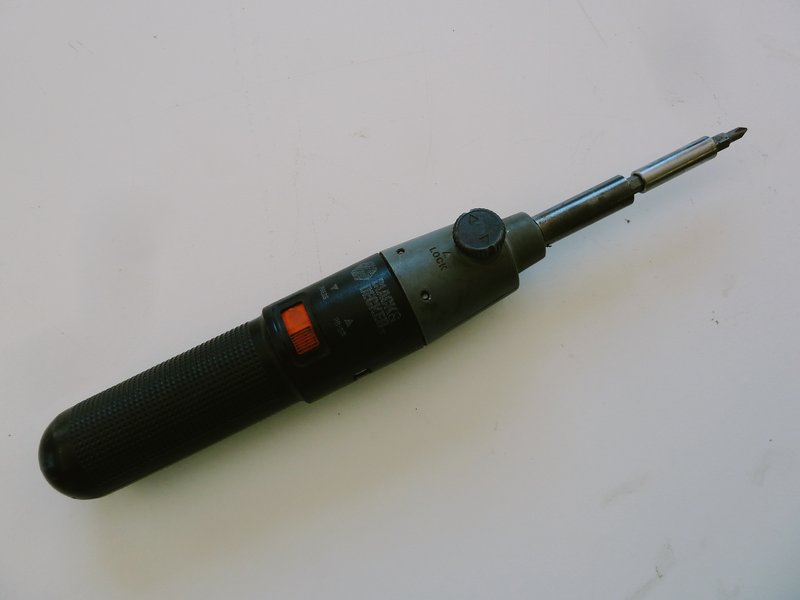

Baton Screwdriver

Introduction

Dismantling and Recycling Centre (DRZ)

Katharina Lenz, Vienna / Austria

Health & Safety

Dismantling doesn't include any harmful steps. Nonetheless workers should wear personal protection equipment like gloves, goggles, apron and robust shoes.

Note: This is a general guide for most baton screwdrivers. As the construction can differ, the dismantling steps mentioned below can vary in their order. However, the described steps show what parts the removal should focus on.

What you need

1. Step 1 Baton Screwdriver
  Remove the connecting bolts.
  Add Comment

  1024
2. Step 2
  Remove the planetary gear.

  Open and remove the case.

  Now you see, from left to right, the capacitor, the battery and the motor.
  Add Comment

  1024
4. Step 3

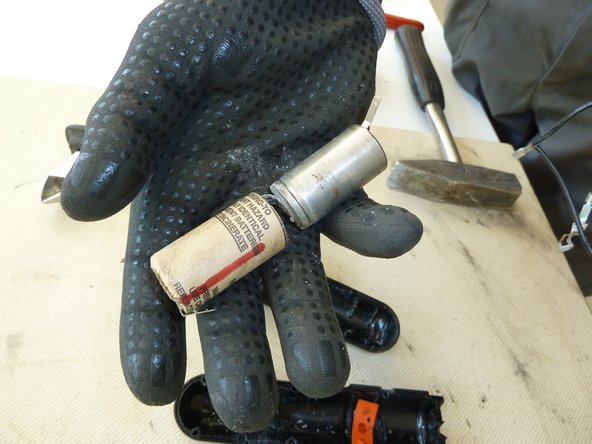

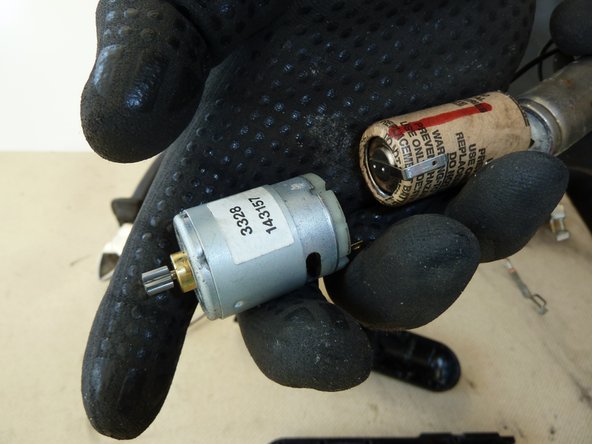

  Remove the battery, the motor and the capacitor.
  Add Comment

  1024
5. Step 4

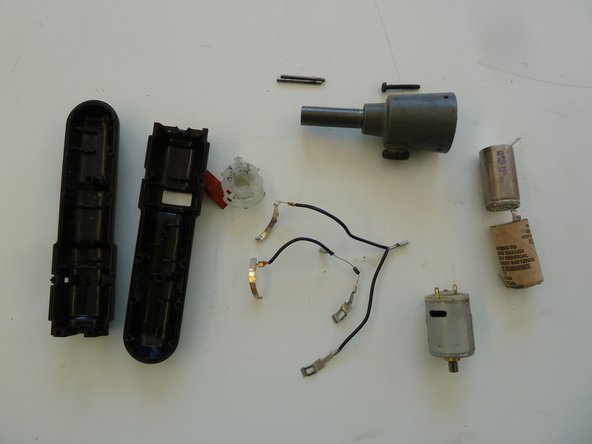

  Separate the remaining materials according to their type and go on with the appropriate data sheet (e.g. aluminium, ferrous metals, plastic, further PWBs, etc.).

  Make sure the plastic parts are completely free of metal pieces.
