Canon EOS 30 Battery Door Replacement

Remove two 4.8 mm black screws on the front of the camera.

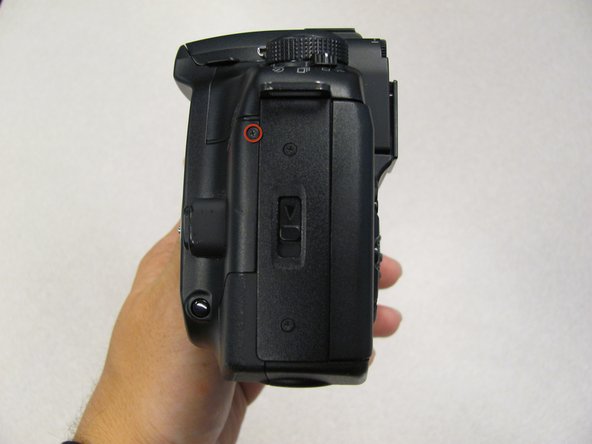

Remove one 4.3 mm black screw under the lens ring and one 4.8 mm black screw on the bottom of the camera.

Remove one 4.8 mm black screw on the left side.

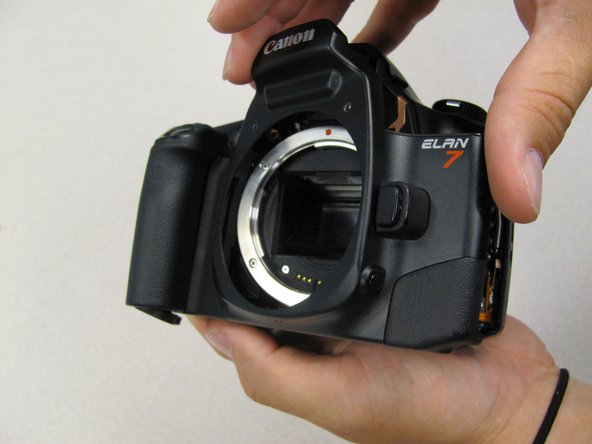

Remove the front panel by lifting out the side opposite the grip.

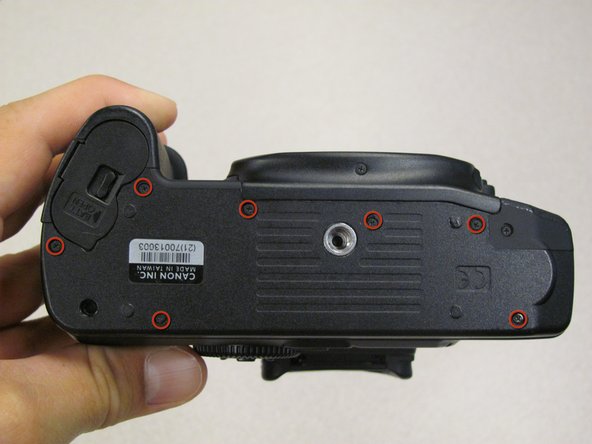

Remove seven 4.25 mm black screws on the bottom panel.

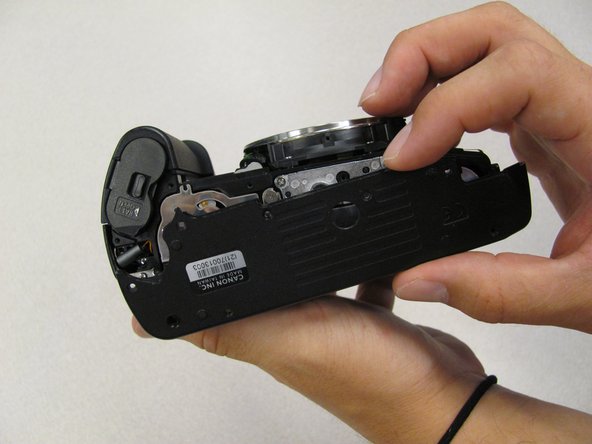

Remove the bottom panel.

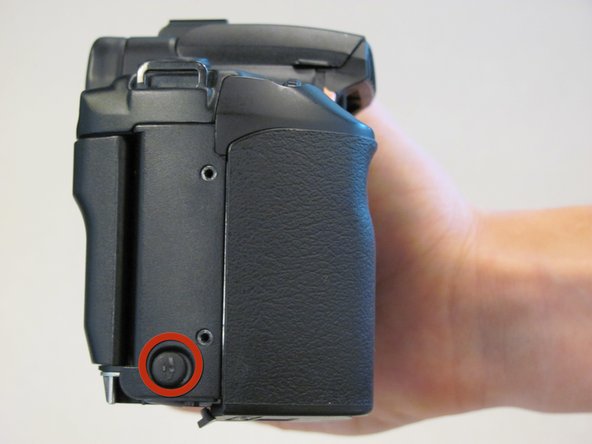

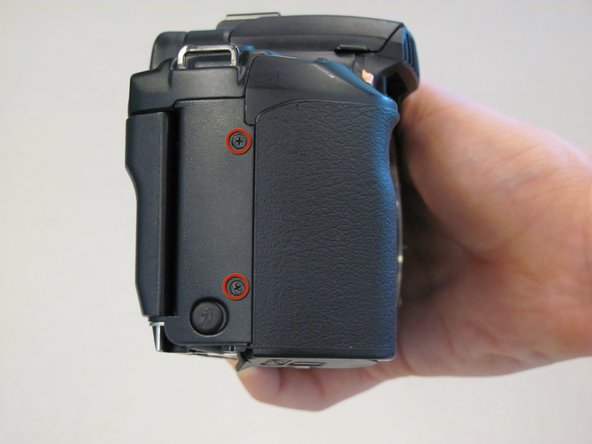

Remove two 6.5 mm black screws from the panel.

Remove plastic Remote Control Socket cap by pulling it straight out.

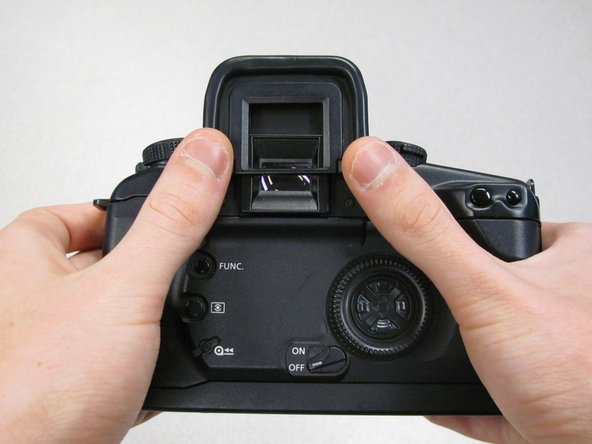

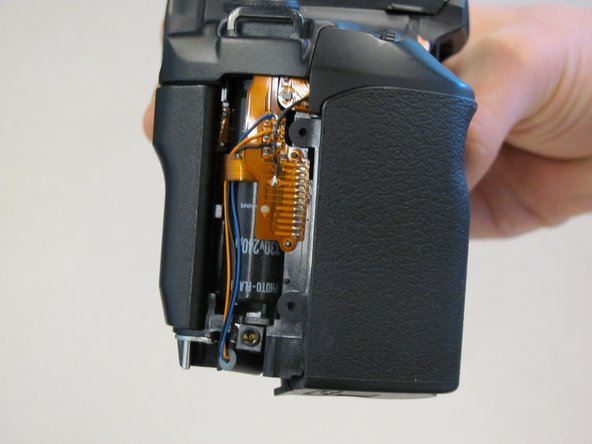

Slide panel toward bottom of camera to remove.

Remove outer eyepiece by sliding it upwards.

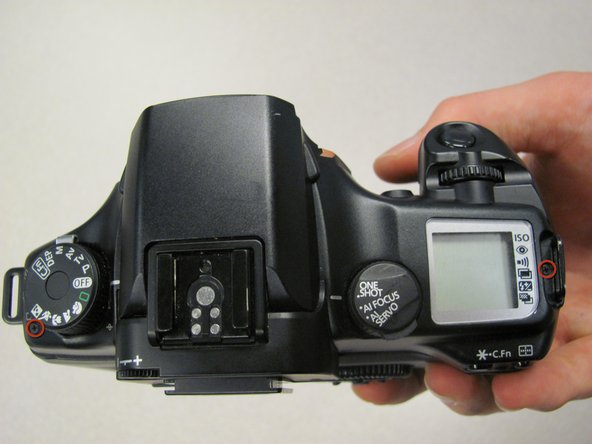

Remove two 4.75 mm screws from top of camera.

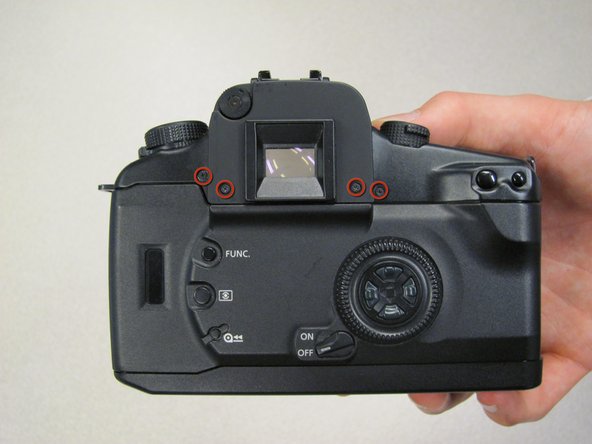

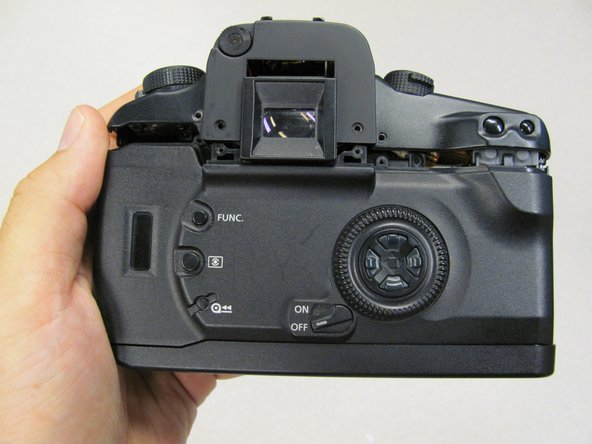

Remove four 4.3 mm screws from back of camera.

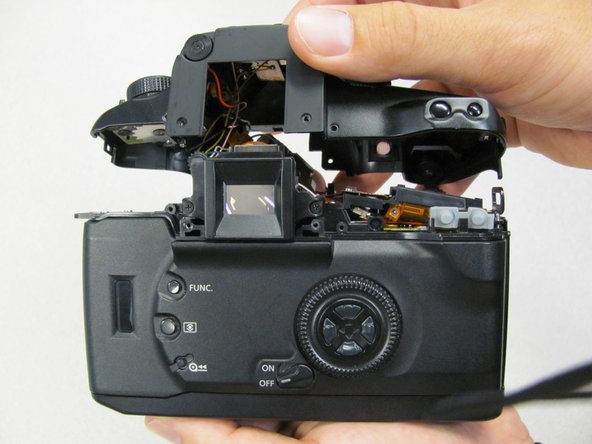

Slowly separate top panel from camera by pushing up.

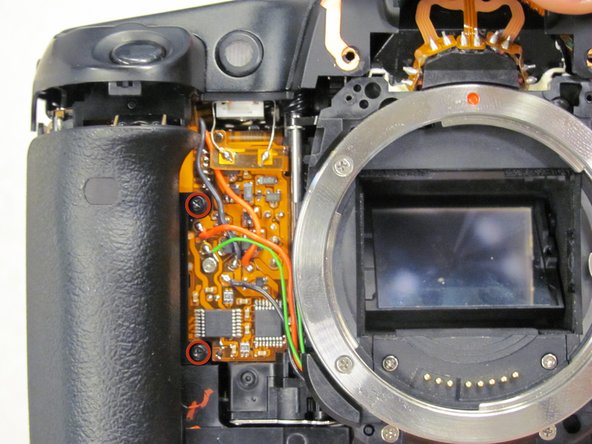

Remove two 5.5 mm screws from front of camera.

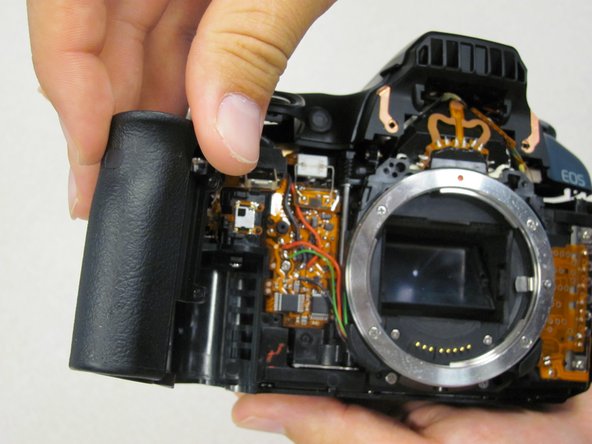

Remove grip panel.

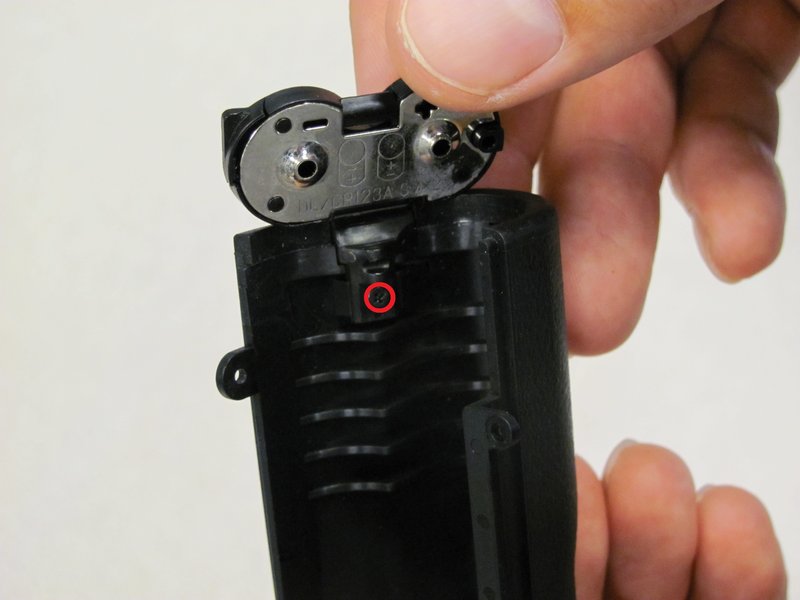

Remove one black screw from battery door on underside of grip.

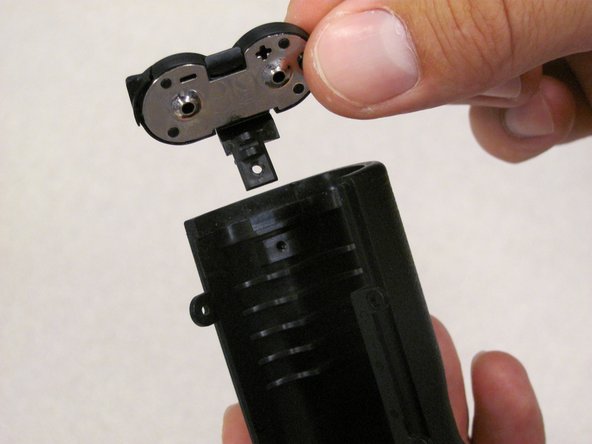

Remove battery door.
