Canon EOS 30 Front Panel Replacement

What you need

  1. Canon EOS 30 Front Panel Replacement, Canon EOS 30 Front Panel Replacement: step 1, image 1 of 1
    • Remove two 4.8 mm black screws on the front of the camera.

  2. Canon EOS 30 Front Panel Replacement: step 2, image 1 of 1
    • Remove one 4.3 mm black screw under the lens ring and one 4.8 mm black screw on the bottom of the camera.

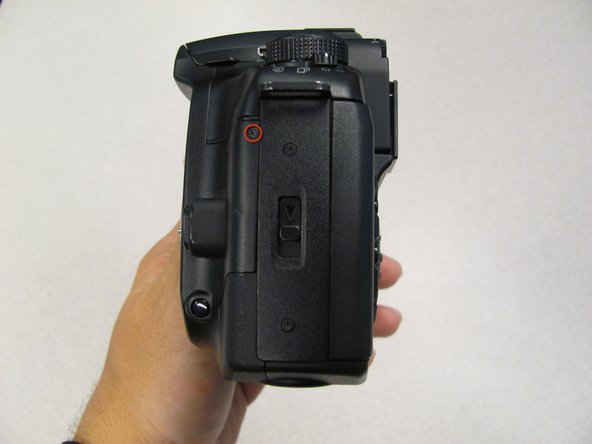

  3. Canon EOS 30 Front Panel Replacement: step 3, image 1 of 1
    • Remove one 4.8 mm black screw on the left side.

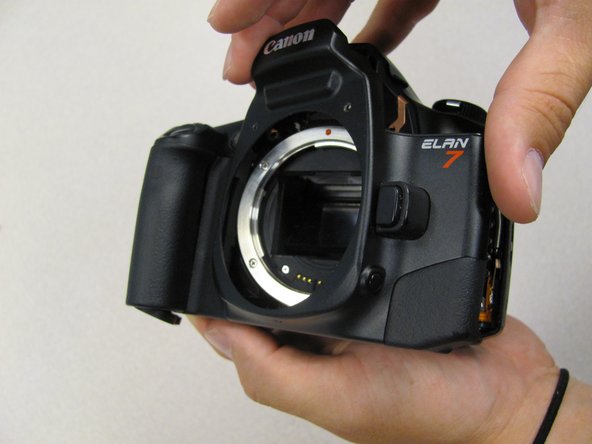

  4. Canon EOS 30 Front Panel Replacement: step 4, image 1 of 1
    • Remove the front panel by lifting out the side opposite the grip.

Conclusion

To reassemble your device, follow these instructions in reverse order.
