    • Orient the camera with the hand strap facing you.

    • Remove the two 4mm #00 Philips screws.

    • When the screws are removed, the black plate will easily come off as well as the two metal plates under it. Be careful to not let them fall or get lost.

  2. Canon Optura 100MC LCD Screen and Glass Screen Replacement: step 2, image 1 of 1
    • Lift the strap up.

  3. Canon Optura 100MC LCD Screen and Glass Screen Replacement: step 3, image 1 of 1
    • Orient the camera so that the back button panel and viewfinder are facing you.

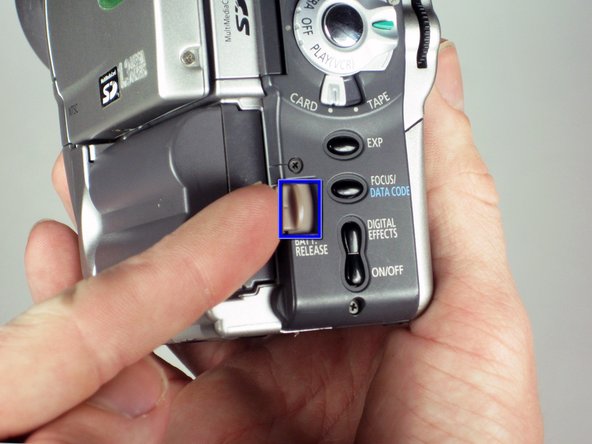

    • Push the "Battery Release" button to the side and hold.

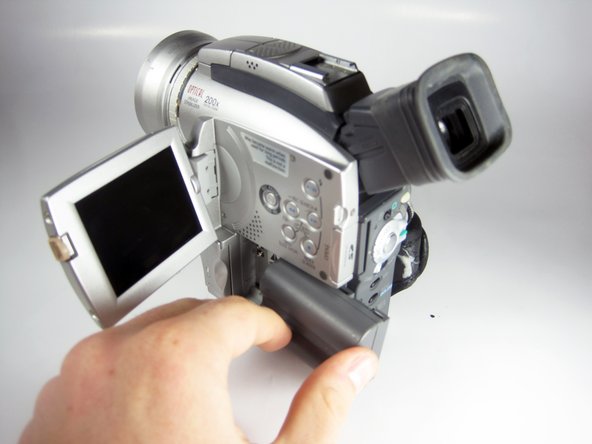

  4. Canon Optura 100MC LCD Screen and Glass Screen Replacement: step 4, image 1 of 1
    • While holding the battery release button to the side, slide the battery towards you, past the release button.

  5. Canon Optura 100MC LCD Screen and Glass Screen Replacement: step 5, image 1 of 1

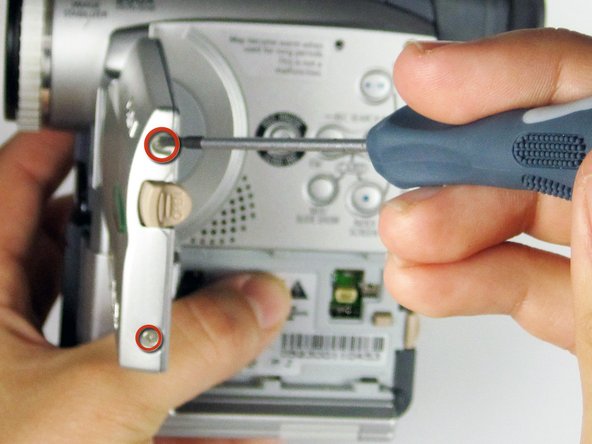

    • Reorient camera so that the playback button panel and empty battery slot are facing you. The edge of the LCD screen should be facing you.

    • To open the screen, hold the open button shown down and flip the screen open.

    • Remove the two #00 Philips 4mm screws on the outer edge of the LCD casing.

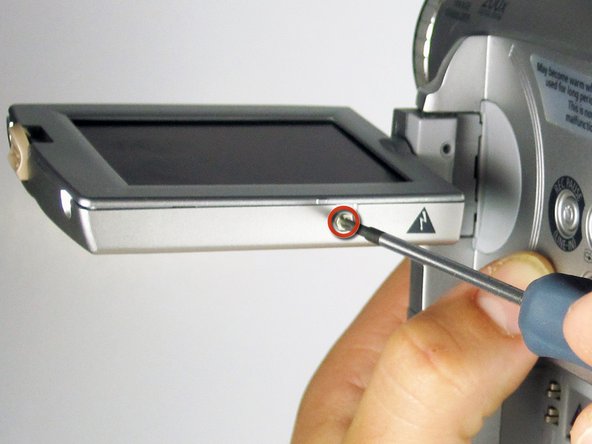

  6. Canon Optura 100MC LCD Screen and Glass Screen Replacement: step 6, image 1 of 1
    • Flip the screen counter-clockwise and reorient the camera with the bottom edge of the LCD screen facing you.

    • Remove the 4mm #00 Phillips screw from the bottom of the LCD casing

  7. Canon Optura 100MC LCD Screen and Glass Screen Replacement: step 7, image 1 of 1

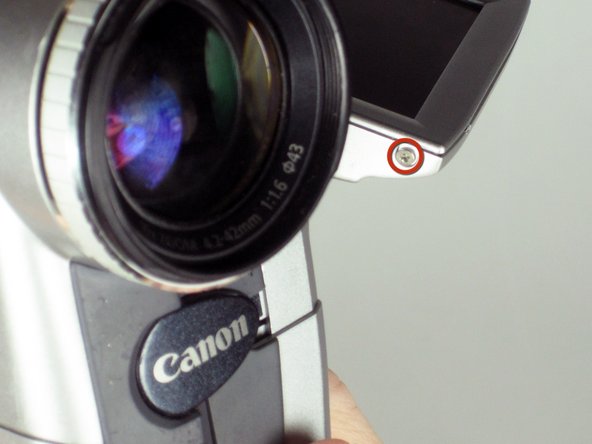

    • Remove the two 4mm #00 Phillips screws on the inside edge of the LCD casing. After removing the first screw you will have to rotate the screen 180 degrees to remove the second screw.

  8. Canon Optura 100MC LCD Screen and Glass Screen Replacement: step 8, image 1 of 2 Canon Optura 100MC LCD Screen and Glass Screen Replacement: step 8, image 2 of 2

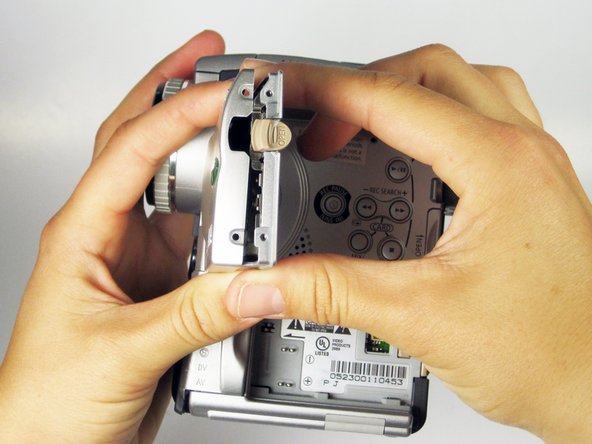

    • Reorient the camera with the LCD screen edge and playback button panel facing you.

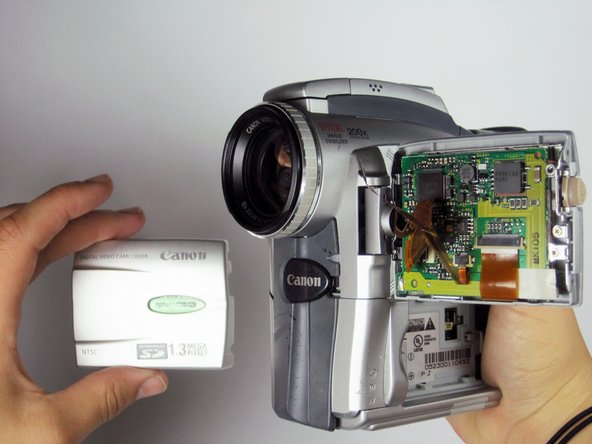

    • Remove front panel of LCD screen by pulling it directly to the side.

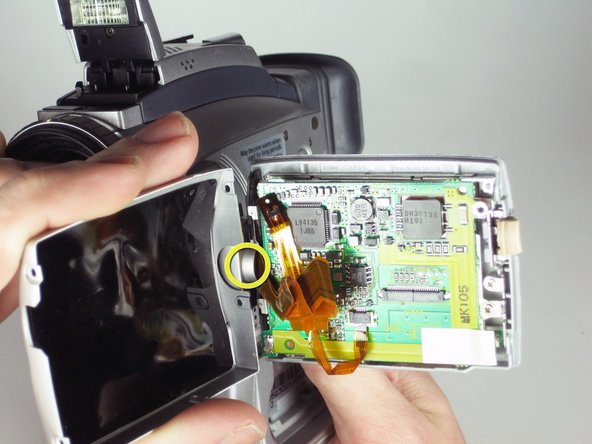

  9. Canon Optura 100MC LCD Screen and Glass Screen Replacement: step 9, image 1 of 1
    • Disconnect the screen components from the main body of the camcorder by applying downward pressure near the circled hinge.

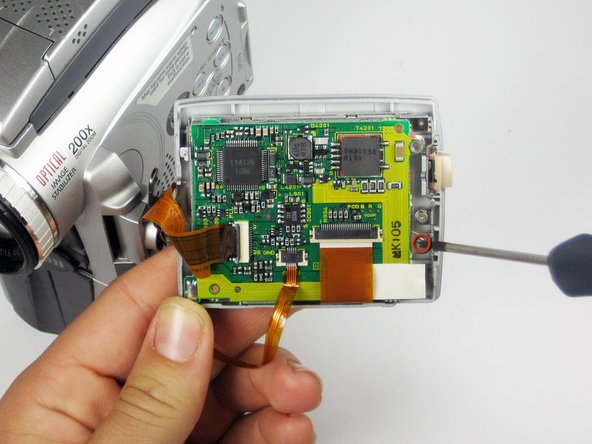

  10. Canon Optura 100MC LCD Screen and Glass Screen Replacement: step 10, image 1 of 1
    • Remove the 4mm #00 Phillips screw connecting the LCD to the glass screen and lower casing.

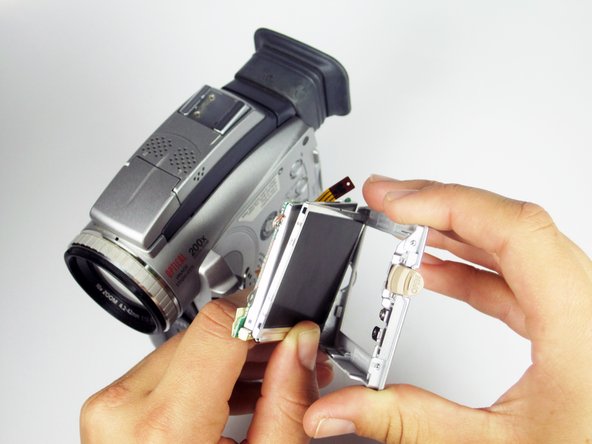

  11. Canon Optura 100MC LCD Screen and Glass Screen Replacement: step 11, image 1 of 2 Canon Optura 100MC LCD Screen and Glass Screen Replacement: step 11, image 2 of 2

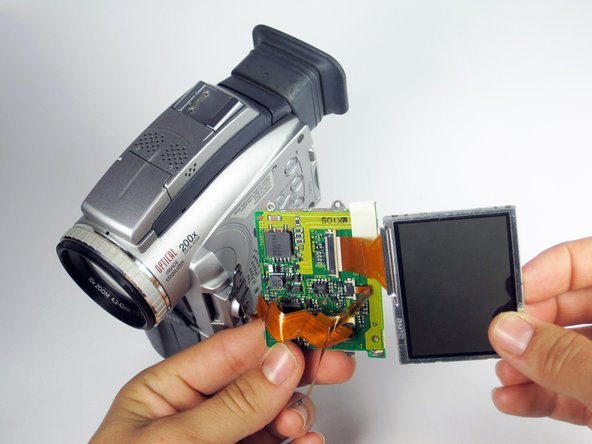

    • Remove the lower casing by pushing up on the glass screen with your thumb.

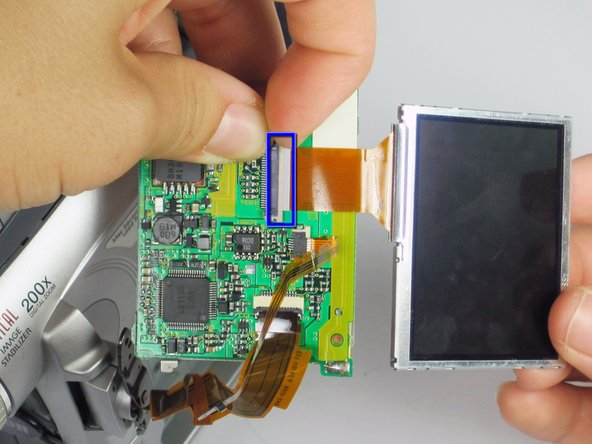

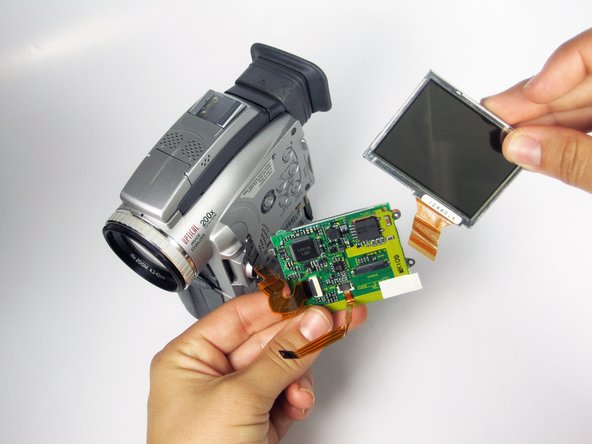

  12. Canon Optura 100MC LCD Screen and Glass Screen Replacement: step 12, image 1 of 2 Canon Optura 100MC LCD Screen and Glass Screen Replacement: step 12, image 2 of 2
    • Remove the glass screen from the LCD by lifting up on the cream colored hinge to disconnect the ribbon wire. Pull the glass screen away.

    • Replace the glass screen if it is cracked or damaged.

  13. Canon Optura 100MC LCD Screen and Glass Screen Replacement: step 13, image 1 of 1

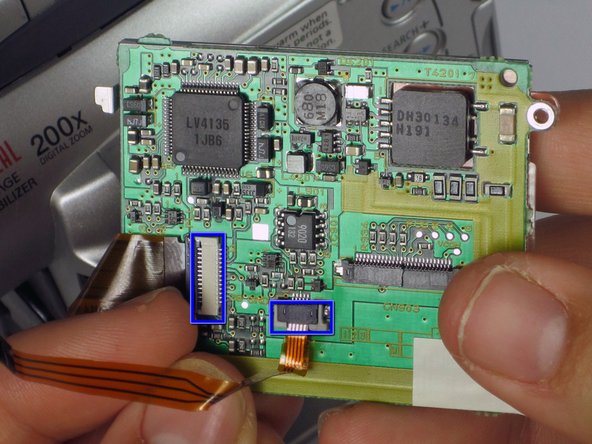

    • Remove the LCD by disconnecting the remaining two ribbon wires by lifting up the cream-colored gate and sliding the ribbon out of the black gate.

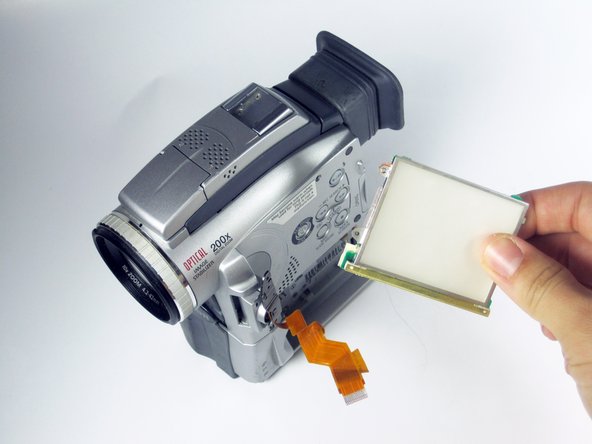

  14. Canon Optura 100MC LCD Screen and Glass Screen Replacement: step 14, image 1 of 1
    • Replace the broken LCD with a new one.

Conclusion

To reassemble your device, follow these instructions in reverse order.
