Canon PowerShot A550 LCD Screen Replacement

Introduction

Go to step 1 ↓

The Canon PowerShot A550 features a 2.0 inch low-temperature polycrystalline silicon TFT color LCD screen with 86,000 megapixels. This component is necessary for photographing and viewing your pictures. This guide will teach you how to replace your LCD screen if it becomes broken or cracked.

    1. Canon PowerShot A550 LCD Screen Replacement, Canon PowerShot A550 LCD Screen Replacement: step 1, image 1 of 3 Canon PowerShot A550 LCD Screen Replacement, Canon PowerShot A550 LCD Screen Replacement: step 1, image 2 of 3 Canon PowerShot A550 LCD Screen Replacement, Canon PowerShot A550 LCD Screen Replacement: step 1, image 3 of 3

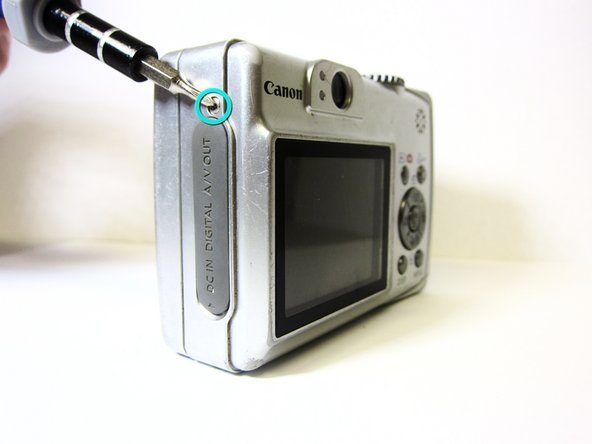

      • Unscrew a total of 6 4.45 mm phillips head screws using a #00 phillips head screwdriver.

      • There are 2 screws on the left side (when looking at the front of the camera).

      • There are 3 screws on the bottom

      • There is 1 screw on the right side

      Add Comment

    2. Canon PowerShot A550 LCD Screen Replacement: step 2, image 1 of 1
      • Turn to the bottom of the camera.

      • Open the memory card cover by sliding the "CARD/BATT." button up, and then pulling the cover to the left.

      Add Comment

    3. Canon PowerShot A550 LCD Screen Replacement: step 3, image 1 of 1
      • This is what the SD card/battery compartment looks like when opened.

      • Remove one 4.45mm phillips head screw from the SD card/battery compartment using a #00 phillips head screwdriver.

      Add Comment

    4. Canon PowerShot A550 LCD Screen Replacement: step 4, image 1 of 2 Canon PowerShot A550 LCD Screen Replacement: step 4, image 2 of 2

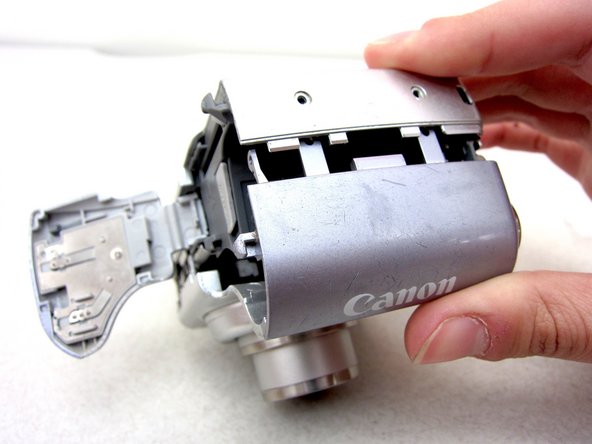

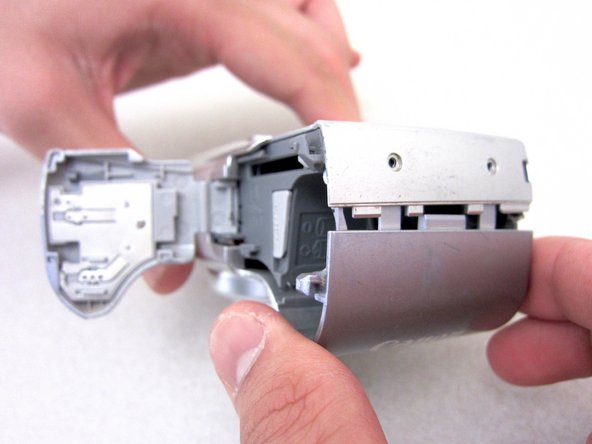

      • Gently remove the front cover away from the camera body.

      • Tip: Start by loosening the teeth on the left side of the camera next to the battery compartment.

      Add Comment

    5. Canon PowerShot A550 LCD Screen Replacement: step 5, image 1 of 1
      • The camera should look like this once the front cover is removed.

      Add Comment

    6. Canon PowerShot A550 LCD Screen Replacement: step 6, image 1 of 3 Canon PowerShot A550 LCD Screen Replacement: step 6, image 2 of 3 Canon PowerShot A550 LCD Screen Replacement: step 6, image 3 of 3

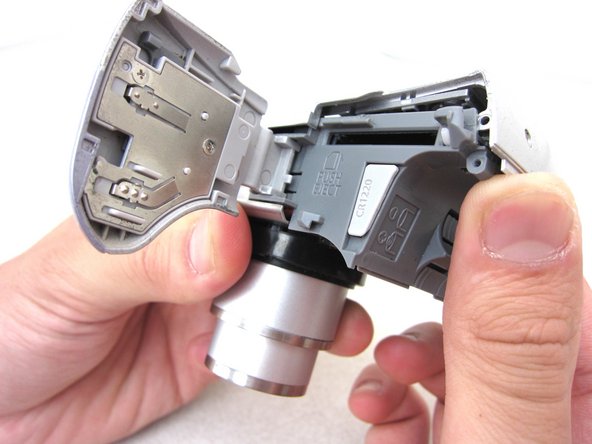

      • Start from the battery compartment and remove the back cover.

      • Caution: Do not tug on the back cover after it is removed. This could tear the ribbon attaching the back cover to the camera body.

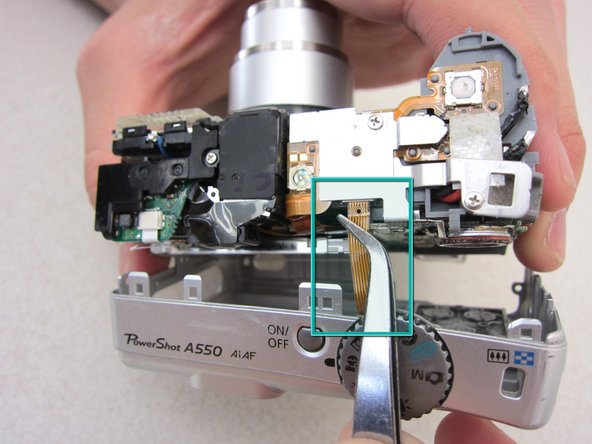

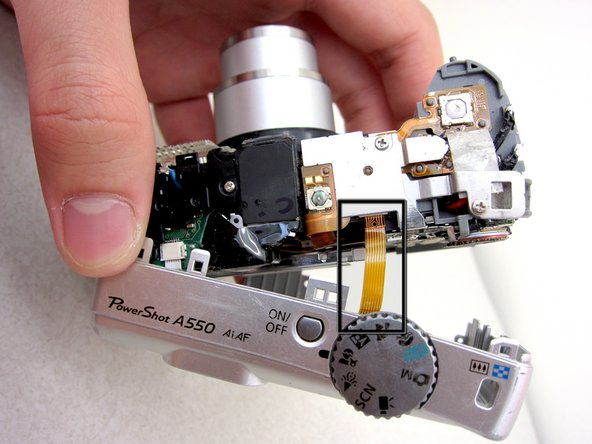

      • Remove the connecting ribbon from the body of the camera using a pair of tweezers.

      Add Comment

    7. Canon PowerShot A550 LCD Screen Replacement: step 7, image 1 of 1
      • Once the ribbon connecting the back cover is removed, the back of the camera body should look like this.

      Add Comment

    8. Canon PowerShot A550 LCD Screen Replacement: step 8, image 1 of 1

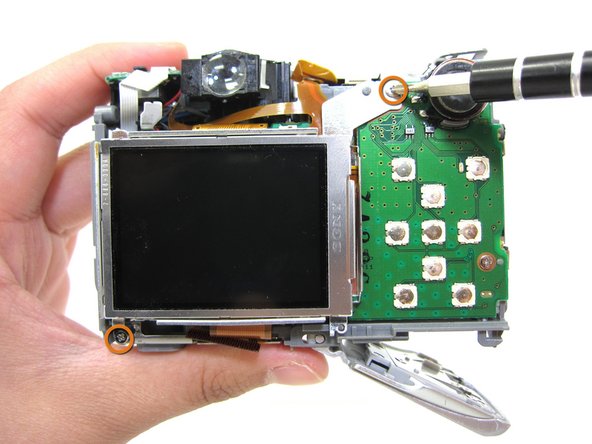

      • Use a #00 phillips head screwdriver to remove 2 3.34mm phillips screws holding the LCD screen in place.

      Add Comment

    9. Canon PowerShot A550 LCD Screen Replacement: step 9, image 1 of 2 Canon PowerShot A550 LCD Screen Replacement: step 9, image 2 of 2

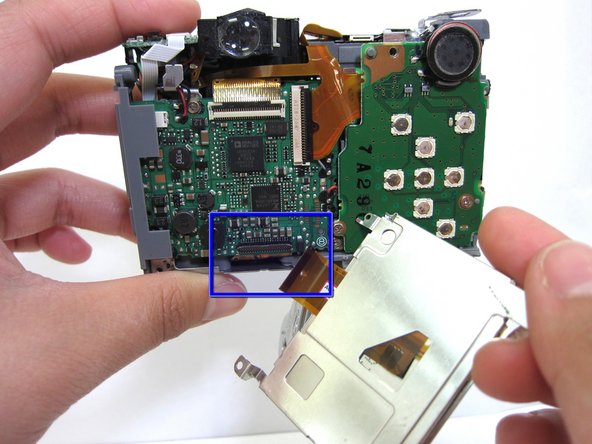

      • Use an iPod Opening Tool to lift the brown portion of the connector to unlock it.

      • Slide the data cable out of the connector.

      • Caution: Do not force the data cable out of the connector. It may rip!

      Add Comment

    10. Canon PowerShot A550 LCD Screen Replacement: step 10, image 1 of 1
      • The LCD screen can now be be removed to be fixed/replaced.

      Add Comment

Conclusion

To reassemble your device, follow these instructions in reverse order.
