What you need

  1. Canon PowerShot S400 Shutter Button Assembly Replacement, Canon PowerShot S400 Shutter Button Assembly Replacement: step 1, image 1 of 2 Canon PowerShot S400 Shutter Button Assembly Replacement, Canon PowerShot S400 Shutter Button Assembly Replacement: step 1, image 2 of 2
    • Unless otherwise stated,a #00 philips screwdriver will be used to remove screws.

    • Remove the 4.75mm screw located in the top right corner of the backside of the camera.

    • Remove the four # screws located on the bottom of the camera.

  2. Canon PowerShot S400 Shutter Button Assembly Replacement: step 2, image 1 of 3 Canon PowerShot S400 Shutter Button Assembly Replacement: step 2, image 2 of 3 Canon PowerShot S400 Shutter Button Assembly Replacement: step 2, image 3 of 3
    • Remove the two screws located on the right side of the camera.(the side with the USB adaption plug)

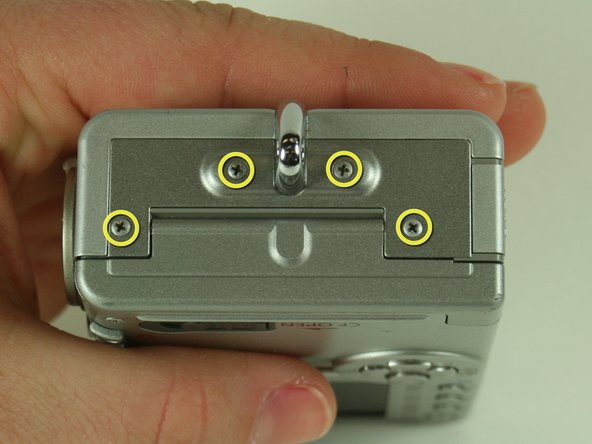

    • Remove the four screws on the left side of the camera.

    • This will release a small metal plate. Remove this plate.

  3. Canon PowerShot S400 Shutter Button Assembly Replacement: step 3, image 1 of 3 Canon PowerShot S400 Shutter Button Assembly Replacement: step 3, image 2 of 3 Canon PowerShot S400 Shutter Button Assembly Replacement: step 3, image 3 of 3

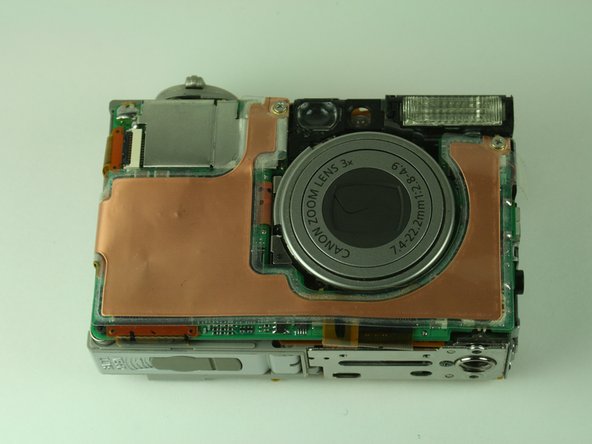

    • There is a small black plastic piece that sits above the lens underneath the camera case. This plastic piece may fall out when you remove the cases; recover the piece and save it.

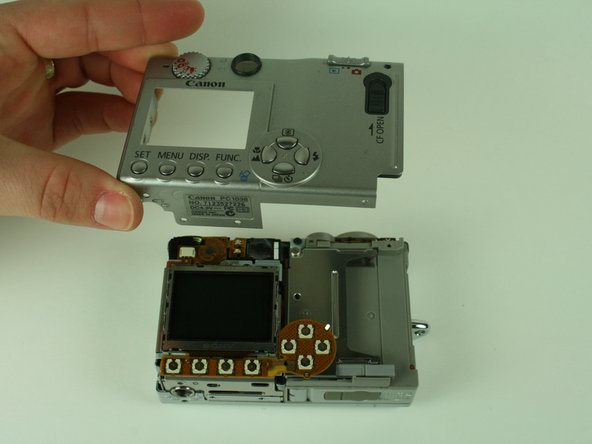

    • Now separate the front and back camera casings.

  4. Canon PowerShot S400 Shutter Button Assembly Replacement: step 4, image 1 of 1

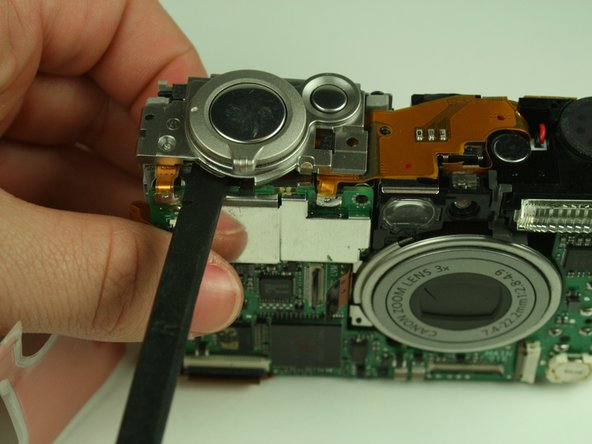

    • Using a spudger, carefully pry the shutter button assembly from the camera.

    • Install the replacement shutter button assembly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
