Canon PowerShot S410 Battery Replacement

Introduction

This guide demonstrates how to remove and replace the battery pack.

    1. Canon PowerShot S410 Battery Replacement, Canon PowerShot S410 Battery Replacement: step 1, image 1 of 2 Canon PowerShot S410 Battery Replacement, Canon PowerShot S410 Battery Replacement: step 1, image 2 of 2

      • Turn the camera with the bottom side facing up.

      • Locate the panel labeled "Batt. Open"

      • Place your finger on the panel and slide it in the direction of the arrow.

      • The slot will swing open revealing the battery pack.

      Add Comment

    3. Canon PowerShot S410 Battery Replacement: step 2, image 1 of 1

      • Rotate the camera so that the slot is horizontal.

      • Pull the orange lever and the battery will spring out slightly.

      Add Comment

    4. Canon PowerShot S410 Battery Replacement: step 3, image 1 of 1

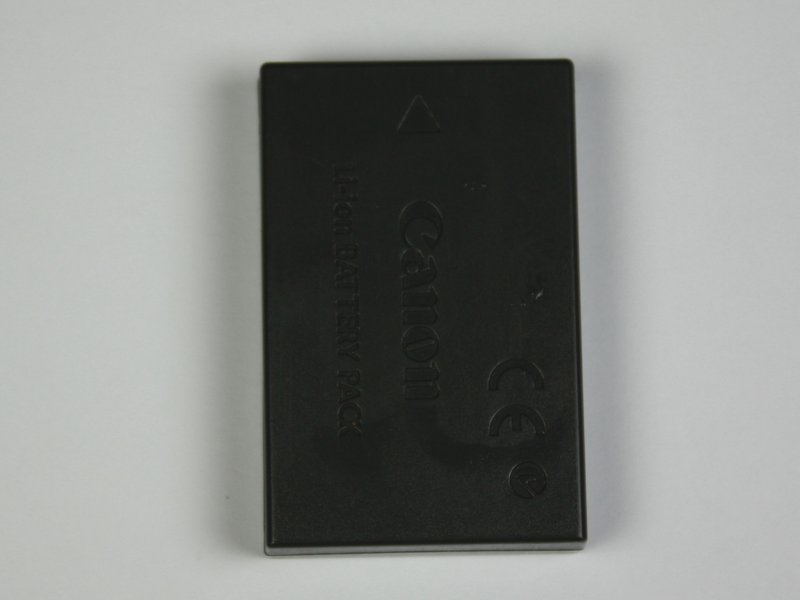

      • Grasp battery and fully pull out of slot

      • When placing the new battery back in the slot, the arrow on the battery must align with the arrow on the camera.

      Add Comment

Conclusion

After a new battery has been inserted, close the swinging door and you're done.
