Introduction

This is a guide to removing the camera's logic board.

What you need

1. Step 1 Canon PowerShot S500 Logic Board Replacement

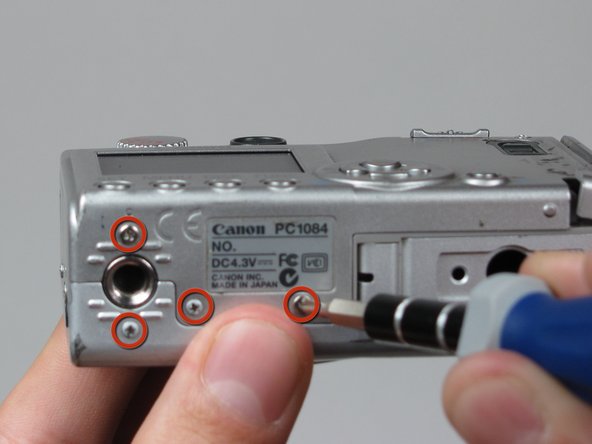

  Unscrew five Phillips screws using a #0 Phillips screwdriver.

  One screw is on upper right corner of the back panel.

  The other four screws are on the bottom of the camera.
  Add Comment

  1024
2. Step 2
  Open memory card cover by moving the slide switch toward the top end of of the camera.

  Remove the memory card from the slot.
  Add Comment

  1024
3. Step 3

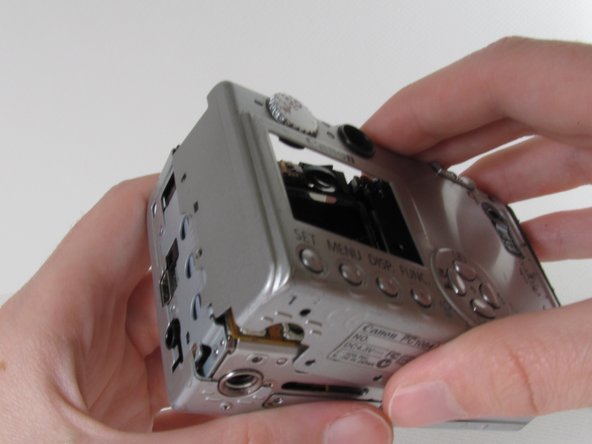

  Remove the rear cover from the rest of the camera.

  This may require gentle rocking of the case to free it.
  Add Comment

  1024
4. Step 4

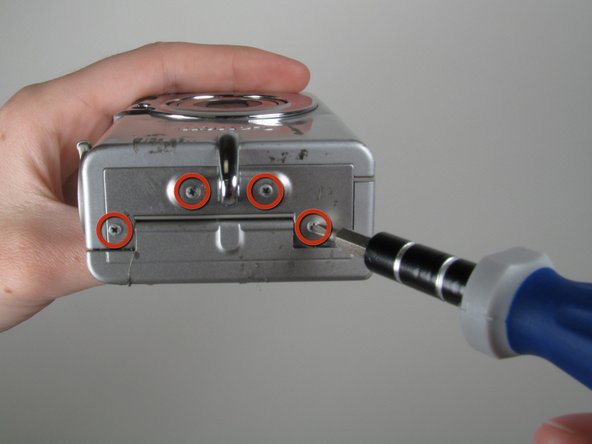

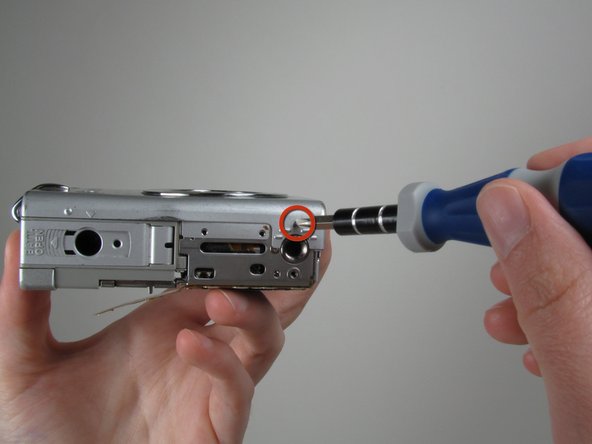

  Unscrew the four Philips screws from the side of the casing and one screw from the bottom using a #0 Phillips screwdriver.
  Add Comment

  1024
5. Step 5

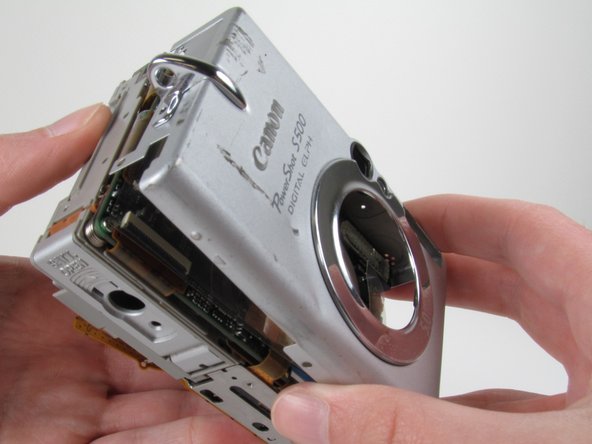

  Free the front cover from the rest of the camera.

  The cover may require gentle rocking to remove.
  Add Comment

  1024
6. Step 6

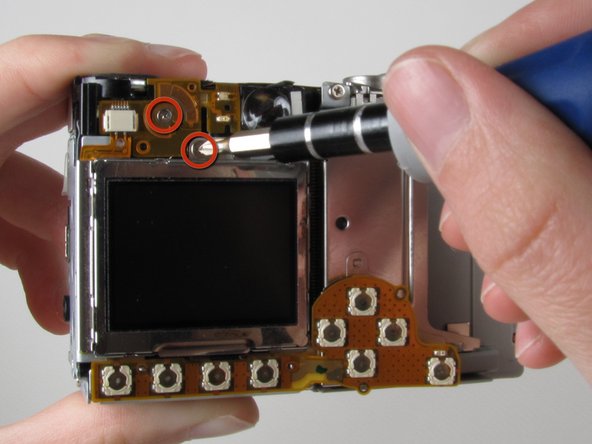

  Unscrew two Phillips screws above the LCD using a #0 Phillips screwdriver.
  Add Comment

  1024
7. Step 7

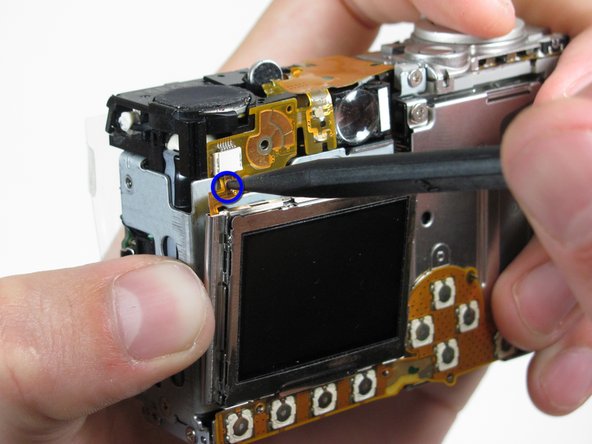

  Gently separate the top of LCD from the rest of the camera using your thumb.

  Be careful not pull the LCD too far because of the ribbon cable connection.

  Place the Spudger in the hole of the electrical ribbon.

  Gently pull the ribbon down using the Spudger until it is free from the camera but still connected to the LCD.

  The LCD will still be connected to the rest of the camera
  Add Comment

  1024
8. Step 8

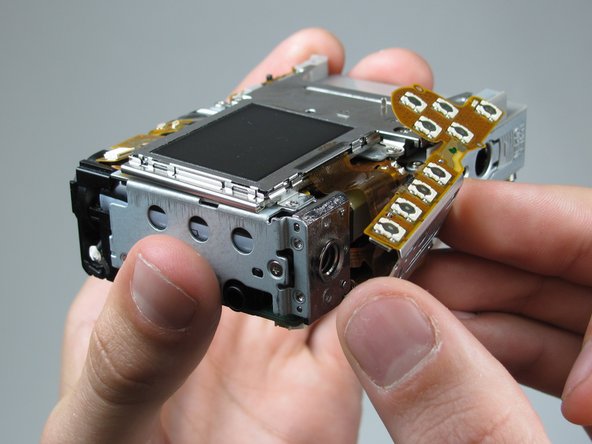

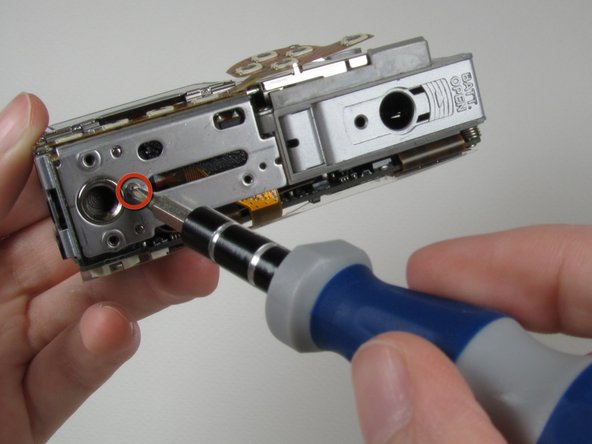

  Unscrew single Phillips screw with a #0 Phillips screwdriver.

  Free the bottom panel and attached ribbon from the rest of the camera.

  Be careful not to damage the ribbon.
  Add Comment

  1024
10. Step 9
  Turn over the camera.

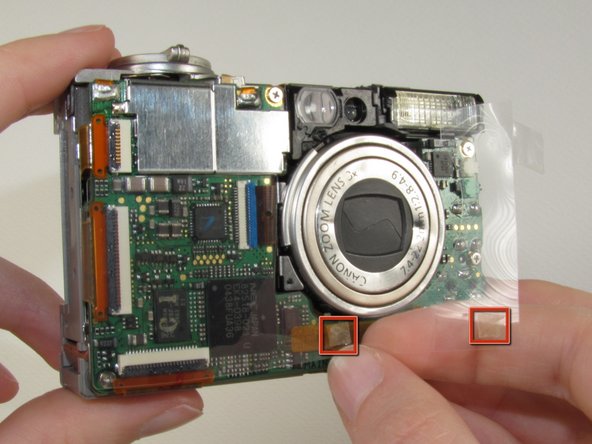

  Lift the clear plastic from the face of the camera, peeling the adhesive just below the zoom lens.

  The plastic will still be connected on the left side.
  Add Comment

  1024
11. Step 10

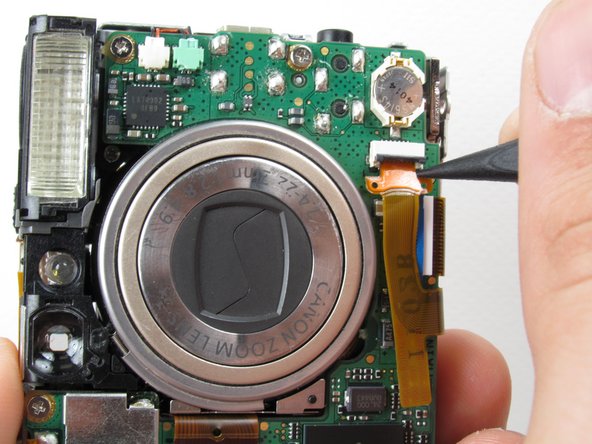

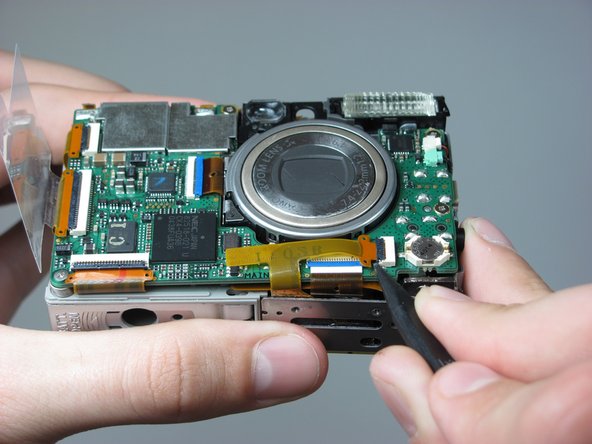

  Place the Spudger between the orange ribbon and the black ribbon gate.

  Lift the ribbon gate using the Spudger.
  Add Comment

  1024
12. Step 11
  Place the Spludger in the corner of the ribbon above the hole.

  Remove the ribbon from the ribbon gate by pulling the Spudger away from the gate.
  Add Comment

  1024
13. Step 12

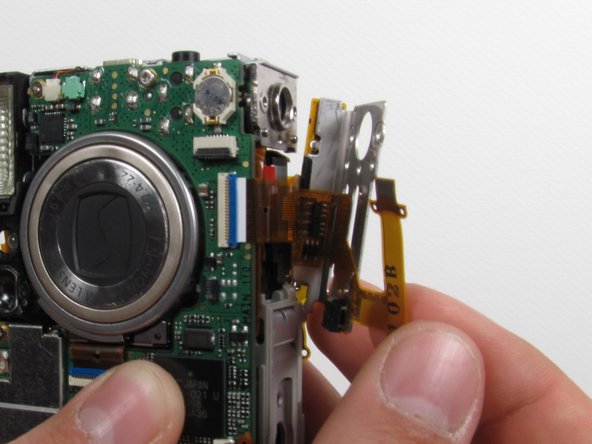

  Free this ribbon and the bottom panel from the rest of the camera.

  Be careful not to damage the ribbon.
  Add Comment

  1024
14. Step 13

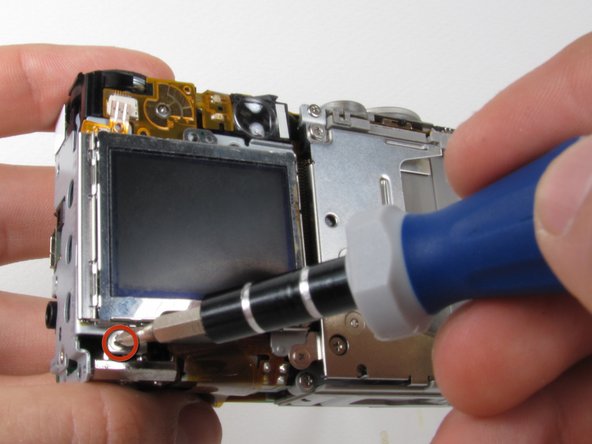

  Turn the camera over so you can see the LCD.

  Remove single Phillips screw below the LCD using a #0 Phillips screwdriver.
  Add Comment

  1024
15. Step 14

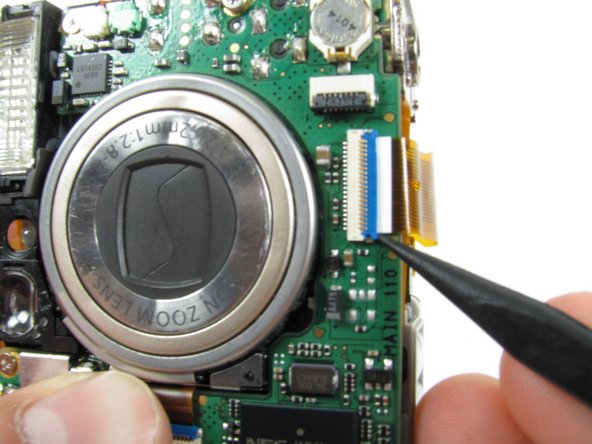

  Lift the blue ribbon gate using the Spudger.
  Add Comment

  1024
16. Step 15
  Insert the Spudger into the hole of the ribbon.

  Move the Spudger away from the gate to fully remove ribbon.

  Be careful not to damage the ribbon.
  Add Comment

  1024
17. Step 16

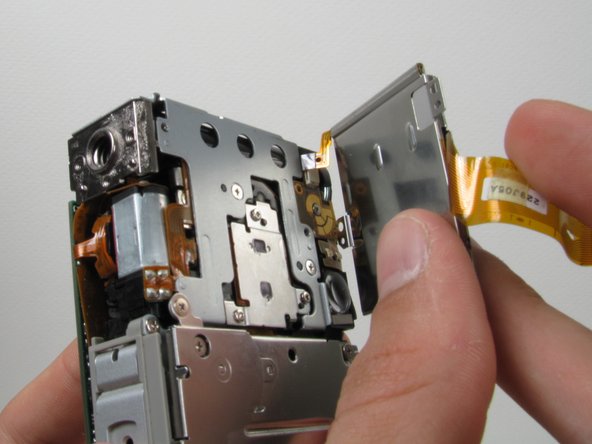

  Lift the LCD away from the rest of the camera.
  Add Comment

  1024
18. Step 17

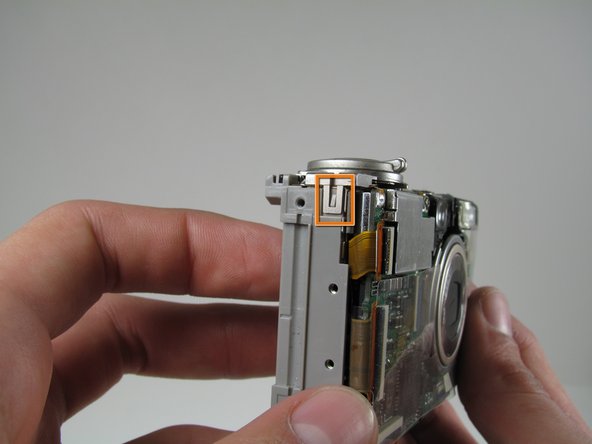

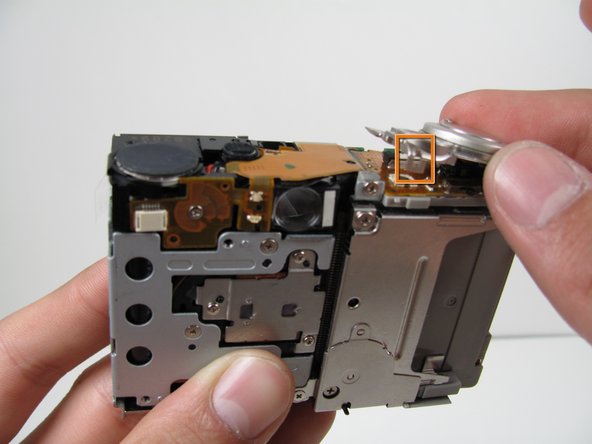

  Lift off the capture button by wiggling it back and forth while pulling upward.

  Be careful not to damage the two clips.
  Add Comment

  1024
19. Step 18

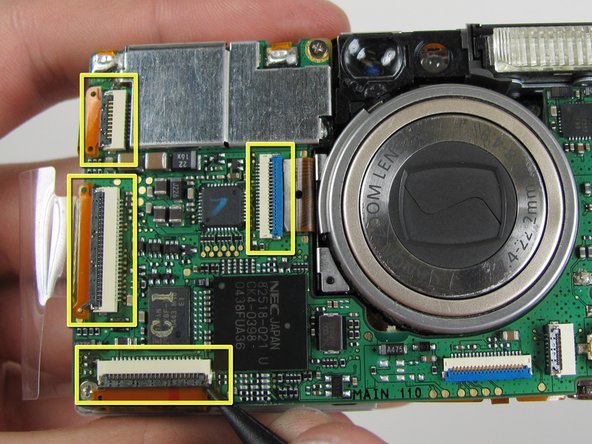

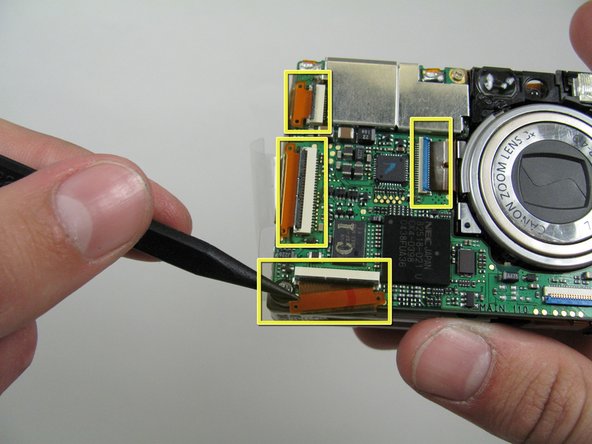

  Flip open the four ribbon gates using the Spudger.

  Gently pull out the ribbon cables from the gates using the Spudger.
  Add Comment

  1024
20. Step 19

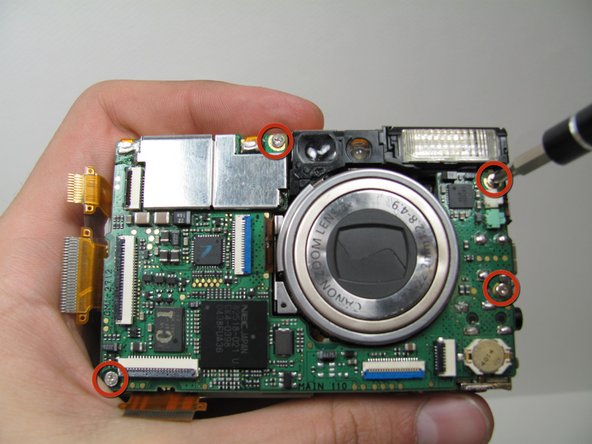

  Unscrew the four Phillips screws using a #0 Phillips screwdriver.
  Add Comment

  1024
21. Step 20

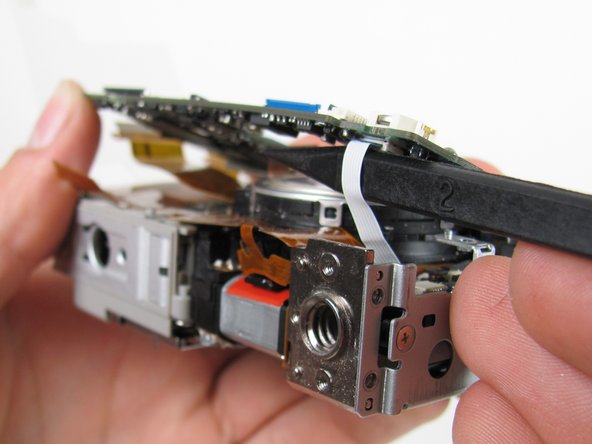

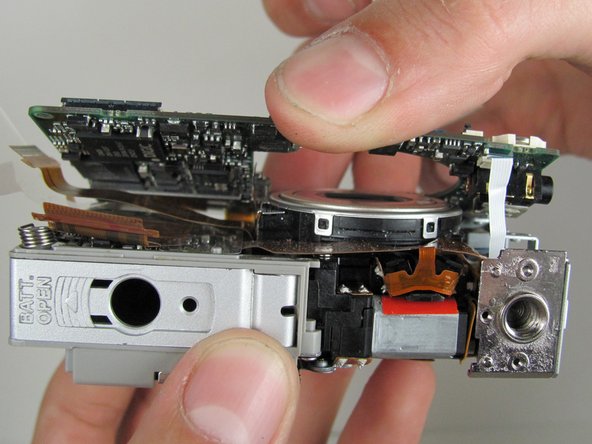

  Gently lift the the logic board.

  Be careful not to pull too hard and damage the white ribbon cable.

  Place the Spudger so that it is between the logic board, the white ribbon cable, and the rest of the camera.

  Remove the white ribbon cable by pulling the Spudger away from the camera, keeping it parallel to the logic board.
  Add Comment

  1024
22. Step 21
  Lay the logic board back down so that it is resting on the body of the camera.

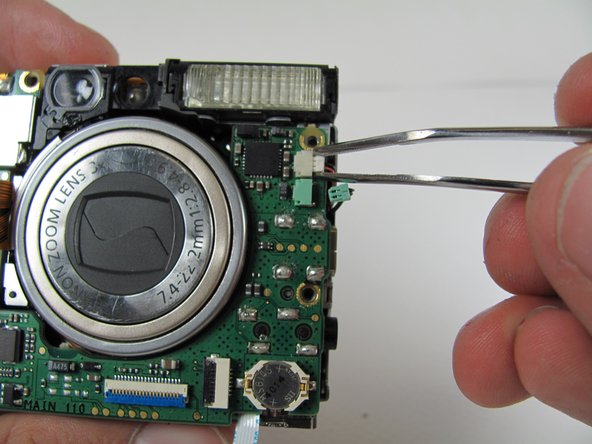

  Pull the two plugs (white and green) out to the right from the logic board using the tweezers.
  Add Comment

  1024
23. Step 22

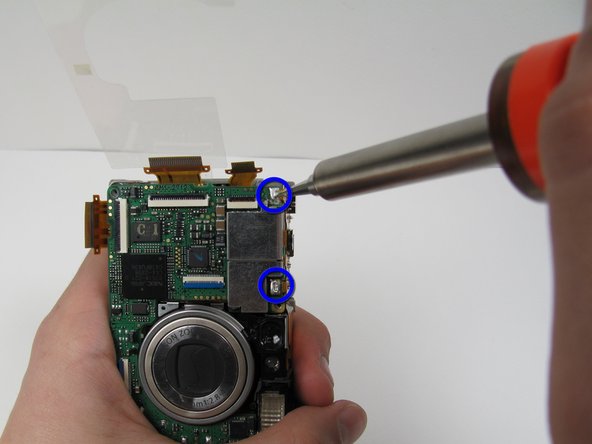

  We're now ready to begin the desoldering process. You'll need a soldering iron, solder, and desoldering wick. You should be able to find these items at a Radio Shack if you don't already have them.

  Please do not perform this step if you are not comfortable or have previous experience with soldering. Doing so, could cause severe damage to your camera.

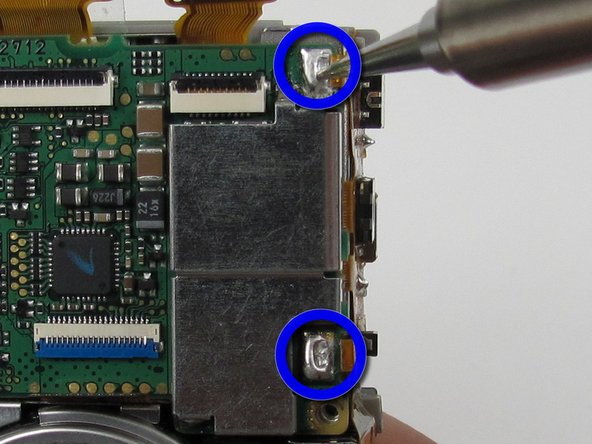

  Desolder the two soldered ribbon cables attached to the logic board.
  Add Comment

  1024

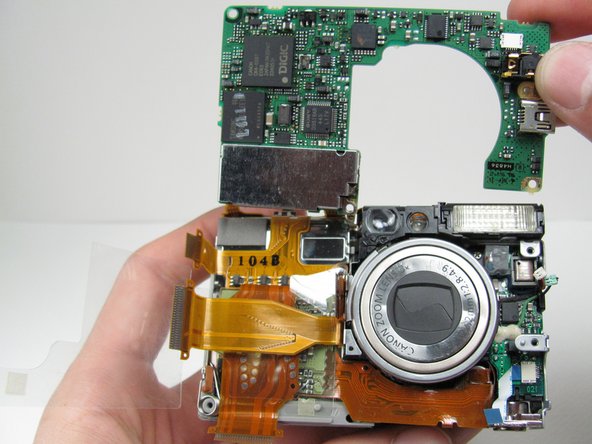

24. Step 23
  Free the logic board from the rest of the camera.
  Add Comment

  1024

Conclusion

To reassemble your device, follow these instructions in reverse order.
