Canon PowerShot SD1100 IS Function Buttons Replacement

What you need

  1. Canon PowerShot SD1100 IS Function Buttons Replacement, Canon PowerShot SD1100 IS Function Buttons Replacement: step 1, image 1 of 2 Canon PowerShot SD1100 IS Function Buttons Replacement, Canon PowerShot SD1100 IS Function Buttons Replacement: step 1, image 2 of 2

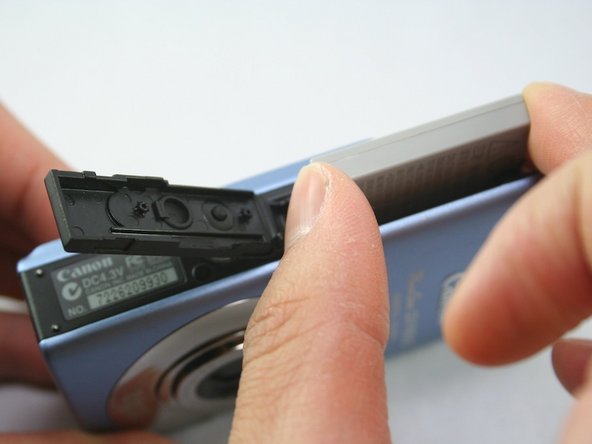

    • Remove wrist strap and battery.

  2. Canon PowerShot SD1100 IS Function Buttons Replacement: step 2, image 1 of 3 Canon PowerShot SD1100 IS Function Buttons Replacement: step 2, image 2 of 3 Canon PowerShot SD1100 IS Function Buttons Replacement: step 2, image 3 of 3

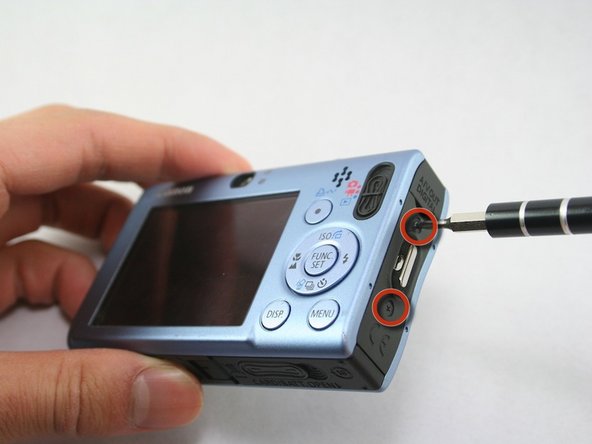

    • Remove 2 screws from each side of the camera (4 total, 0.102 in).

    • Remove 2 screws from the bottom on the camera (0.138 in).

    • Do not mix the 4 side screws with the 2 bottoms ones; they are different sizes.

  3. Canon PowerShot SD1100 IS Function Buttons Replacement: step 3, image 1 of 3 Canon PowerShot SD1100 IS Function Buttons Replacement: step 3, image 2 of 3 Canon PowerShot SD1100 IS Function Buttons Replacement: step 3, image 3 of 3

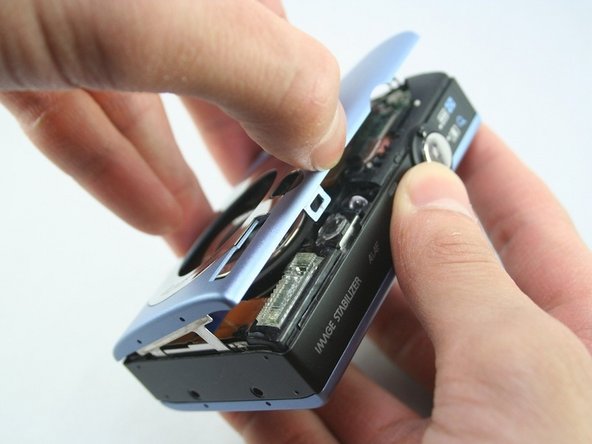

    • Gently pull off the front cover.

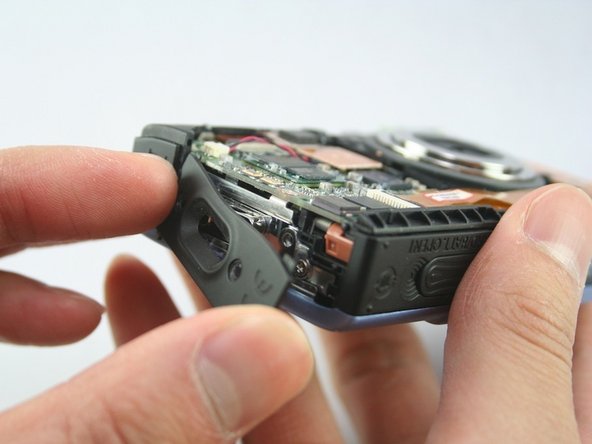

    • The plate on the side should come off.

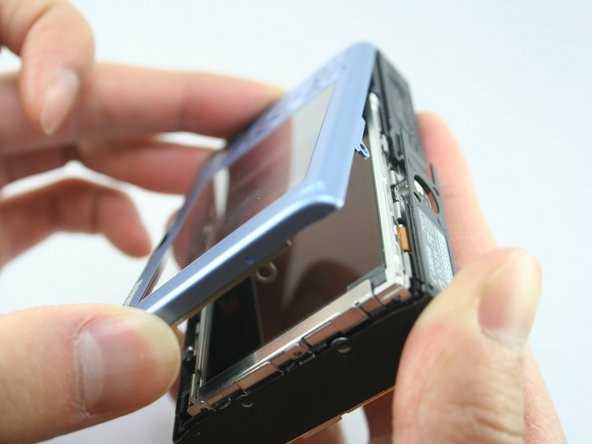

    • Gently pull off the back cover.

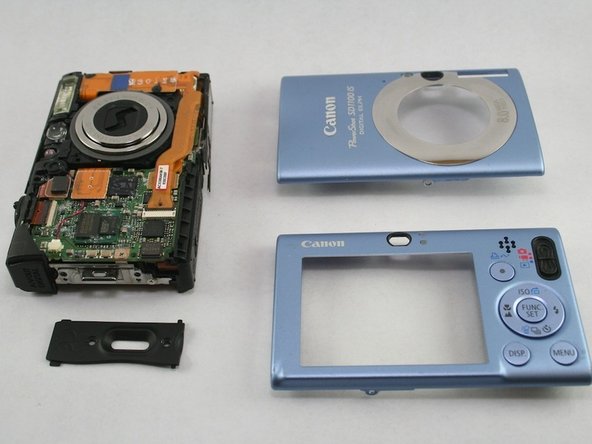

  4. Canon PowerShot SD1100 IS Function Buttons Replacement: step 4, image 1 of 1
    • The cases should now be removed.

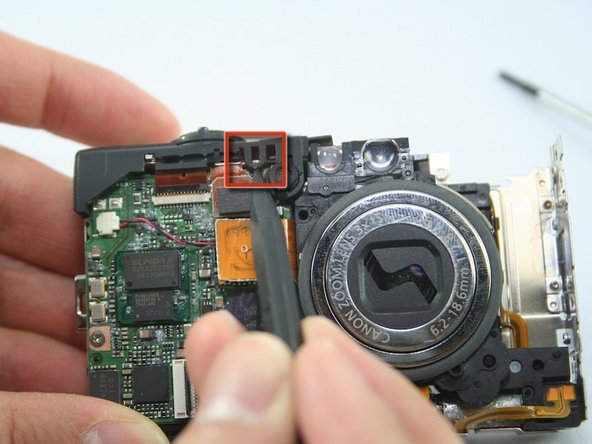

  5. Canon PowerShot SD1100 IS Function Buttons Replacement: step 5, image 1 of 1
    • Use the spudger to disconnect the black tab.

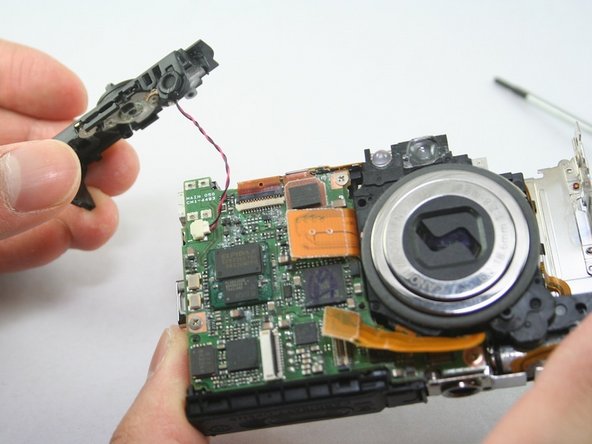

  6. Canon PowerShot SD1100 IS Function Buttons Replacement: step 6, image 1 of 1
    • Gently pull off the shutter button assembly.

  7. Canon PowerShot SD1100 IS Function Buttons Replacement: step 7, image 1 of 1

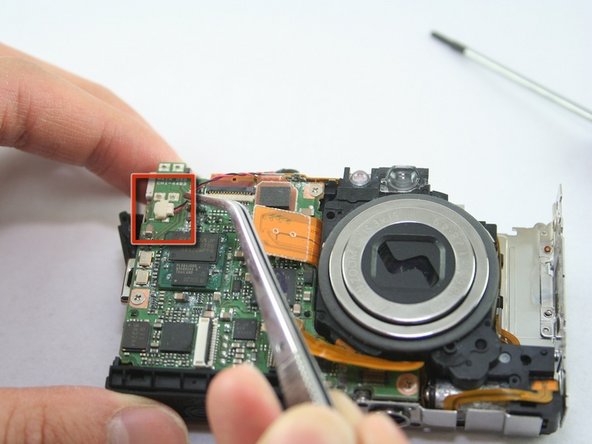

    • Use the tweezers to disconnect the microphone cable.

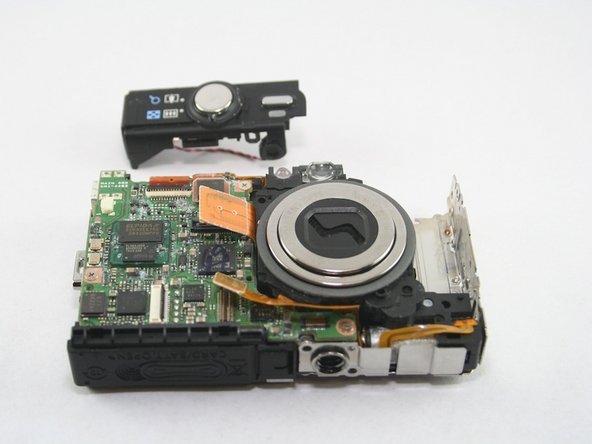

  8. Canon PowerShot SD1100 IS Function Buttons Replacement: step 8, image 1 of 1
    • The shutter button assembly should now be removed.

  9. Canon PowerShot SD1100 IS Function Buttons Replacement: step 9, image 1 of 1

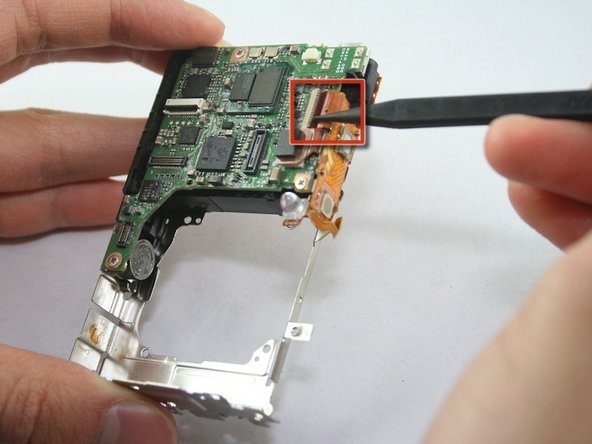

    • With the spudger, flip up the black tab on the main ribbon.

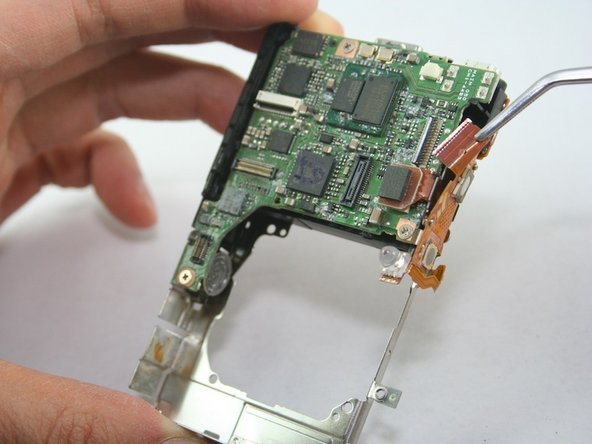

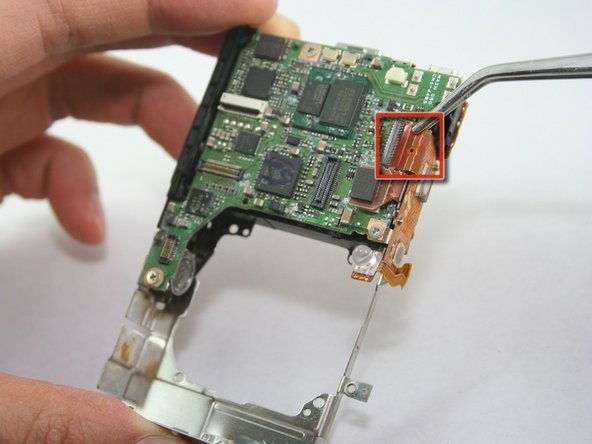

  10. Canon PowerShot SD1100 IS Function Buttons Replacement: step 10, image 1 of 2 Canon PowerShot SD1100 IS Function Buttons Replacement: step 10, image 2 of 2
    • Gently pull straight out on the ribbon to disconnect it from the logic board.

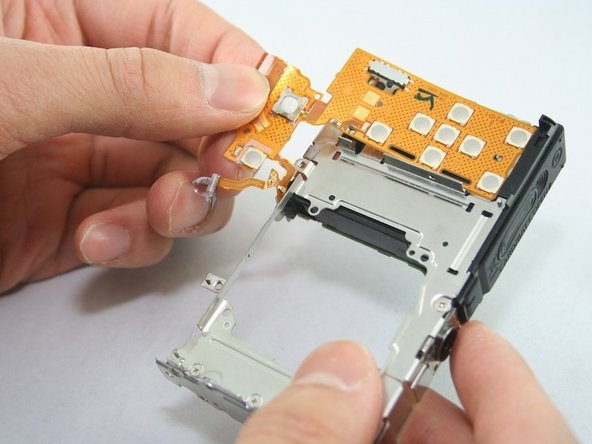

  11. Canon PowerShot SD1100 IS Function Buttons Replacement: step 11, image 1 of 1
    • By hand, gently unfold the function button board and lift it off the frame.

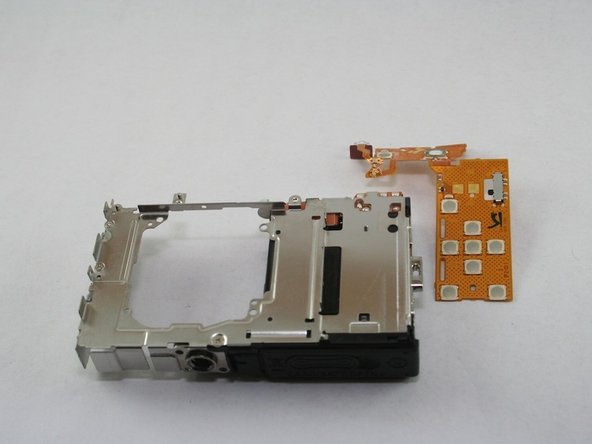

  12. Canon PowerShot SD1100 IS Function Buttons Replacement: step 12, image 1 of 1
    • Congratulations! The function button board can now be replaced.

Conclusion

To reassemble your device, follow these instructions in reverse order.
