Canon PowerShot SD1100 IS Top Button Assembly Replacement

Introduction

In this guide you will learn to remove the top button assembly, which can be replaced if damaged or filled with debris.

What you need

  1. Canon PowerShot SD1100 IS Top Button Assembly Replacement, Canon PowerShot SD1100 IS Top Button Assembly Replacement: step 1, image 1 of 2 Canon PowerShot SD1100 IS Top Button Assembly Replacement, Canon PowerShot SD1100 IS Top Button Assembly Replacement: step 1, image 2 of 2

    • Remove wrist strap and battery.

    Add Comment

  2. Canon PowerShot SD1100 IS Top Button Assembly Replacement: step 2, image 1 of 3 Canon PowerShot SD1100 IS Top Button Assembly Replacement: step 2, image 2 of 3 Canon PowerShot SD1100 IS Top Button Assembly Replacement: step 2, image 3 of 3

    • Remove 2 screws from each side of the camera (4 total, 0.102 in).

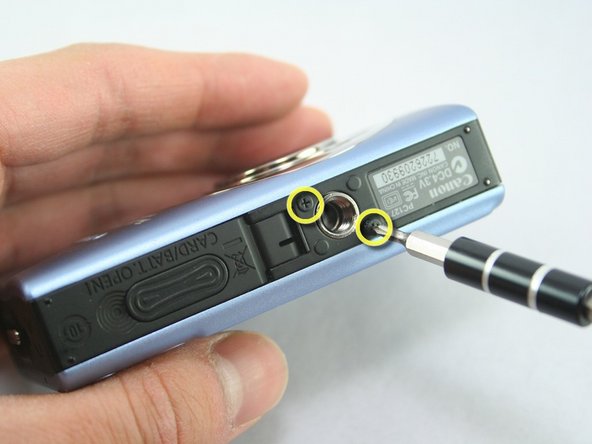

    • Remove 2 screws from the bottom on the camera (0.138 in).

    • Do not mix the 4 side screws with the 2 bottoms ones; they are different sizes.

    Add Comment

  3. Canon PowerShot SD1100 IS Top Button Assembly Replacement: step 3, image 1 of 3 Canon PowerShot SD1100 IS Top Button Assembly Replacement: step 3, image 2 of 3 Canon PowerShot SD1100 IS Top Button Assembly Replacement: step 3, image 3 of 3

    • Gently pull off the front cover.

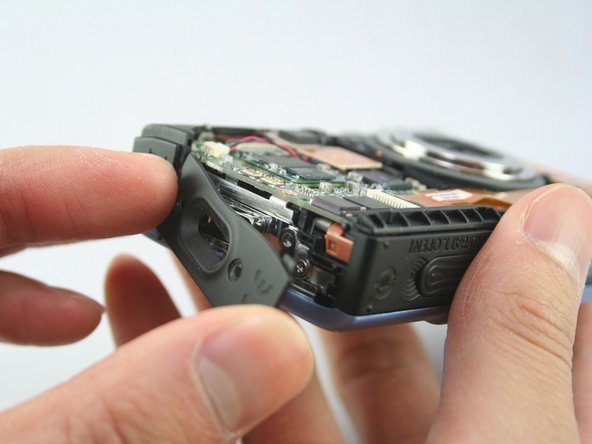

    • The plate on the side should come off.

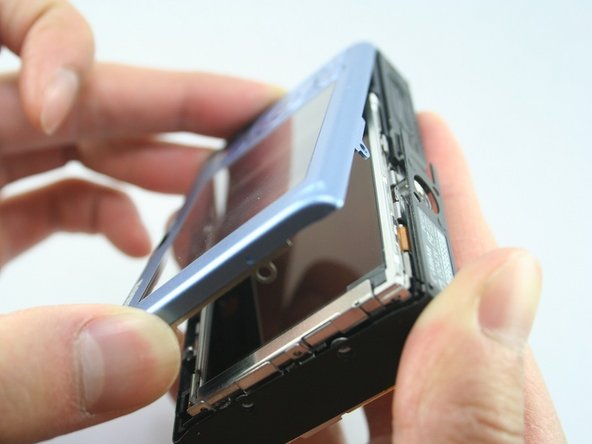

    • Gently pull off the back cover.

    Add Comment

  5. Canon PowerShot SD1100 IS Top Button Assembly Replacement: step 4, image 1 of 1

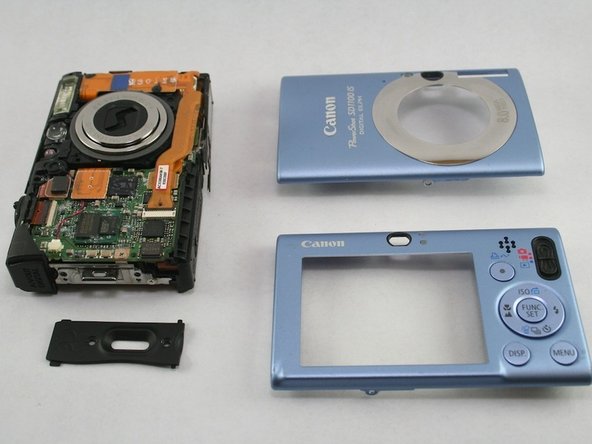

    • The cases should now be removed.

    Add Comment

  6. Canon PowerShot SD1100 IS Top Button Assembly Replacement: step 5, image 1 of 1

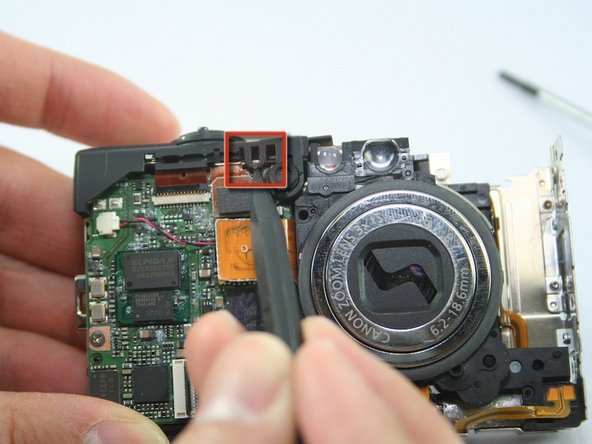

    • Use the spudger to disconnect the black tab.

    Add Comment

  7. Canon PowerShot SD1100 IS Top Button Assembly Replacement: step 6, image 1 of 1

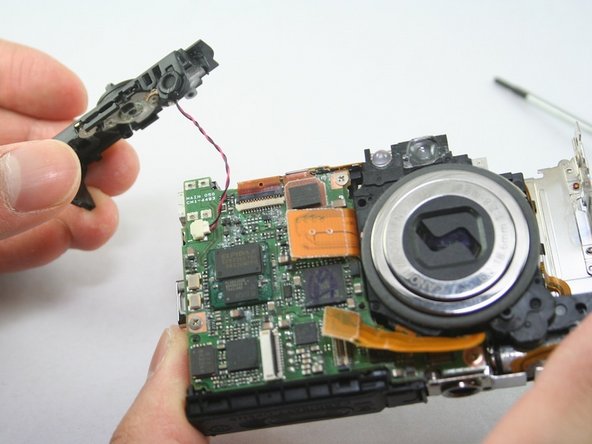

    • Gently pull off the shutter button assembly.

    Add Comment

  8. Canon PowerShot SD1100 IS Top Button Assembly Replacement: step 7, image 1 of 1

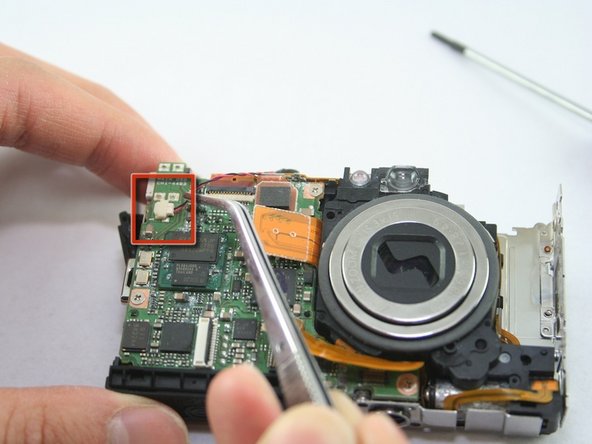

    • Use the tweezers to disconnect the microphone cable.

    Add Comment

  9. Canon PowerShot SD1100 IS Top Button Assembly Replacement: step 8, image 1 of 1

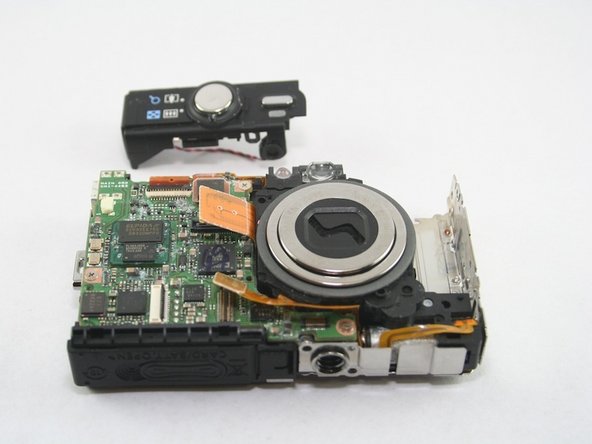

    • The shutter button assembly should now be removed.

    Add Comment

Conclusion

To reassemble your device, follow these instructions in reverse order.
