Canon PowerShot SD700 Outside Case Replacement

What you need

  1. Canon PowerShot SD700 Outside Case Replacement, Canon PowerShot SD700 Outside Case Replacement: step 1, image 1 of 1

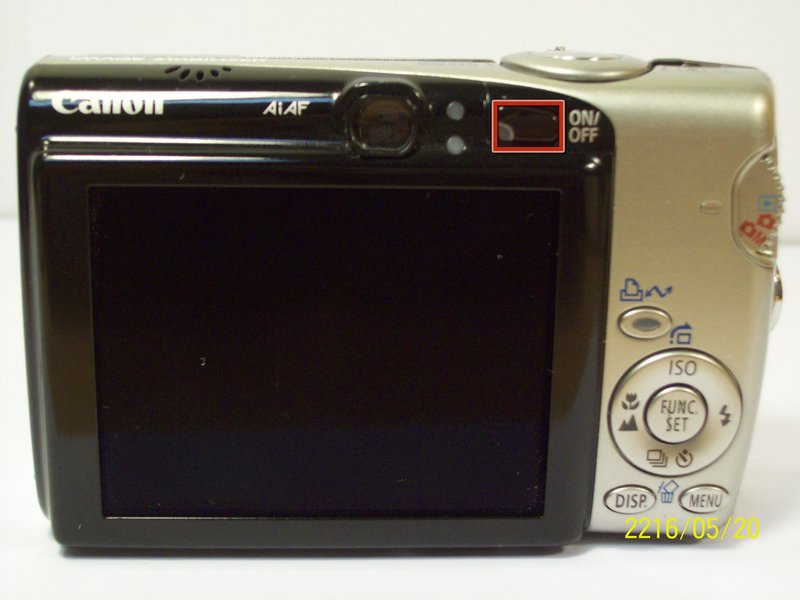

    • Turn off camera by pressing power button above the LCD screen.

    • Remove the battery and memory card.

  2. Canon PowerShot SD700 Outside Case Replacement: step 2, image 1 of 1
    • Remove the screws on the bottom of the camera using a 00 Philip's head screw driver

  3. Canon PowerShot SD700 Outside Case Replacement: step 3, image 1 of 1
    • Remove the screws on the right side of the camera.

  4. Canon PowerShot SD700 Outside Case Replacement: step 4, image 1 of 1
    • Remove the screws on the left of the camera underneath the "A/V out Digital" cover flap.

  5. Canon PowerShot SD700 Outside Case Replacement: step 5, image 1 of 1
    • Remove the screws on the bottom of the camera near the battery and the memory card slots.

    • This screw is longer than the rest of the screws.

  6. Canon PowerShot SD700 Outside Case Replacement: step 6, image 1 of 1
    • Remove the front back and side casings from the camera.

Conclusion

To reassemble your device, follow these instructions in reverse order.
