Introduction

Follow the step-by-step instructions to remove the outside case of your Canon PowerShot SD700

What you need

1. Step 1 Canon PowerShot SD700 Outside Case Replacement
  Turn off camera by pressing power button above the LCD screen.

  Remove the battery and memory card.
  Add Comment

  1024
2. Step 2
  Remove the screws on the bottom of the camera using a 00 Philip's head screw driver
  Add Comment

  1024

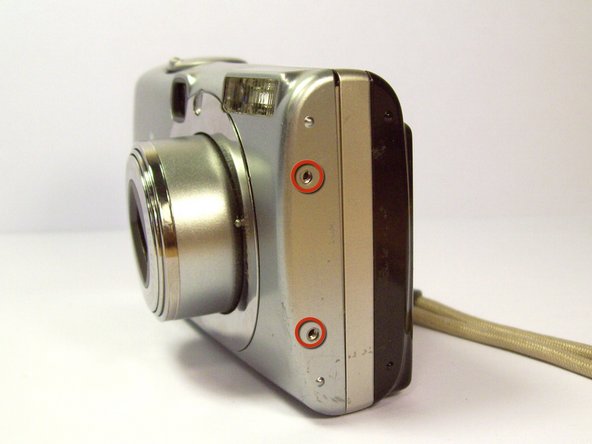

4. Step 3
  Remove the screws on the right side of the camera.
  Add Comment

  1024

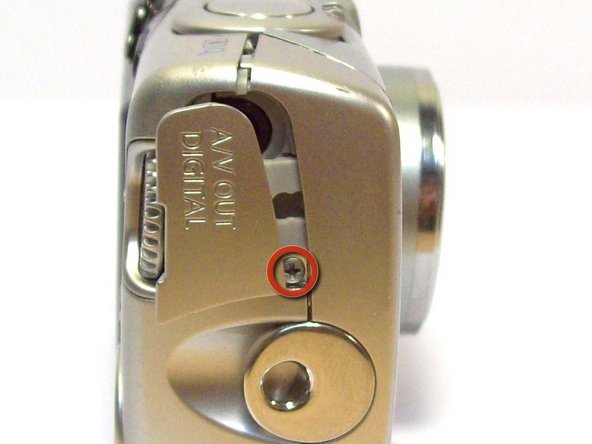

5. Step 4
  Remove the screws on the left of the camera underneath the "A/V out Digital" cover flap.
  Add Comment

  1024

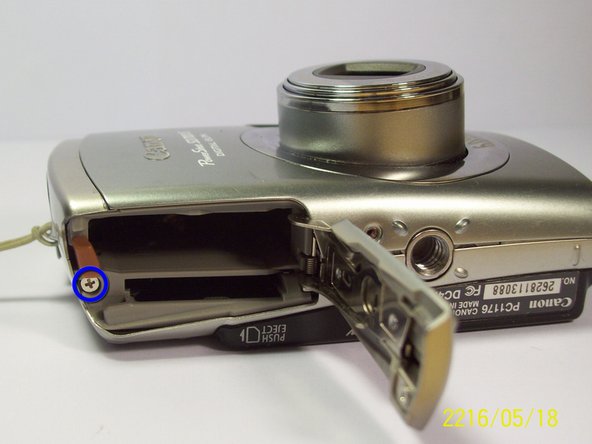

6. Step 5
  Remove the screws on the bottom of the camera near the battery and the memory card slots.

  This screw is longer than the rest of the screws.
  Add Comment

  1024

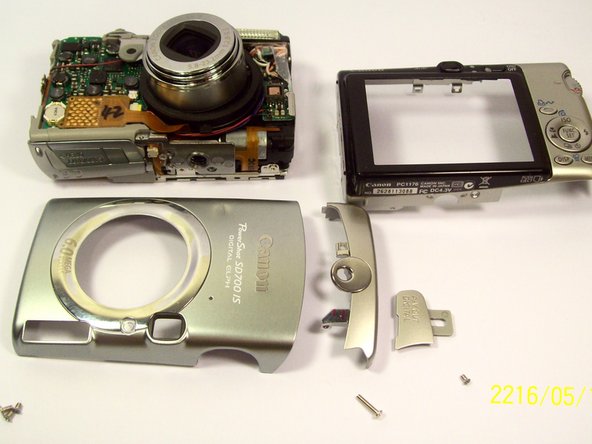

7. Step 6
  Remove the front back and side casings from the camera.
  Add Comment

  1024

Conclusion

To reassemble your device, follow these instructions in reverse order.
