Casio CTK-501 Battery Connection Replacement

Step 1 Casio CTK-501 Battery Connection Replacement

• Flip the keyboard upside down so the bottom is angled towards you.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

• Use a #2 Phillips screwdriver to remove the twenty-seven 12 mm screws from the dark gray bottom panel.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

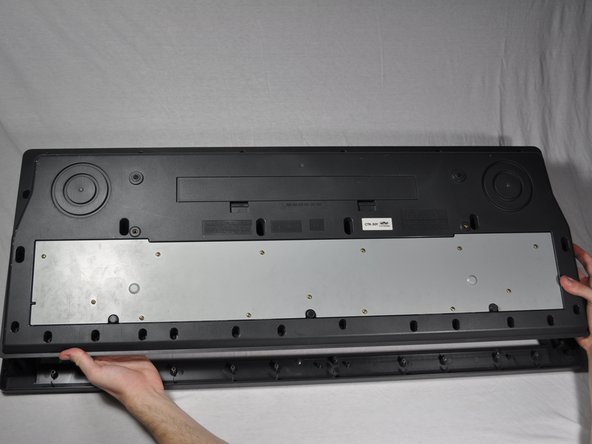

• Remove the bottom panel by lifting the bottom panel up and outward from yourself.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

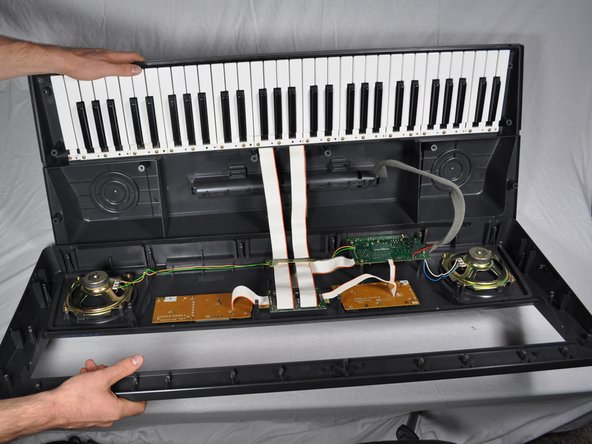

• Flip the entire keyboard so the keys face up, and be careful not to let the bottom drop.
• Flip the top half of the keyboard and set onto the bottom half with the internal parts facing up.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5
• Plug in the soldering iron and set it somewhere safe where it can't catch anything on fire.

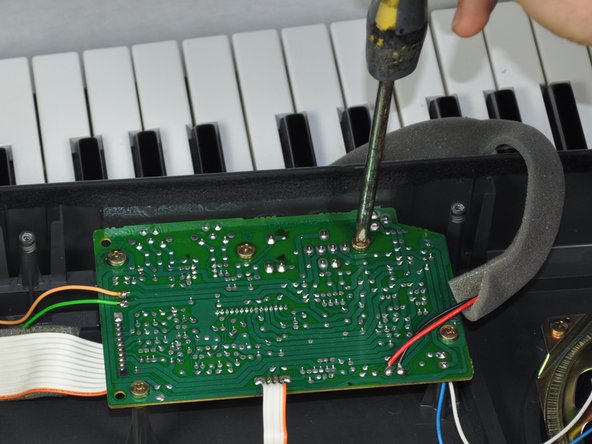

• Unscrew the top green circuit board with black and red wires running into it.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 6

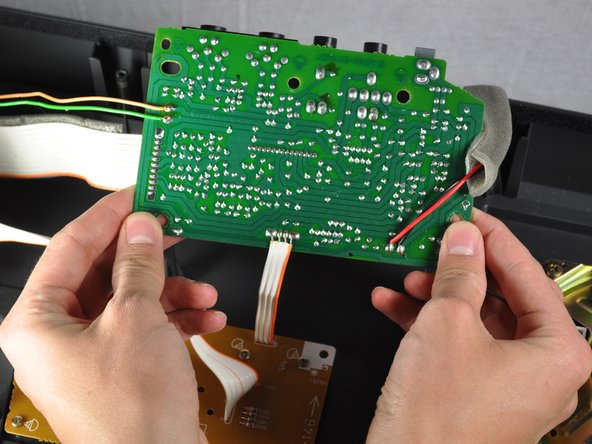

• Set the circuit board somewhere flat so it is safe to solder.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 7

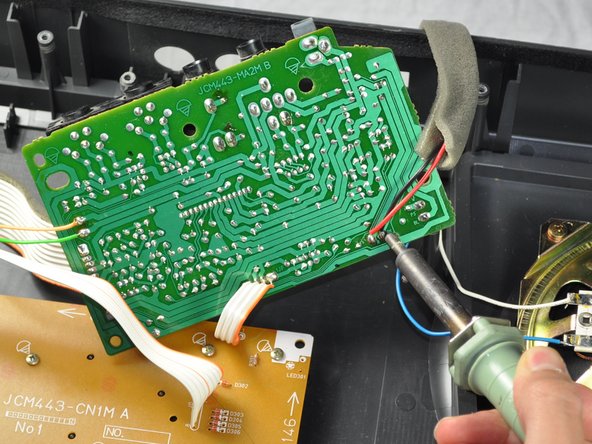

• Heat up the solder covering the end of the wires connected to the circuit board. Once the solder melts, remove the wires from the circuit board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 8

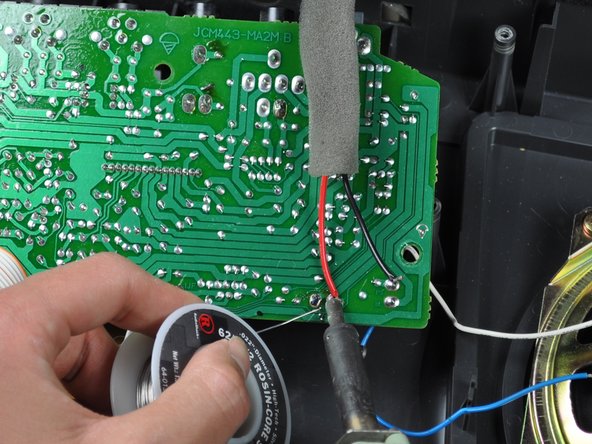

• Melt new solder with your soldering iron, then apply it over the tip of the wire touching the circuit board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 9

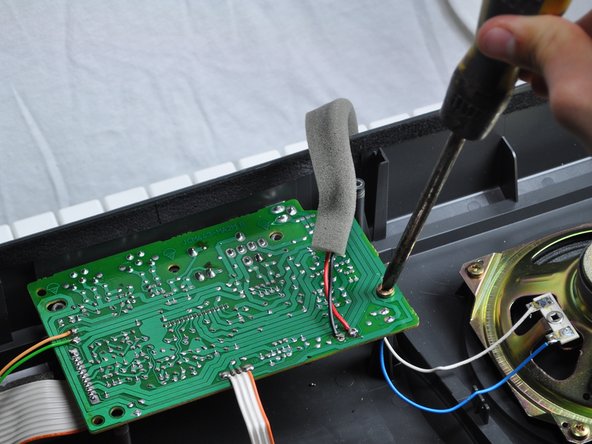

• Once the wires are firmly attached screw the circuit board back onto the keyboard.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
