Chainsaw

Tobias Isakeit and one other contributor

Last updated on Sep 13, 2018

View statistics:

Past 24 Hours:: 0
Past 7 Days:: 2
Past 30 Days:: 6
All Time:: 70

No one has left comments on this guide. Will you be first?

Go to guide comments

No one has marked this guide "completed." Will you be the first?

No one has favorited (and subscribed to) this guide. Will you be the first?

00:30:00

Moderate

Introduction

Go to step 1 ↓

Dismantling and Recycling Centre (DRZ)

Katharina Lenz, Vienna / Austria

Health & Safety

Dismantling doesn't include any harmful steps. Nonetheless workers should wear personal protection equipment like gloves, goggles, apron and robust shoes.

Note: This is a general guide for most chainsaws. As the construction can differ, the dismantling steps mentioned below can vary in their order. However, the described steps show what parts the removal should focus on.

What you need

Tools

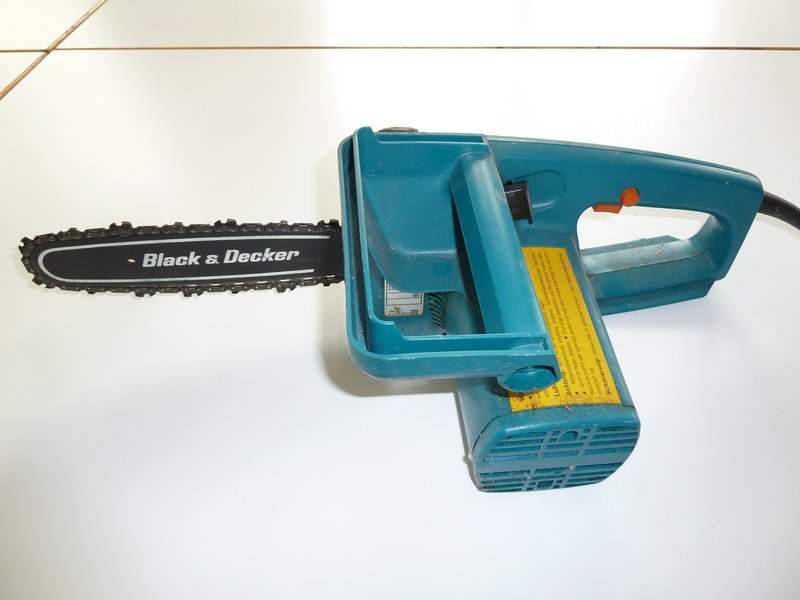

1. Step 1 Chainsaw
  Unscrew the case.
  Add Comment

  1024
2. Step 2
  Open the case.

  Remove the oil container.
  Add Comment

  1024
3. Step 3
  Unscrew and remove the chain fixture.

  Remove the chain.
  Add Comment

  1024
5. Step 4
  Unscrew and remove the power cable.
  Add Comment

  1024
6. Step 5
  Unscrew the chain drive case.

  Remove the sawdust.

  Remove the chain drive case.
  Add Comment

  1024
7. Step 6
  Remove the motor.

  Unscrew the safety socket.
  Add Comment

  1024
9. Step 7
  Remove the stator.

  Unscrew the case.
  Add Comment

  1024
10. Step 8
  Hammer out the counter bearings.

  Remove the carbon brushes.

  Cut the capacitor wires and remove the capacitor.
  Add Comment

  1024
11. Step 9
  Separate the remaining materials according to their type and go on with the appropriate data sheet (e.g. aluminium, ferrous metals, plastic, further PWBs, etc.).
