Dell Inspiron 600M RAM Replacement

Introduction

Before removing the RAM you will need to remove your battery.

What you need

  1. Dell Inspiron 600M RAM Replacement, Dell Inspiron 600M RAM Replacement: step 1, image 1 of 3 Dell Inspiron 600M RAM Replacement, Dell Inspiron 600M RAM Replacement: step 1, image 2 of 3 Dell Inspiron 600M RAM Replacement, Dell Inspiron 600M RAM Replacement: step 1, image 3 of 3

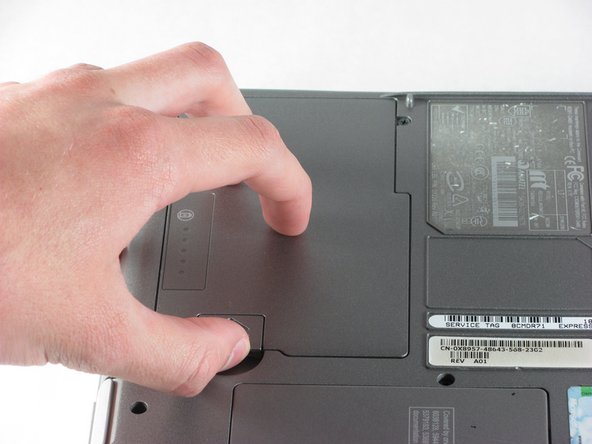

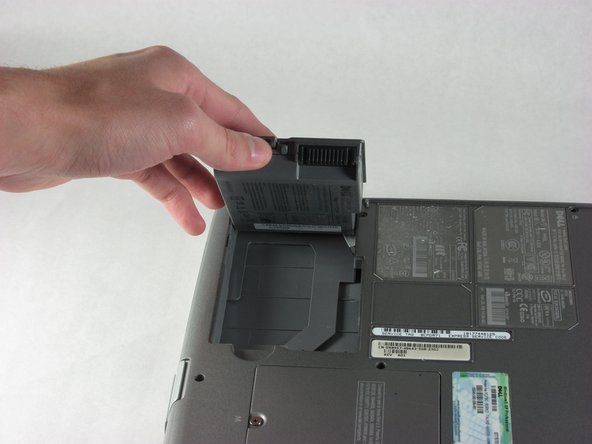

    • Push in the tab on the battery and lift up. The battery should detach very easily.

  3. Dell Inspiron 600M RAM Replacement: step 2, image 1 of 3 Dell Inspiron 600M RAM Replacement: step 2, image 2 of 3 Dell Inspiron 600M RAM Replacement: step 2, image 3 of 3

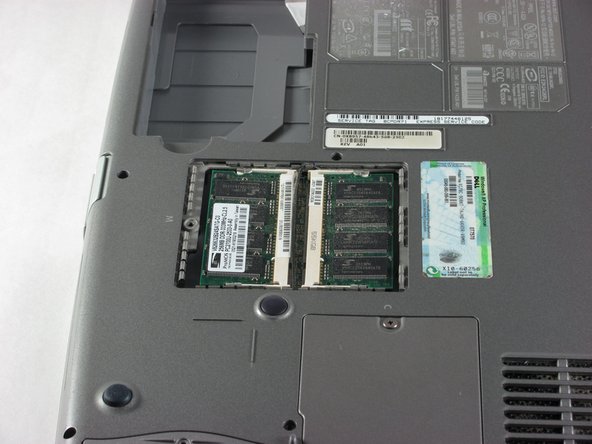

    • Remove the single screw securing the RAM compartment and pull up to reveal the RAM.

  4. Dell Inspiron 600M RAM Replacement: step 3, image 1 of 3 Dell Inspiron 600M RAM Replacement: step 3, image 2 of 3 Dell Inspiron 600M RAM Replacement: step 3, image 3 of 3

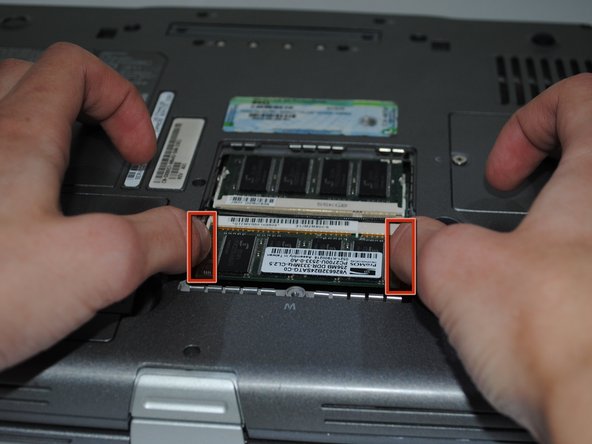

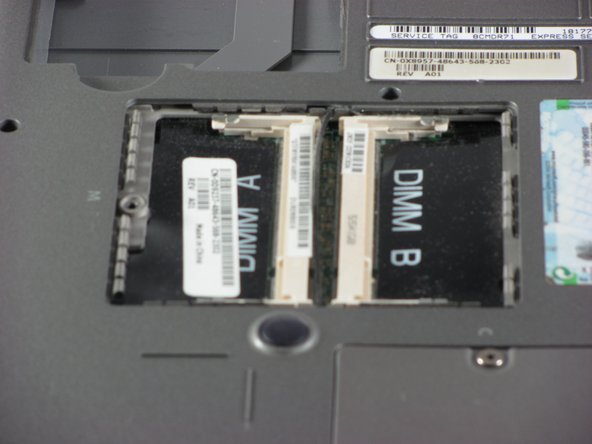

    • Push on the small white metal tabs on both sides of a module to unlock it.

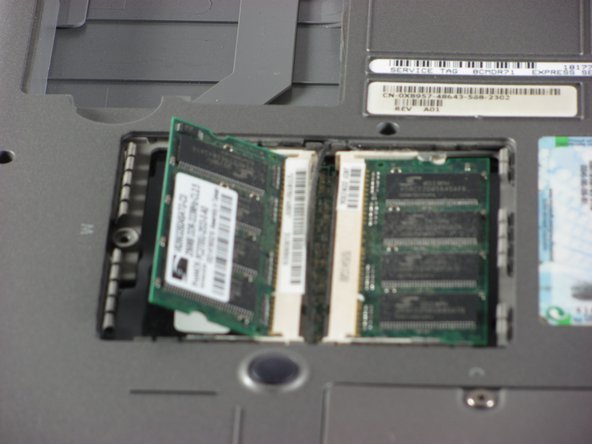

    • The RAM should be stick out at approximately a 45 degree angle. Grasp the RAM by the sides and pull straight out to remove it.

    • If the RAM sticks slightly, wiggle it back and forth gently to loosen it.

Conclusion

To reassemble your device, follow these instructions in reverse order.
