Dell Inspiron 8600 Video Card Replacement

Step 1 Dell Inspiron 8600 Video Card Replacement

• Remove the battery from the bottom of the laptop.
• Please click on the following link for further instruction on how to remove the battery. [invalid guide link]
• It is important to remove the battery so that you will not be electrocuted while working with the computer's hardware.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

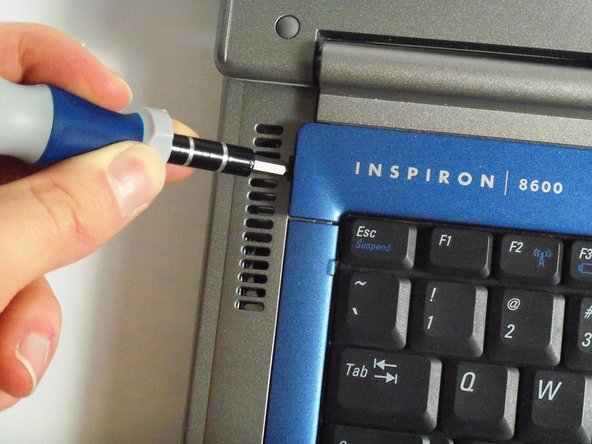

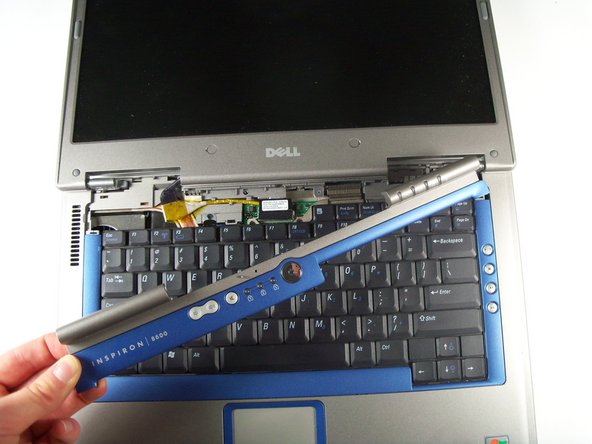

• Insert a spludger into the notch at the far left side of the top blue panel and pry hinge cover off.
• Note: You may need to pry the other side off by inserting the spludger between the hinge and the top cover.
• Be careful of wire attached to underside of the hinge cover.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

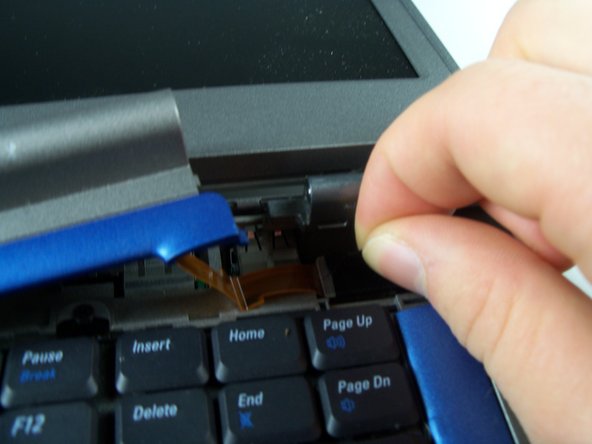

• Pull the small black tab on the right hand side of the laptop.
• The hinge cover has now been removed.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

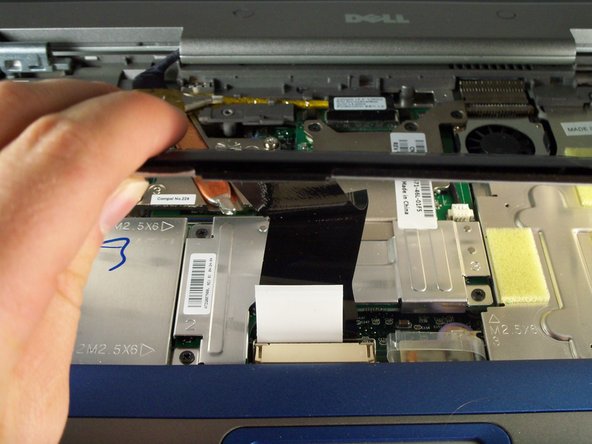

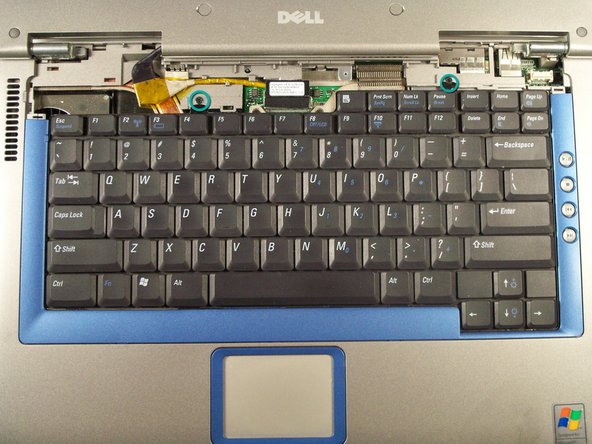

• Remove the screws at the top of the keyboard as indicated indicated.
• Do not just lift up, there is a tab underneath the keyboard that is still connected to the mother board.

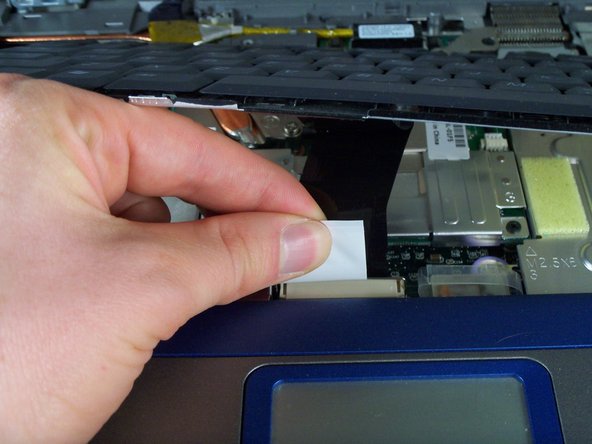

• You will need to pull out the white tab underneath the keyboard upwards until it pops out of its socket.
• The keyboard should be easily removable at this point.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

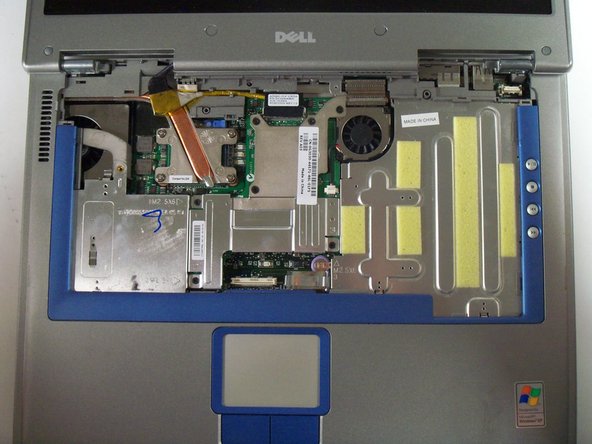

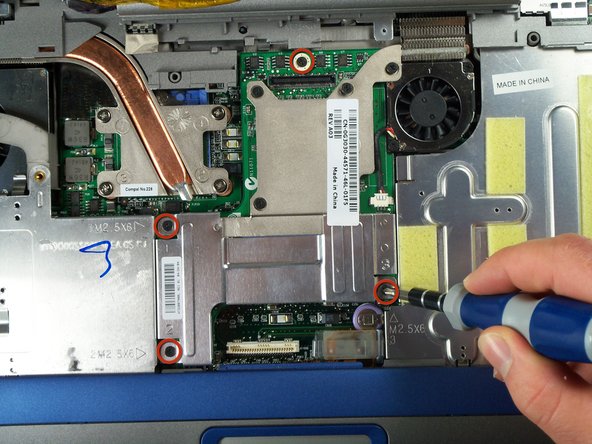

• After removing the keyboard, locate and remove the labeled screws.

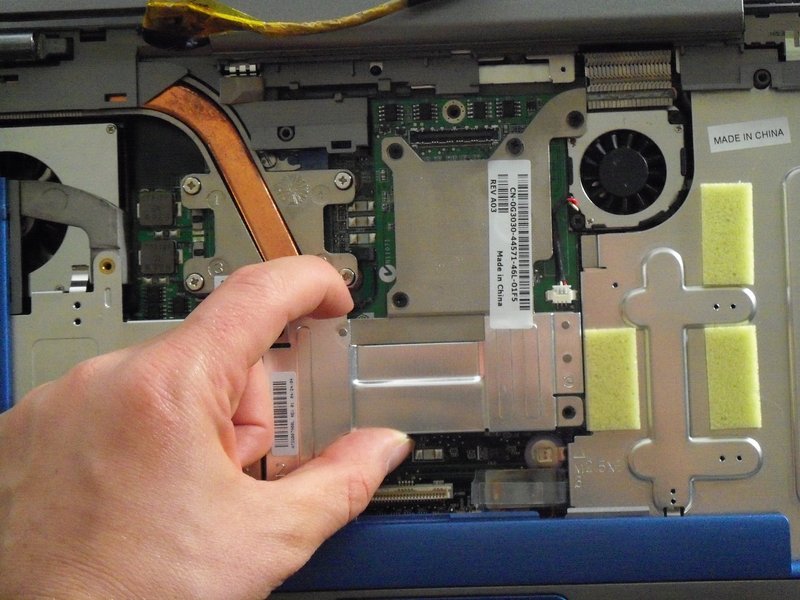

• Gently lift the Video Card unit for replacing.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
