Dell Inspiron 9100 Fan 2 Replacement

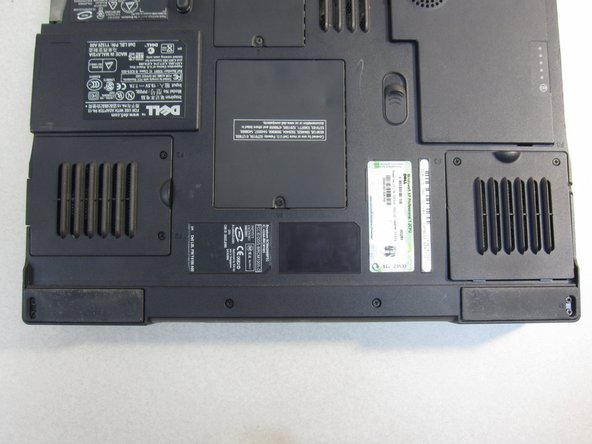

Step 1 Dell Inspiron 9100 Fan 2 Replacement




• Unplug the laptop from the power adapter and turn the power off.
• Failure to unplug laptop before proceeding could result in risk of electric shock!
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

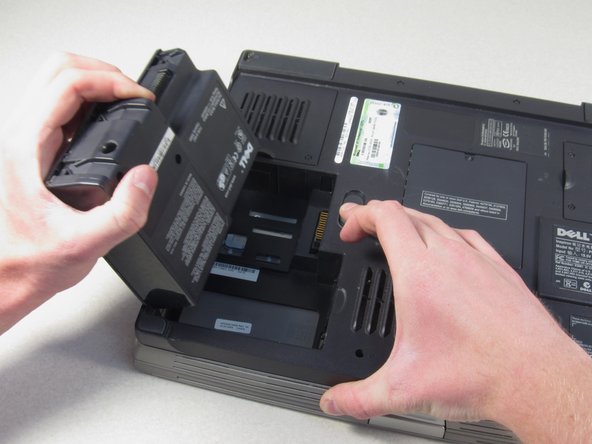

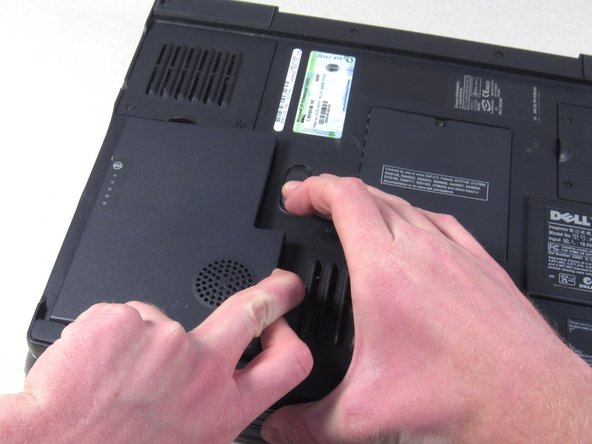

• Slide the battery-lock tab and hold.
• Flip the battery away from the chassis to remove it.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

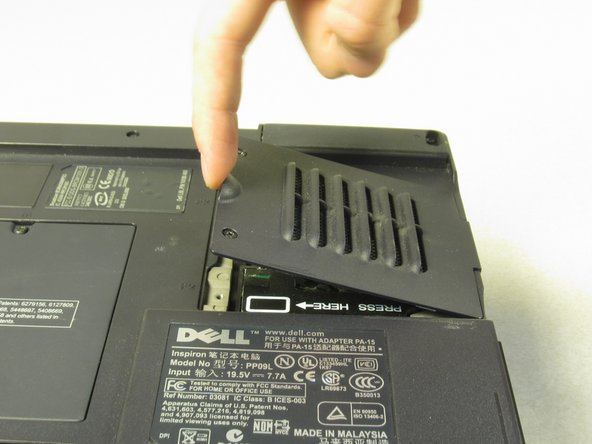

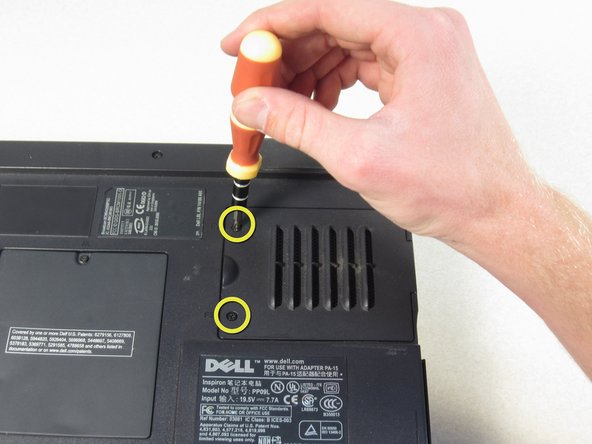

• Undo the two screws on the fan cover labeled "F2"
• These screws will remain in the panel
• Remove cover plate.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

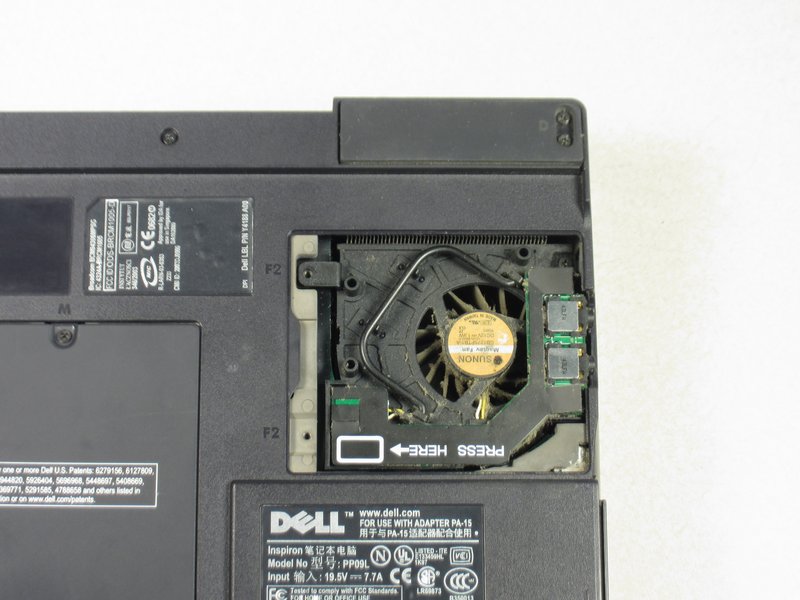

Step 4

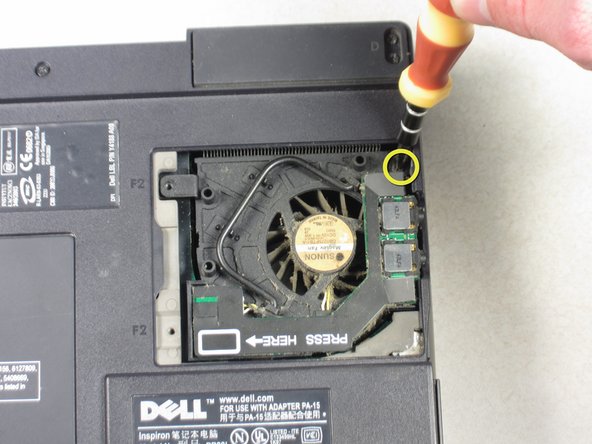

• Remove the single 6mm screw holding the fan in place.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

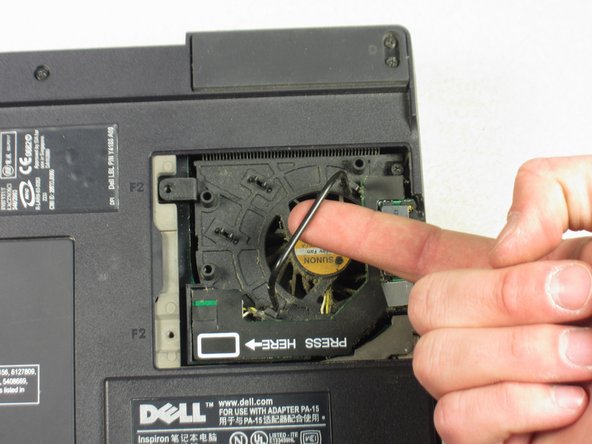

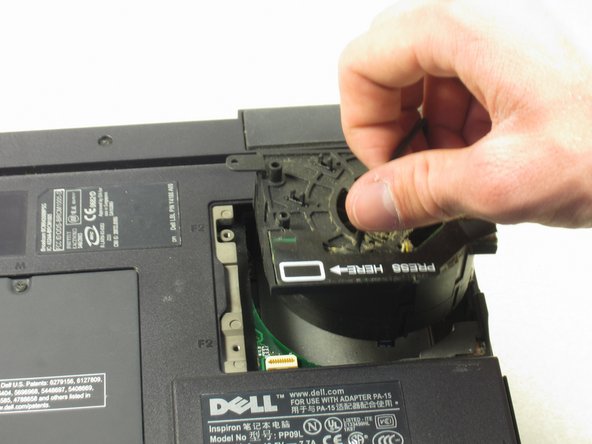

• Flip the handle up.
• Use the handle to pull the fan away directly up, away from case.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
