Dell OptiPlex GX260 Hard Drive Replacement
    1. Dell OptiPlex GX260 Hard Drive Replacement, Dell OptiPlex GX260 Hard Drive Replacement: step 1, image 1 of 2 Dell OptiPlex GX260 Hard Drive Replacement, Dell OptiPlex GX260 Hard Drive Replacement: step 1, image 2 of 2

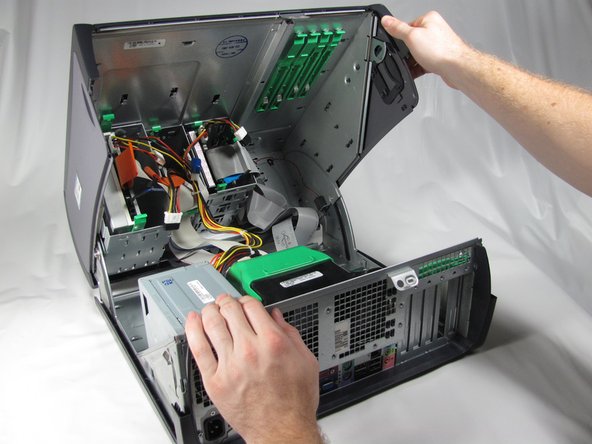

      • Lay the Dell Optiplex GX260 down on a clean flat surface with the rear towards you.

      • Push the oval shaped buttons located on the top and bottom of the PC simultaneously and lift the case straight up.

      • Note: Some force may be required to push in the oval buttons open the PC case.

      Add Comment

    2. Dell OptiPlex GX260 Hard Drive Replacement: step 2, image 1 of 3 Dell OptiPlex GX260 Hard Drive Replacement: step 2, image 2 of 3 Dell OptiPlex GX260 Hard Drive Replacement: step 2, image 3 of 3
      • Identify the Hard Drive in the case.

      • If there is more than one hard drive installed the process is the same for each hard drive.

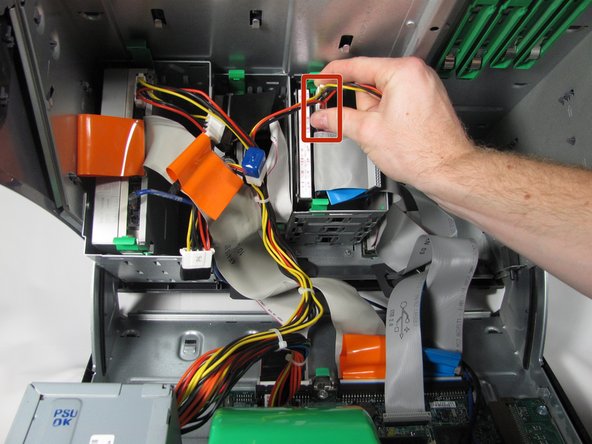

      • Remove the power cable from the hard drive by squeezing the side tabs in and pulling gently.

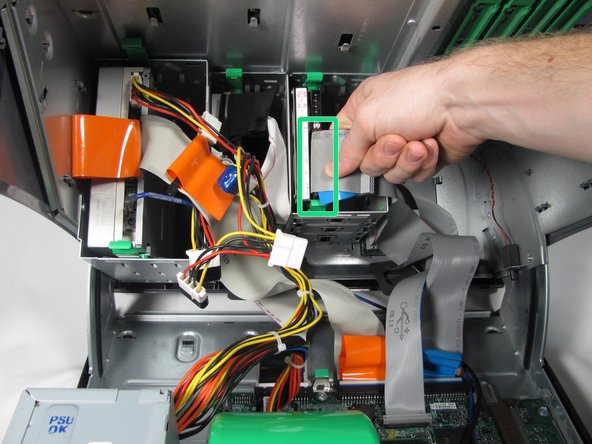

      • Remove the IDE cable from the hard drive by gently pulling the ribbon cable out.

      Add Comment

    3. Dell OptiPlex GX260 Hard Drive Replacement: step 3, image 1 of 1

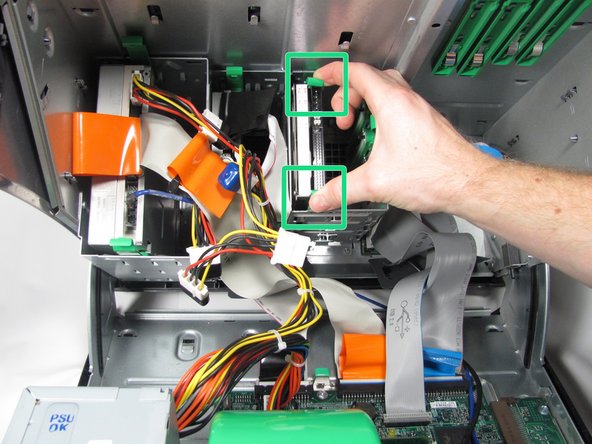

      • Pinch the two green tabs inwards to release the hard drive and lift it out.

      Add Comment

Conclusion

To reassemble your device, follow these instructions in reverse order.
