Dell OptiPlex GX260 Main Fan Replacement

Step 1 Dell OptiPlex GX260 Main Fan Replacement

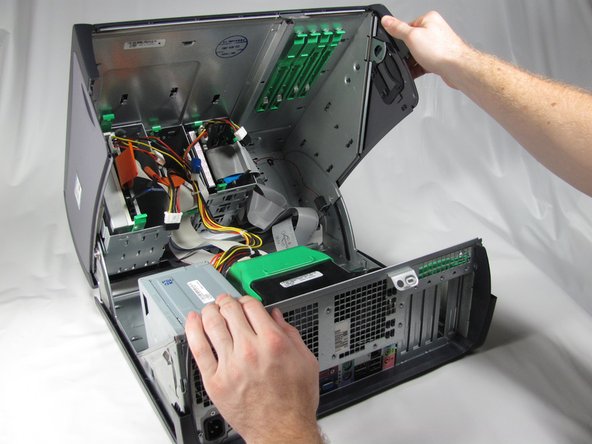

• Lay the Dell Optiplex GX260 down on a clean flat surface with the rear towards you.
• Push the oval shaped buttons located on the top and bottom of the PC simultaneously and lift the case straight up.
• Note: Some force may be required to push in the oval buttons open the PC case.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

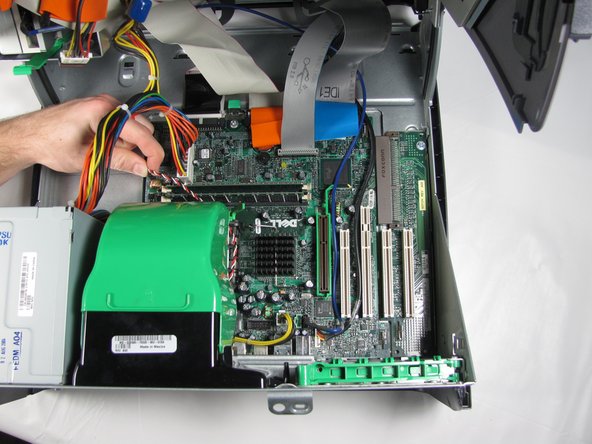

• Disconnect the fan cable from the motherboard.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

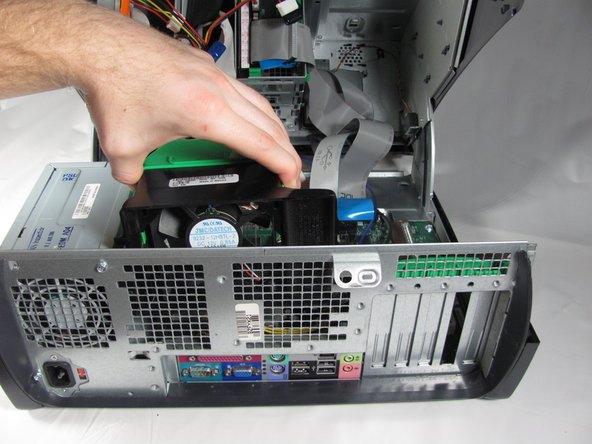

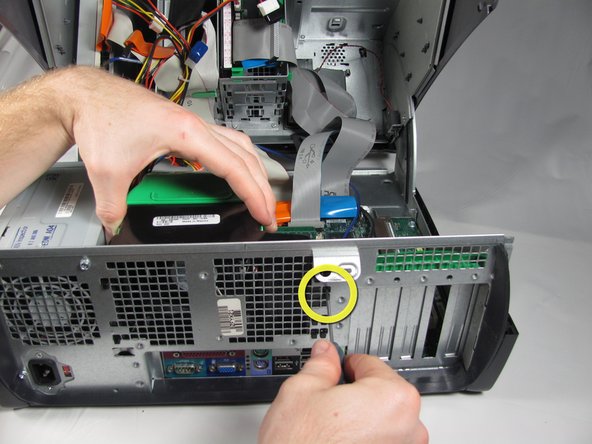

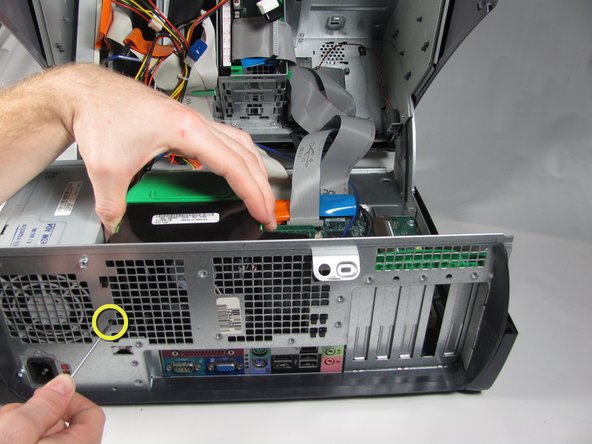

• On the rear of the desktop, push the two circled black buttons straight in with a small pointed object while pulling up on the fan.
• Once the fan is released, lift it straight up and out of the case.
