Dell OptiPlex GX260 RAM Replacement

  1. Dell OptiPlex GX260 RAM Replacement, Dell OptiPlex GX260 RAM Replacement: step 1, image 1 of 2 Dell OptiPlex GX260 RAM Replacement, Dell OptiPlex GX260 RAM Replacement: step 1, image 2 of 2

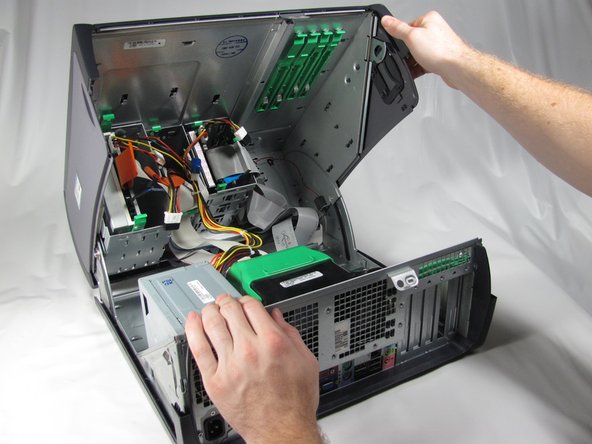

    • Lay the Dell Optiplex GX260 down on a clean flat surface with the rear towards you.

    • Push the oval shaped buttons located on the top and bottom of the PC simultaneously and lift the case straight up.

    • Note: Some force may be required to push in the oval buttons open the PC case.

  2. Dell OptiPlex GX260 RAM Replacement: step 2, image 1 of 2 Dell OptiPlex GX260 RAM Replacement: step 2, image 2 of 2

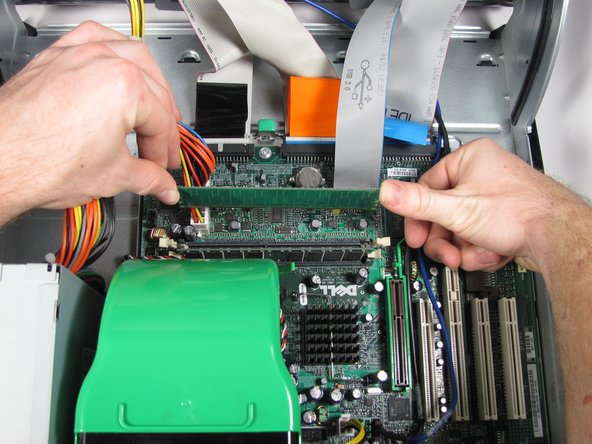

    • Push out on the cream colored tabs on each side of each RAM module until it pops up and out of its slot and remove the RAM.

Conclusion

To reassemble your device, follow these instructions in reverse order.
