What you need

  1. Disassembling Canon EOS Rebel XS Back Cover, Disassembling Canon EOS Rebel XS Back Cover: step 1, image 1 of 1
    • Remove the two 4.5mm (.18in) long black screws from the side cover using a #00 Phillips screwdriver.

  2. Disassembling Canon EOS Rebel XS Back Cover: step 2, image 1 of 1
    • On the bottom, remove the last long screw with the Phillips Screwdriver.

    • Use tweezers to lift the panel.

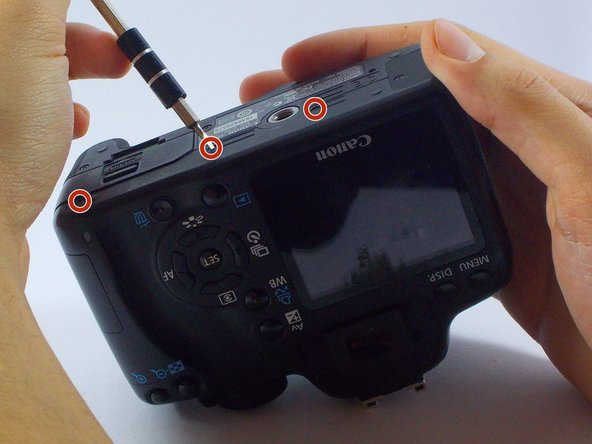

  3. Disassembling Canon EOS Rebel XS Back Cover: step 3, image 1 of 1
    • Remove the three long black screws from the bottom using a #00 Phillips screwdriver.

    • Use tweezers to lift the panel.

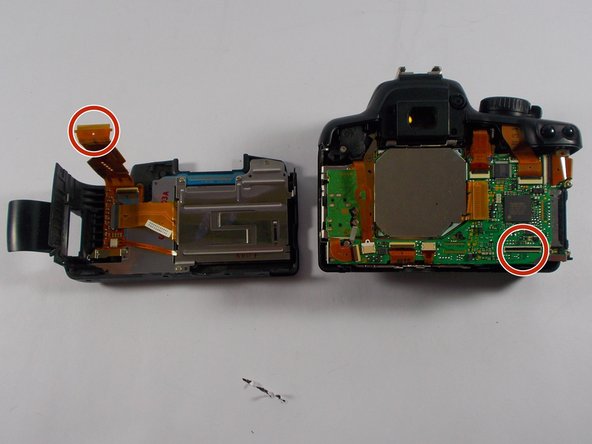

  4. Disassembling Canon EOS Rebel XS Back Cover: step 4, image 1 of 1
    • Once you have detached the back cover, use a pair of tweezers to lightly pull on strap found connecting the back cover to the camera.

Conclusion

To reassemble your device, follow these instructions in reverse order.
