Introduction

Use this guide to repair a broken battery door. The battery door on this model tends to break off due to a weak plastic hinge.

What you need

1. Step 1 Disassembling Canon EOS Rebel XS Battery Door
  Remove the two 4.5mm (.18in) long black screws from the side cover using a #00 Phillips screwdriver.
  Add Comment

  1024
2. Step 2
  On the bottom, remove the last long screw with the Phillips Screwdriver.

  Use tweezers to lift the panel.
  Add Comment

  1024
3. Step 3
  Remove three medium length screws from the bottom of the camera
  Add Comment

  1024
4. Step 4

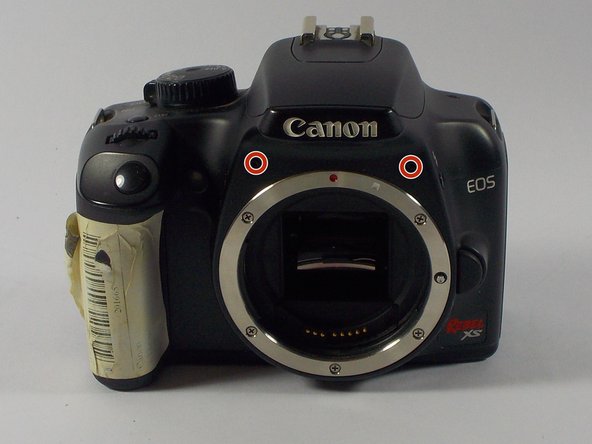

  Remove the two medium length screws on the front panel of the camera above the lens mount.

  Once you done, you may use the Spudger to panel from non-grip side.

  If you start on the grip side, it will be more challenging to loosen the panel.
  Add Comment

  1024
6. Step 5

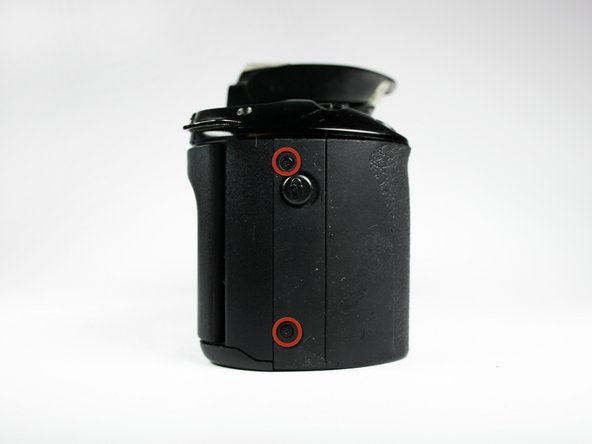

  Remove the two 4.5mm (.18in) long black screws from the camera grip using a #00 Phillips screwdriver.
  Add Comment

  1024
7. Step 6

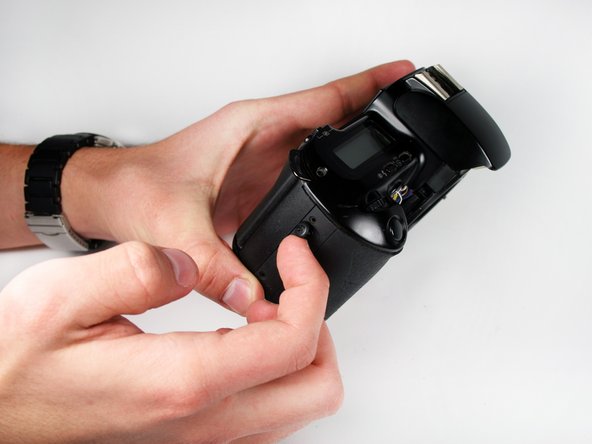

  Use your fingertip to pry off the external shutter port cover.
  Add Comment

  1024
8. Step 7

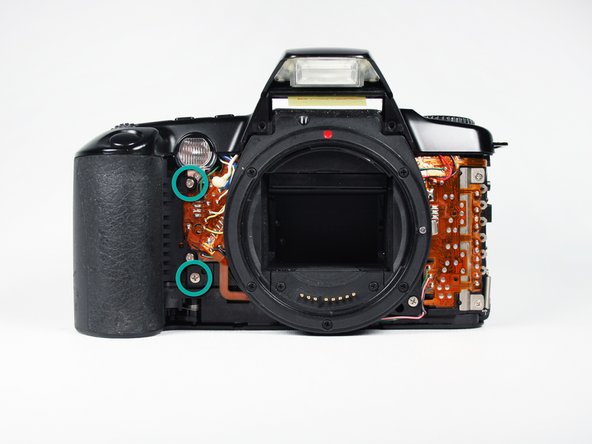

  Remove the two 5mm (.20in) long silver screws securing the grip to the camera using a #00 Phillips screwdriver.
  Add Comment

  1024
9. Step 8

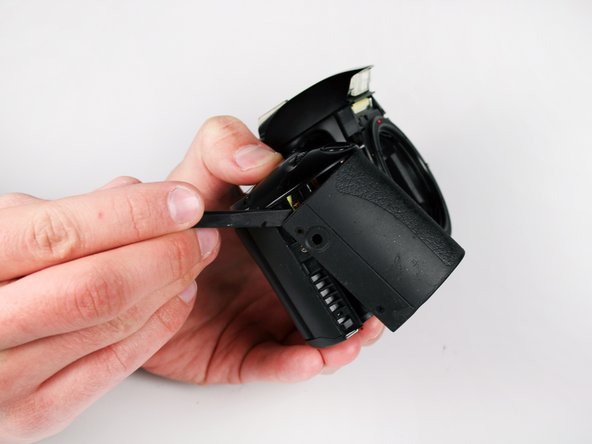

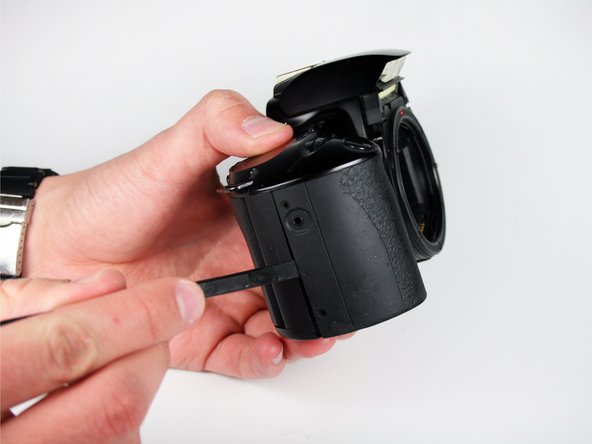

  Use the spudger tool to carefully pry the grip from the rest of the camera.
  Add Comment

  1024
10. Step 9

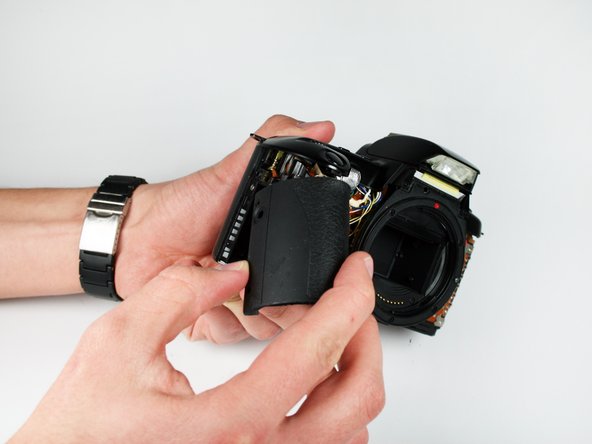

  Once the grip is loose, use your fingers to remove it from the camera.
  Add Comment

  1024
11. Step 10

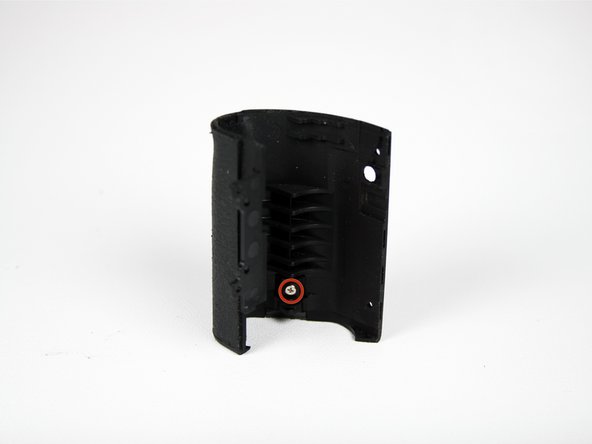

  Remove the 4.8mm (.19in) long silver screw from the inside of the grip.
  Add Comment

  1024
12. Step 11

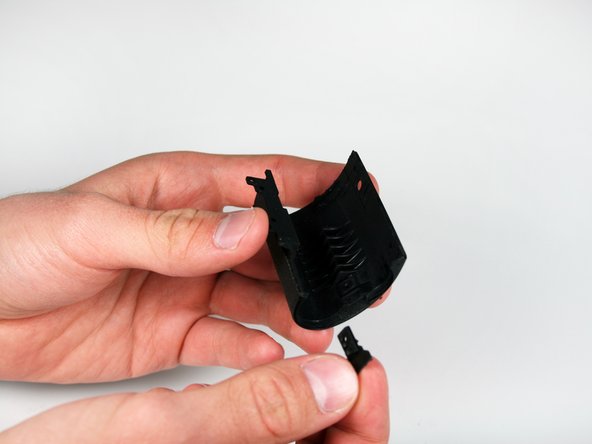

  Remove the hinge of the battery door from the inside of the grip.

  Our sample camera's battery door was broken off of its hinge. Picture two shows an example of a battery door that is not broken.
  Add Comment

  1024

Conclusion

To reassemble your device, follow these instructions in reverse order.
