Disassembling Canon PowerShot SD1100 IS LCD screen

Introduction

Use this guide to remove the LCD screen.

What you need

  1. Disassembling Canon PowerShot SD1100 IS LCD screen, Disassembling Canon PowerShot SD1100 IS LCD screen: step 1, image 1 of 2 Disassembling Canon PowerShot SD1100 IS LCD screen, Disassembling Canon PowerShot SD1100 IS LCD screen: step 1, image 2 of 2

    • Remove wrist strap and battery.

  2. Disassembling Canon PowerShot SD1100 IS LCD screen: step 2, image 1 of 3 Disassembling Canon PowerShot SD1100 IS LCD screen: step 2, image 2 of 3 Disassembling Canon PowerShot SD1100 IS LCD screen: step 2, image 3 of 3

    • Remove 2 screws from each side of the camera (4 total, 0.102 in).

    • Remove 2 screws from the bottom on the camera (0.138 in).

    • Do not mix the 4 side screws with the 2 bottoms ones; they are different sizes.

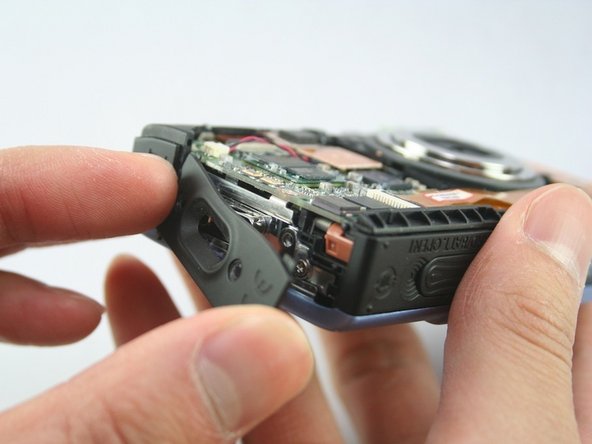

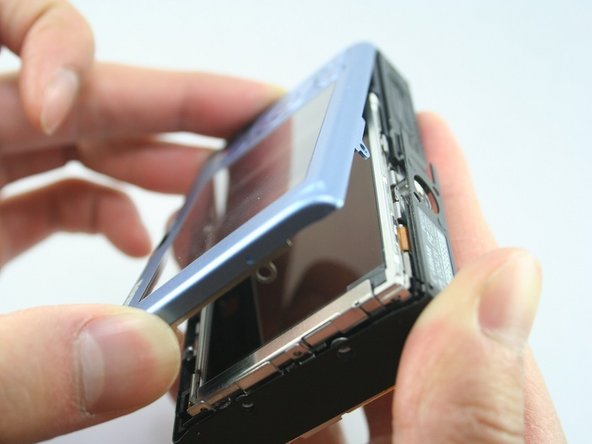

  3. Disassembling Canon PowerShot SD1100 IS LCD screen: step 3, image 1 of 3 Disassembling Canon PowerShot SD1100 IS LCD screen: step 3, image 2 of 3 Disassembling Canon PowerShot SD1100 IS LCD screen: step 3, image 3 of 3

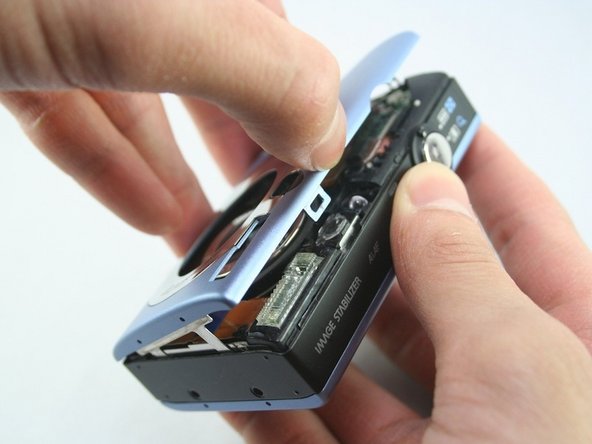

    • Gently pull off the front cover.

    • The plate on the side should come off.

    • Gently pull off the back cover.

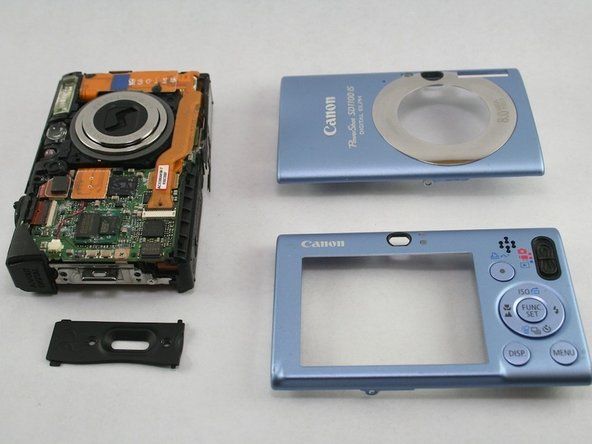

  4. Disassembling Canon PowerShot SD1100 IS LCD screen: step 4, image 1 of 1

    • The cases should now be removed.

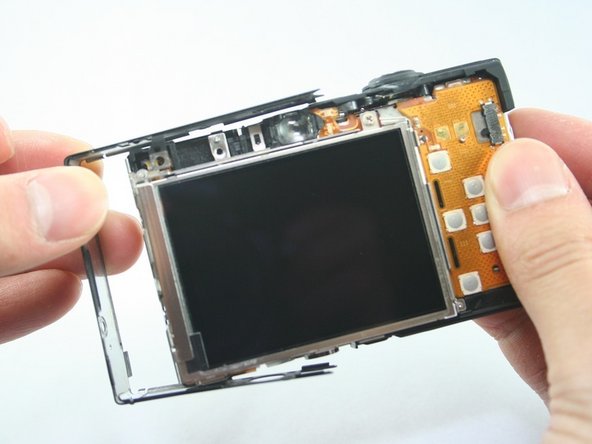

  6. Disassembling Canon PowerShot SD1100 IS LCD screen: step 5, image 1 of 2 Disassembling Canon PowerShot SD1100 IS LCD screen: step 5, image 2 of 2

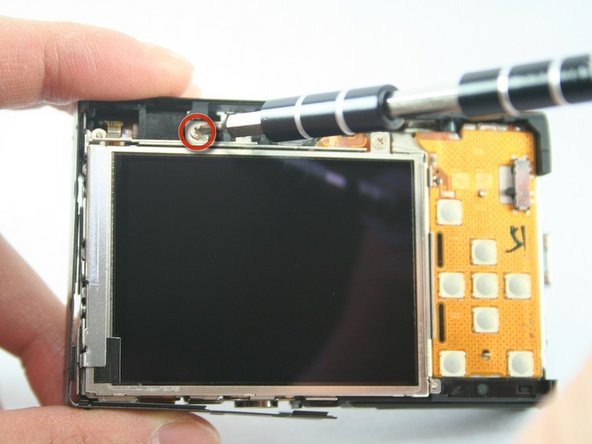

    • Remove the top-left screw above the LCD screen (0.100 in).

    • Remove the C-shaped plate from the side of the LCD screen.

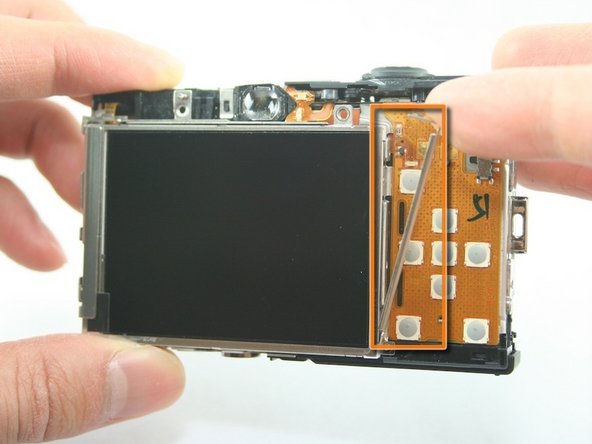

  7. Disassembling Canon PowerShot SD1100 IS LCD screen: step 6, image 1 of 2 Disassembling Canon PowerShot SD1100 IS LCD screen: step 6, image 2 of 2

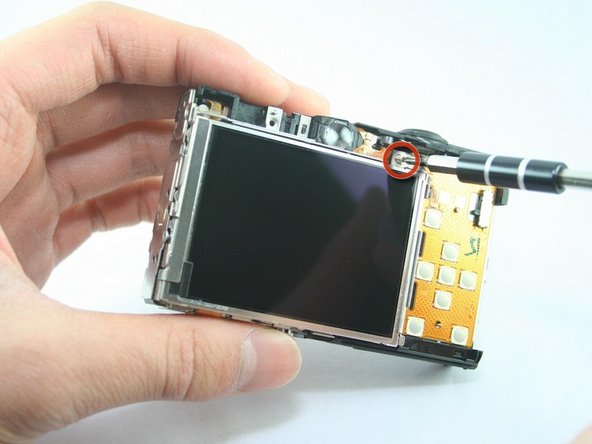

    • Remove the screw from the top-right of the LCD screen (0.098 in).

    • Remove the L-shaped bar from the right of the LCD screen.

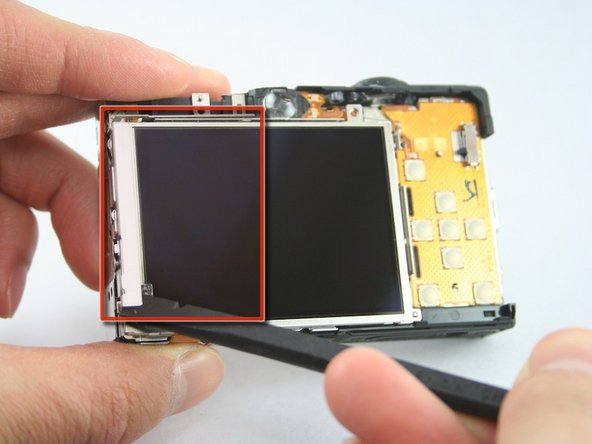

  8. Disassembling Canon PowerShot SD1100 IS LCD screen: step 7, image 1 of 2 Disassembling Canon PowerShot SD1100 IS LCD screen: step 7, image 2 of 2

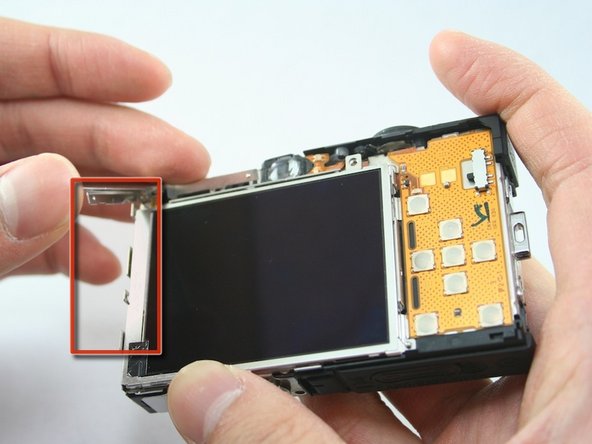

    • Use the spudger to remove the L-shaped bar from the left-side of the LCD screen.

  9. Disassembling Canon PowerShot SD1100 IS LCD screen: step 8, image 1 of 1

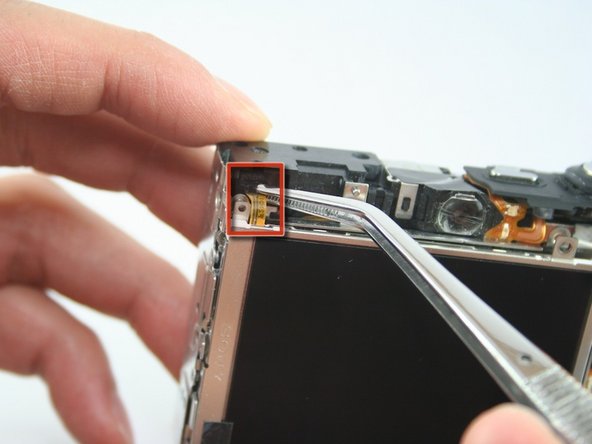

    • Use tweezers to remove the connector ribbon from the top-left corner above the LCD screen.

    • Be gentle. This ribbon should stay attached to the screen.

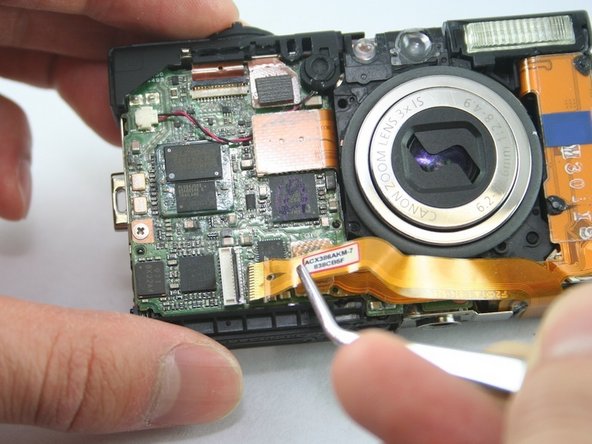

  10. Disassembling Canon PowerShot SD1100 IS LCD screen: step 9, image 1 of 3 Disassembling Canon PowerShot SD1100 IS LCD screen: step 9, image 2 of 3 Disassembling Canon PowerShot SD1100 IS LCD screen: step 9, image 3 of 3

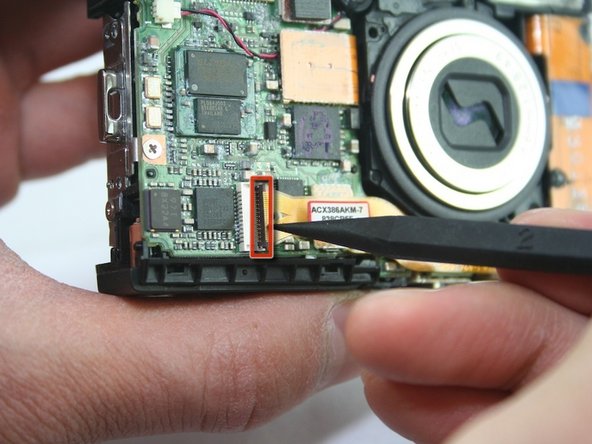

    • Use a spudger to lift the connector lock (black flap) at the end of the larger LCD connector ribbon on the front side of the camera.

    • Use the tweezers to lift this ribbon.

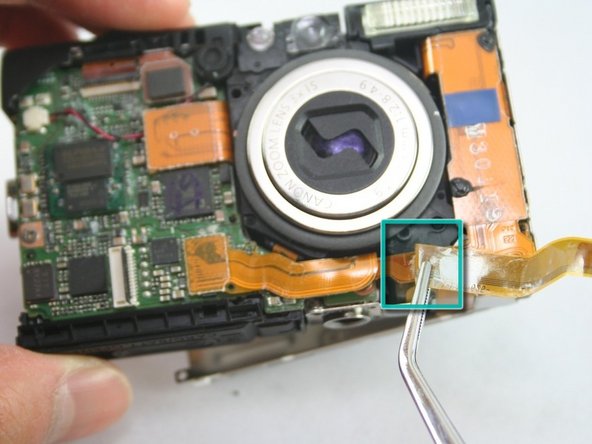

    • Use the tweezers to gently peel this ribbon from the one underneath it.

  11. Disassembling Canon PowerShot SD1100 IS LCD screen: step 10, image 1 of 1

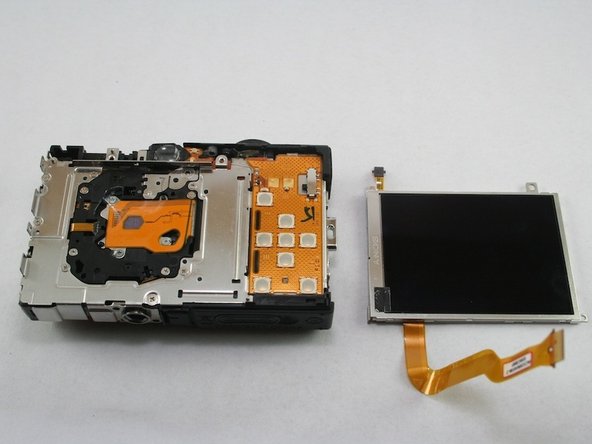

    • The LCD screen should now be removed.

Conclusion

To reassemble your device, follow these instructions in reverse order.
