Disassembling Compaq Mini 110 Hard Drive

What you need

  1. Disassembling Compaq Mini 110 Hard Drive, Disassembling Compaq Mini 110 Hard Drive: step 1, image 1 of 2 Disassembling Compaq Mini 110 Hard Drive, Disassembling Compaq Mini 110 Hard Drive: step 1, image 2 of 2

    • Find the battery and the battery tabs located on the bottom of the Compaq Mini.

  2. Disassembling Compaq Mini 110 Hard Drive: step 2, image 1 of 3 Disassembling Compaq Mini 110 Hard Drive: step 2, image 2 of 3 Disassembling Compaq Mini 110 Hard Drive: step 2, image 3 of 3

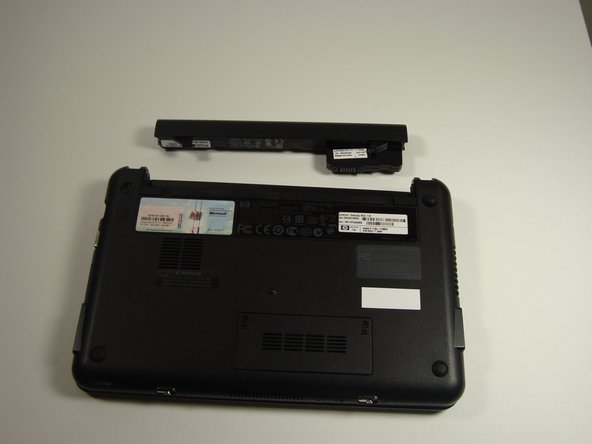

    • Push the tabs inward and slide the battery out.

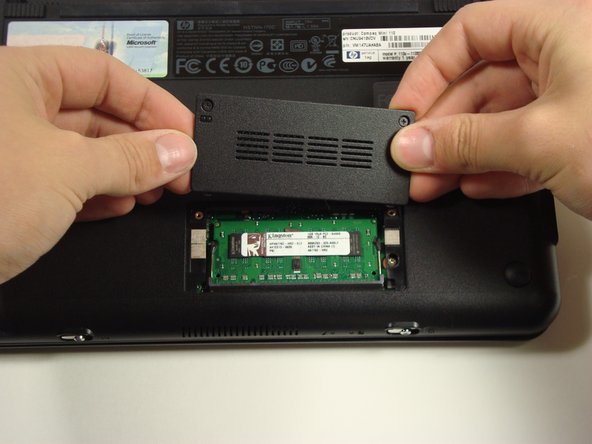

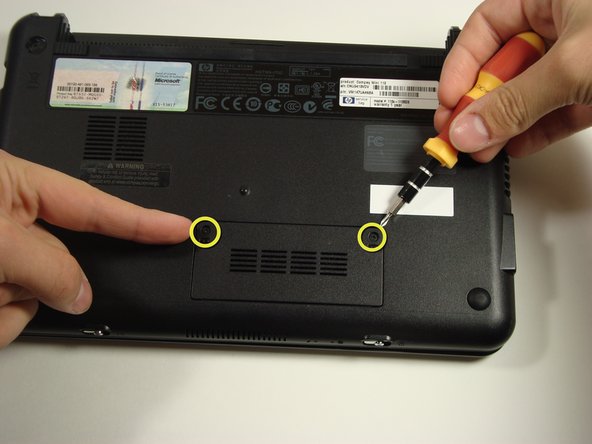

  3. Disassembling Compaq Mini 110 Hard Drive: step 3, image 1 of 2 Disassembling Compaq Mini 110 Hard Drive: step 3, image 2 of 2

    • Find and remove the two screws on the bottom of your Compaq Mini covering the memory compartment.

    • Note that the screws are attached to the panel.

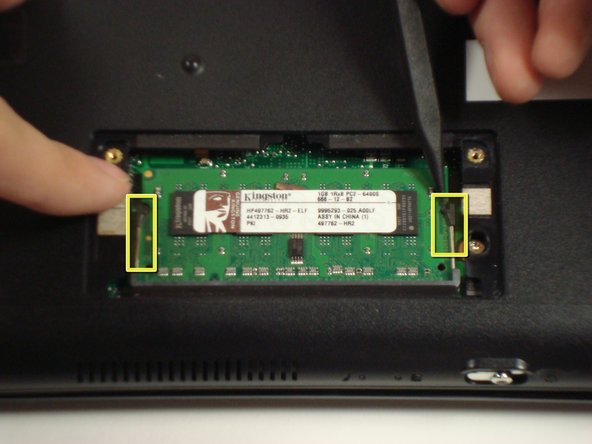

  4. Disassembling Compaq Mini 110 Hard Drive: step 4, image 1 of 1

    • Push out side tabs.

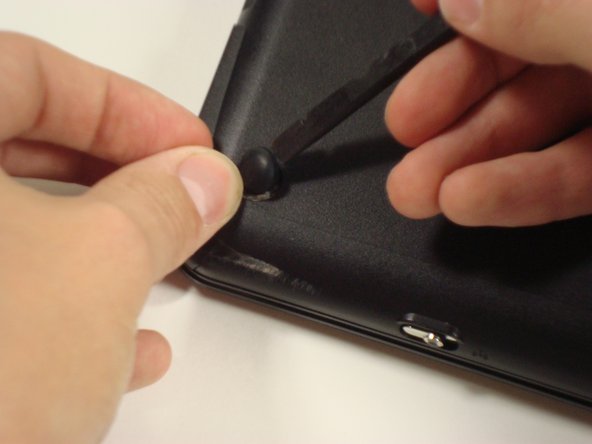

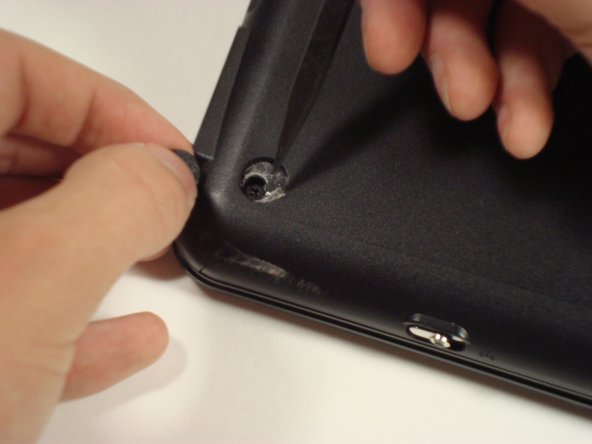

  6. Disassembling Compaq Mini 110 Hard Drive: step 5, image 1 of 2 Disassembling Compaq Mini 110 Hard Drive: step 5, image 2 of 2

    • Remove the rubber pads located on the corners of your Compaq Mini.

    • There may be junk underneath it. This is residue left from the glue that held on the rubber pad. Just scrape it away to find the screw.

  7. Disassembling Compaq Mini 110 Hard Drive: step 6, image 1 of 2 Disassembling Compaq Mini 110 Hard Drive: step 6, image 2 of 2

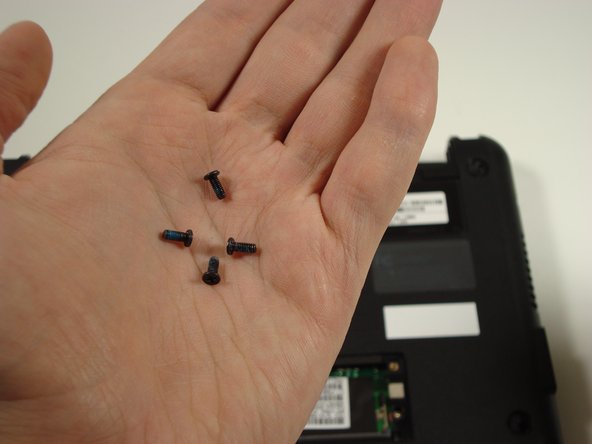

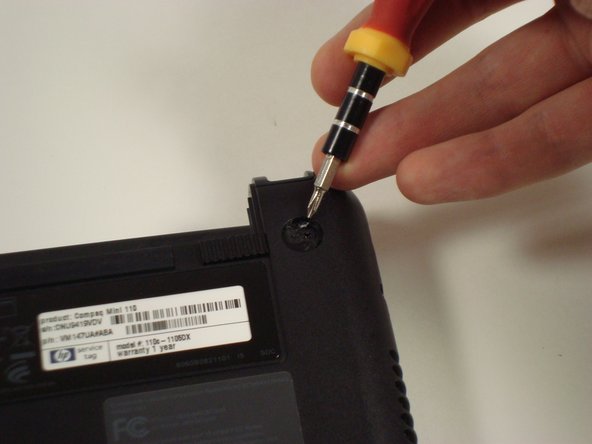

    • Unscrew all the corner screws. There are four total, one under each rubber pad.

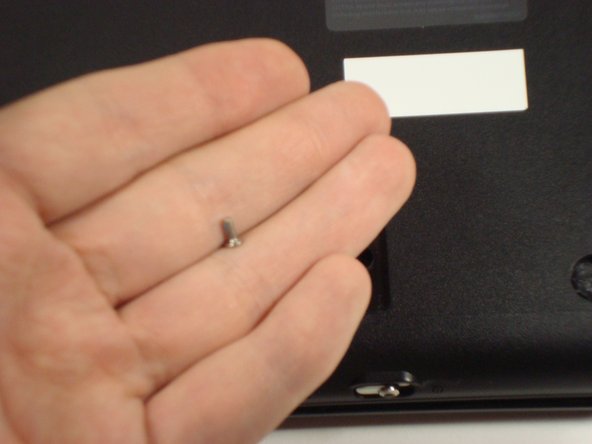

  8. Disassembling Compaq Mini 110 Hard Drive: step 7, image 1 of 2 Disassembling Compaq Mini 110 Hard Drive: step 7, image 2 of 2

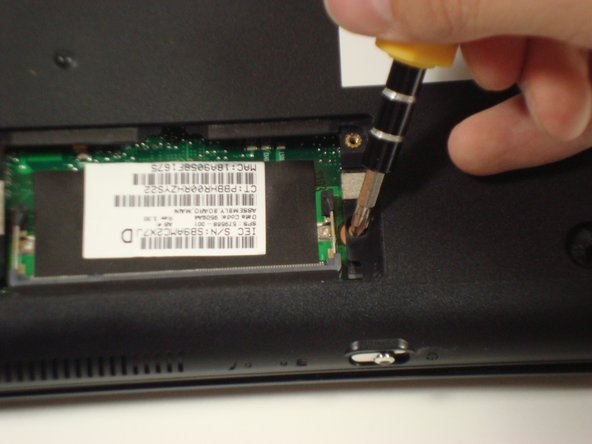

    • Unscrew the screw for the bottom case located in the RAM compartment.

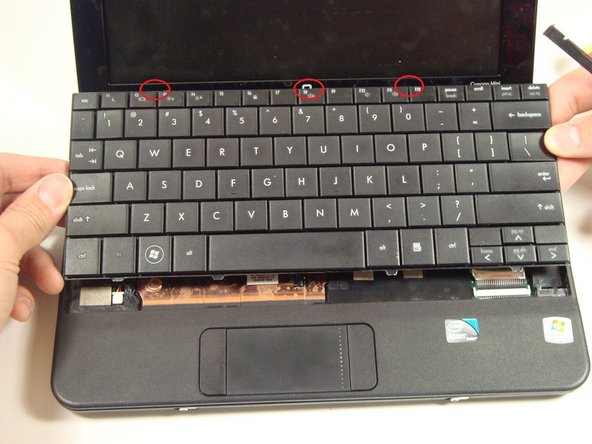

  9. Disassembling Compaq Mini 110 Hard Drive: step 8, image 1 of 2 Disassembling Compaq Mini 110 Hard Drive: step 8, image 2 of 2

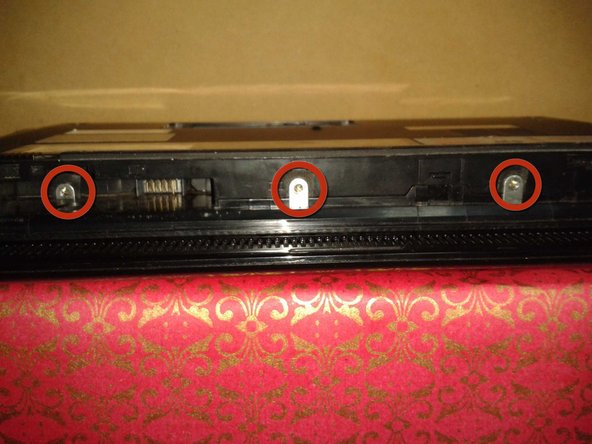

    • Remove the three screws in the silver tabs at the back of the keyboard. The red circles show where they are located at the back of the base under the screen.

  10. Disassembling Compaq Mini 110 Hard Drive: step 9, image 1 of 1

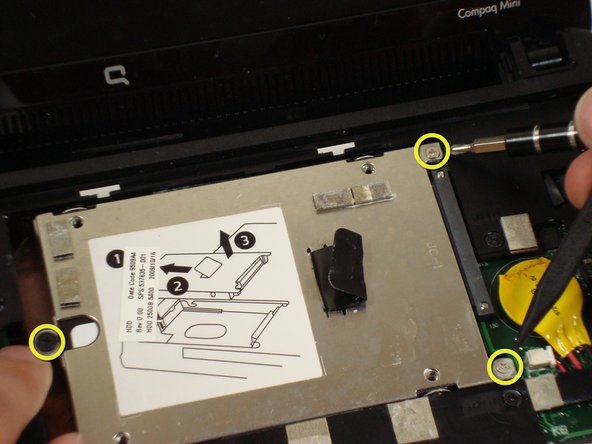

    • Remove the three screws.

  11. Disassembling Compaq Mini 110 Hard Drive: step 10, image 1 of 2 Disassembling Compaq Mini 110 Hard Drive: step 10, image 2 of 2

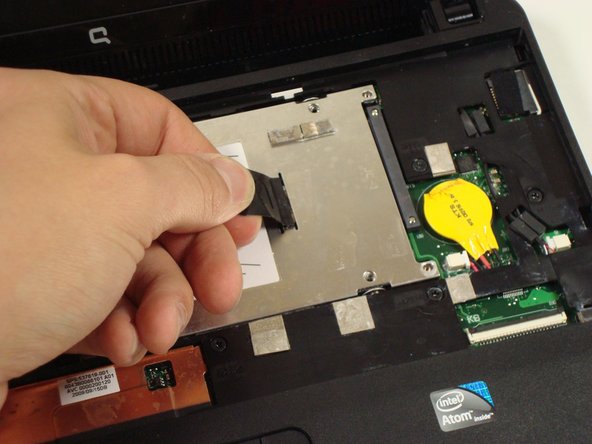

    • Pull up on the tab.

Conclusion

To reassemble your device, follow these instructions in reverse order.
