Disassembling Compaq Mini 110 Speakers

Introduction

If your sound is not functioning properly these may be the problem. Check the troubleshooting guide before proceeding.

What you need

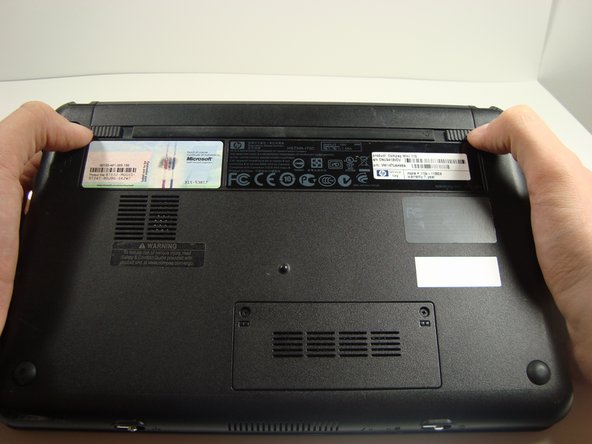

  1. Disassembling Compaq Mini 110 Speakers, Disassembling Compaq Mini 110 Speakers: step 1, image 1 of 2 Disassembling Compaq Mini 110 Speakers, Disassembling Compaq Mini 110 Speakers: step 1, image 2 of 2

    • Find the battery and the battery tabs located on the bottom of the Compaq Mini.

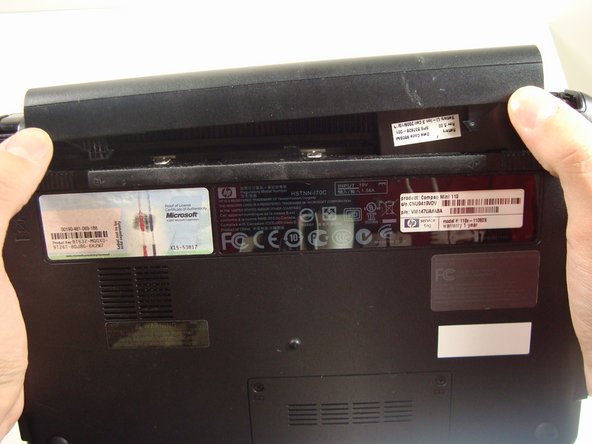

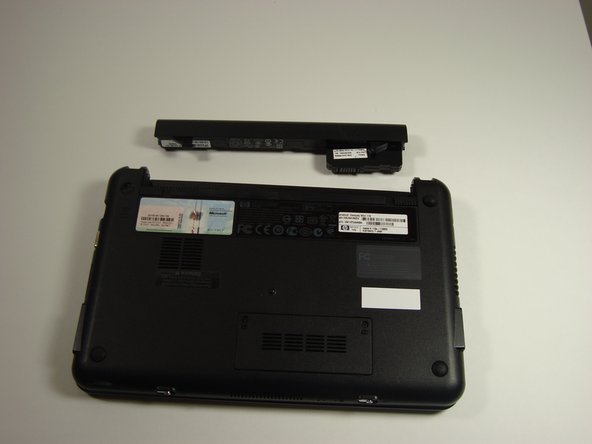

  2. Disassembling Compaq Mini 110 Speakers: step 2, image 1 of 3 Disassembling Compaq Mini 110 Speakers: step 2, image 2 of 3 Disassembling Compaq Mini 110 Speakers: step 2, image 3 of 3

    • Push the tabs inward and slide the battery out.

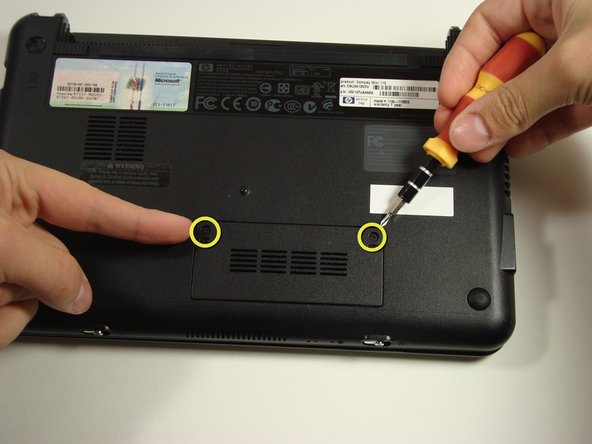

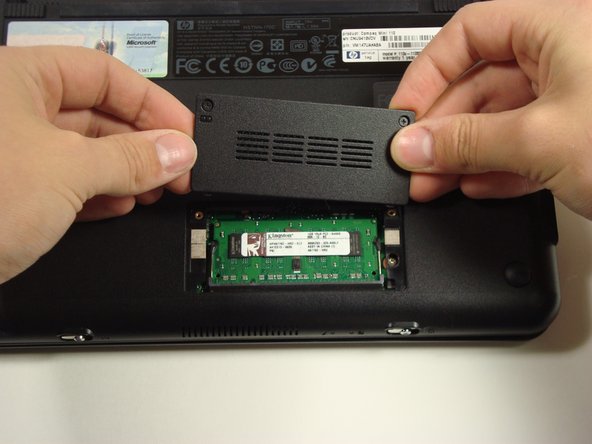

  3. Disassembling Compaq Mini 110 Speakers: step 3, image 1 of 2 Disassembling Compaq Mini 110 Speakers: step 3, image 2 of 2

    • Find and remove the two screws on the bottom of your Compaq Mini covering the memory compartment.

    • Note that the screws are attached to the panel.

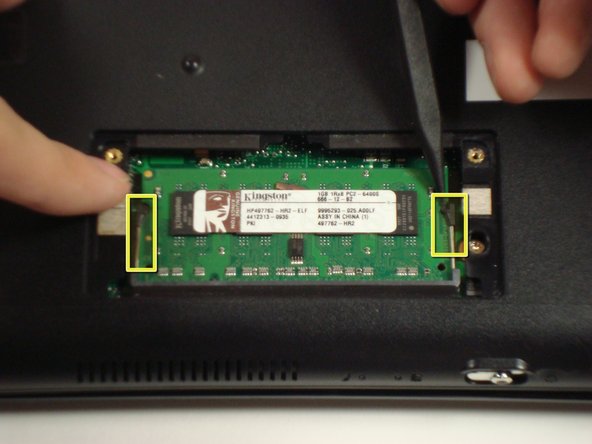

  4. Disassembling Compaq Mini 110 Speakers: step 4, image 1 of 1

    • Push out side tabs.

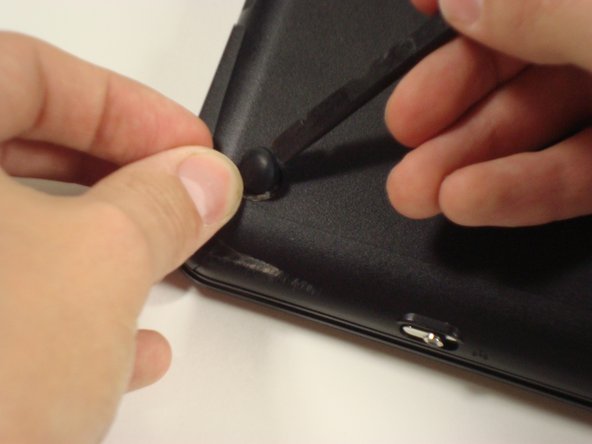

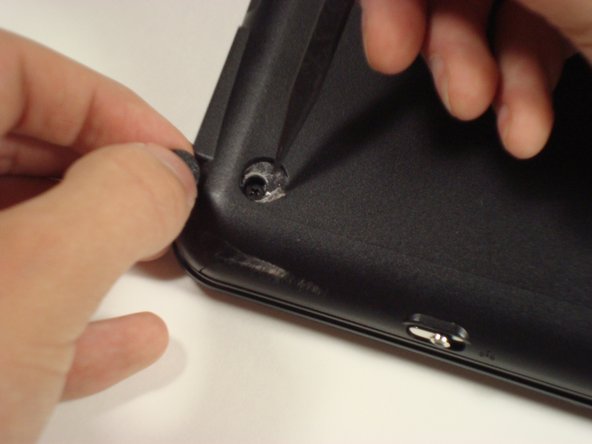

  5. Disassembling Compaq Mini 110 Speakers: step 5, image 1 of 2 Disassembling Compaq Mini 110 Speakers: step 5, image 2 of 2

    • Remove the rubber pads located on the corners of your Compaq Mini.

    • There may be junk underneath it. This is residue left from the glue that held on the rubber pad. Just scrape it away to find the screw.

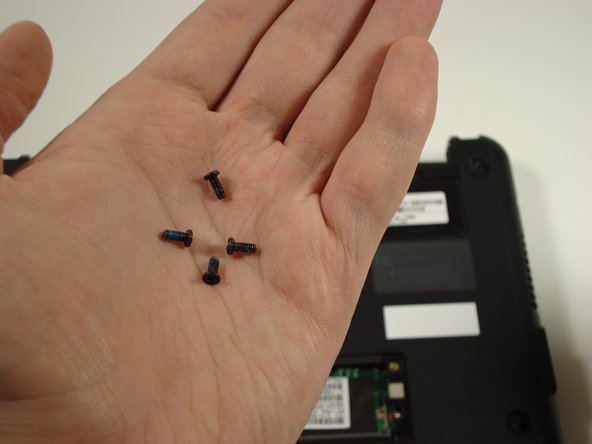

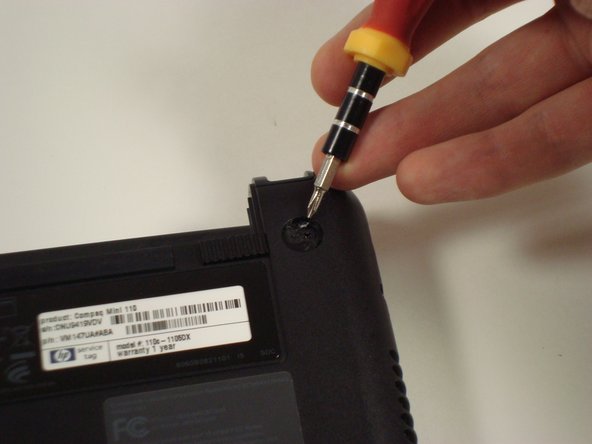

  6. Disassembling Compaq Mini 110 Speakers: step 6, image 1 of 2 Disassembling Compaq Mini 110 Speakers: step 6, image 2 of 2

    • Unscrew all the corner screws. There are four total, one under each rubber pad.

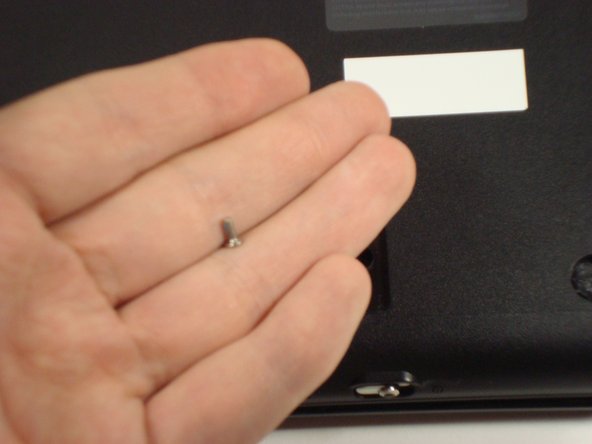

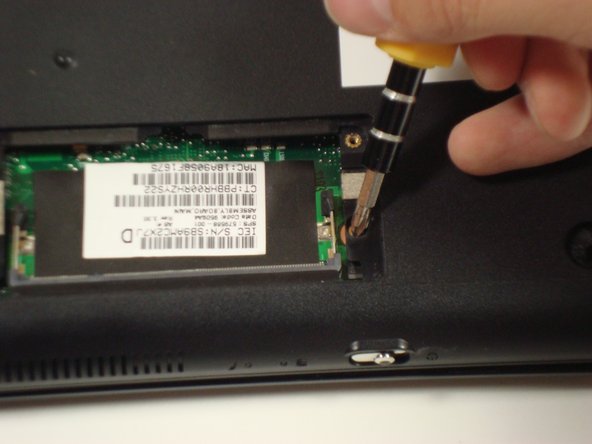

  7. Disassembling Compaq Mini 110 Speakers: step 7, image 1 of 2 Disassembling Compaq Mini 110 Speakers: step 7, image 2 of 2

    • Unscrew the screw for the bottom case located in the RAM compartment.

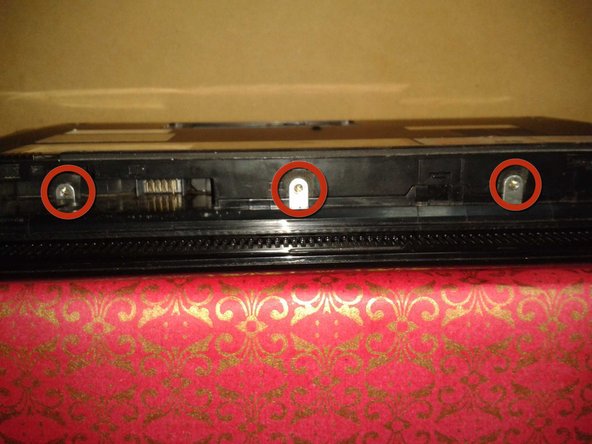

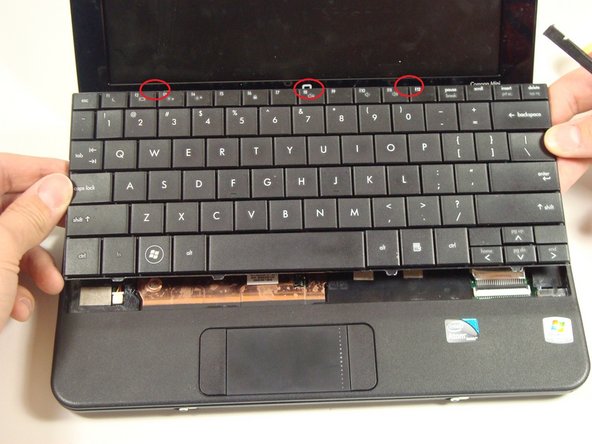

  9. Disassembling Compaq Mini 110 Speakers: step 8, image 1 of 2 Disassembling Compaq Mini 110 Speakers: step 8, image 2 of 2

    • Remove the three screws in the silver tabs at the back of the keyboard. The red circles show where they are located at the back of the base under the screen.

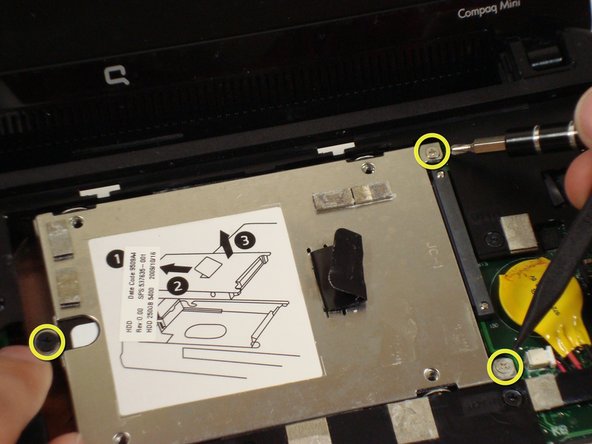

  10. Disassembling Compaq Mini 110 Speakers: step 9, image 1 of 1

    • Remove the three screws.

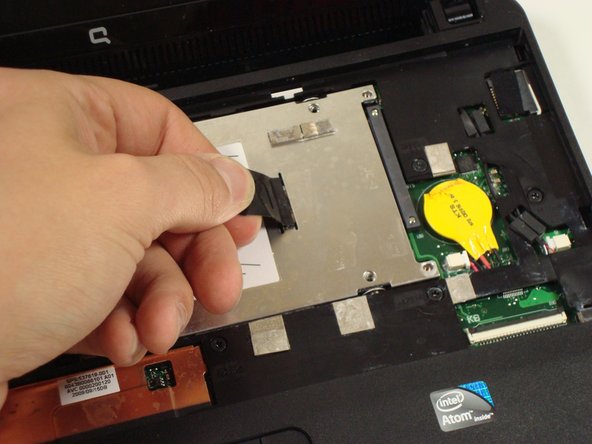

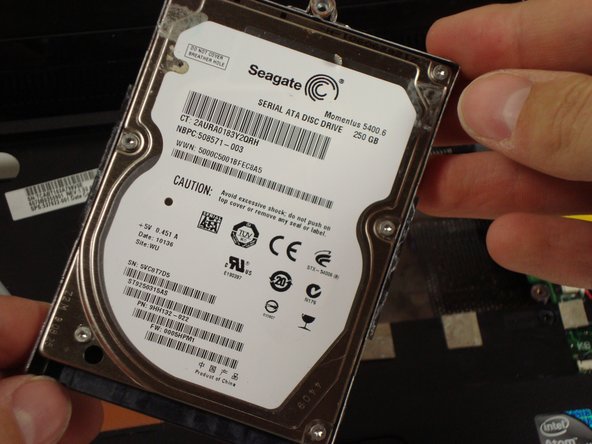

  11. Disassembling Compaq Mini 110 Speakers: step 10, image 1 of 2 Disassembling Compaq Mini 110 Speakers: step 10, image 2 of 2

    • Pull up on the tab.

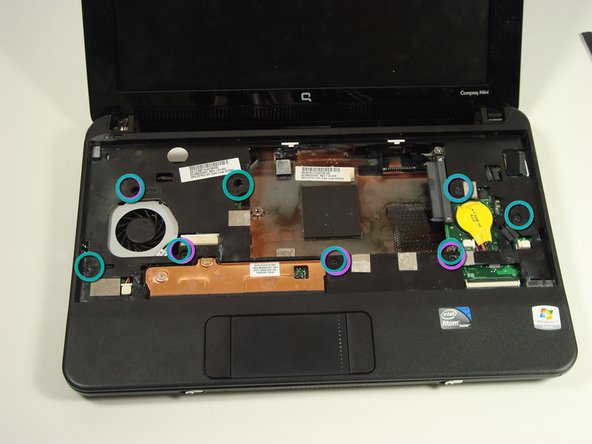

  12. Disassembling Compaq Mini 110 Speakers: step 11, image 1 of 1

    • Remove the eight screws from the plastic top cover.

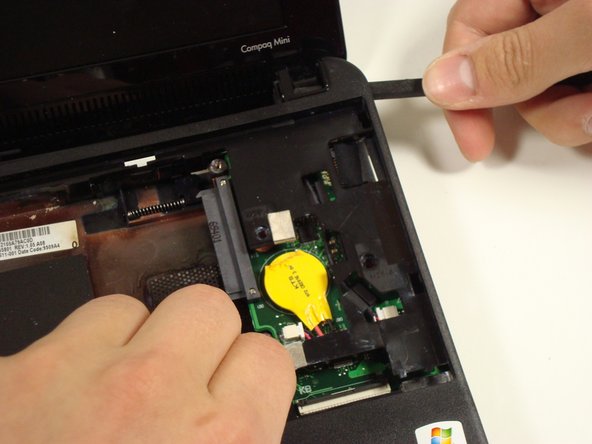

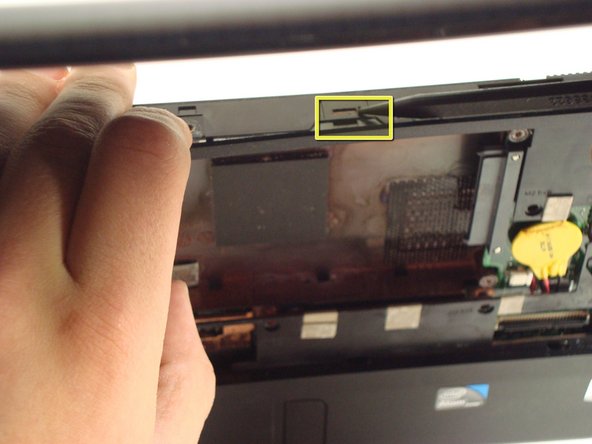

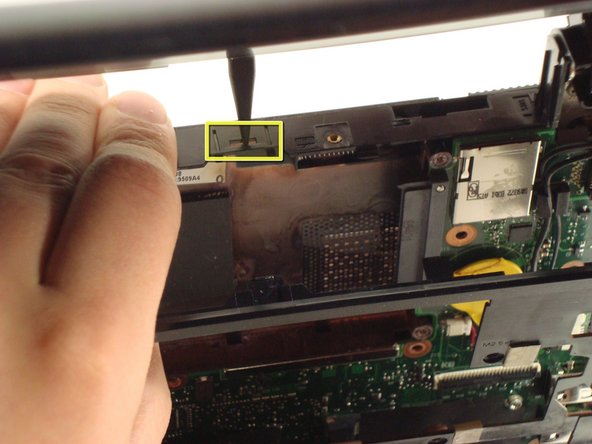

  13. Disassembling Compaq Mini 110 Speakers: step 12, image 1 of 3 Disassembling Compaq Mini 110 Speakers: step 12, image 2 of 3 Disassembling Compaq Mini 110 Speakers: step 12, image 3 of 3

    • Pry up the top plastic cover using a spudger.

    • Under the screen there are two tabs that need to be pushed in.

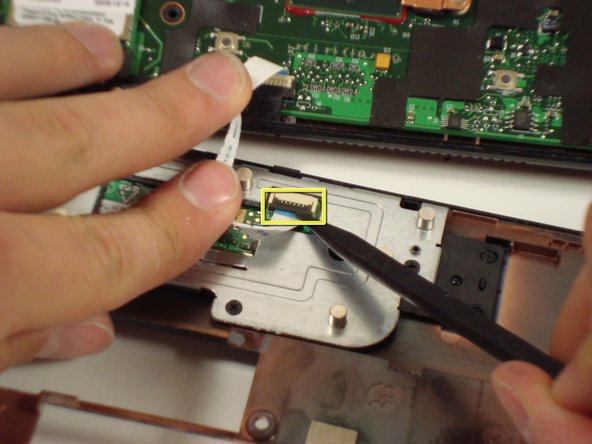

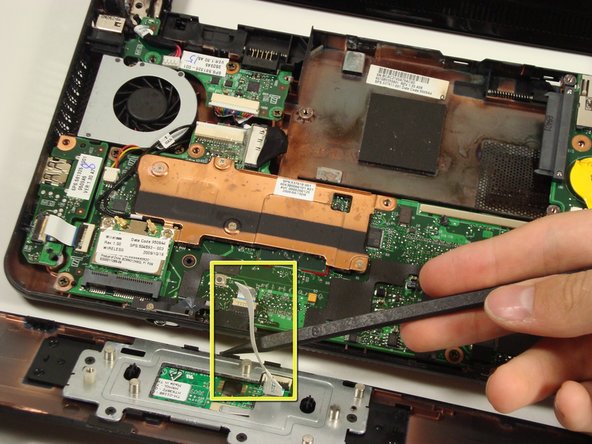

  14. Disassembling Compaq Mini 110 Speakers: step 13, image 1 of 2 Disassembling Compaq Mini 110 Speakers: step 13, image 2 of 2

    • Careful lifting up the cover because the track pad is still attached.

    • Remove the cable by pulling it up.

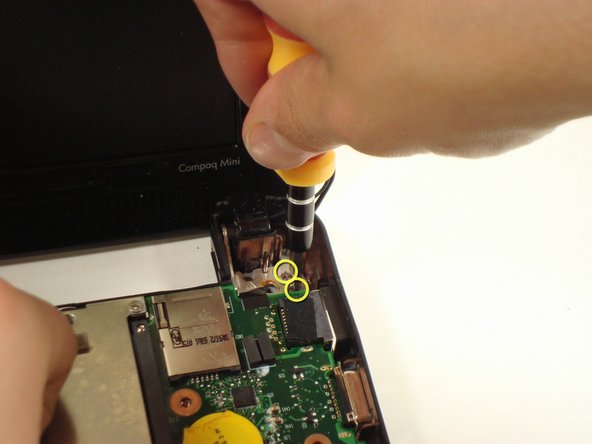

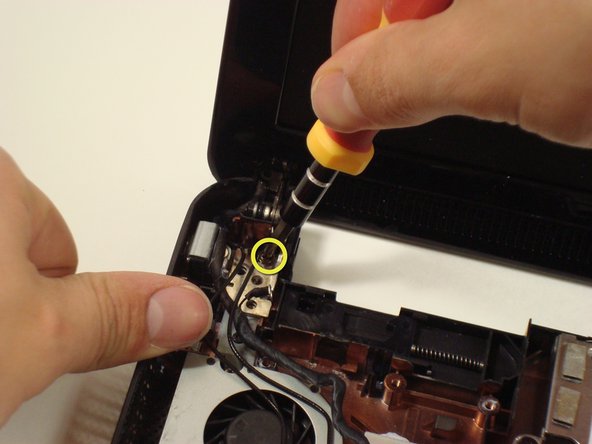

  15. Disassembling Compaq Mini 110 Speakers: step 14, image 1 of 3 Disassembling Compaq Mini 110 Speakers: step 14, image 2 of 3 Disassembling Compaq Mini 110 Speakers: step 14, image 3 of 3

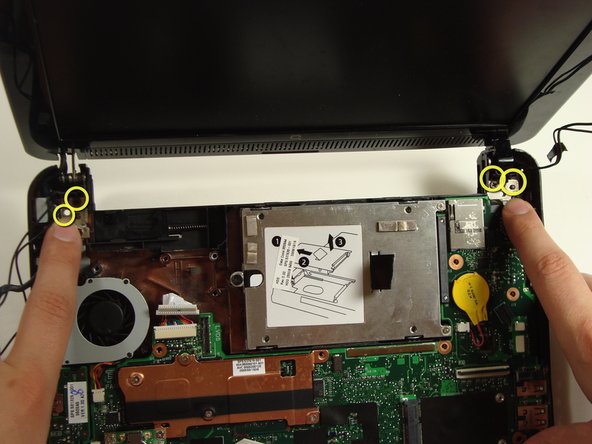

    • Take out the four screws that keep the bottom of the hinges attached to the base.

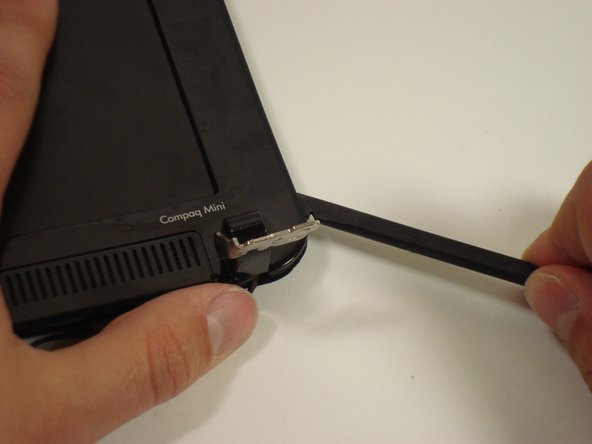

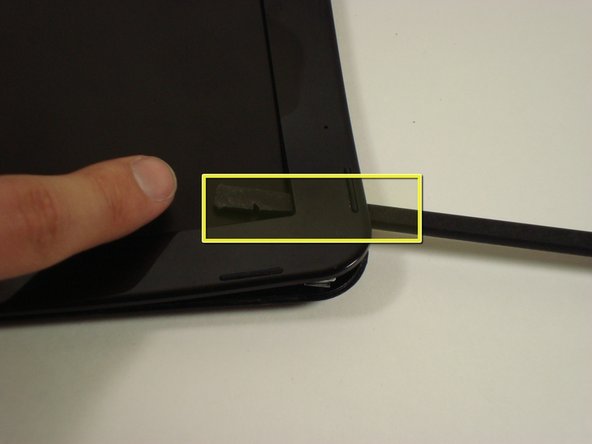

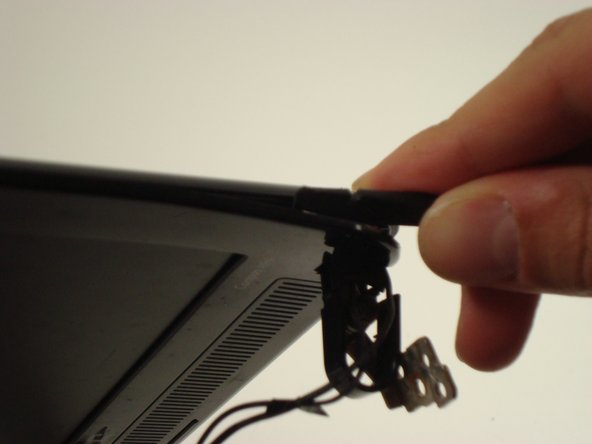

  16. Disassembling Compaq Mini 110 Speakers: step 15, image 1 of 3 Disassembling Compaq Mini 110 Speakers: step 15, image 2 of 3 Disassembling Compaq Mini 110 Speakers: step 15, image 3 of 3

    • Pry off the top plastic cover of the display assembly.

    • Note: There is adhesive tape holding the cover on.

    • Note: The spudger may go all the way through to the screen-side of the cover. This is ok and will not damage anything.

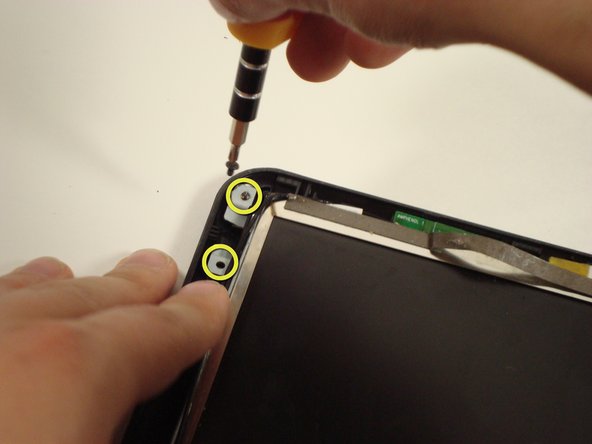

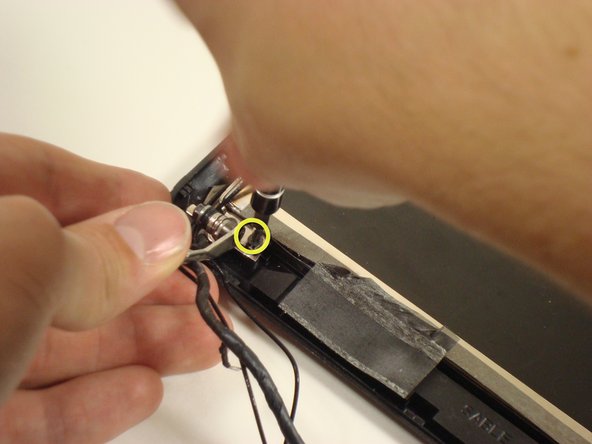

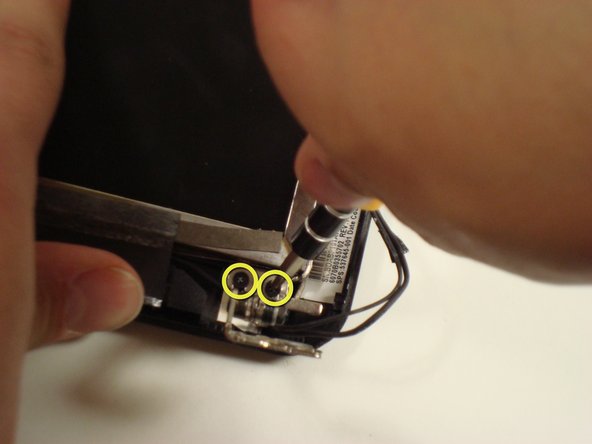

  17. Disassembling Compaq Mini 110 Speakers: step 16, image 1 of 3 Disassembling Compaq Mini 110 Speakers: step 16, image 2 of 3 Disassembling Compaq Mini 110 Speakers: step 16, image 3 of 3

    • Remove the 4 screws keeping the screen on the plastic assembly.

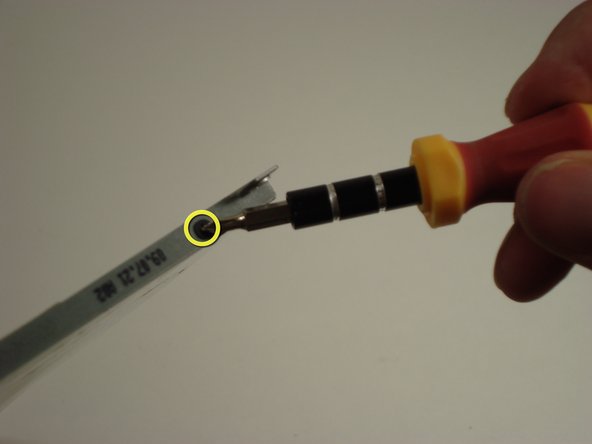

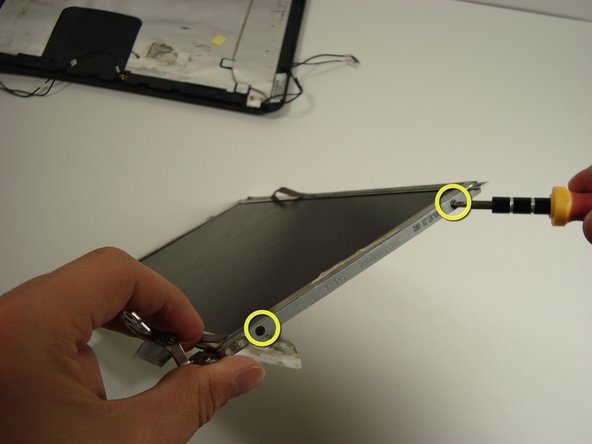

  18. Disassembling Compaq Mini 110 Speakers: step 17, image 1 of 3 Disassembling Compaq Mini 110 Speakers: step 17, image 2 of 3 Disassembling Compaq Mini 110 Speakers: step 17, image 3 of 3

    • Take the screen off the metal connectors by unscrewing each side. Each side has 2 screws

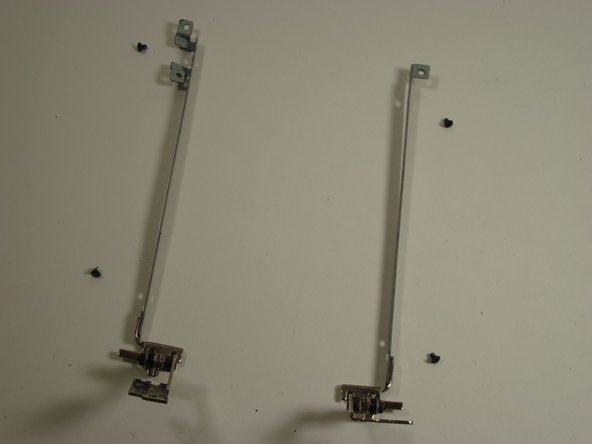

    • The last picture is of the metal connectors that attach it to the display assembly.

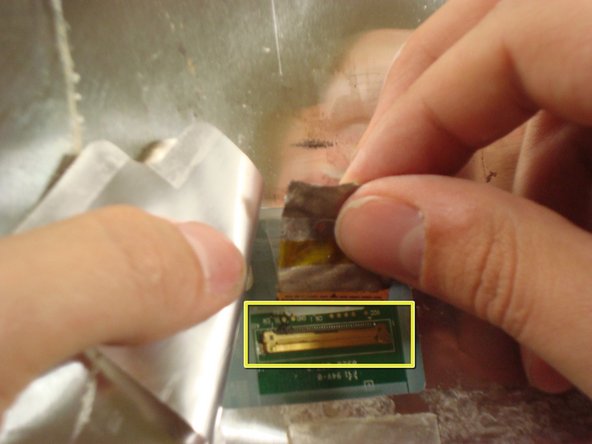

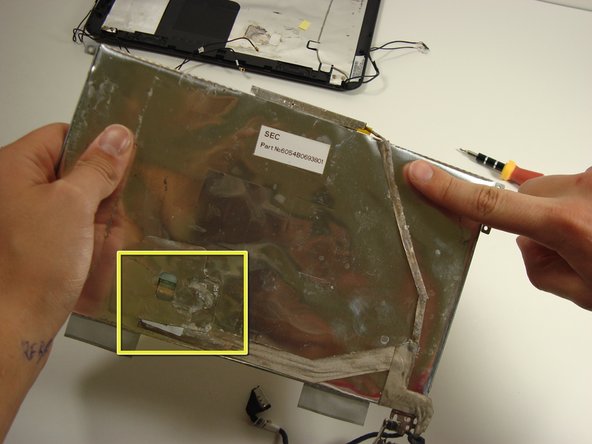

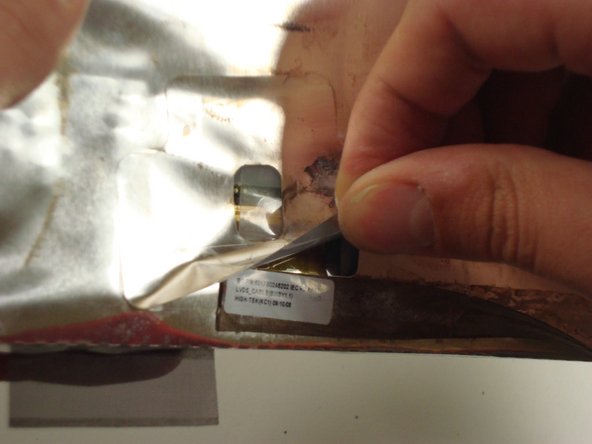

  19. Disassembling Compaq Mini 110 Speakers: step 18, image 1 of 3 Disassembling Compaq Mini 110 Speakers: step 18, image 2 of 3 Disassembling Compaq Mini 110 Speakers: step 18, image 3 of 3

    • The huge wire on the back of the screen is for both the webcam/microphone, as well as the screen.

    • Detach the cable from the screen. It is connected under the foil flap.

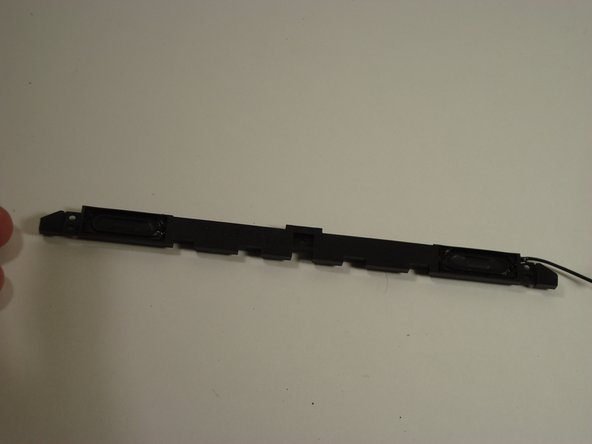

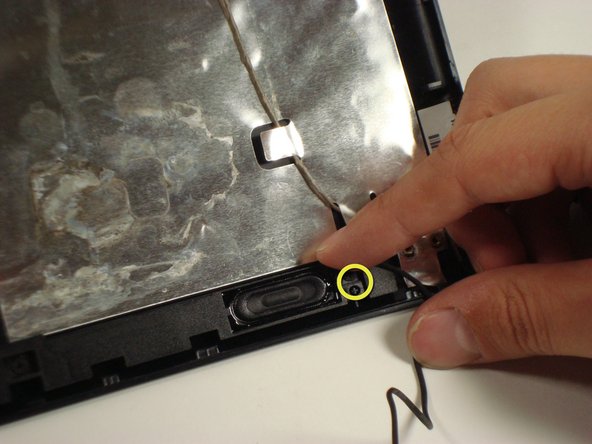

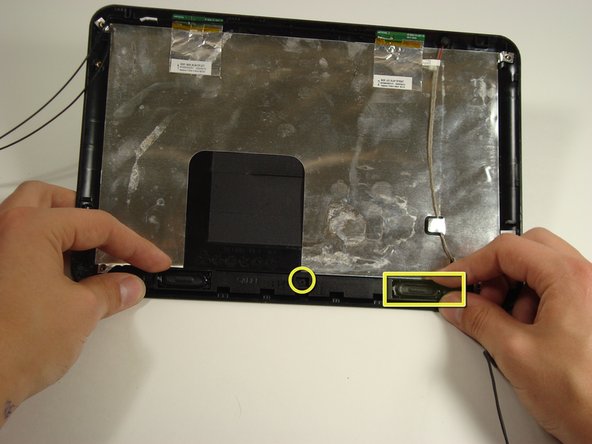

  20. Disassembling Compaq Mini 110 Speakers: step 19, image 1 of 3 Disassembling Compaq Mini 110 Speakers: step 19, image 2 of 3 Disassembling Compaq Mini 110 Speakers: step 19, image 3 of 3

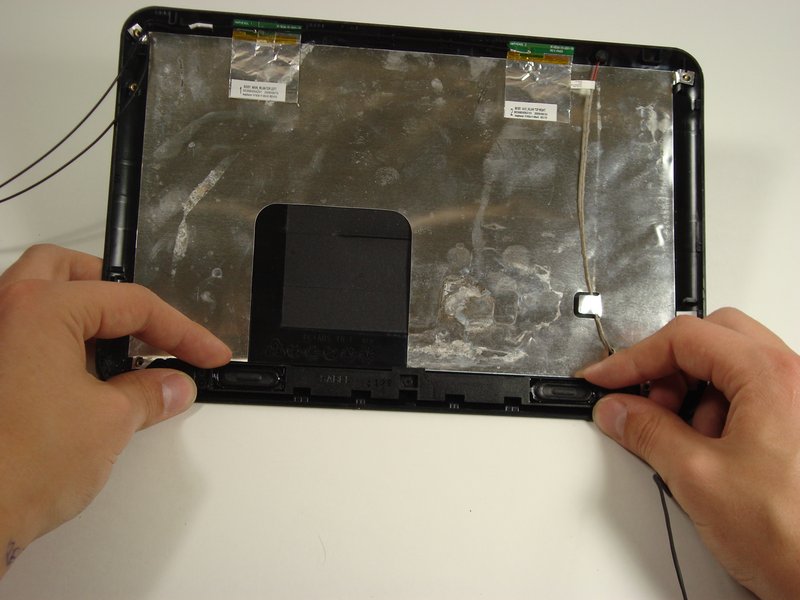

    • Unscrew the speaker assembly at the bottom of the screen assembly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
