Disassembling Compaq Mini 110 Wireless Module

Introduction

Wireless module in your way? Move it out!

What you need

  1. Disassembling Compaq Mini 110 Wireless Module, Disassembling Compaq Mini 110 Wireless Module: step 1, image 1 of 2 Disassembling Compaq Mini 110 Wireless Module, Disassembling Compaq Mini 110 Wireless Module: step 1, image 2 of 2

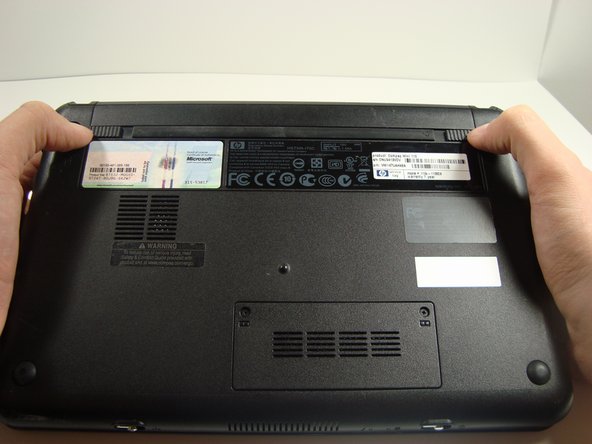

    • Find the battery and the battery tabs located on the bottom of the Compaq Mini.

  2. Disassembling Compaq Mini 110 Wireless Module: step 2, image 1 of 3 Disassembling Compaq Mini 110 Wireless Module: step 2, image 2 of 3 Disassembling Compaq Mini 110 Wireless Module: step 2, image 3 of 3

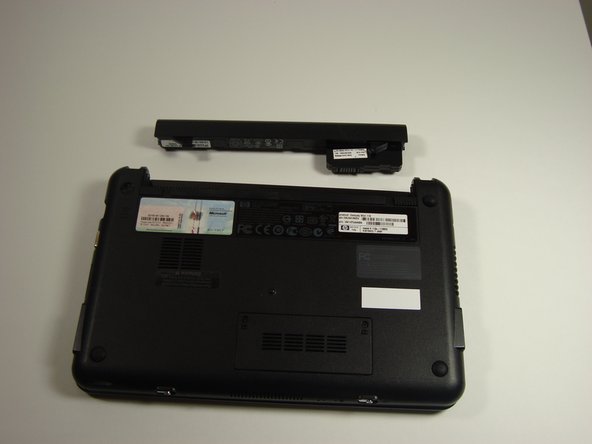

    • Push the tabs inward and slide the battery out.

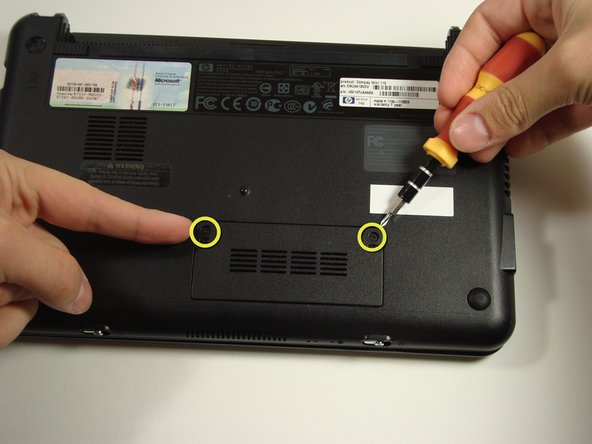

  3. Disassembling Compaq Mini 110 Wireless Module: step 3, image 1 of 2 Disassembling Compaq Mini 110 Wireless Module: step 3, image 2 of 2

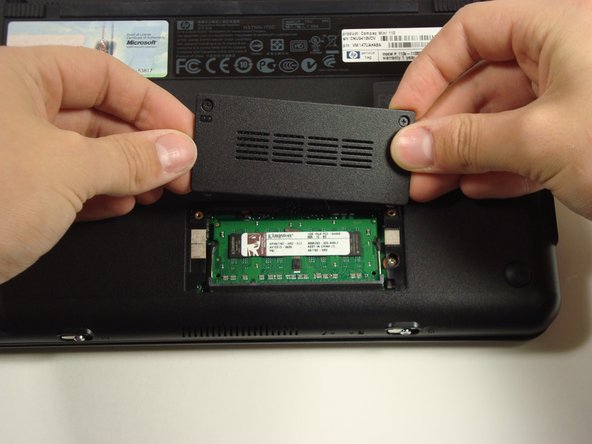

    • Find and remove the two screws on the bottom of your Compaq Mini covering the memory compartment.

    • Note that the screws are attached to the panel.

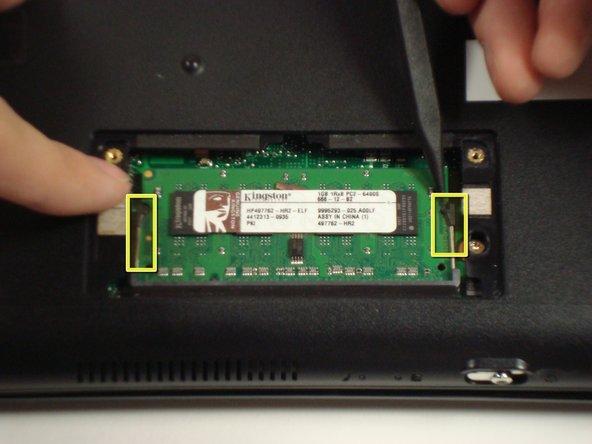

  4. Disassembling Compaq Mini 110 Wireless Module: step 4, image 1 of 1

    • Push out side tabs.

  5. Disassembling Compaq Mini 110 Wireless Module: step 5, image 1 of 2 Disassembling Compaq Mini 110 Wireless Module: step 5, image 2 of 2

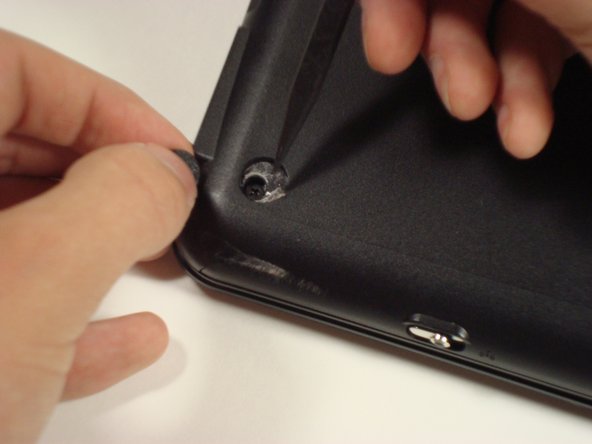

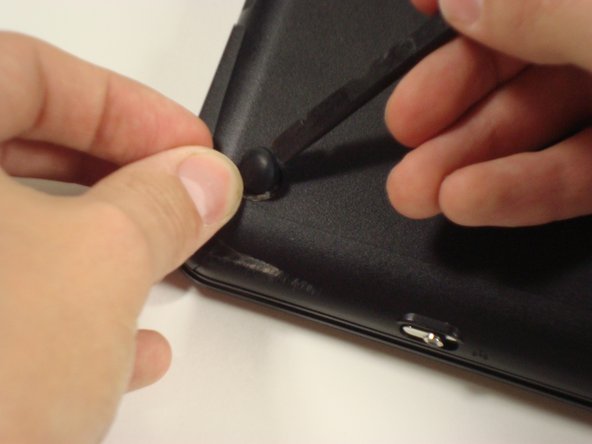

    • Remove the rubber pads located on the corners of your Compaq Mini.

    • There may be junk underneath it. This is residue left from the glue that held on the rubber pad. Just scrape it away to find the screw.

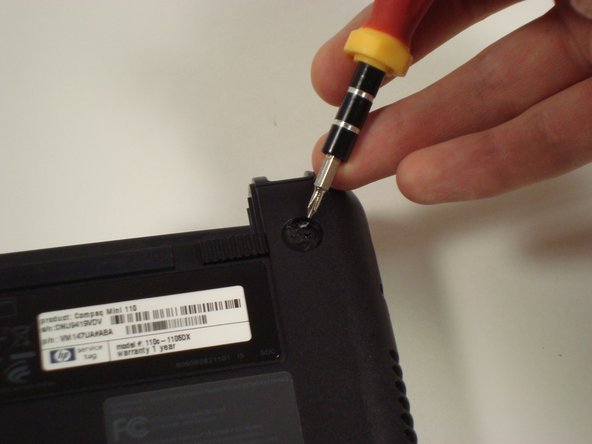

  6. Disassembling Compaq Mini 110 Wireless Module: step 6, image 1 of 2 Disassembling Compaq Mini 110 Wireless Module: step 6, image 2 of 2

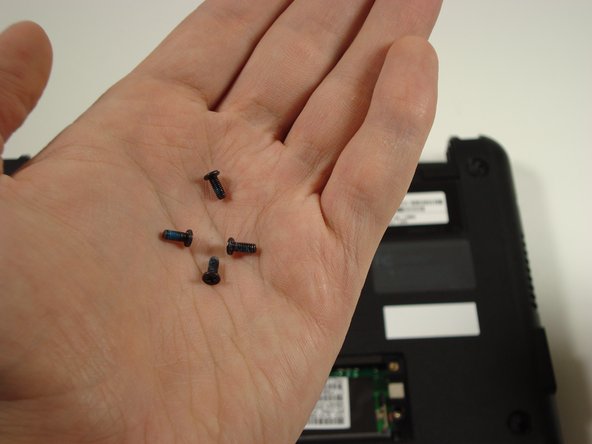

    • Unscrew all the corner screws. There are four total, one under each rubber pad.

  8. Disassembling Compaq Mini 110 Wireless Module: step 7, image 1 of 2 Disassembling Compaq Mini 110 Wireless Module: step 7, image 2 of 2

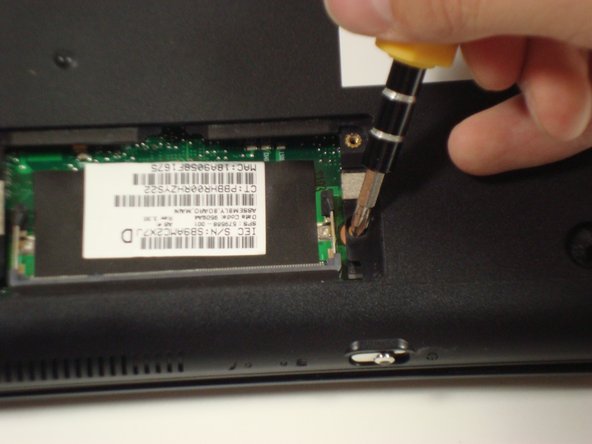

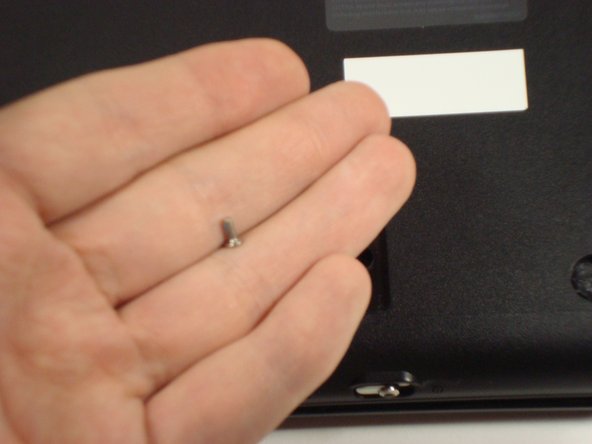

    • Unscrew the screw for the bottom case located in the RAM compartment.

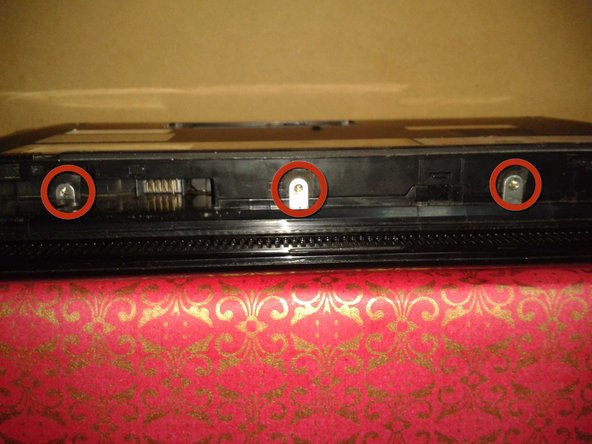

  9. Disassembling Compaq Mini 110 Wireless Module: step 8, image 1 of 2 Disassembling Compaq Mini 110 Wireless Module: step 8, image 2 of 2

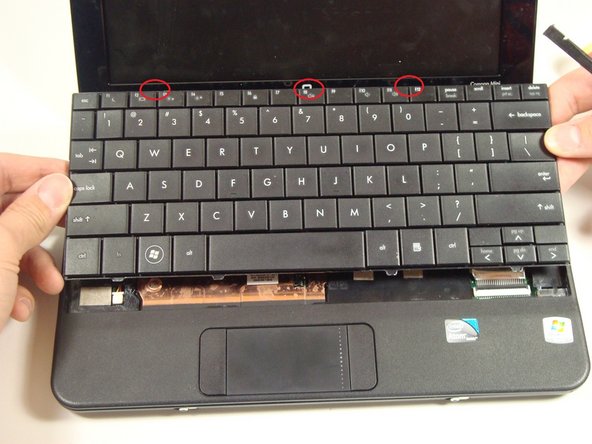

    • Remove the three screws in the silver tabs at the back of the keyboard. The red circles show where they are located at the back of the base under the screen.

  10. Disassembling Compaq Mini 110 Wireless Module: step 9, image 1 of 1

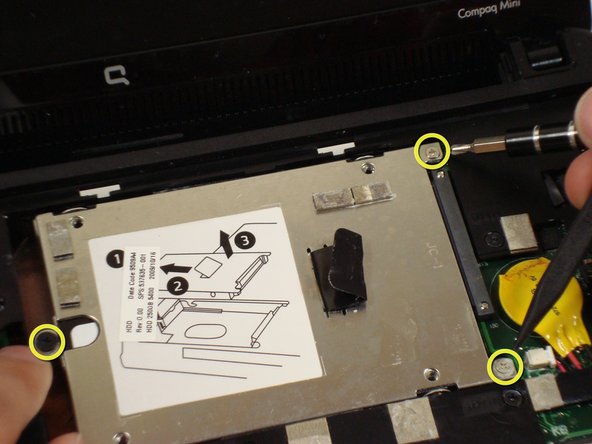

    • Remove the three screws.

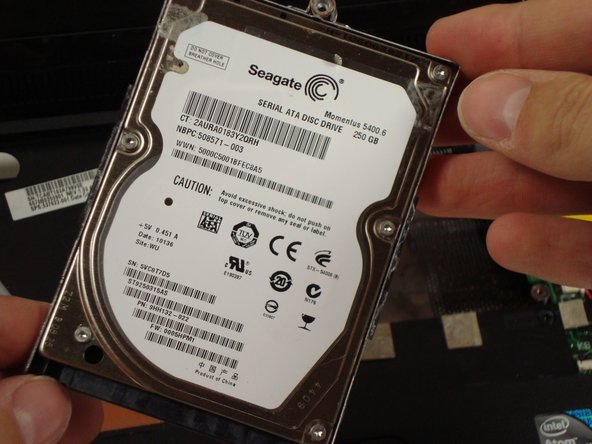

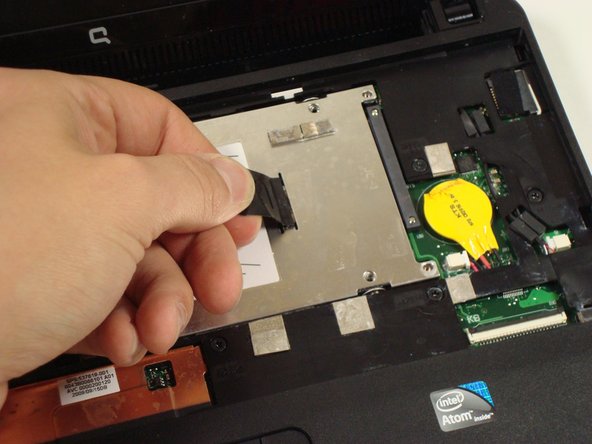

  11. Disassembling Compaq Mini 110 Wireless Module: step 10, image 1 of 2 Disassembling Compaq Mini 110 Wireless Module: step 10, image 2 of 2

    • Pull up on the tab.

  12. Disassembling Compaq Mini 110 Wireless Module: step 11, image 1 of 1

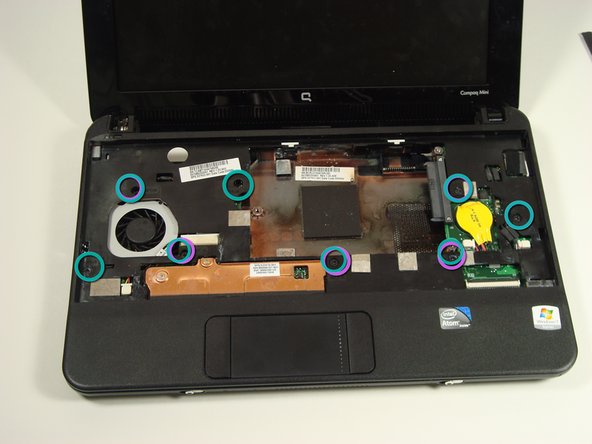

    • Remove the eight screws from the plastic top cover.

  13. Disassembling Compaq Mini 110 Wireless Module: step 12, image 1 of 3 Disassembling Compaq Mini 110 Wireless Module: step 12, image 2 of 3 Disassembling Compaq Mini 110 Wireless Module: step 12, image 3 of 3

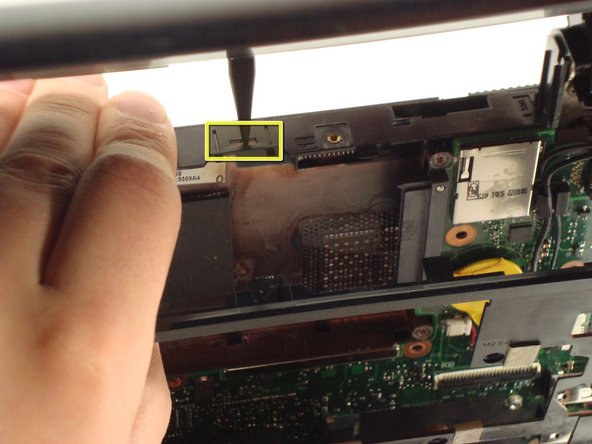

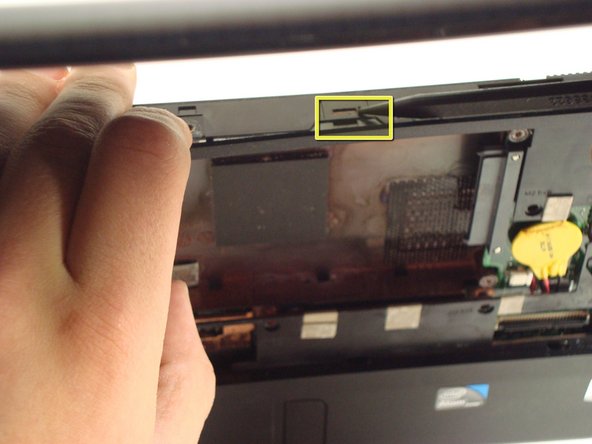

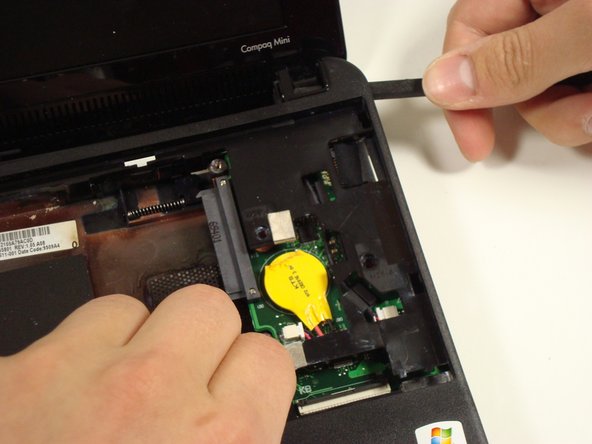

    • Pry up the top plastic cover using a spudger.

    • Under the screen there are two tabs that need to be pushed in.

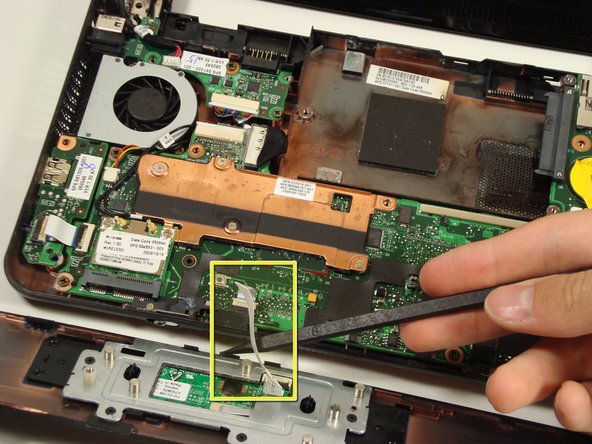

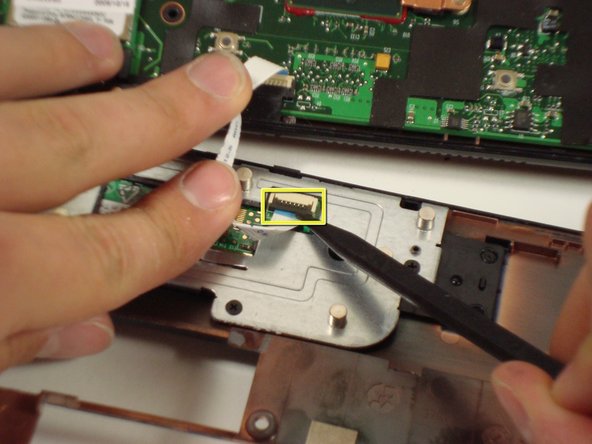

  14. Disassembling Compaq Mini 110 Wireless Module: step 13, image 1 of 2 Disassembling Compaq Mini 110 Wireless Module: step 13, image 2 of 2

    • Careful lifting up the cover because the track pad is still attached.

    • Remove the cable by pulling it up.

  15. Disassembling Compaq Mini 110 Wireless Module: step 14, image 1 of 1

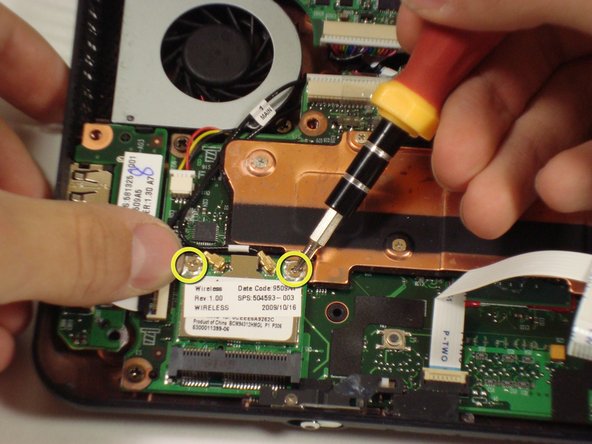

    • Remove the two screws holding the module in place.

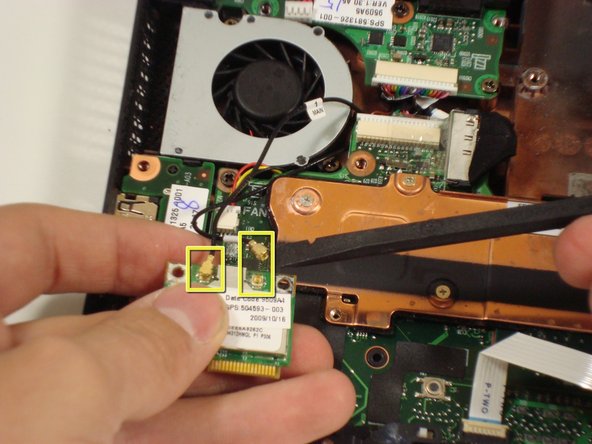

  16. Disassembling Compaq Mini 110 Wireless Module: step 15, image 1 of 1

    • Detach the two wires.

  17. Disassembling Compaq Mini 110 Wireless Module: step 16, image 1 of 1

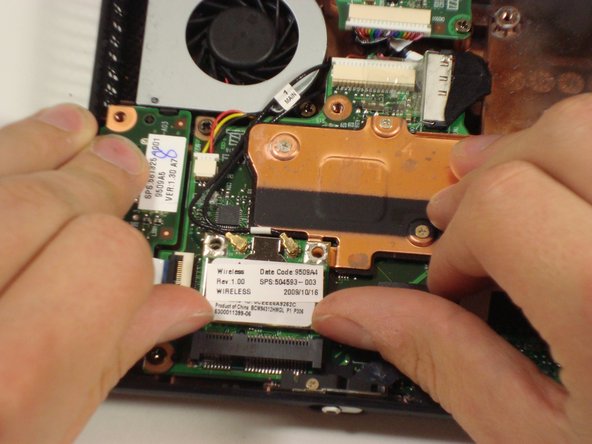

    • Just pull it out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
