Disassembling Fujifilm Endeavor 100ix Outer Casing

Locate and remove two 6.4mm screws on the bottom of the camera with a Phillips #00 screwdriver.

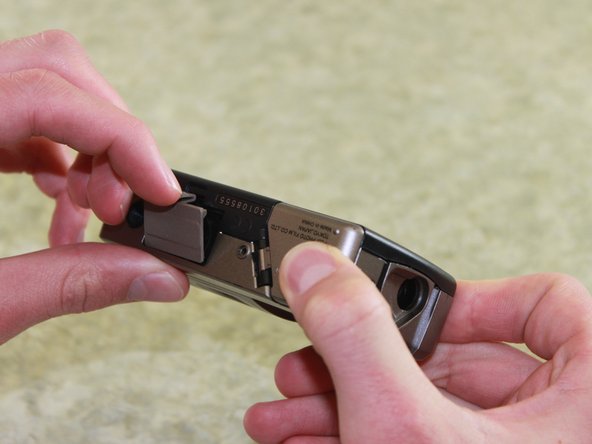

Locate the battery door.

Locate the latch on the battery door marked by the word "BATT." Use your finger to pry it open.

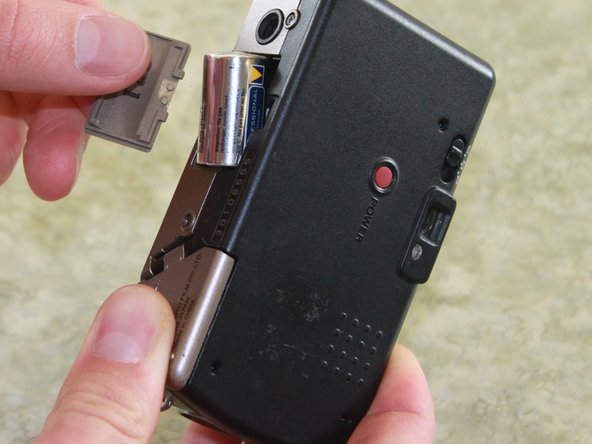

Remove the battery from the camera by pulling the battery door outwards.

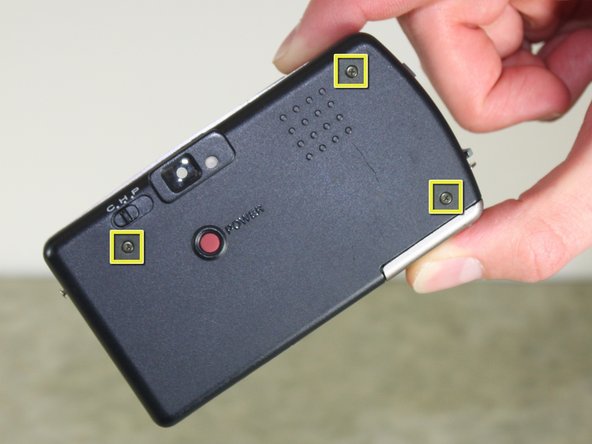

Locate and remove three black 3.80mm screws on the back of the camera with the Phillips #00 screwdriver.

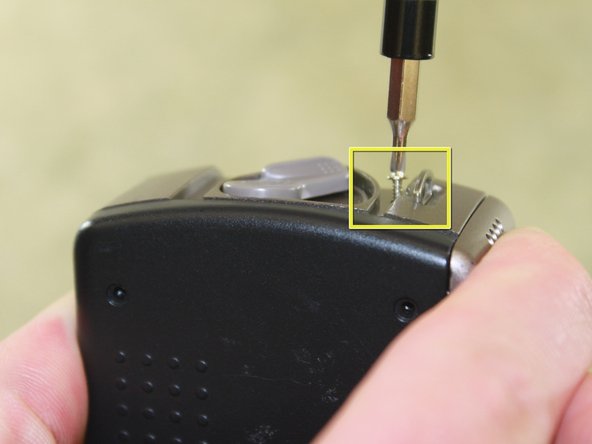

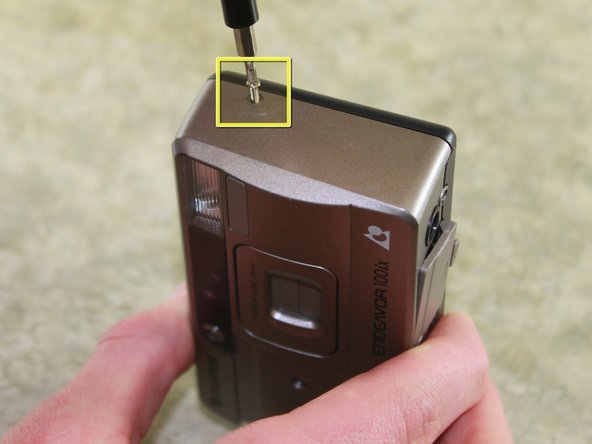

Locate and remove the 6.4mm screws located on either side of the camera with a Phillips #00 screwdriver.

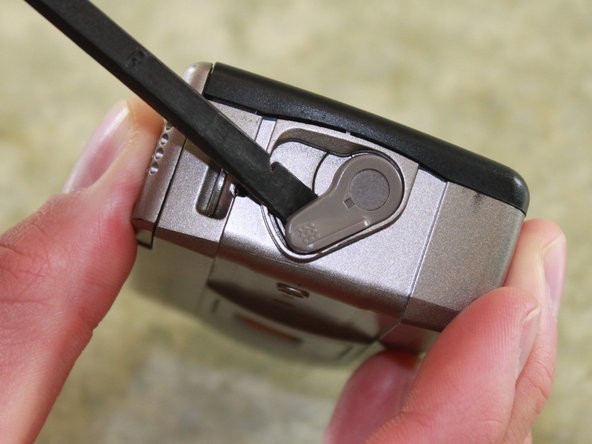

Locate the film door latch located on the side of the camera.

Insert the spudger under the latch.

Pry the latch upward, applying force perpendicular to the camera.

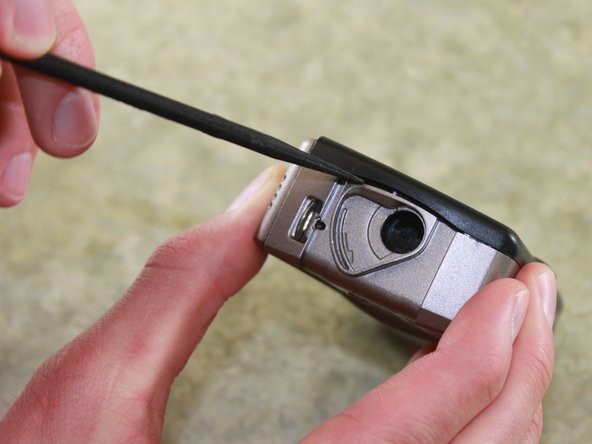

Insert the flat edge of the spudger between the gold front casing and the black back casing.

Pry the spudger upward until the black back casing snaps out and is dislodged on that edge of the camera.

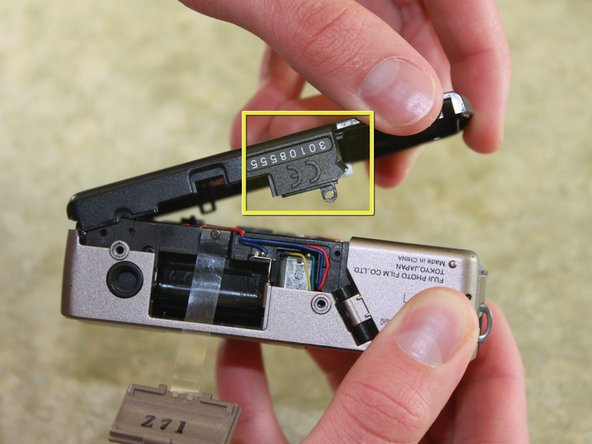

Squeeze the camera by placing a thumb on the tab marked CE.

Pull the back half of the camera firmly away from the camera body.

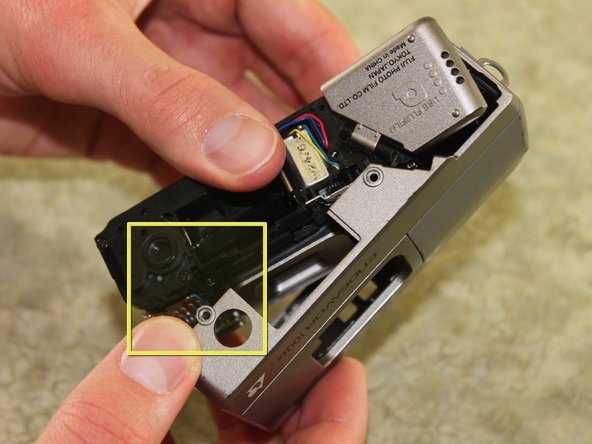

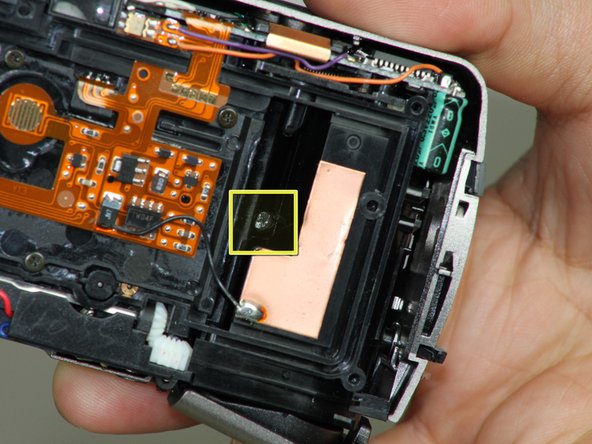

Locate and remove the 3.80mm screw inside the film compartment with the Phillips #00 screwdriver.

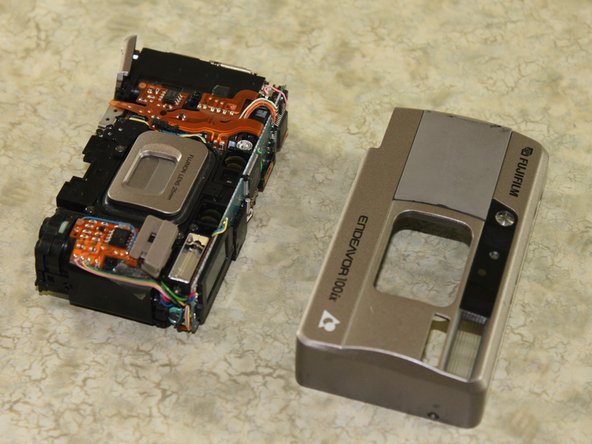

Pull the front cover off of the camera by lifting the tripod tab over the tripod hole.
