Introduction
Go to step 1 ↓How to open up the IBM ThinkPad 560z
-
-
-
Slide the battery release latch to the right.
-
Pull out the battery.
-
-
-
Remove the 7 mm Philip screws.
-
Remove the 10 mm Philip screws.
-
Remove the 14 mm Philip screw.
-
-
-

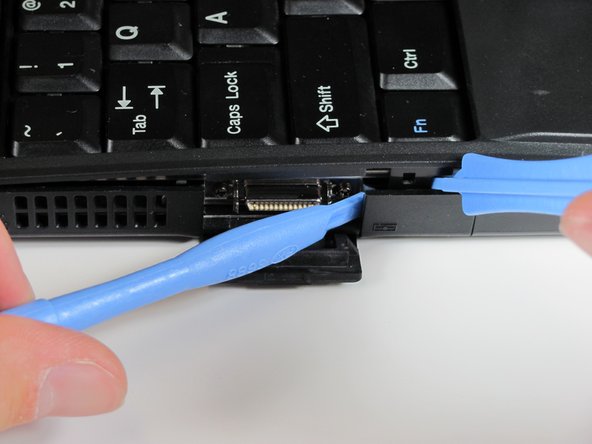

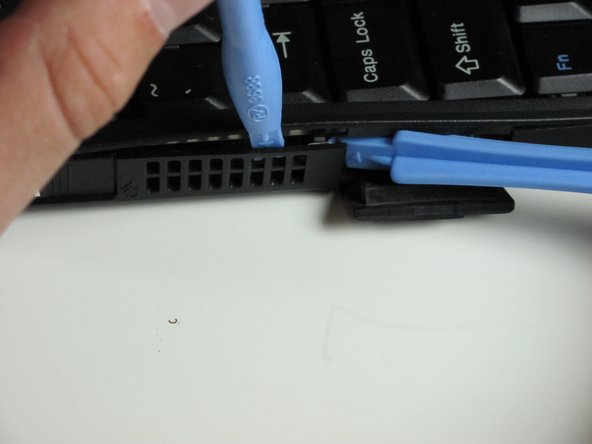

Insert the iPod opening tools between the right and left sides of the latch.
-
Pry at first the right then left side of the latch to detach the laptop's cover.
-
-
-

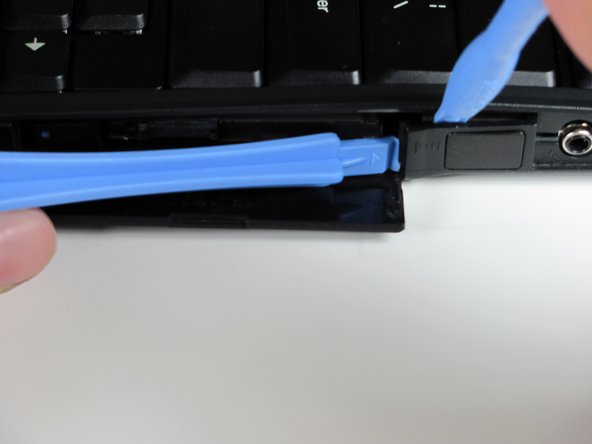

Insert the iPod opening tools within this latch towards the right side.
-

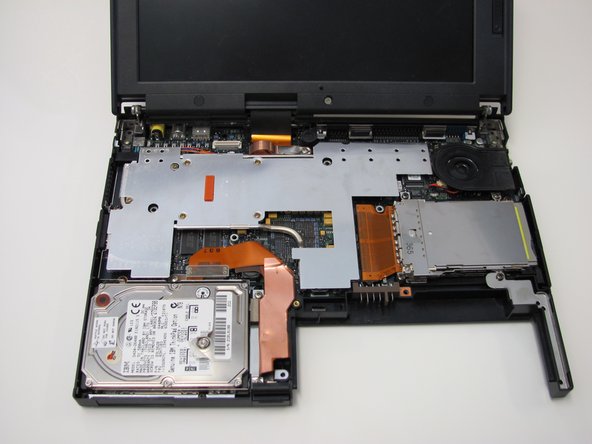

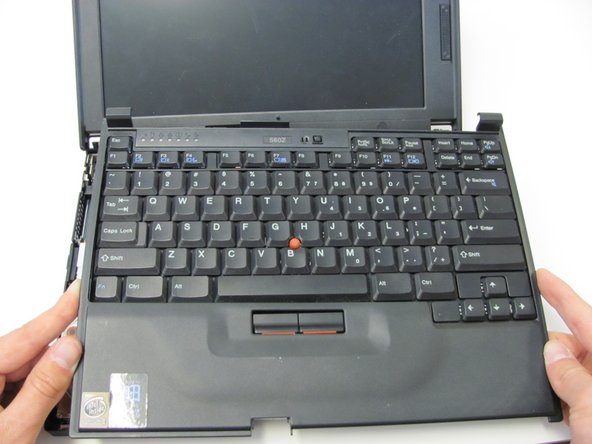

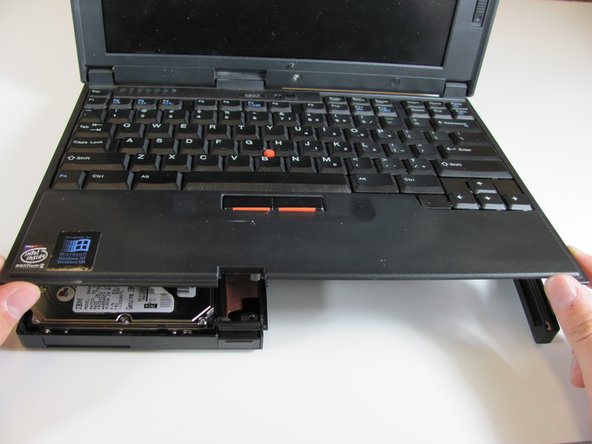

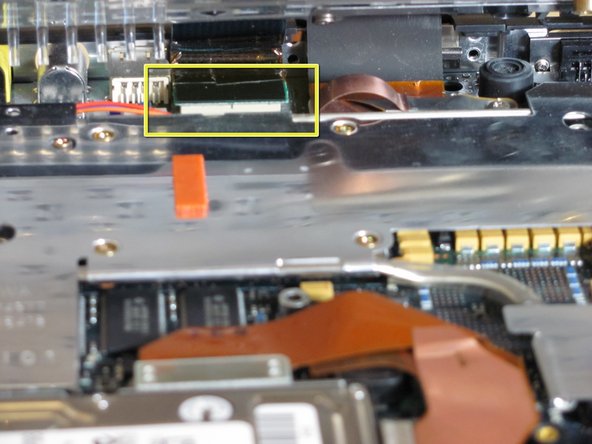

Gently pry out this side to release the top cover.
-
-
To reassemble your device, follow these instructions in reverse order.
