Step 1 Disassembling Kodak Easyshare C813 Back Cover

• Turn off camera by firmly pressing the power button that is located on the top of the camera near the selector dial.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

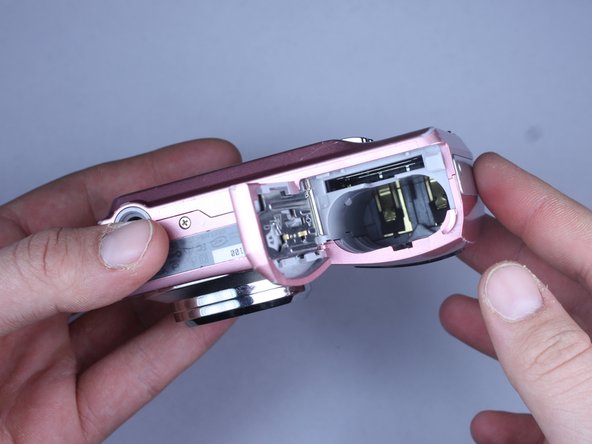

• Press thumb firmly on battery door and slide it in the direction of the arrow.
• Lift thumb allowing the door to swing open.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

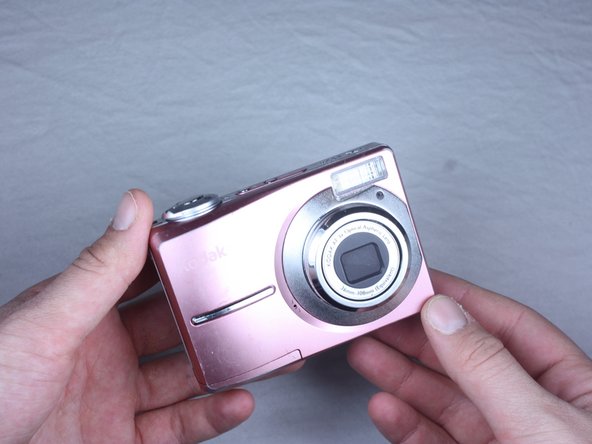

• Before removing back cover, it is advisable to use an anti-static wrist strap to prevent damage to electronics.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

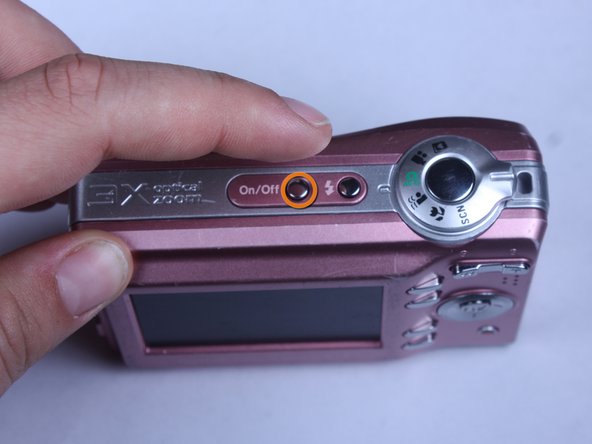

• Turn the camera off by firmly pressing the power button located on top of the camera.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

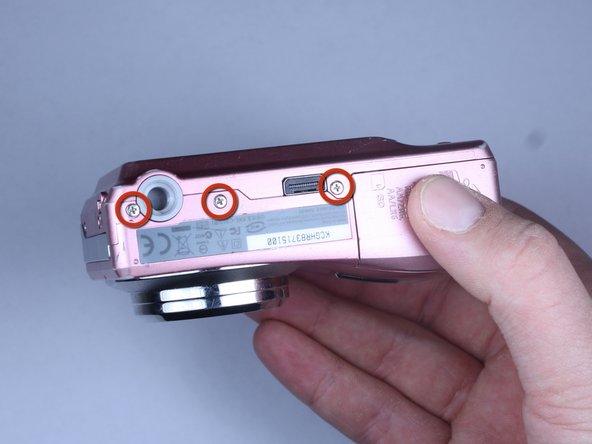

• Locate the 7 screws holding the back cover on.
• Three screws are located on the bottom of the camera.

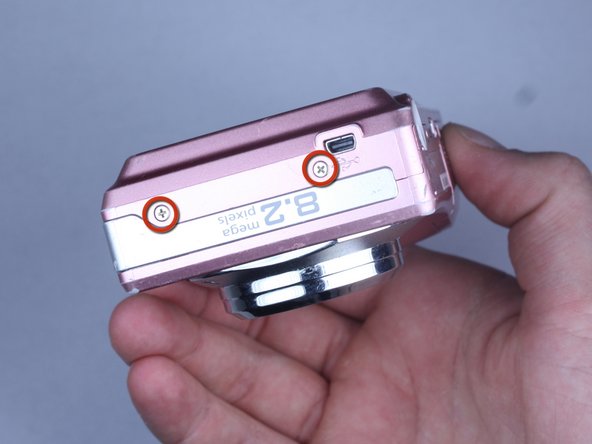

• Two screws are located on the side shown in the photograph.
• Two final screws are located on the opposite side shown in the photograph.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

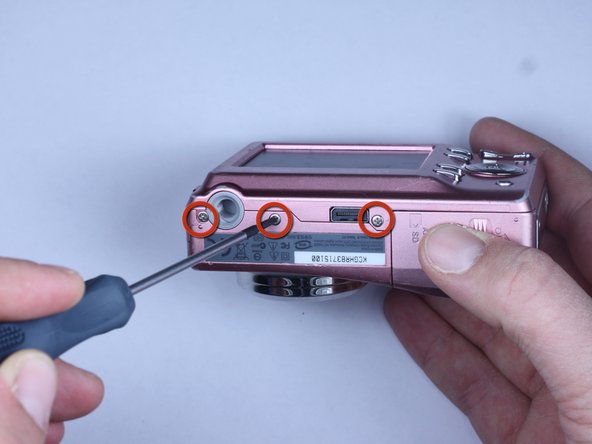

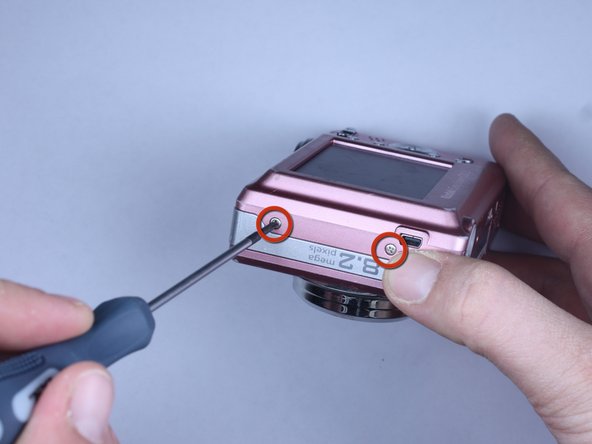

Step 6

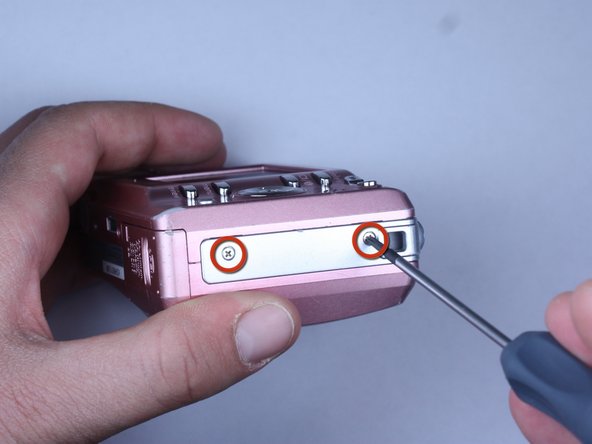

• Remove all 7 screws:
• Hold the camera firmly with one hand so that you can still see a screw.
• Place the Philips 00(Found here)screwdriver into the screw.
• Turn the screwdriver to the left until it is free.
• Repeat for the remaining screws.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

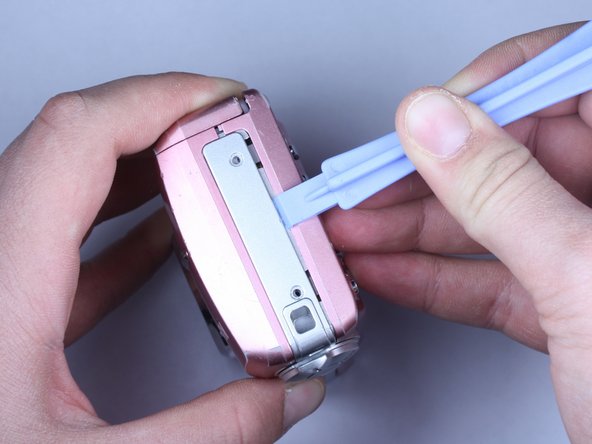

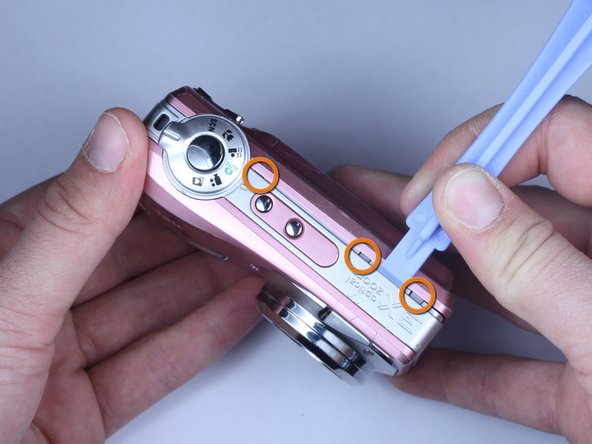

Step 7

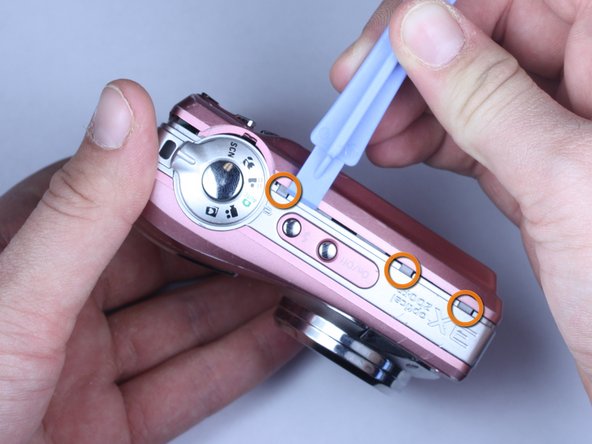

• Use plastic opening tools to slightly open the side of the case.
• Insert a plastic opening tool and apply pressure to the internal three tabs at the top.
• The first two are near the words "3X Optical Zoom".
• The third is near the shutter button.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

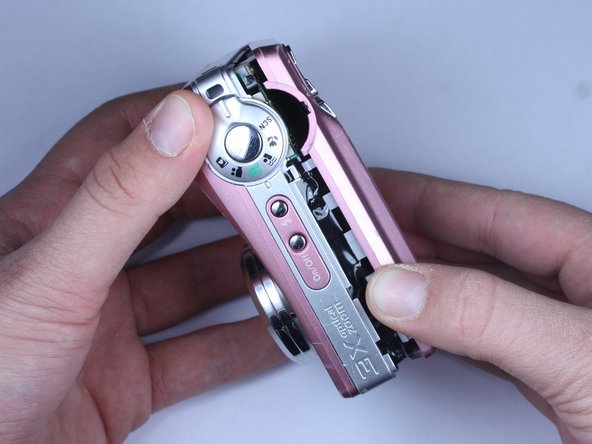

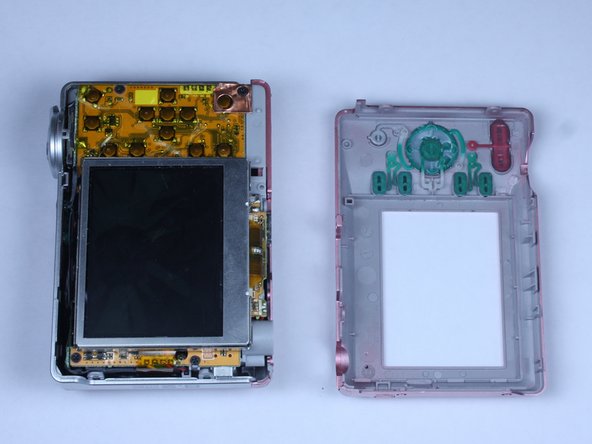

Step 8

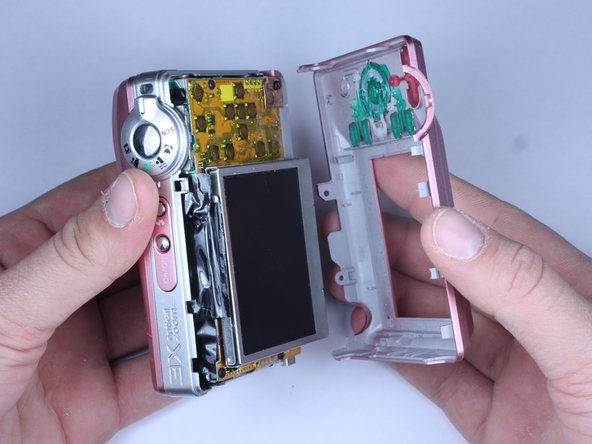

• Gently pull apart the back cover from the rest of the camera.
• Make sure there are no more screws or tabs keeping the cover on.
• Use the plastic opening tool to separate any sides still closely connected.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
