Disassembling Olympus Stylus 1010 Case

Step 1 Disassembling Olympus Stylus 1010 Case

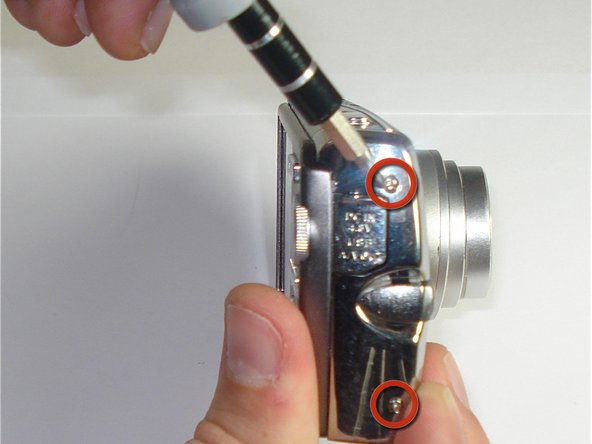

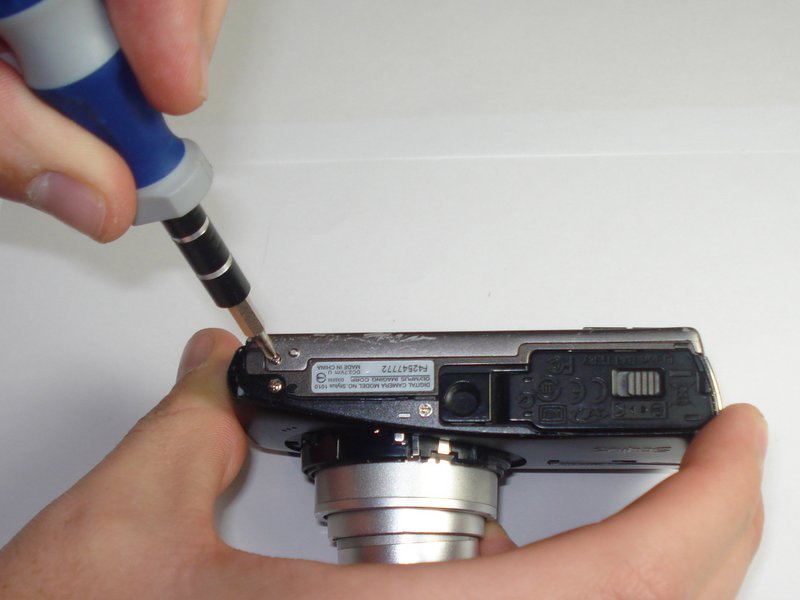

• Unscrew the bottom and right side panel screws using a #00 screwdriver. (5 screws)
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

• Remove the right side panel by pulling off the large silver piece.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

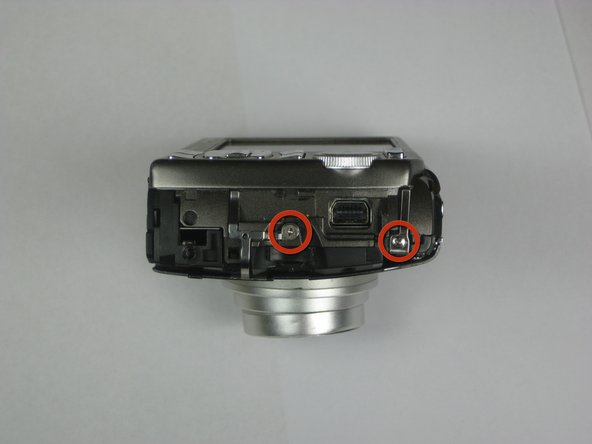

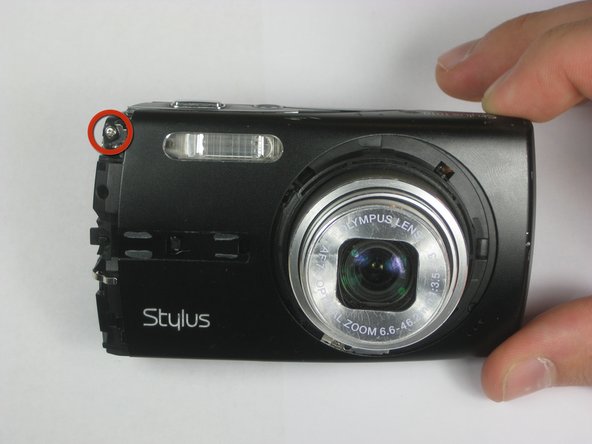

• Unscrew the remaining side and front panel screws using a #00 screwdriver. (3 screws)
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

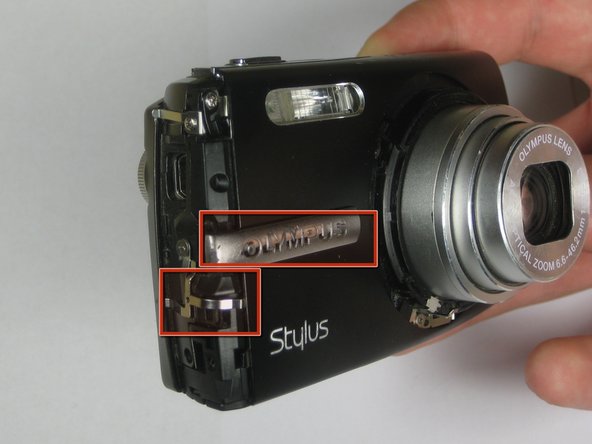

• Using your thumb and forefinger, pull off the silver name plate and silver "T-shape" piece. (2 pieces)
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

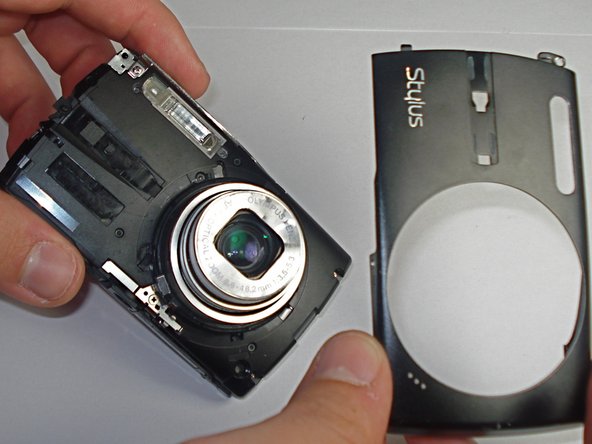

• Remove the black front panel by sliding it towards the lens and then pulling it up off the camera.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 6

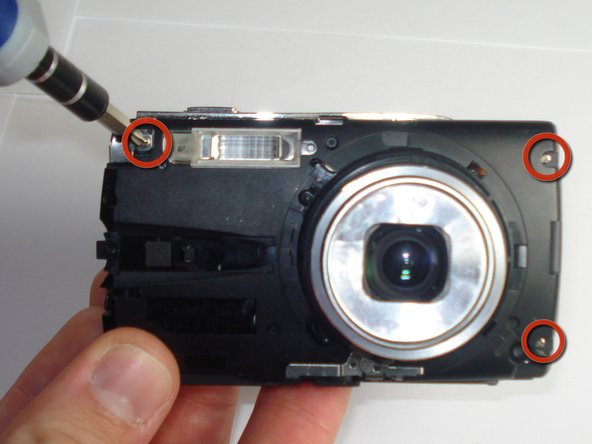

• Remove 3 screws from the front of the camera using a #00 screwdriver.

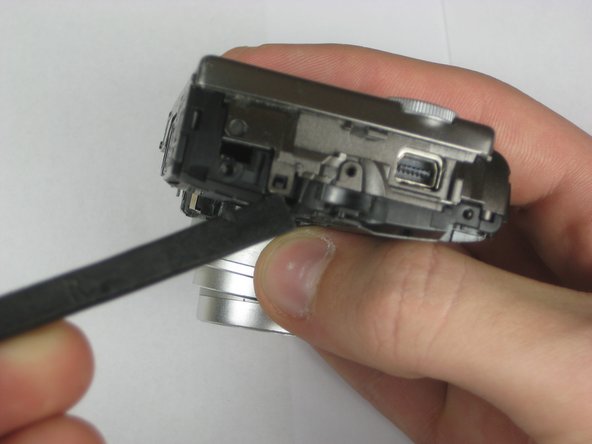

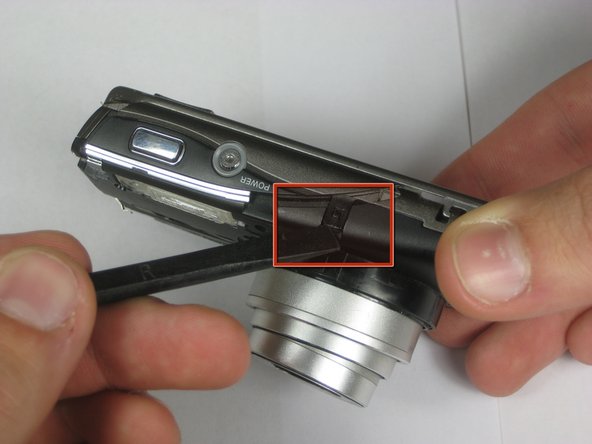

• Lift the two tabs to separate the case using a spudger. (one tab on top and one tab on the right side)
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 7

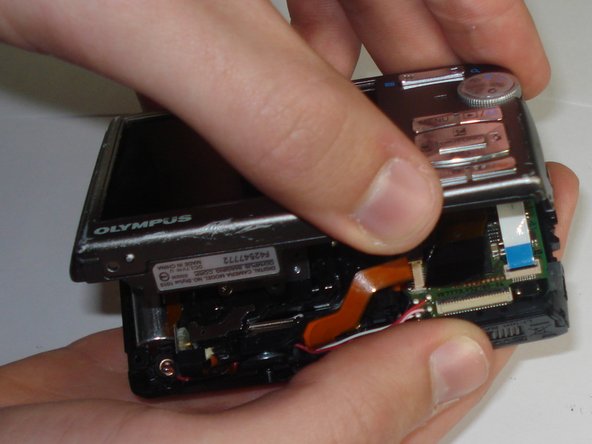

• Using a plastic spudger, lift up the black clips.

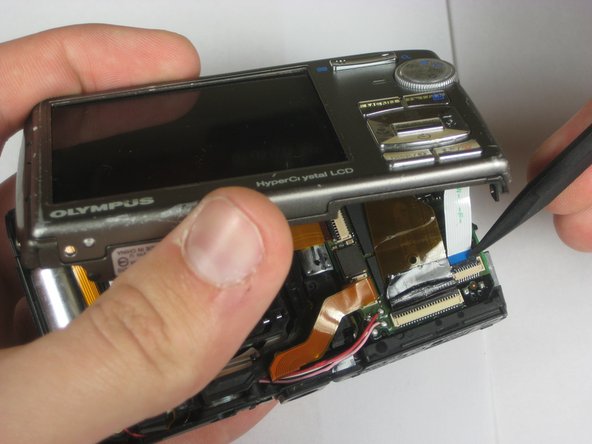

• Still using the plastic spudger, detach the gold connector strip and white connector strip.

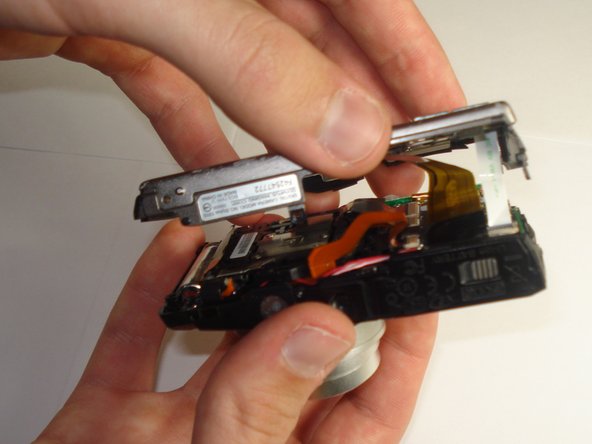

• Using both hands, pull the camera apart into two pieces.
