Disassembling Olympus Stylus 1010 Logic Board
What you need
-
-

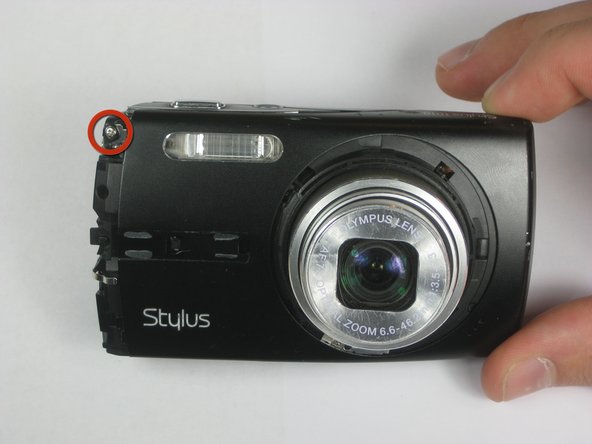

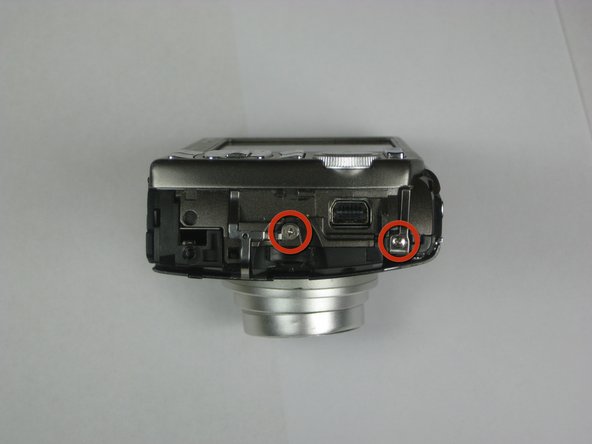

Unscrew the bottom and right side panel screws using a #00 screwdriver. (5 screws)
-
-
-

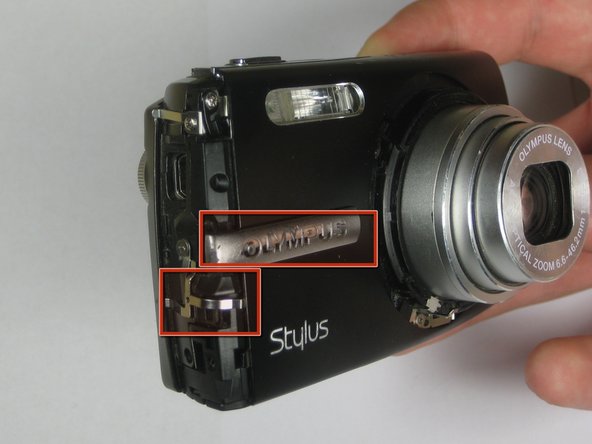

Using your thumb and forefinger, pull off the silver name plate and silver "T-shape" piece. (2 pieces)
-
-
-

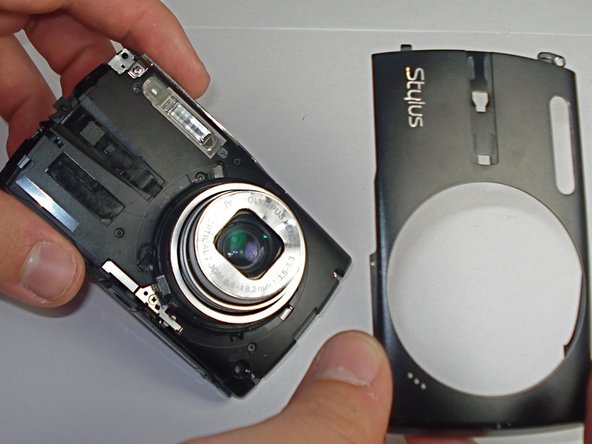

Remove the black front panel by sliding it towards the lens and then pulling it up off the camera.
-
-
-

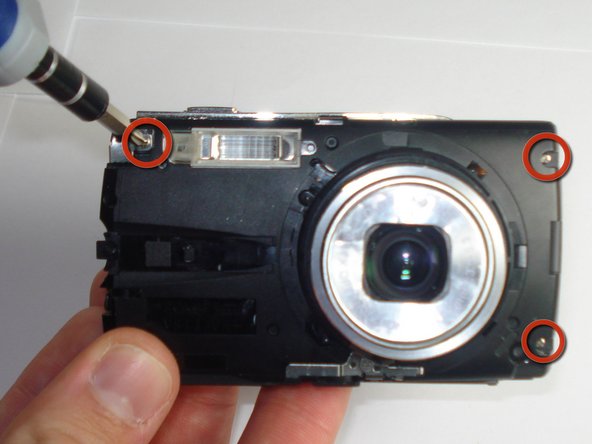

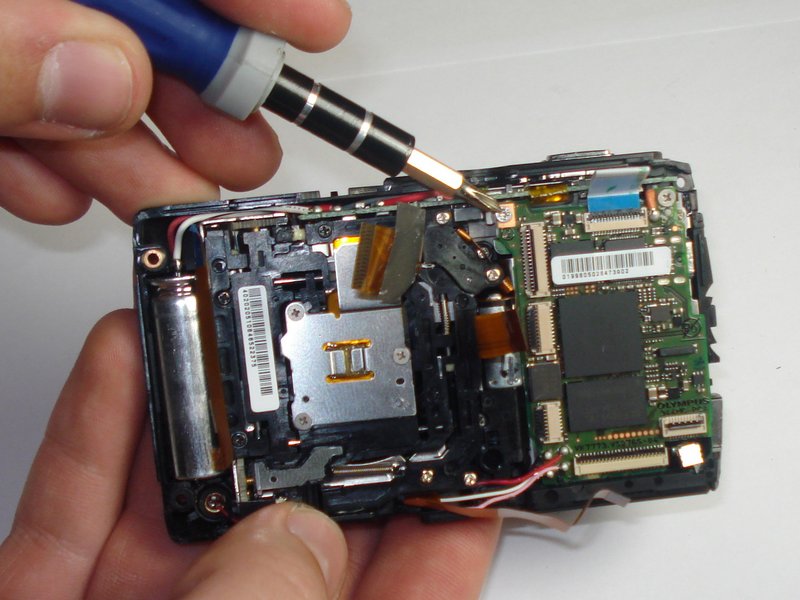

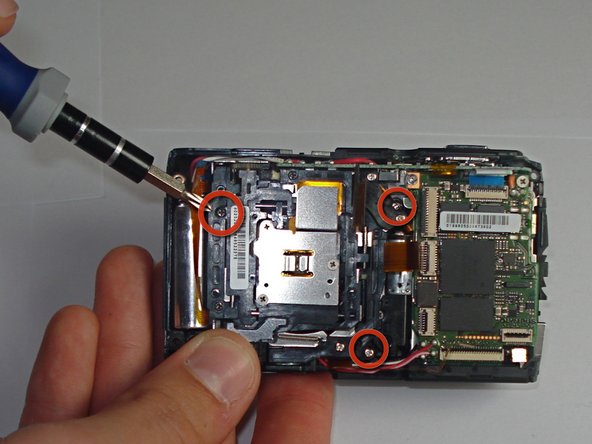

Remove 3 screws from the front of the camera using a #00 screwdriver.
-

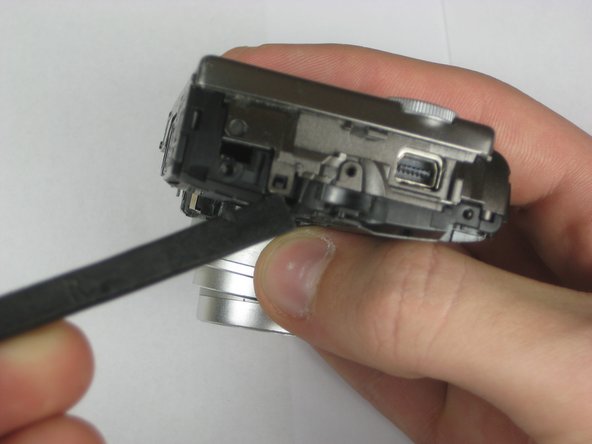

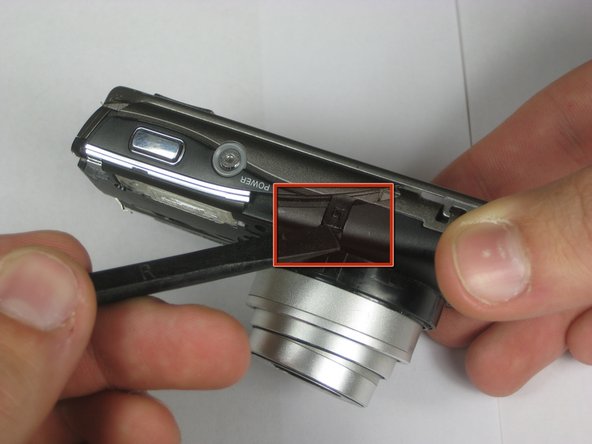

Lift the two tabs to separate the case using a spudger. (one tab on top and one tab on the right side)
-
-
-

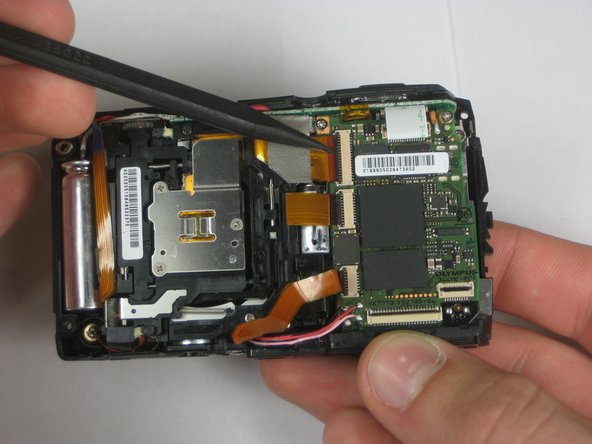

Using a plastic spudger, lift up the black clips.
-

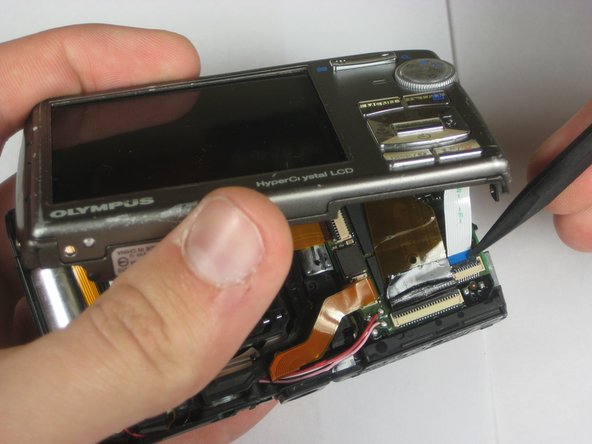

Still using the plastic spudger, detach the gold connector strip and white connector strip.
-

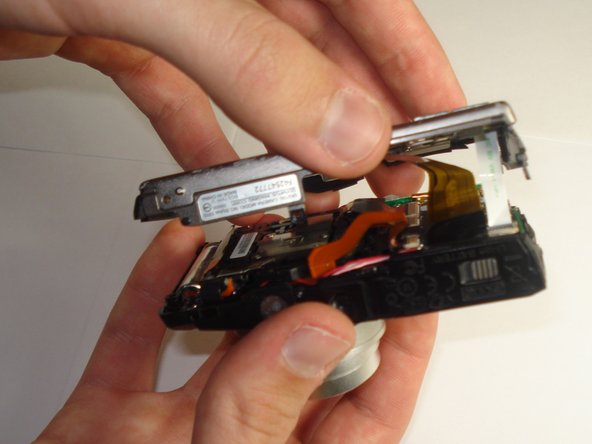

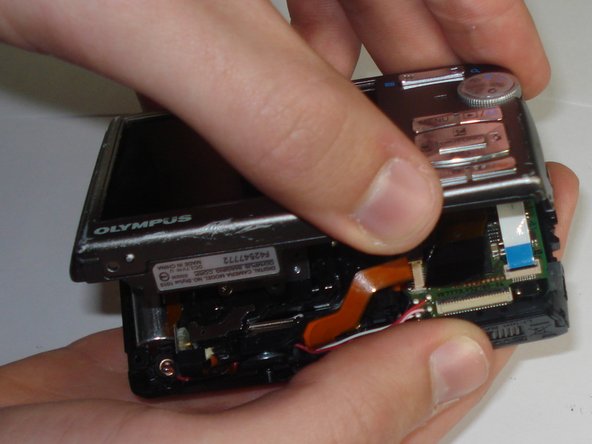

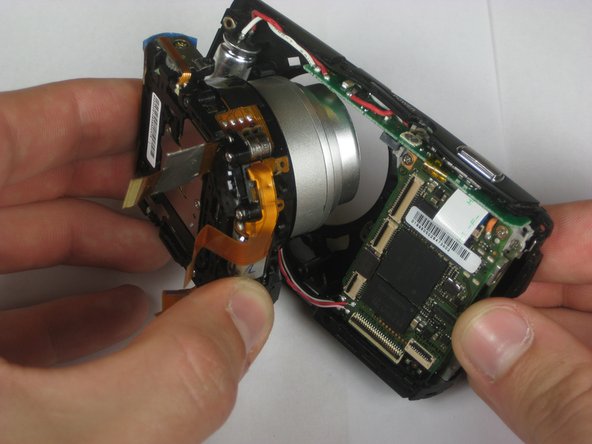

Using both hands, pull the camera apart into two pieces.
-
-
-

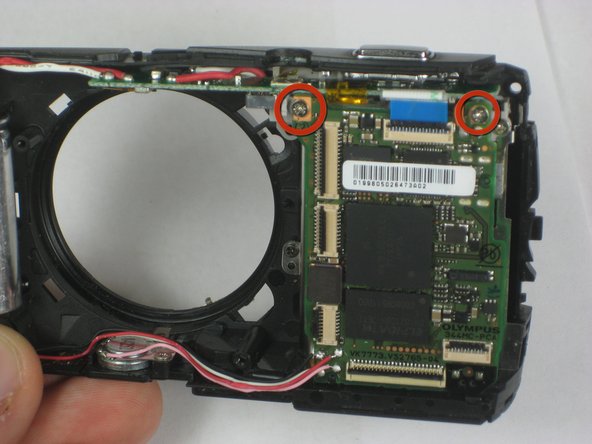

Using a plastic spudger, lift up the black clips.
-
Still using the spudger, detach the 3 gold wire tape connectors from the inside of the camera.
-
-
-

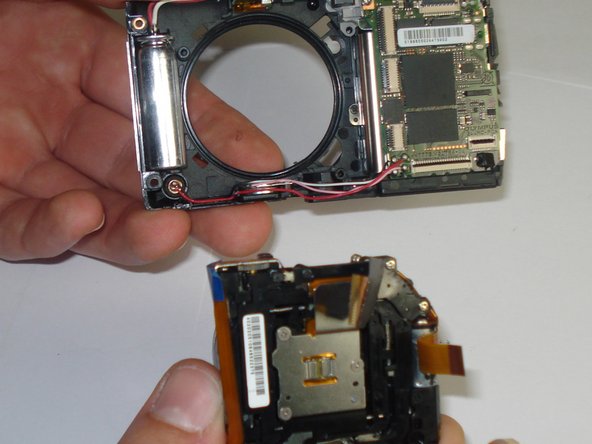

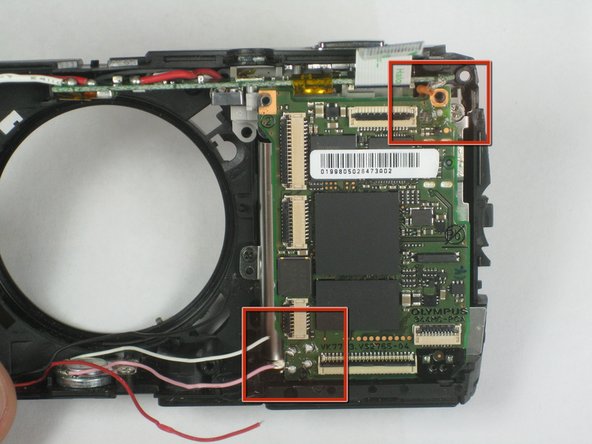

Using your thumb and forefinger, pull the lens piece straight out from the body of the camera.
-
-
-

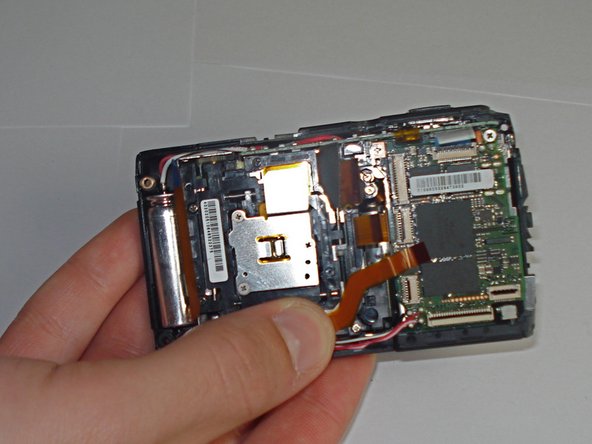

Using a plastic spudger, lift up the black clips.
-

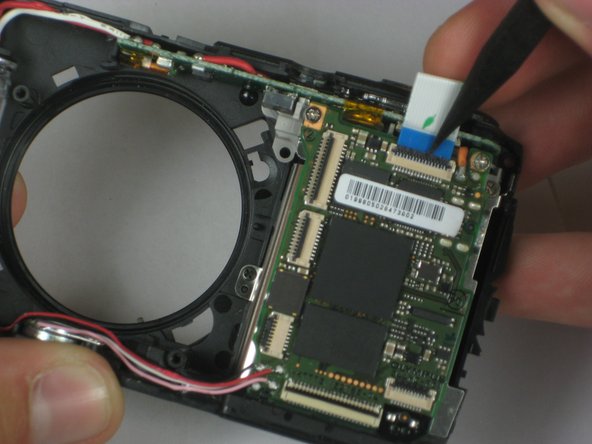

Still using the spudger, detach the gold wire tape connectors from the logic board.
-
-
-

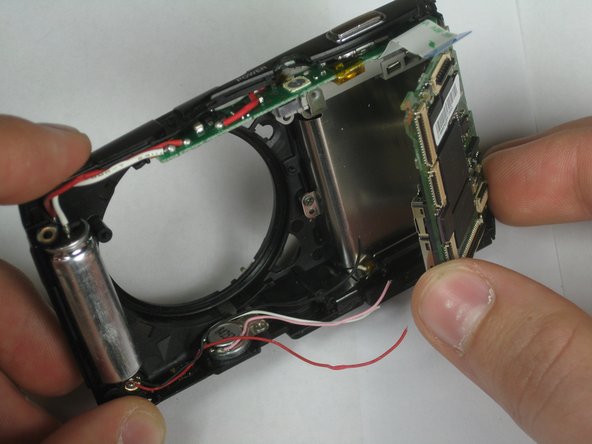

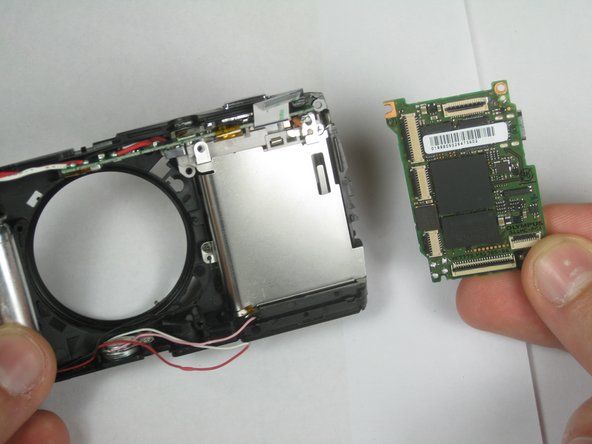

In order to remove the logic board, grab each side of it and pull up using your thumb and forefinger.
-
To reassemble your device, follow these instructions in reverse order.
