Introduction

Since this is step one, you will just need to start with your camera.

What you need

1. Step 1 Disassembling Panasonic Lumix DMC-TZ5 Back Cover
  Remove the battery and memory card from the device.
  Add Comment

  1024
2. Step 2
  Remove 4 screws from the right side of the camera.

  There are two 3.4mm screws at the top.

  There are two 2.2mm screws at the bottom.
  Add Comment

  1024
3. Step 3

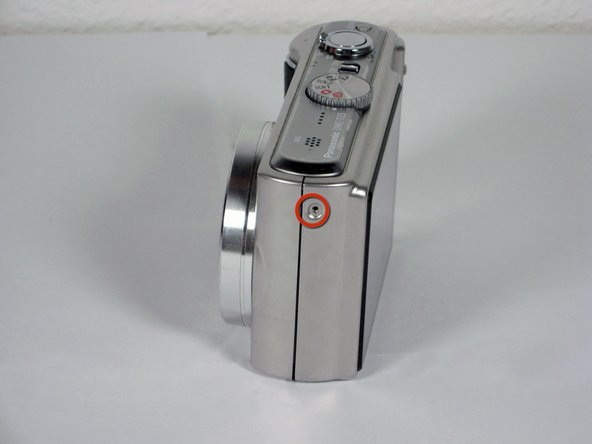

  Remove the single 3.4mm screw on the left side of the camera.
  Add Comment

  1024
5. Step 4

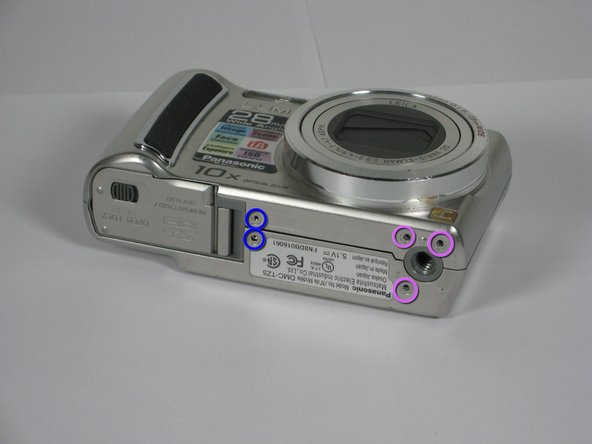

  Remove 5 screws from the base of the camera.

  There are two 2.2mm screws next to the battery compartment.

  There are three 4mm screws around the tripod mount.
  Add Comment

  1024
6. Step 5

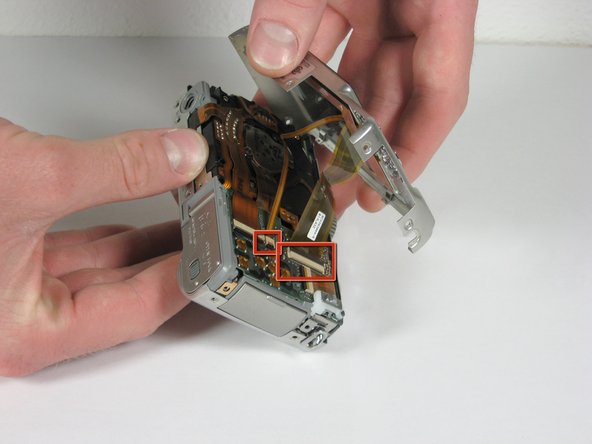

  Slowly slide the back cover away from the device

  The back casing is held in place by two ribbon cables. Do not pull the back cover too far from the camera.
  Add Comment

  1024
7. Step 6

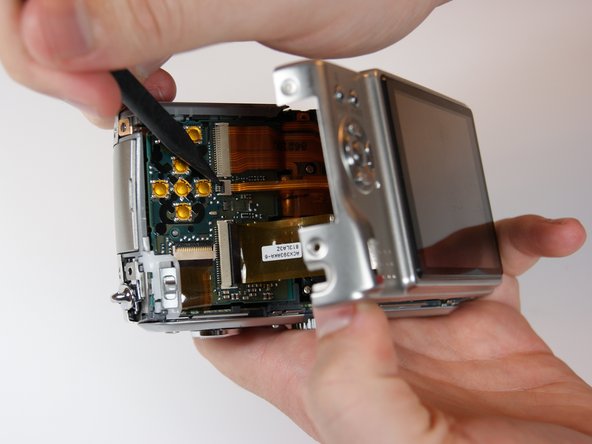

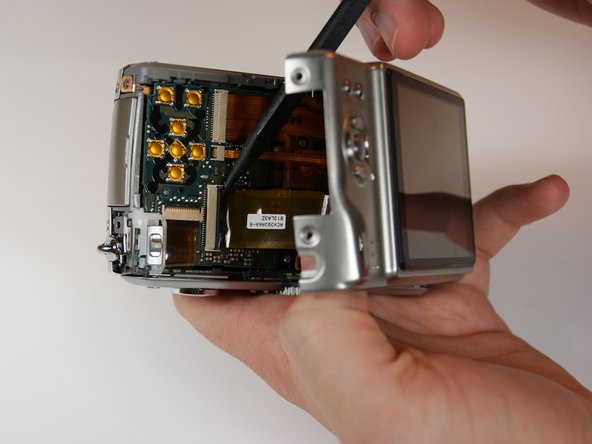

  Detach both ribbon cables using a spudger.

  Use the tip of the spudger to lift the black clip upward, unlocking the ribbon cable.
  Add Comment

  1024
8. Step 7

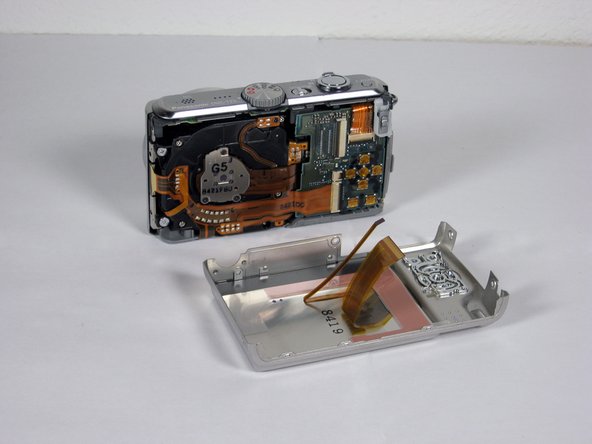

  Remove the back casing from the camera.
  Add Comment

  1024

Conclusion

To reassemble your device, follow these instructions in reverse order.
