Step 1 Disassembling Power Mac G4 M5183 DVD-ROM Drive

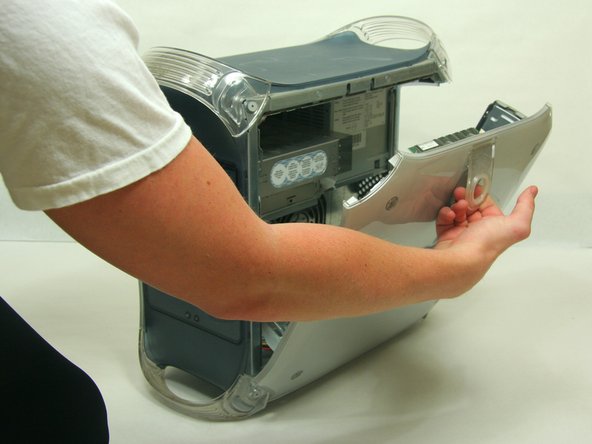

• Pull on outer latch.
• Lower door until it is level with your work surface.
• Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

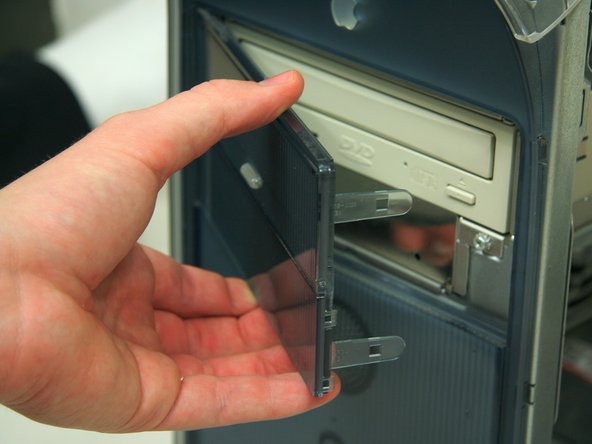

• Removing the faceplate.
• On the inside of the case, find the two plastic tabs.
• While depressing the tabs, remove the faceplate by pulling and rotating outward.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

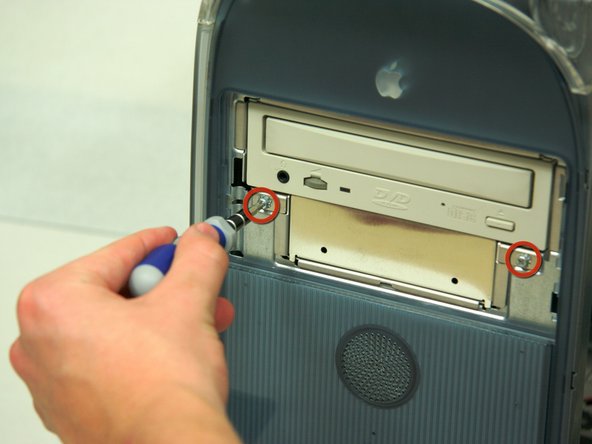

• Remove the two screws on the front of the drive with the Phillips #1 screwdriver.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

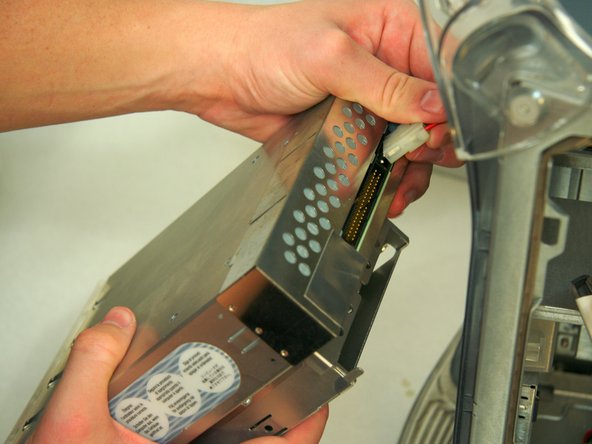

Step 4

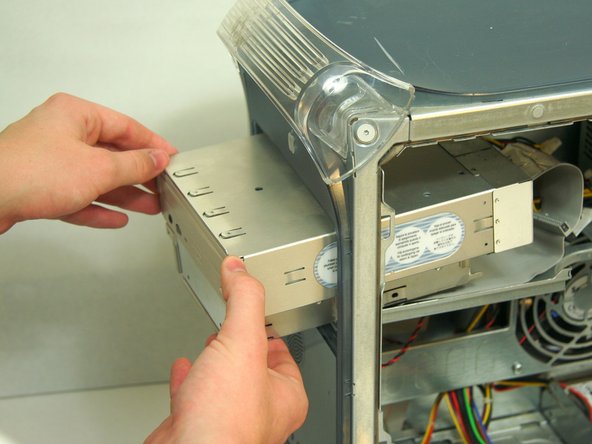

• Pull the drive out to allow access to the power and ribbon cables. Do not fully remove.

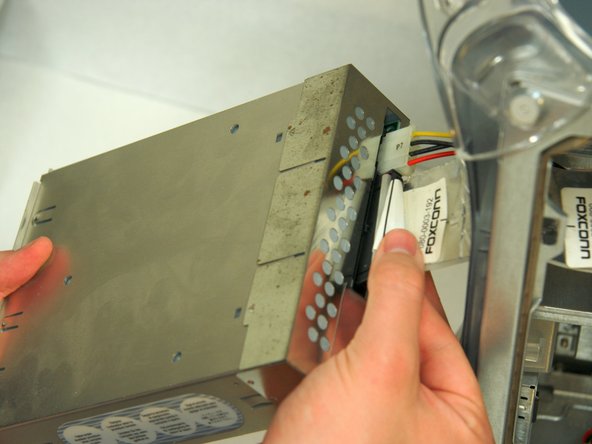

• Remove both the power and ribbon cable.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5
• Remove DVD drive from the drive bay.

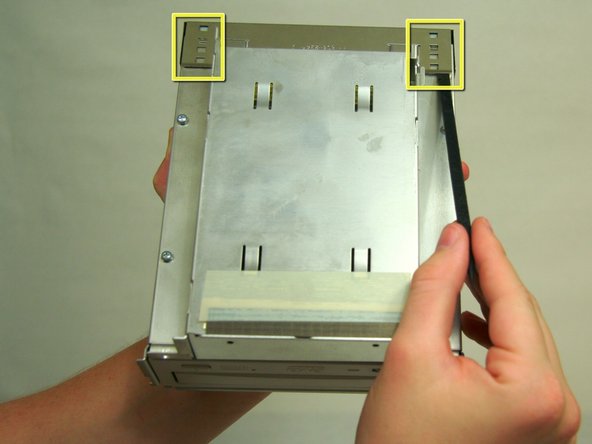

• Lift the two metal tabs on the back of the shielding and remove.

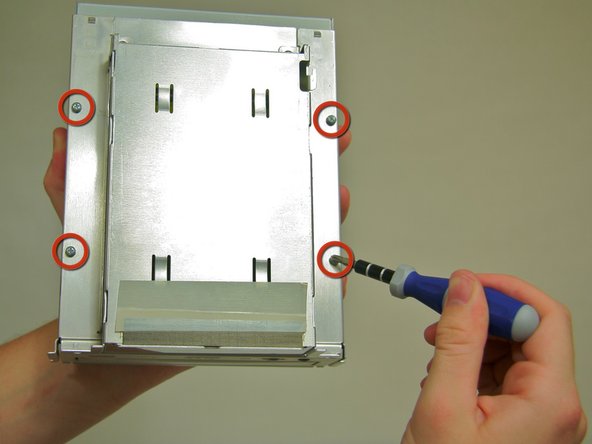

• Remove the four screws on the bottom of the drive with the Phillips #1 screwdriver.

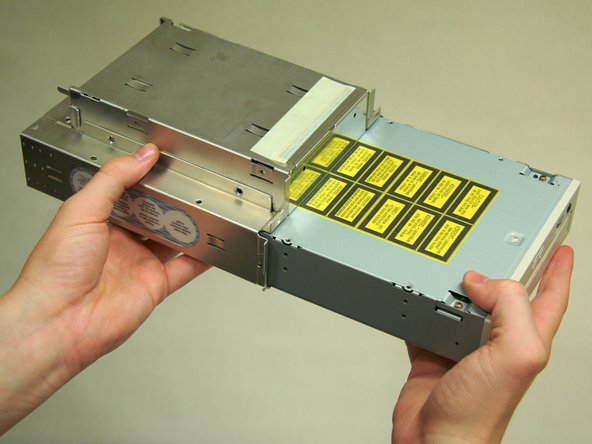

• Slide out DVD drive.
