DualShock 3 Buttons Replacement

Introduction

Use this guide to replace the plastic button covers and the rubber button contacts on any DualShock 3 controller.

What you need

  1. DualShock 3 Buttons Replacement, DualShock 3 Buttons Replacement: step 1, image 1 of 1

    • Remove the five 7.2 mm Phillips screws securing the rear cover to the controller.

  2. DualShock 3 Buttons Replacement: step 2, image 1 of 1

    • Push the center of the rear cover (between the two analog sticks) and slightly lift the lower edge of it away from the rest of the controller.

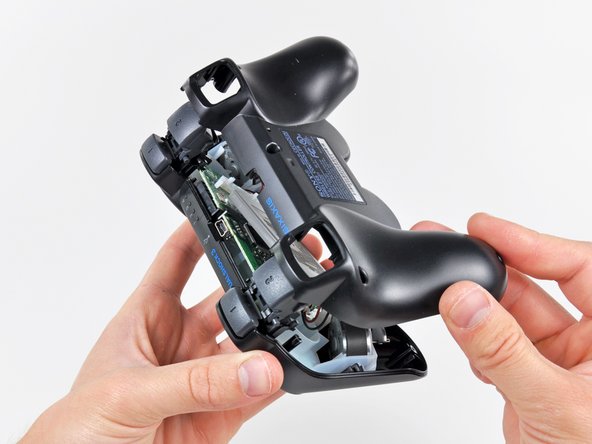

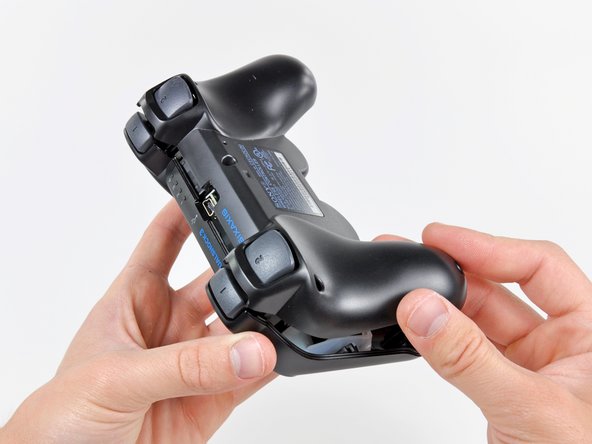

  3. DualShock 3 Buttons Replacement: step 3, image 1 of 2 DualShock 3 Buttons Replacement: step 3, image 2 of 2

    • Push the rear cover slightly toward the top edge of the controller to clear the front edge of the #2 triggers.

    • Pull the rear cover away from the rest of the controller, being careful not to pop off the #2 triggers.

    • If you happen to accidentally pop off the trigger buttons, we have a trigger button guide to reattach them.

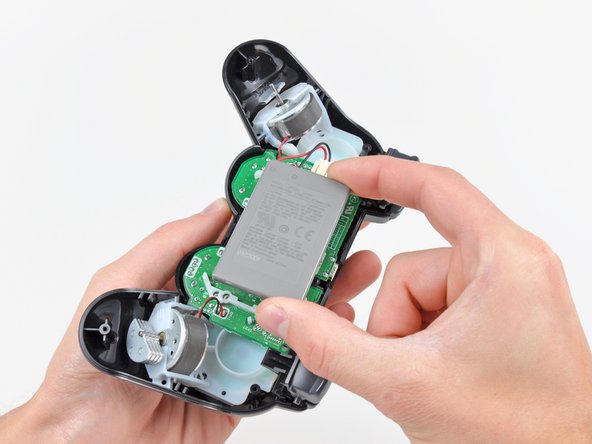

  4. DualShock 3 Buttons Replacement: step 4, image 1 of 1

    • Lift the battery off the motherboard for enough clearance to access the battery connector.

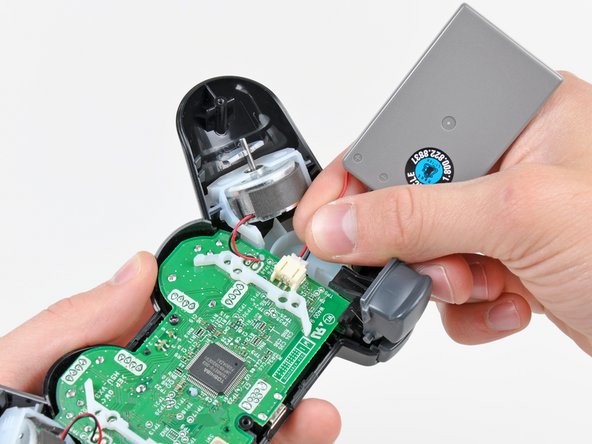

  6. DualShock 3 Buttons Replacement: step 5, image 1 of 1

    • Carefully pull the battery connector away from its socket on the motherboard.

    • It may be helpful to use a pair of tweezers or pliers to grab the battery connector when you disconnect it for the first time.

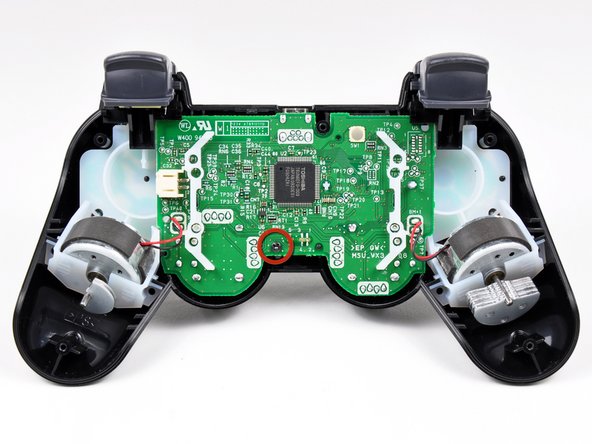

  7. DualShock 3 Buttons Replacement: step 6, image 1 of 1

    • Remove the single 7.2 mm Phillips screw securing the motherboard to the front cover.

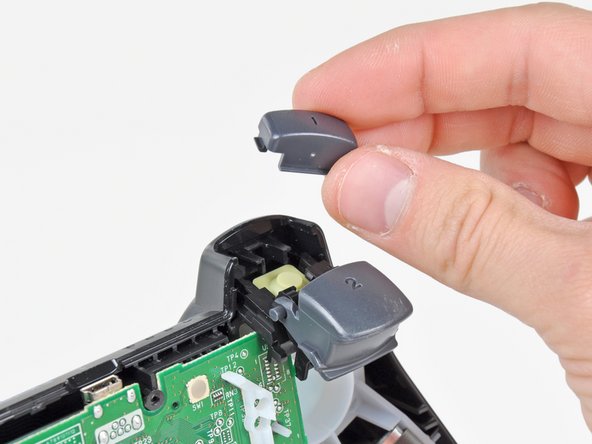

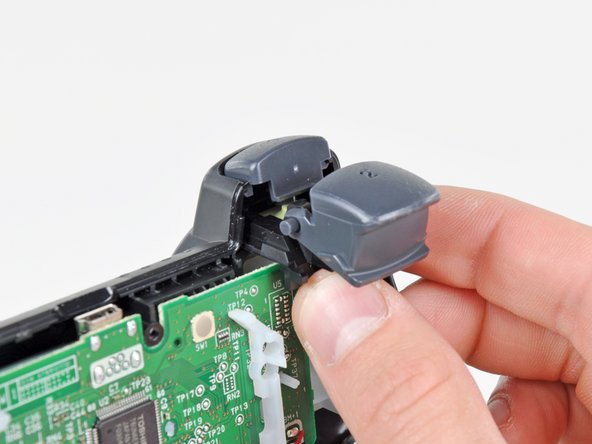

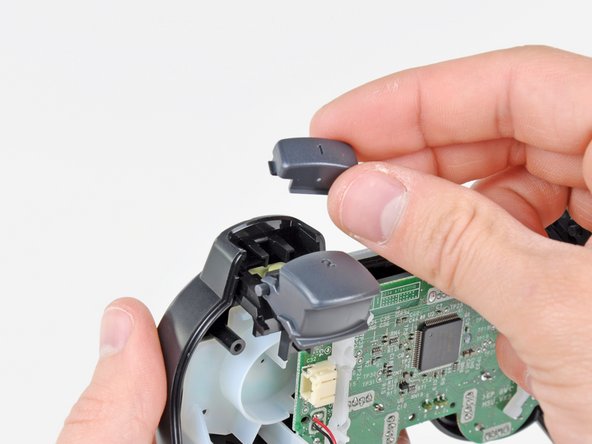

  8. DualShock 3 Buttons Replacement: step 7, image 1 of 3 DualShock 3 Buttons Replacement: step 7, image 2 of 3 DualShock 3 Buttons Replacement: step 7, image 3 of 3

    • Slide the trigger button retainers slightly away from the front cover.

    • Remove the #1 button on both sides.

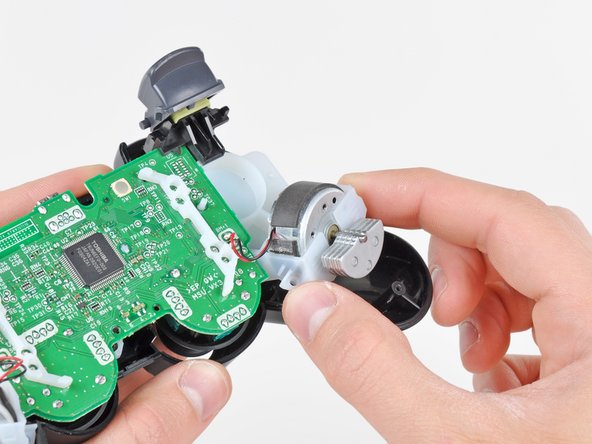

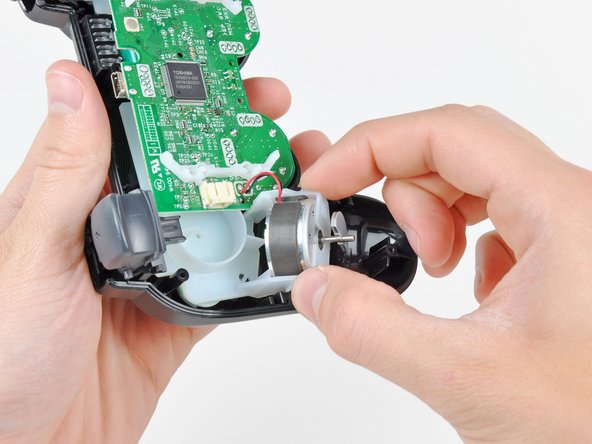

  9. DualShock 3 Buttons Replacement: step 8, image 1 of 2 DualShock 3 Buttons Replacement: step 8, image 2 of 2

    • Pull the vibration motor retainers away from the front cover to dislodge the motherboard assembly.

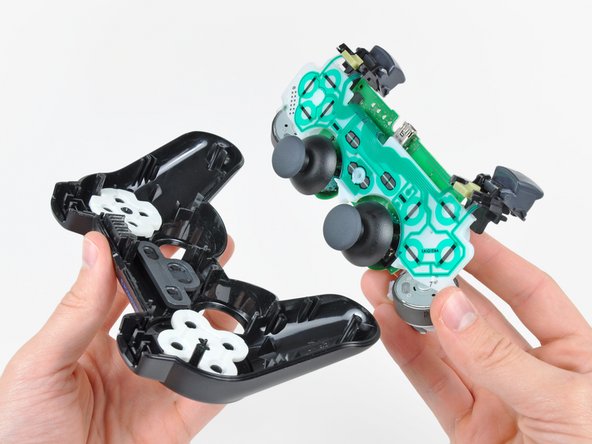

  10. DualShock 3 Buttons Replacement: step 9, image 1 of 1

    • Remove the motherboard assembly from the front cover.

    • When removing the motherboard assembly, try not to tilt the front cover upside down as the buttons and their covers may fall out.

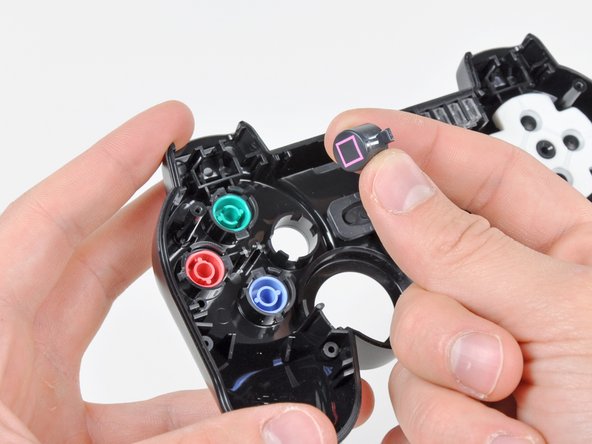

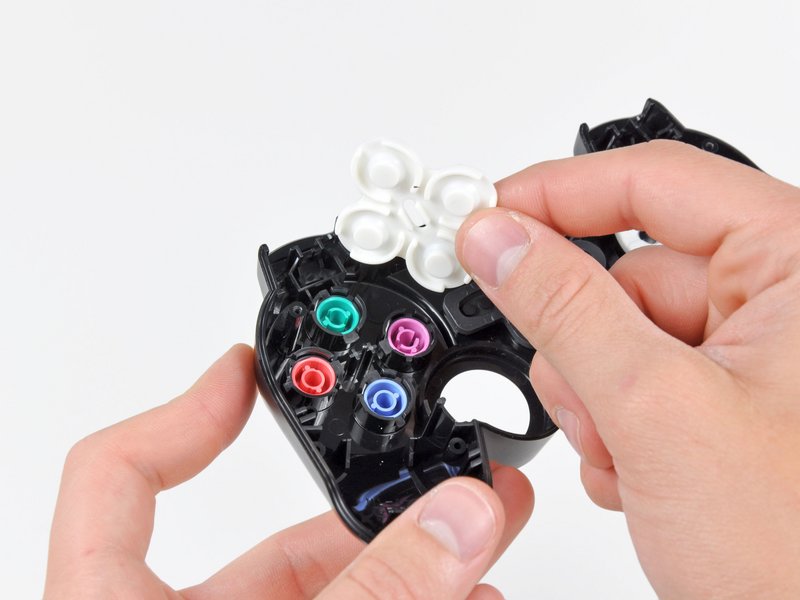

  11. DualShock 3 Buttons Replacement: step 10, image 1 of 2 DualShock 3 Buttons Replacement: step 10, image 2 of 2

    • Lift the rubber button contacts off the front controller cover to access the plastic button covers.

    • Lift any damaged plastic button covers out of the controller cover.

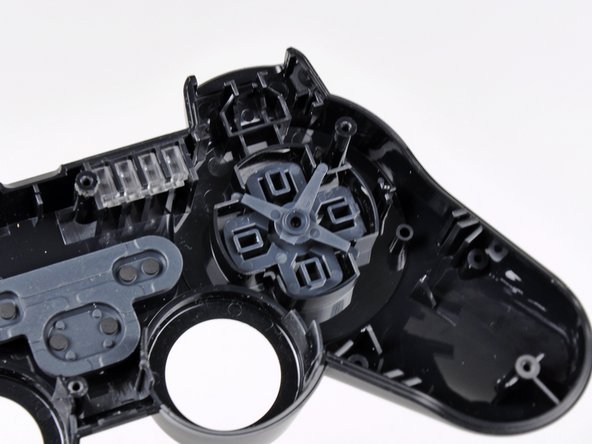

  12. DualShock 3 Buttons Replacement: step 11, image 1 of 1

    • The D-pad has a three-armed plastic piece that must be installed as shown before installing the rubber button pad for it to work properly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
