Introduction
Use this guide to remove the rear cover of a DualShock 3 controller.
What you need
-
-
Remove the five 7.2 mm Phillips screws securing the rear cover to the controller.
-
-
-
Push the center of the rear cover (between the two analog sticks) and slightly lift the lower edge of it away from the rest of the controller.
-
-
-

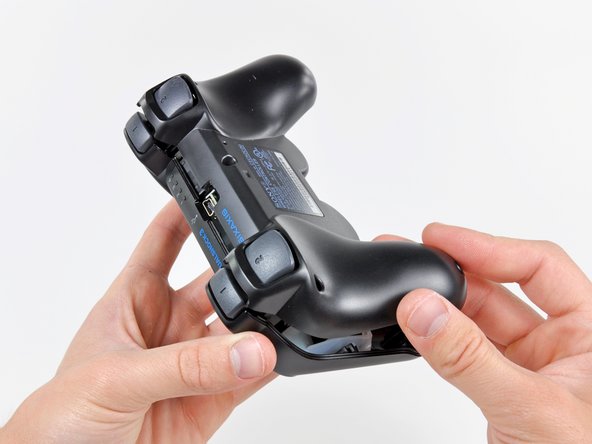

Push the rear cover slightly toward the top edge of the controller to clear the front edge of the #2 triggers.
-

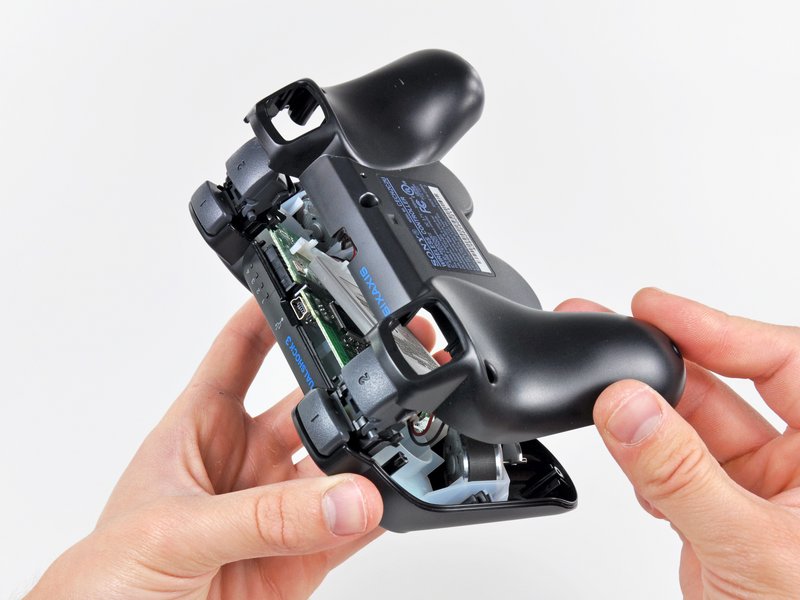

Pull the rear cover away from the rest of the controller, being careful not to pop off the #2 triggers.
-
Almost done!
To reassemble your device, follow these instructions in reverse order.
Conclusion
To reassemble your device, follow these instructions in reverse order.
