Electric Jigsaw

Elisabeth Herbeck and 3 other contributors

Last updated on Nov 27, 2018

View statistics:

Past 24 Hours:: 0
Past 7 Days:: 0
Past 30 Days:: 2
All Time:: 93

No one has left comments on this guide. Will you be first?

Go to guide comments

No one has marked this guide "completed." Will you be the first?

No one has favorited (and subscribed to) this guide. Will you be the first?

00:04:00

Easy

Introduction

Go to step 1 ↓

Dismantling and Recycling Centre (DRZ)

Katharina Lenz, Vienna / Austria

Health & Safety

Dismantling doesn't include any harmful steps. Nonetheless workers should wear personal protection equipment like gloves, goggles, apron and robust shoes.

Note

This is a general guide for most electric jigsaws. As the construction can differ, the dismantling steps mentioned below can vary in their order. However, the described steps show what parts the removal should focus on.

What you need

Tools

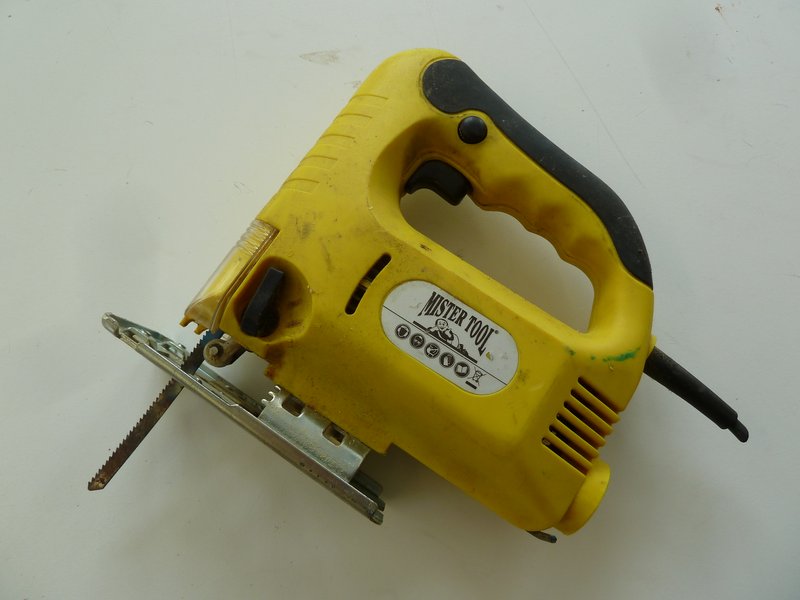

1. Step 1 Electric Jigsaw
  Cut the power cable. Dispose of the plug separately (mixed waste).
  Add Comment

  1024
2. Step 2
  Unscrew and remove the bearing surface.
  Add Comment

  1024
3. Step 3
  Remove the protection shield.
  Add Comment

  1024
4. Step 4
  Unscrew and remove the saw blade.
  Add Comment

  1024
5. Step 5
  Unscrew and open the case.
  Add Comment

  1024
7. Step 6
  Unscrew the power cable.
  Add Comment

  1024
8. Step 7
  Remove the motor.
  Add Comment

  1024
9. Step 8
  Remove the pendulum stroke.
  Add Comment

  1024
10. Step 9
  Unscrew the motor.
  Add Comment

  1024
11. Step 10
  Cut all wires.
  Add Comment

  1024
13. Step 11
  Remove the Printed Wiring Board (PWB) by cutting all connected wires.
  Add Comment

  1024
14. Step 12
  Remove the switch.
  Add Comment

  1024
15. Step 13
  Remove the capacitor.
  Add Comment

  1024
16. Step 14
  Cut off wires.
  Add Comment

  1024
17. Step 15
  Separate the remaining materials according to their type and go on with the appropriate data sheet (e.g. aluminium, ferrous metals, plastic, further PWBs, etc.).

  Make sure the plastic parts are completely free of metal pieces.
  Add Comment

  1024
