Fujitsu LifeBook N3510 Fan Replacement

Step 1 Fujitsu LifeBook N3510 Fan Replacement

• Start by locating the two clips on the bottom of the computer that support the battery.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

• Use your fingers to push the clips inward and then upward.
• Lift the battery out of the computer.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

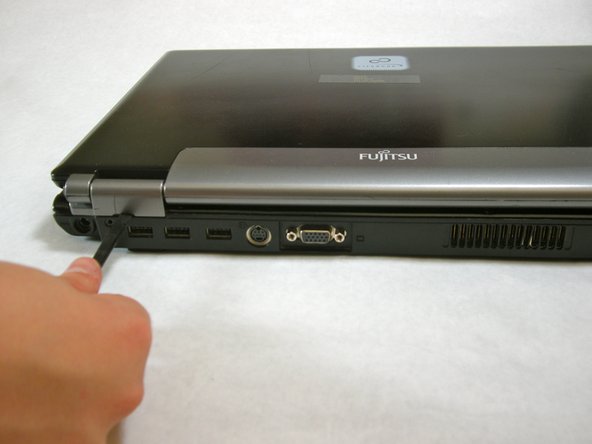

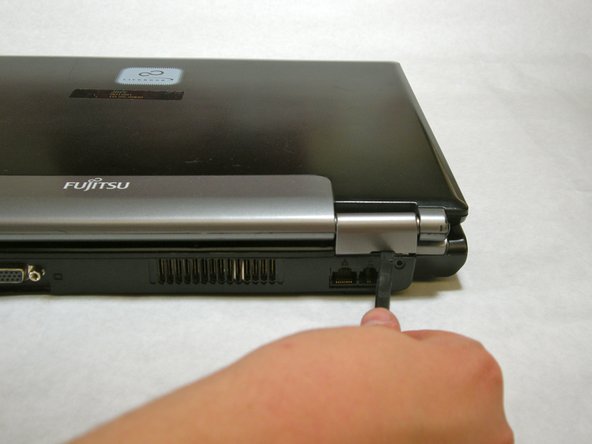

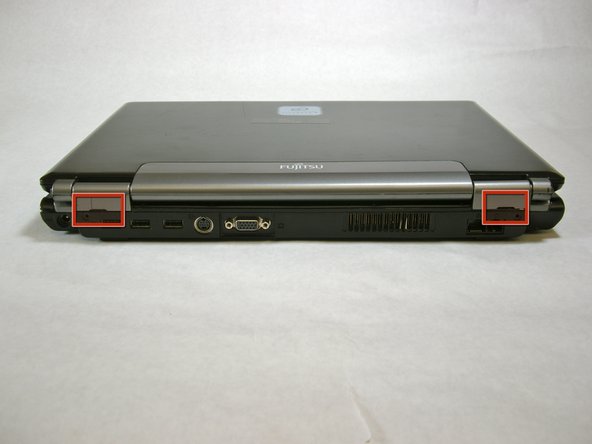

Step 3
• Use a spudger to lift the back of the hinge cover on the left and right sides of the computer.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

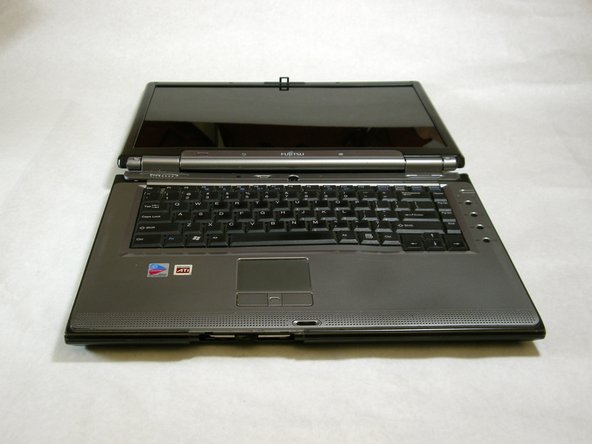

Step 4
• Lay the computer flat on a stable surface with the monitor pointing away from you.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

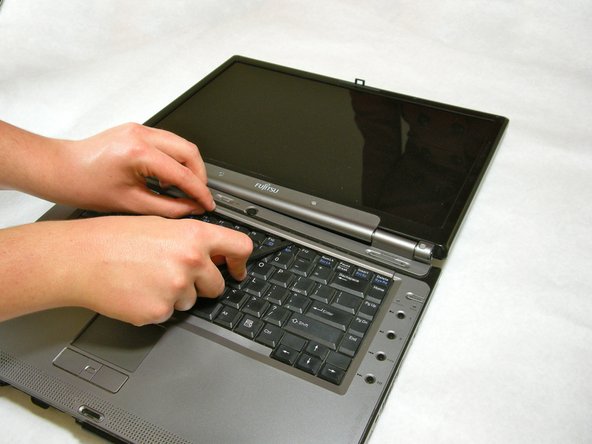

Step 5

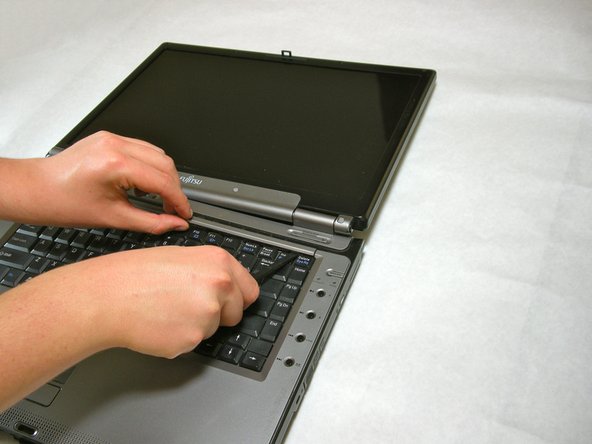

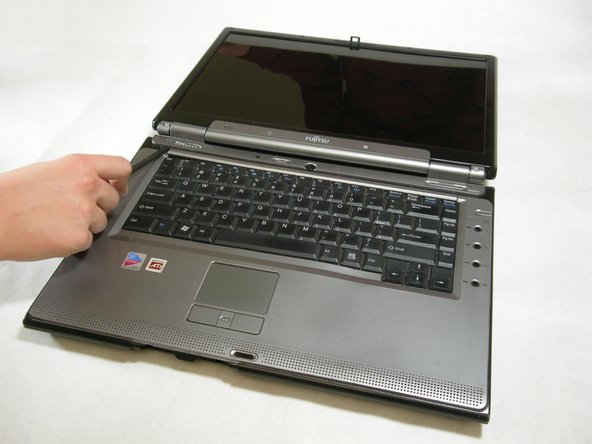

• Use a spudger to partially lift the hinge cover.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

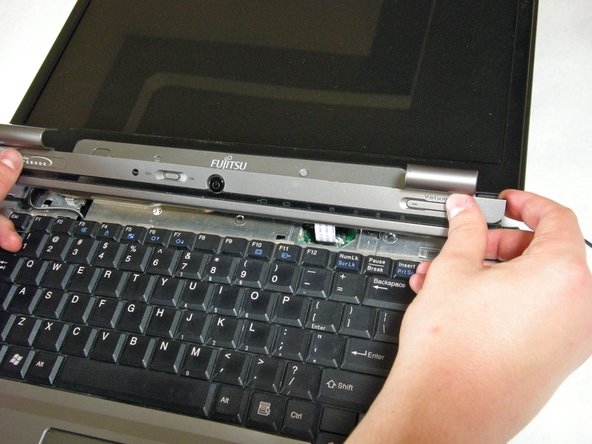

Step 6

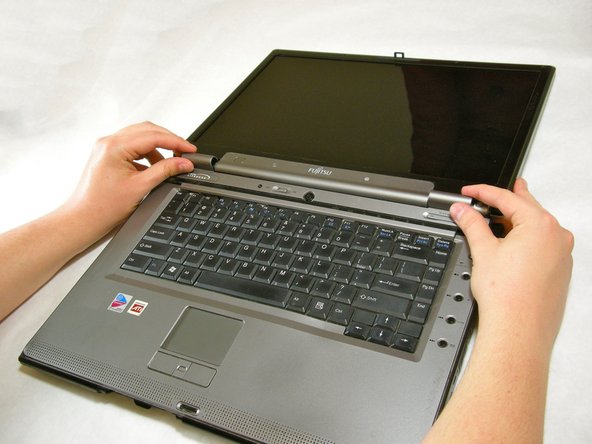

• The hinge cover has a ribbon cable that is attached to the motherboard. To prevent damage, lift the hinge cover slowly.
• Lift the hinge cover out of place enough to expose the ribbon cable.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

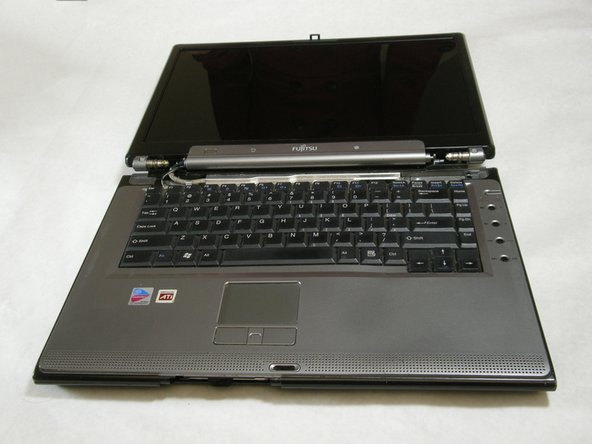

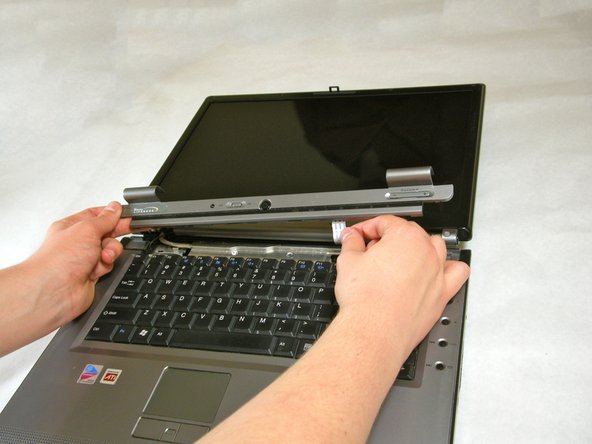

Step 7
• Disconnect the ribbon cable from the motherboard and remove the hinge cover from the computer.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

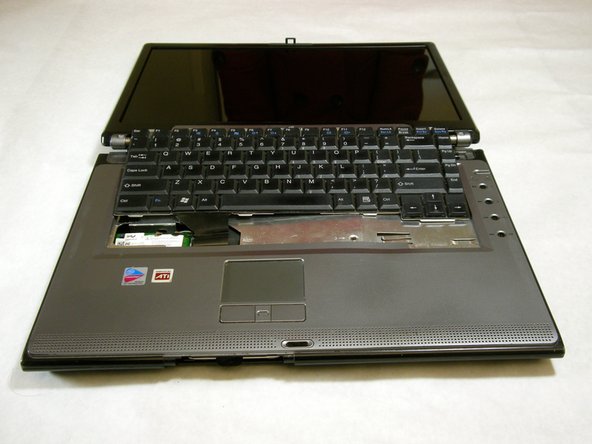

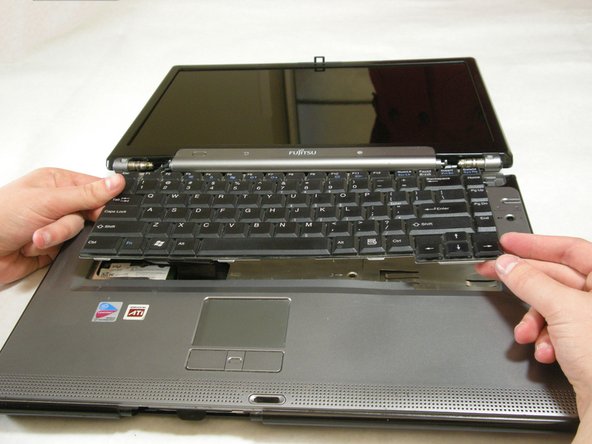

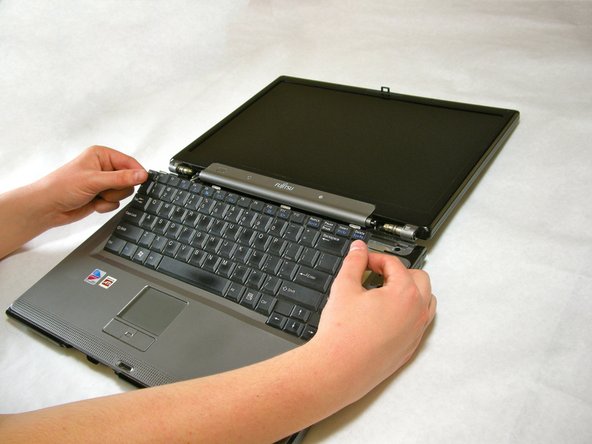

Step 8
• The keyboard has a ribbon cable that is attached to the motherboard. To prevent damage, lift keyboard slowly.
• Lift the keyboard enough to expose the ribbon cable.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

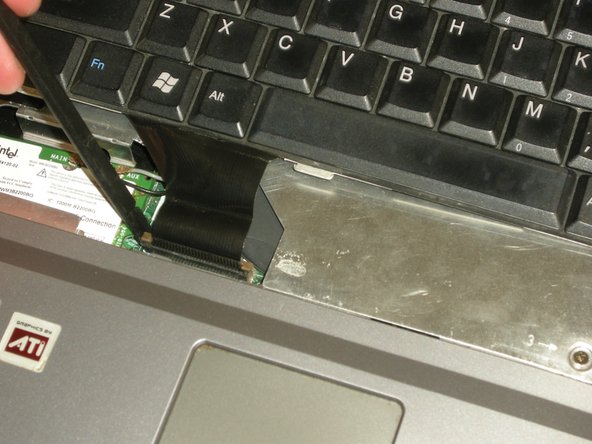

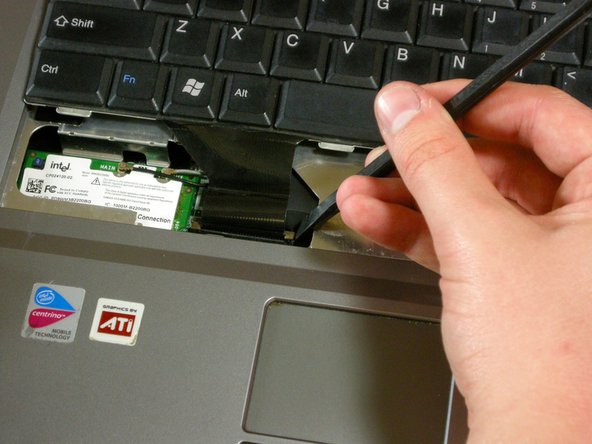

Step 9
• Use a spudger to release the ribbon cable from the motherboard.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

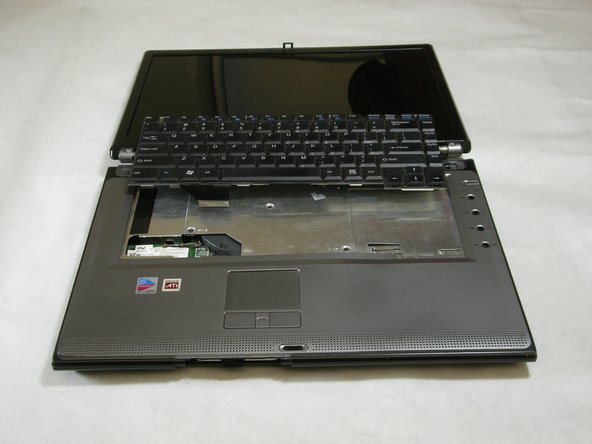

Step 10
• Carefully remove the keyboard after the ribbon has been detached.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 11

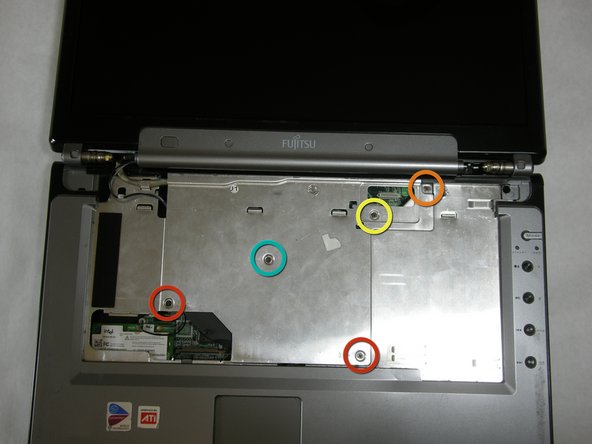

• Remove the following screws, all labeled "3."
• Two 8.63mm screws.
• One 7.65mm screw.
• One 5.74mm screw.
• Remove the following screw, labeled "15."
• One 17.81mm screw.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

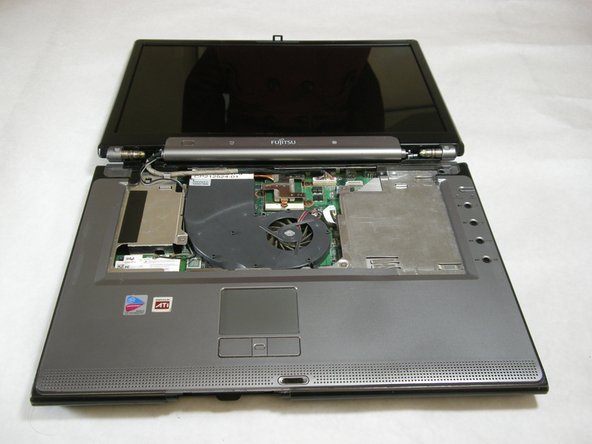

Step 12

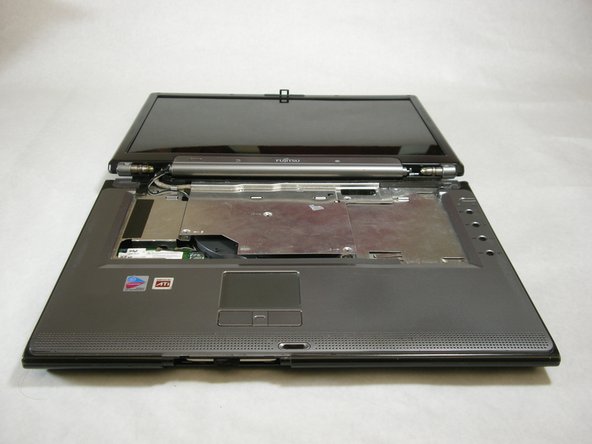

• Lift the cover with fingers and remove.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

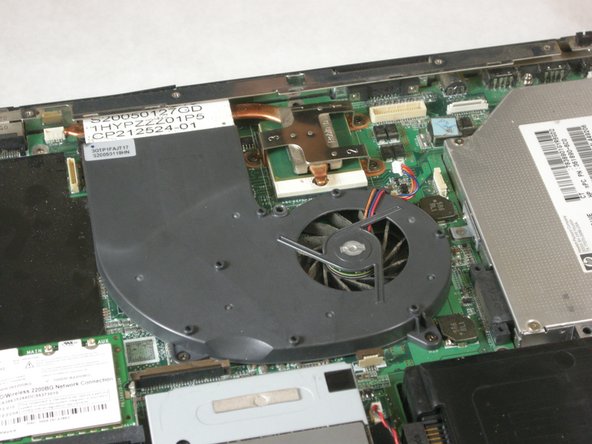

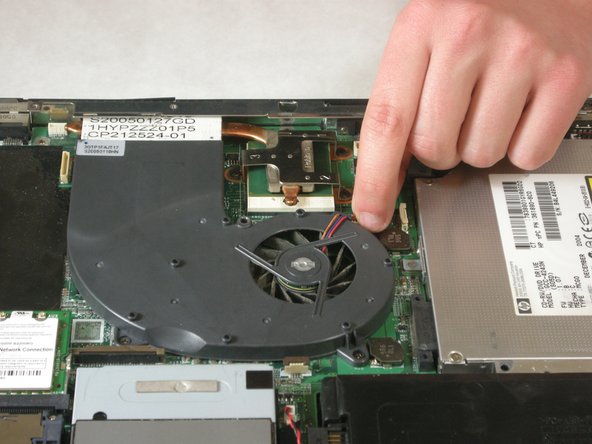

Step 13

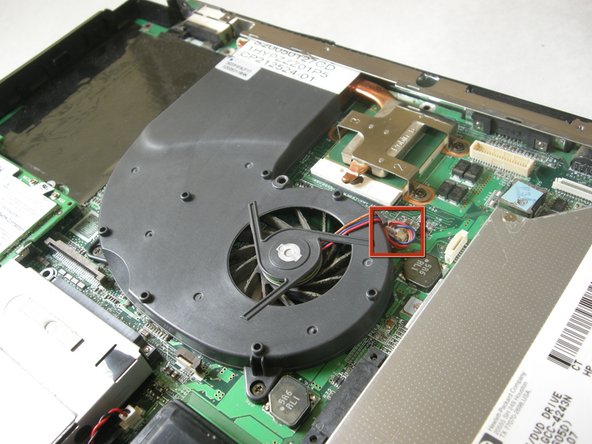

• Detach fan cable from motherboard.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 14

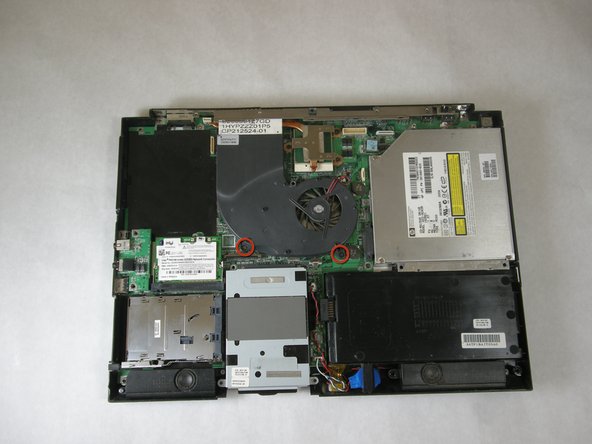

• Remove labeled screws.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

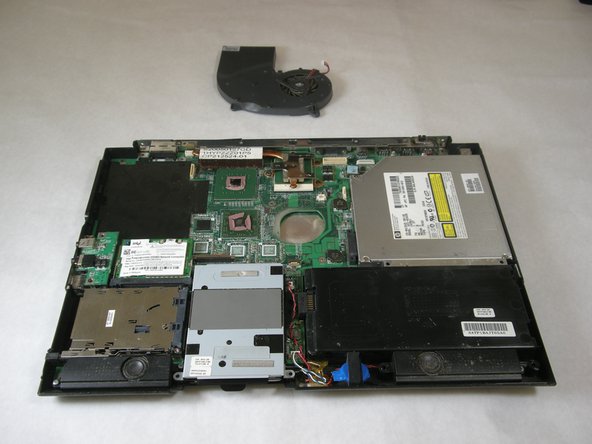

Step 15

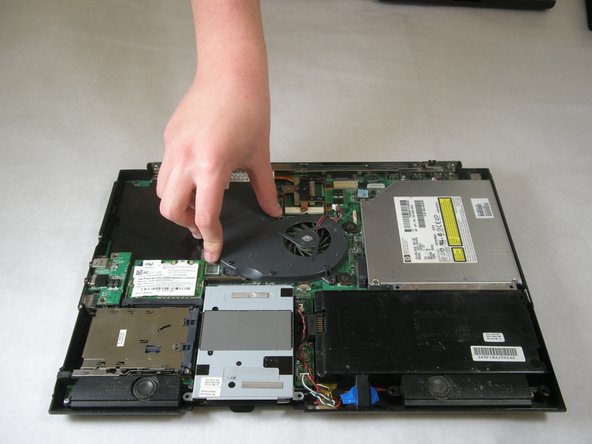

• Remove fan.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
