1. Step 1 Fujitsu LifeBook N3510 Metal Motherboard Cover Replacement
  Start by locating the two clips on the bottom of the computer that support the battery.
  Add Comment

  1024
2. Step 2
  Use your fingers to push the clips inward and then upward.

  Lift the battery out of the computer.
  Add Comment

  1024

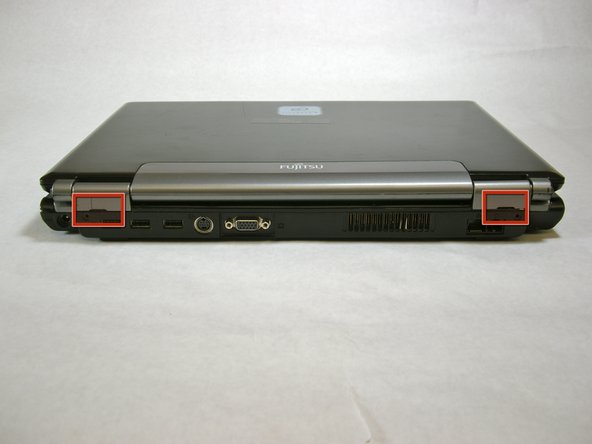

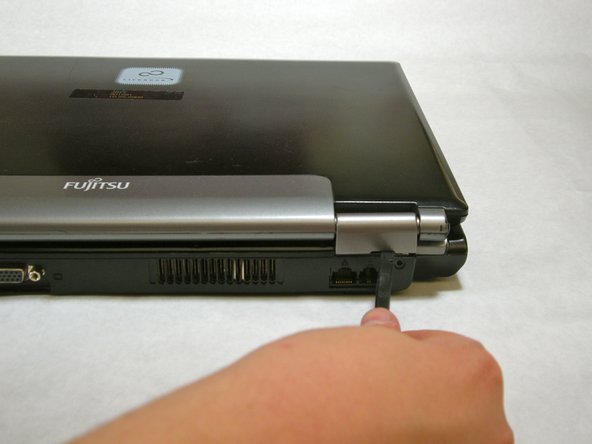

3. Step 3

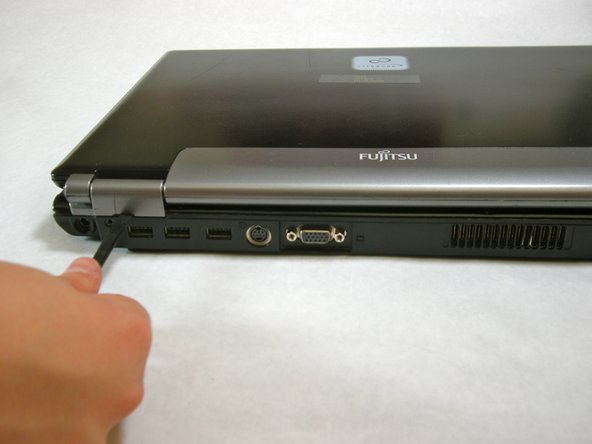

  Use a spudger to lift the back of the hinge cover on the left and right sides of the computer.
  Add Comment

  1024
4. Step 4

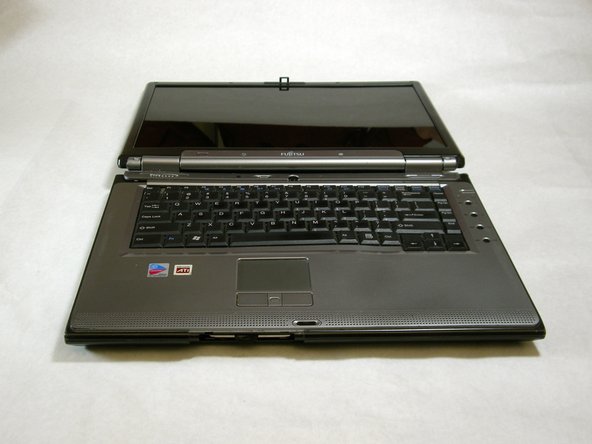

  Lay the computer flat on a stable surface with the monitor pointing away from you.
  Add Comment

  1024

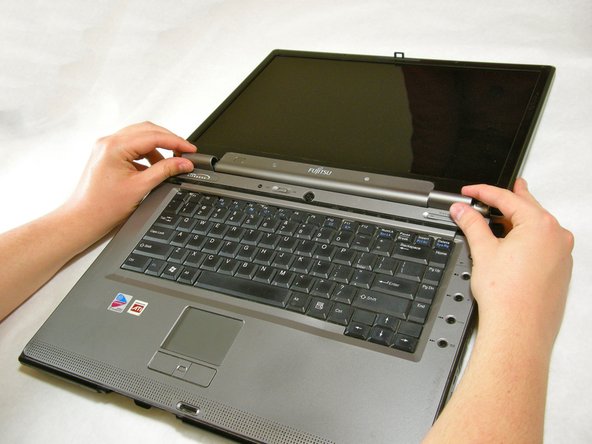

6. Step 5

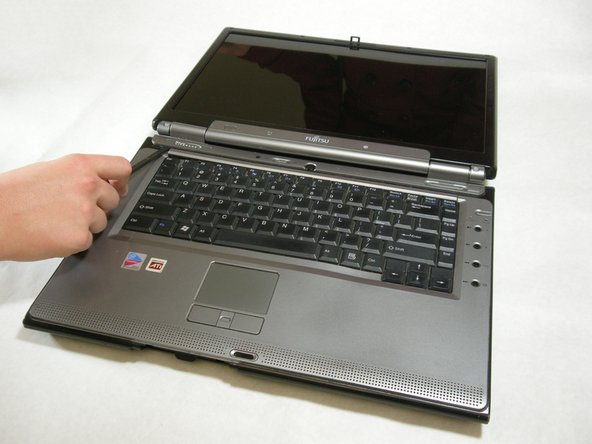

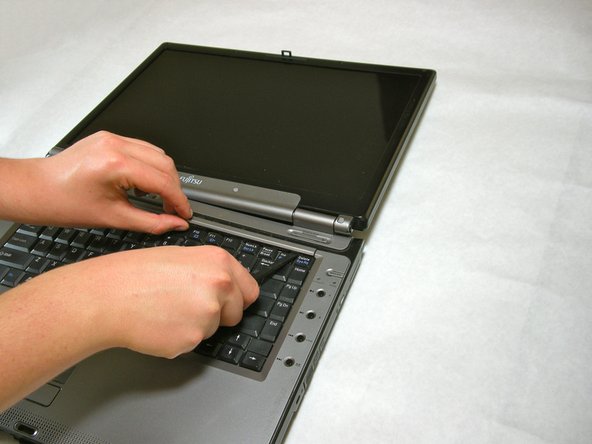

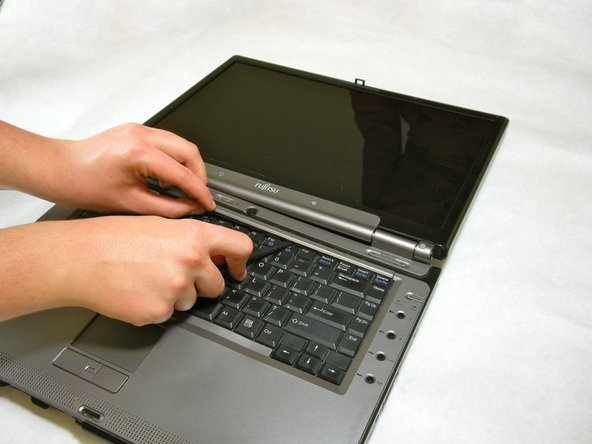

  Use a spudger to partially lift the hinge cover.
  Add Comment

  1024

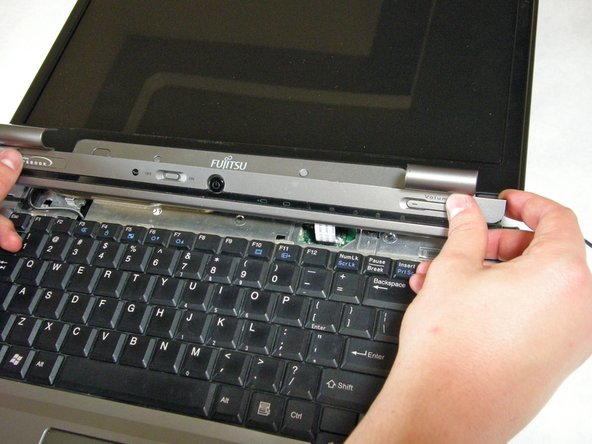

7. Step 6
  The hinge cover has a ribbon cable that is attached to the motherboard. To prevent damage, lift the hinge cover slowly.

  Lift the hinge cover out of place enough to expose the ribbon cable.
  Add Comment

  1024

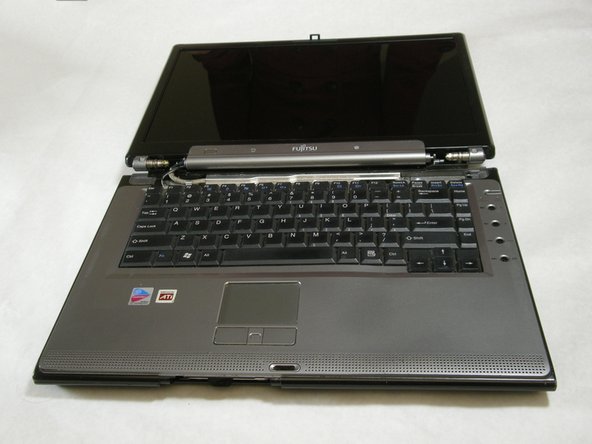

8. Step 7

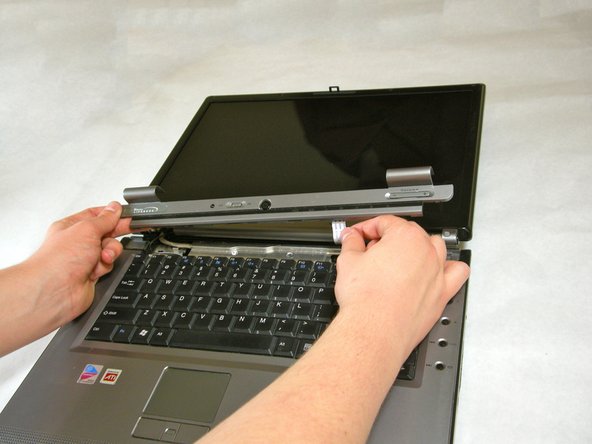

  Disconnect the ribbon cable from the motherboard and remove the hinge cover from the computer.
  Add Comment

  1024
9. Step 8

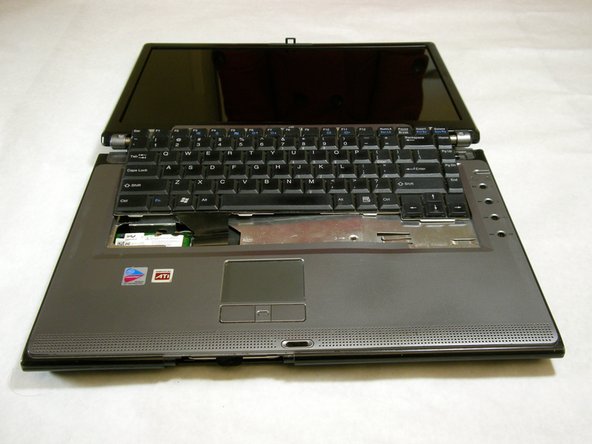

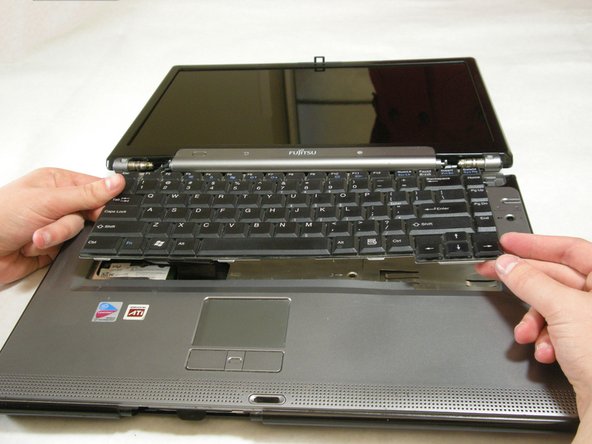

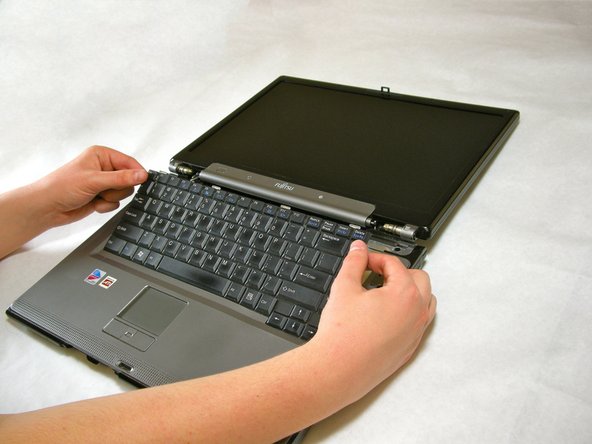

  The keyboard has a ribbon cable that is attached to the motherboard. To prevent damage, lift keyboard slowly.

  Lift the keyboard enough to expose the ribbon cable.
  Add Comment

  1024

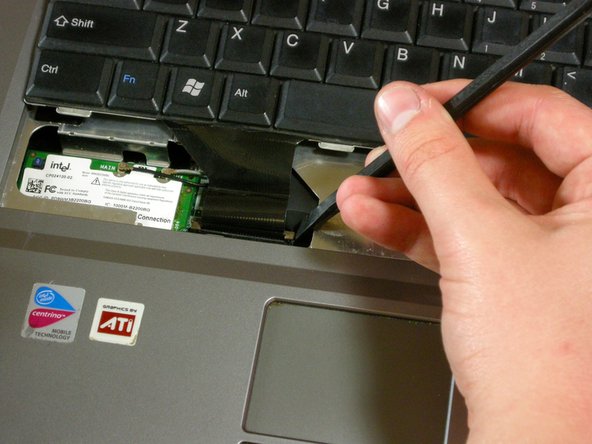

10. Step 9

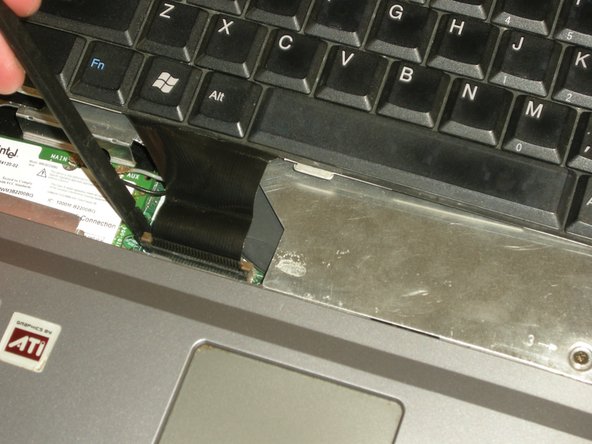

  Use a spudger to release the ribbon cable from the motherboard.
  Add Comment

  1024

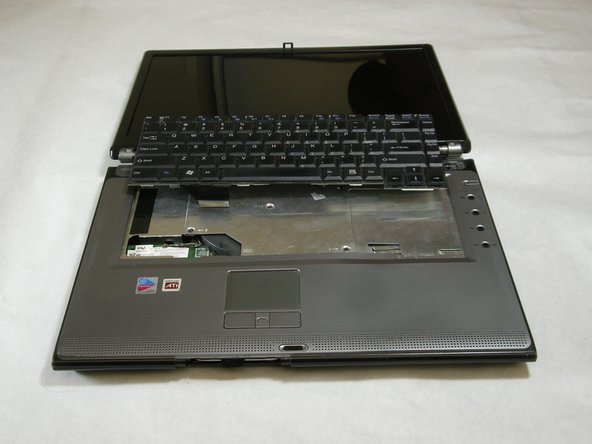

11. Step 10
  Carefully remove the keyboard after the ribbon has been detached.
  Add Comment

  1024

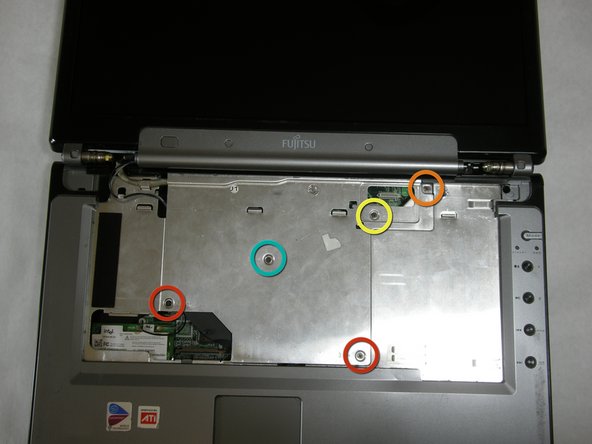

12. Step 11
  Remove the following screws, all labeled "3."

  Two 8.63mm screws.

  One 7.65mm screw.

  One 5.74mm screw.

  Remove the following screw, labeled "15."

  One 17.81mm screw.
  Add Comment

  1024

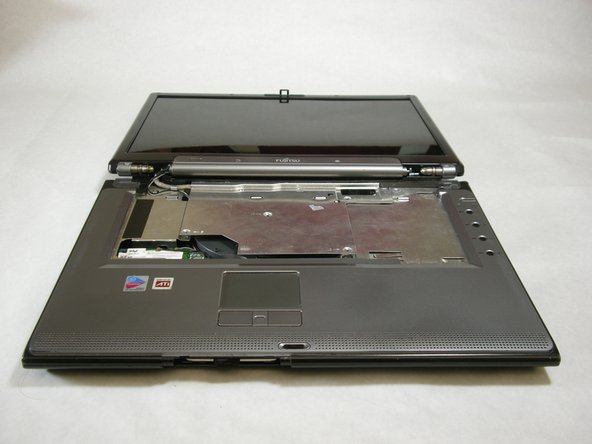

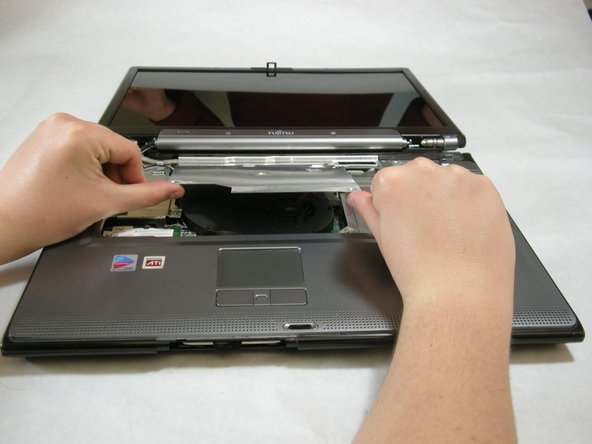

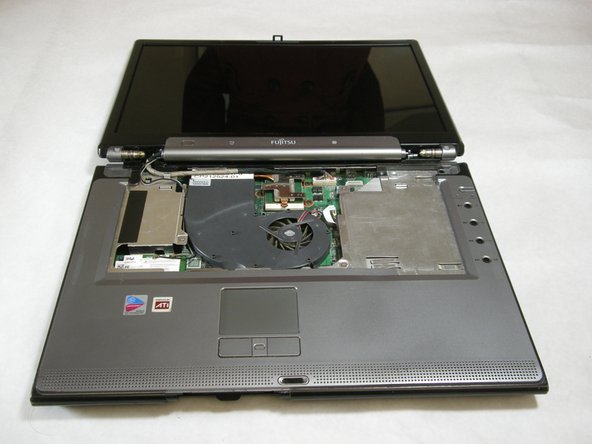

13. Step 12
  Lift the cover with fingers and remove.
  Add Comment

  1024

Conclusion

To reassemble your device, follow these instructions in reverse order.
