Fujitsu LifeBook N3510 RAM Replacement

Introduction

Accessing the RAM in this computer is straightforward and requires minimal disassembly.

What you need

  1. Fujitsu LifeBook N3510 RAM Replacement, Fujitsu LifeBook N3510 RAM Replacement: step 1, image 1 of 1

    • Start by locating the two clips on the bottom of the computer that support the battery.

  2. Fujitsu LifeBook N3510 RAM Replacement: step 2, image 1 of 1

    • Use your fingers to push the clips inward and then upward.

    • Lift the battery out of the computer.

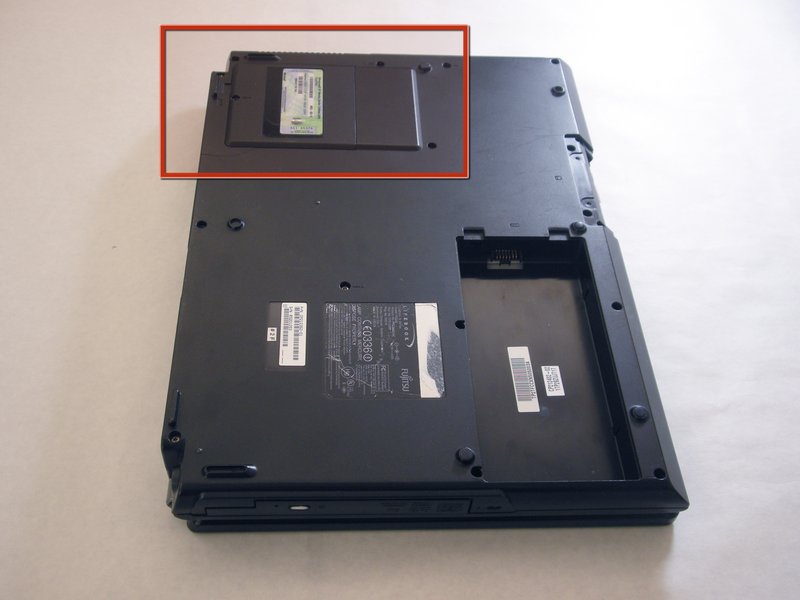

  3. Fujitsu LifeBook N3510 RAM Replacement: step 3, image 1 of 1

    • Locate the RAM cover.

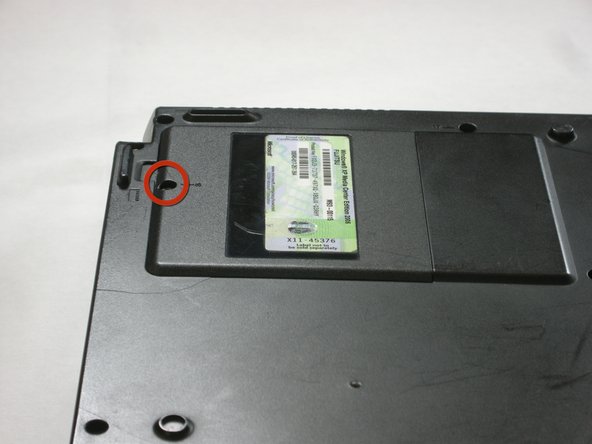

  5. Fujitsu LifeBook N3510 RAM Replacement: step 4, image 1 of 1

    • Remove the screw labeled “3.”

    • The screw is not shown in the picture.

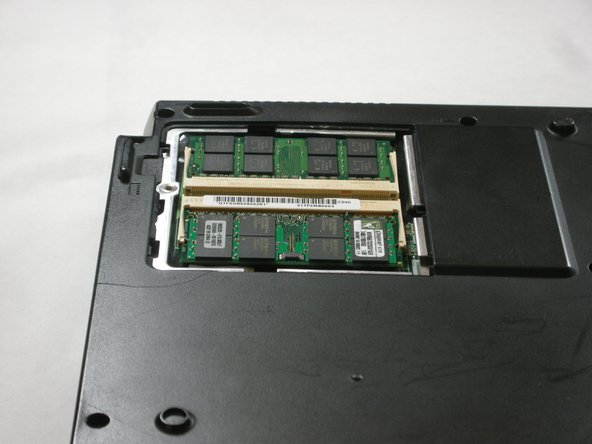

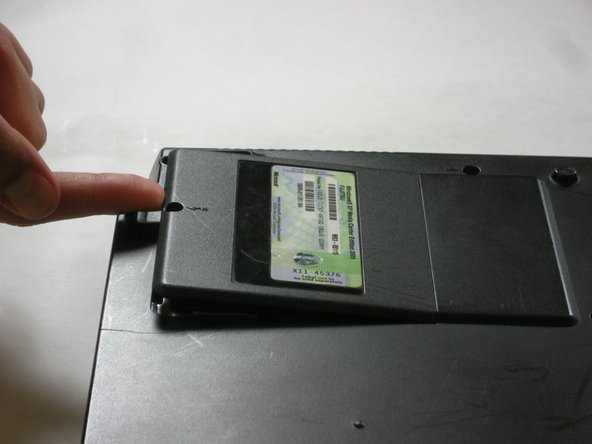

  6. Fujitsu LifeBook N3510 RAM Replacement: step 5, image 1 of 2 Fujitsu LifeBook N3510 RAM Replacement: step 5, image 2 of 2

    • Remove the RAM cover by lifting it with your finger.

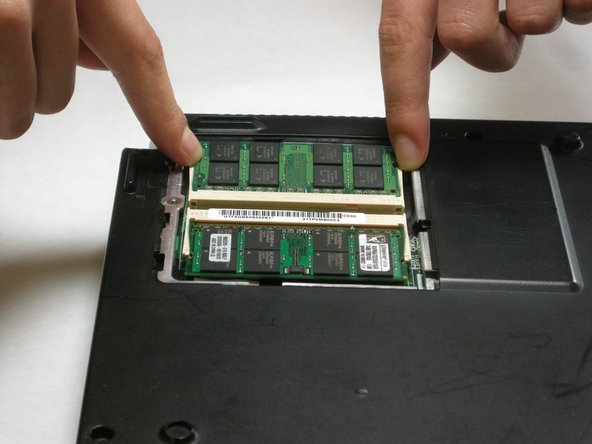

  7. Fujitsu LifeBook N3510 RAM Replacement: step 6, image 1 of 2 Fujitsu LifeBook N3510 RAM Replacement: step 6, image 2 of 2

    • Remove the RAM module by pushing the securing clips outward.

    • The RAM module will then slightly pop out.

    • When you are installing a new RAM module, carefully insert it into the socket and push downwards.

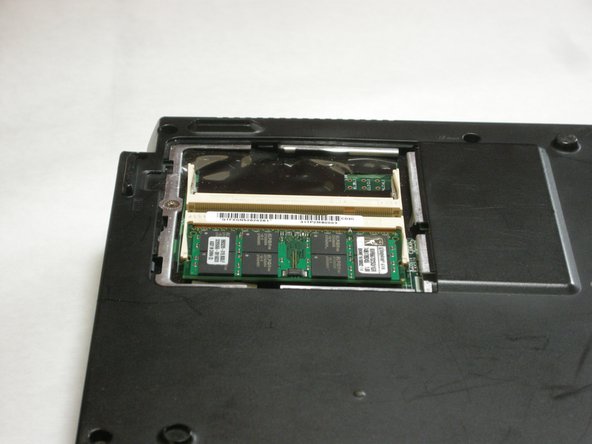

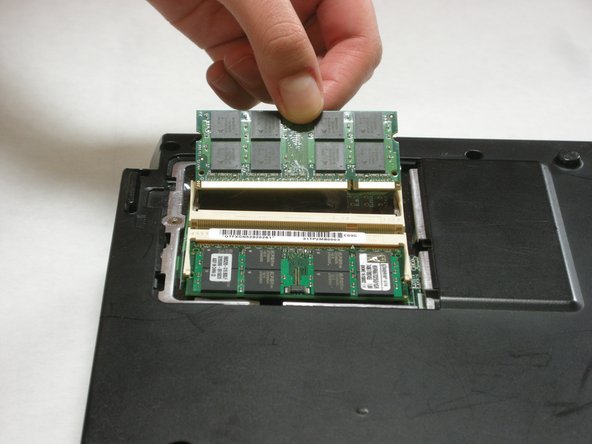

  8. Fujitsu LifeBook N3510 RAM Replacement: step 7, image 1 of 2 Fujitsu LifeBook N3510 RAM Replacement: step 7, image 2 of 2

    • Carefully pull the RAM module from the computer.

Conclusion

To reassemble your device, follow these instructions in reverse order.
