Gateway 600YG2 Keyboard Replacement

Introduction

How to remove keyboard.

What you need

  1. Gateway 600YG2 Keyboard Replacement, Gateway 600YG2 Keyboard Replacement: step 1, image 1 of 1

    • Flip the laptop over. Slide the battery release tab to the right.

  2. Gateway 600YG2 Keyboard Replacement: step 2, image 1 of 1

    • Lift the battery out.

  4. Gateway 600YG2 Keyboard Replacement: step 3, image 1 of 1

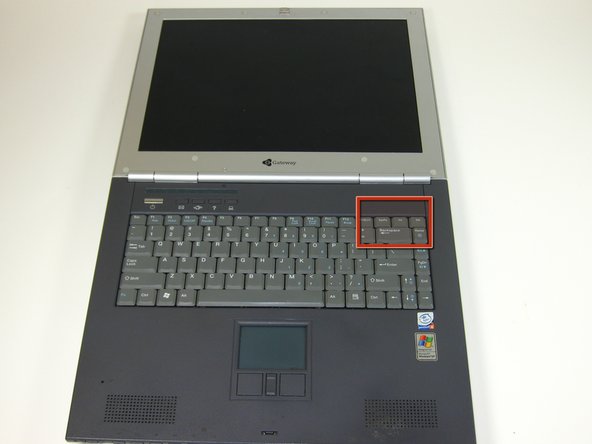

    • Insert spudger between sysrq and ins keys.

    • Gently lift power button panel from the right to left.

  5. Gateway 600YG2 Keyboard Replacement: step 4, image 1 of 1

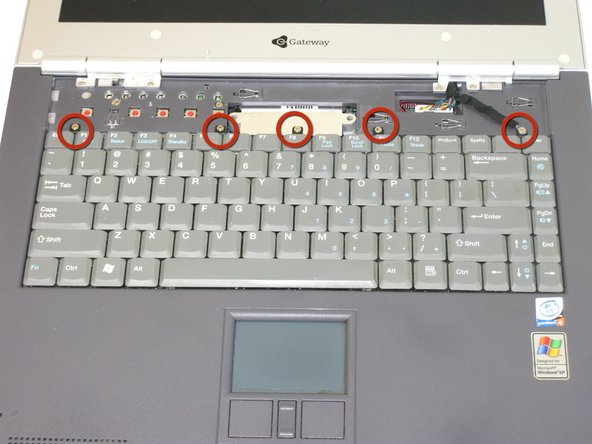

    • Remove the 5 screws holding the keyboard in place.

  6. Gateway 600YG2 Keyboard Replacement: step 5, image 1 of 2 Gateway 600YG2 Keyboard Replacement: step 5, image 2 of 2

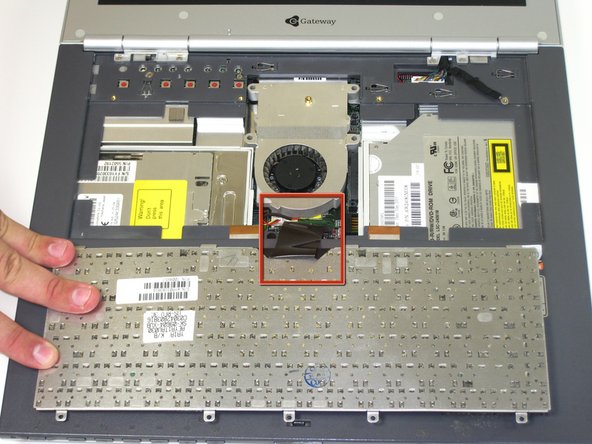

    • CAUTION: When lifting the keyboard out, do not lift keyboard up. Only fold back along the space bar edge.

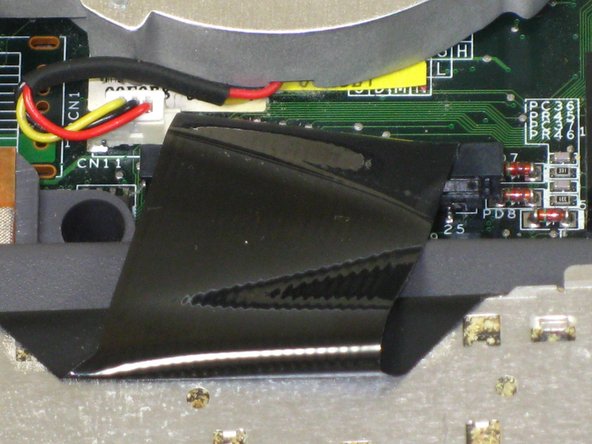

    • DO NOT PULL the black cable by the ribbon section; only pull it by the connector itself.

    • Follow the black ribbon cable to the connector and gently pull straight up.

Conclusion

To reassemble your device, follow these instructions in reverse order.
