Gateway 600YG2 Memory Replacement

Introduction

Removal of on-board memory.

What you need

  1. Gateway 600YG2 Memory Replacement, Gateway 600YG2 Memory Replacement: step 1, image 1 of 1

    • Flip the laptop over. Slide the battery release tab to the right.

  2. Gateway 600YG2 Memory Replacement: step 2, image 1 of 1

    • Lift the battery out.

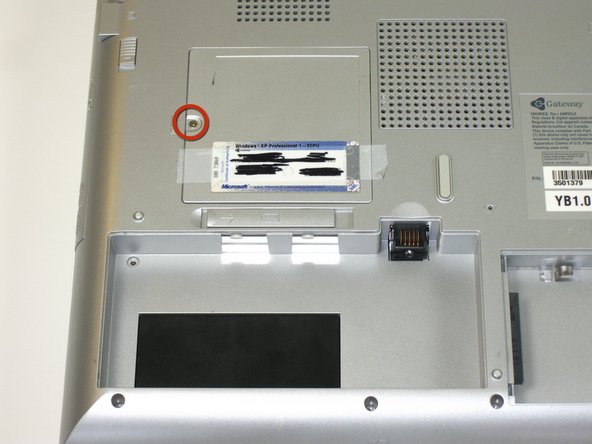

  4. Gateway 600YG2 Memory Replacement: step 3, image 1 of 1

    • Remove access cover by unscrewing captive screw.

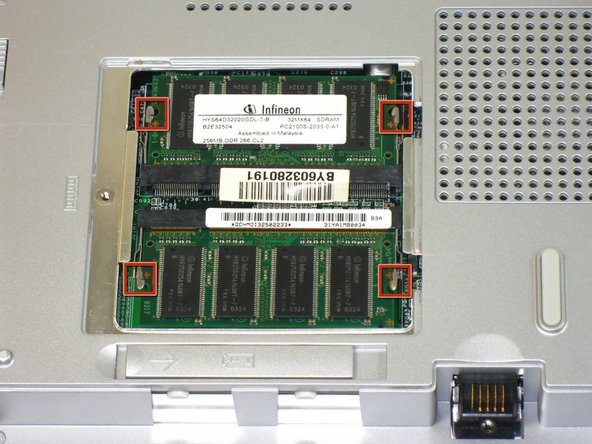

  5. Gateway 600YG2 Memory Replacement: step 4, image 1 of 1

    • Slide locking tabs outward

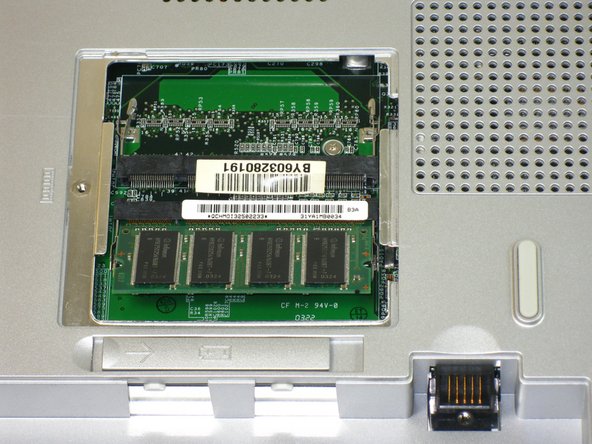

  6. Gateway 600YG2 Memory Replacement: step 5, image 1 of 1

    • Slide memory module out

Conclusion

To reassemble your device, follow these instructions in reverse order.
