Gateway SA1 Cooling Fan Replacement

Step 1 Gateway SA1 Cooling Fan Replacement

• Move the latch to the right of the battery to unlocked.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

• Slide the latch on the left directly below the battery to unlock and pull out the battery as shown.
• The latch must be held in position to remove the battery.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

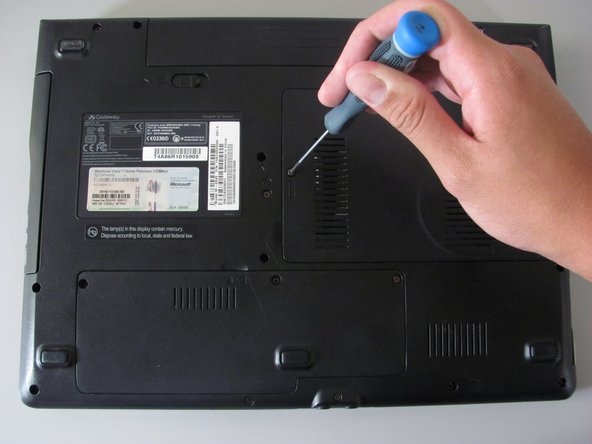

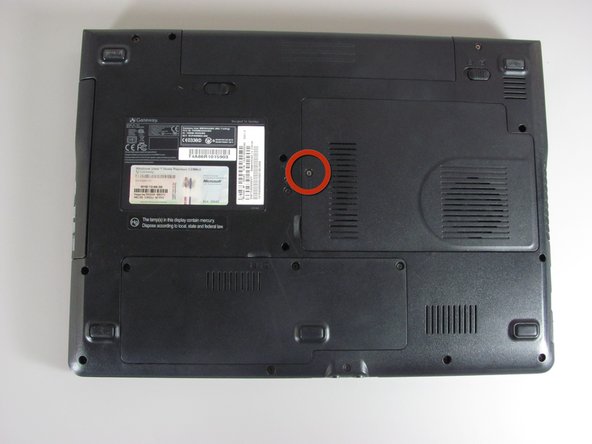

Step 3
• Unscrew the indicated Philips screw.
• Screw cannot be completely removed from cover.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

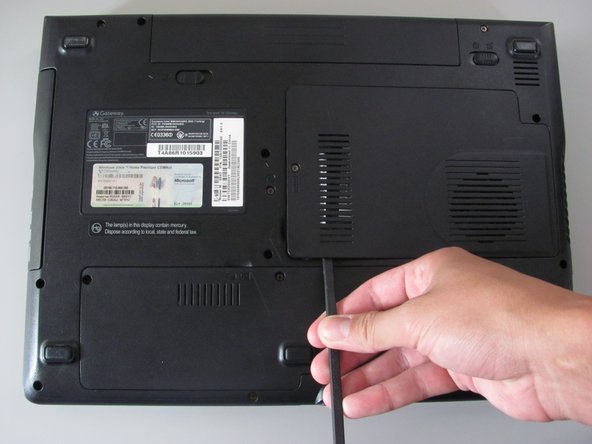

Step 4
• Use the spudger to pry open the cover.
• There will be three tabs on each side except for the side with the screw.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

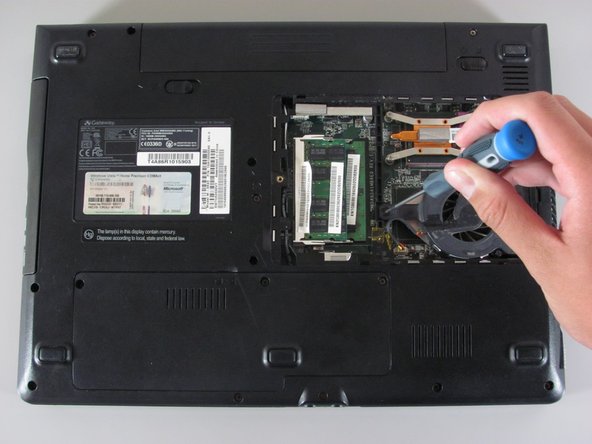

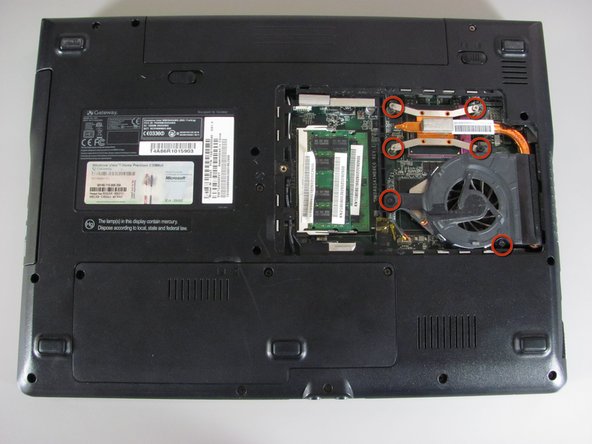

Step 5
• Unscrew the six indicated Philips screws.
• These screws cannot be completely removed from the cooling fan component.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

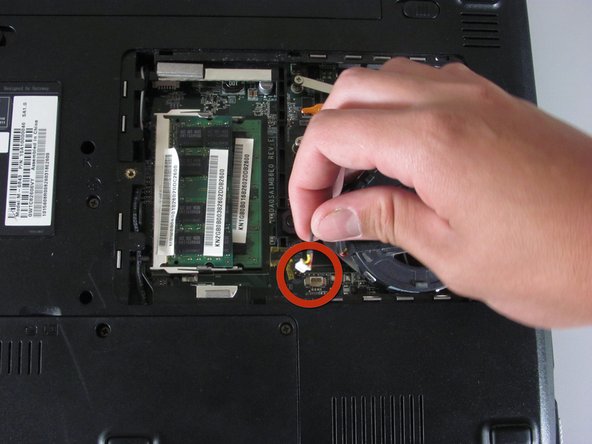

Step 6
• Unplug the shown cable attaching the cooling fan to the computer.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

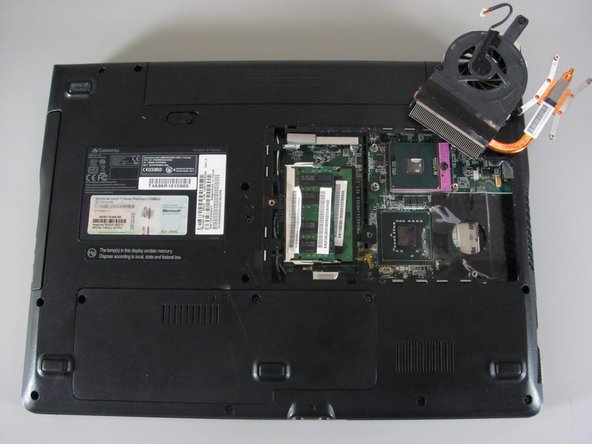

Step 7
• You are now able to remove the cooling fan.
