Gateway SA1 Disk Drive Replacement

Introduction

This Guide will help you replace a Gateway Disk Drive.

What you need

  1. Gateway SA1 Disk Drive Replacement, Gateway SA1 Disk Drive Replacement: step 1, image 1 of 1

    • Move the latch to the right of the battery to unlocked.

    Add Comment

  2. Gateway SA1 Disk Drive Replacement: step 2, image 1 of 1

    • Slide the latch on the left directly below the battery to unlock and pull out the battery as shown.

    • The latch must be held in position to remove the battery.

    Add Comment

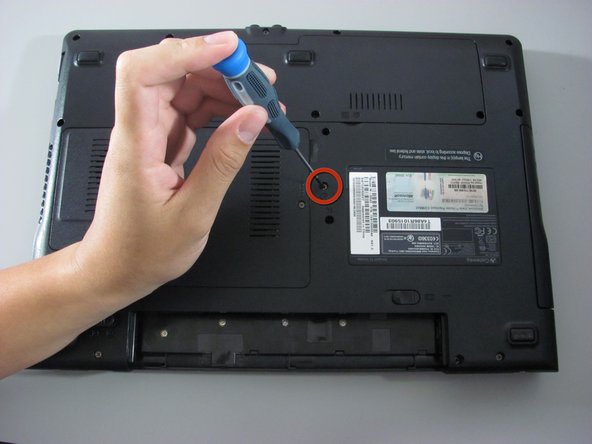

  4. Gateway SA1 Disk Drive Replacement: step 3, image 1 of 1

    • Unscrew the marked 5.9 mm Philips screw.

    Add Comment

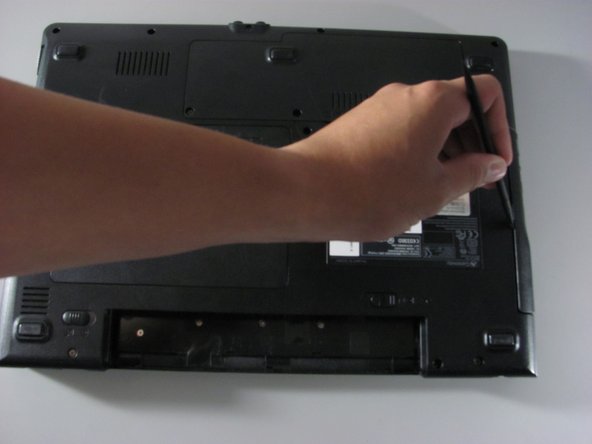

  5. Gateway SA1 Disk Drive Replacement: step 4, image 1 of 1

    • Use the spudger to pry out the Disk dive.

    Add Comment

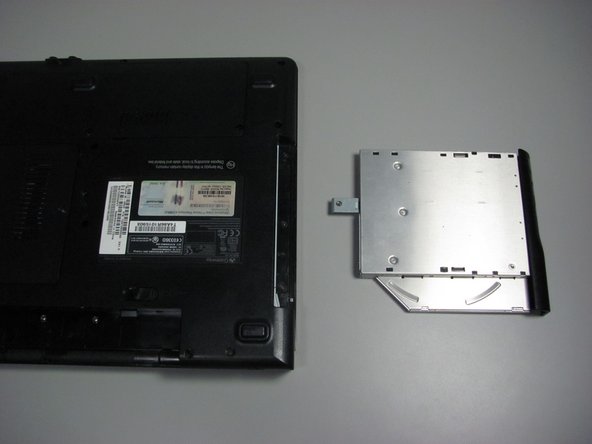

  6. Gateway SA1 Disk Drive Replacement: step 5, image 1 of 1

    • The disk drive should easily detach and can now be replaced.

    Add Comment

Conclusion

To reassemble your device, follow these instructions in reverse order.
