Gateway SA1 RAM Replacement

Step 1 Gateway SA1 RAM Replacement

• Move the latch to the right of the battery to unlocked.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

• Slide the latch on the left directly below the battery to unlock and pull out the battery as shown.
• The latch must be held in position to remove the battery.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

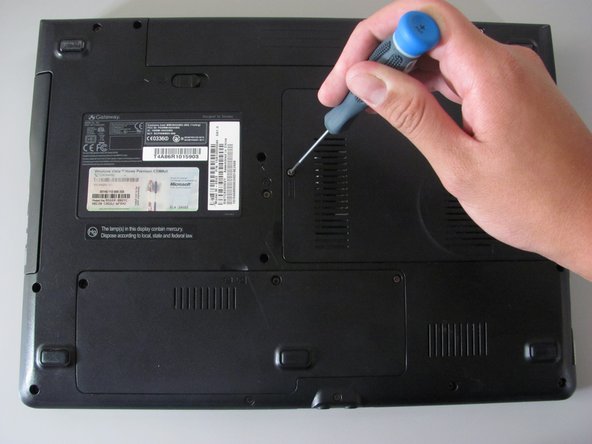

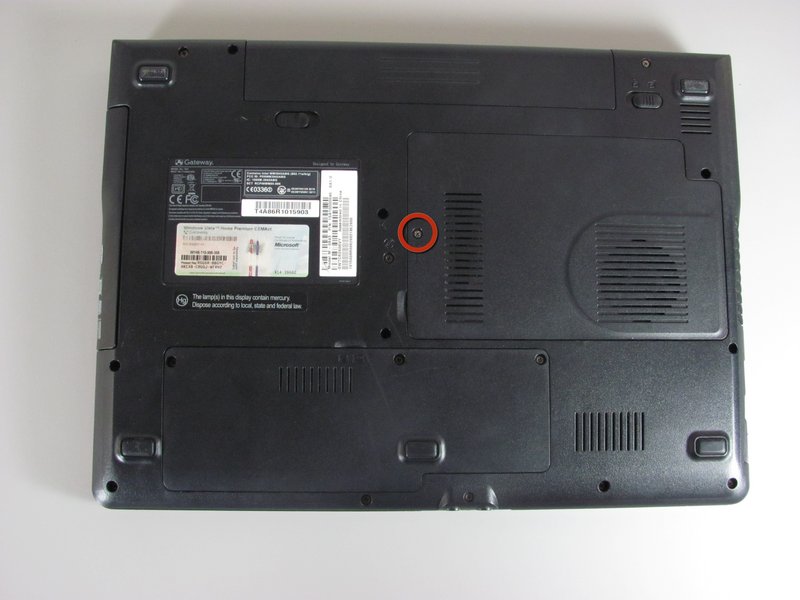

• Loosen the indicated Philips screw that connects the memory bay cover to the casing.
• The indicated Philips screw does not come out of the cover.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

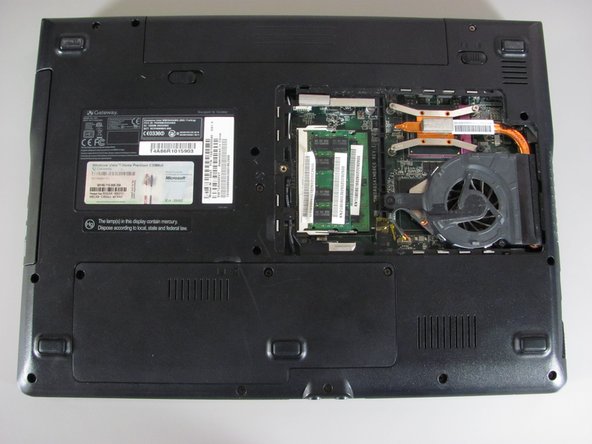

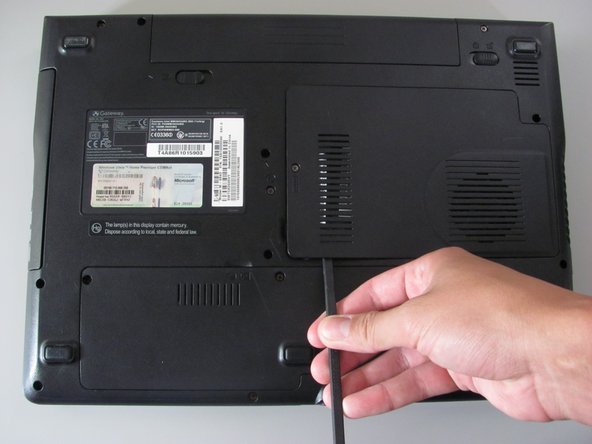

• Lift and remove the cover using the spudger.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

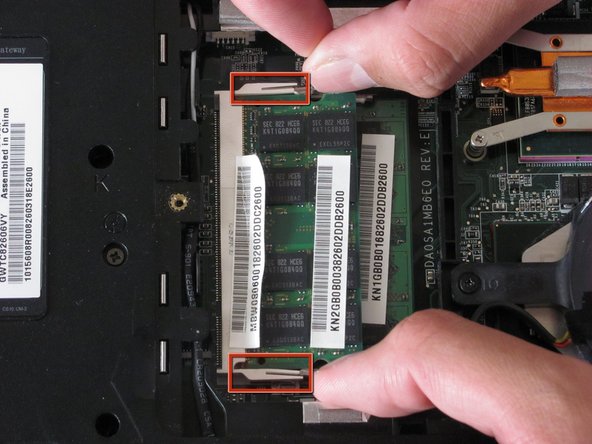

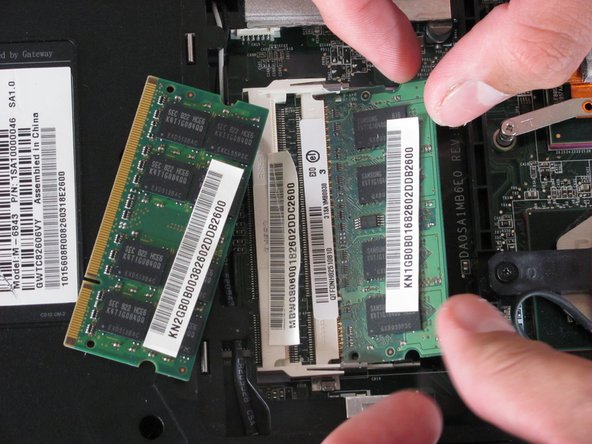

• Gently press the clip outwards.
• The module will tilt up and can be pulled out of the slot.
• There may be another memory module underneath so be sure to remove both.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 6

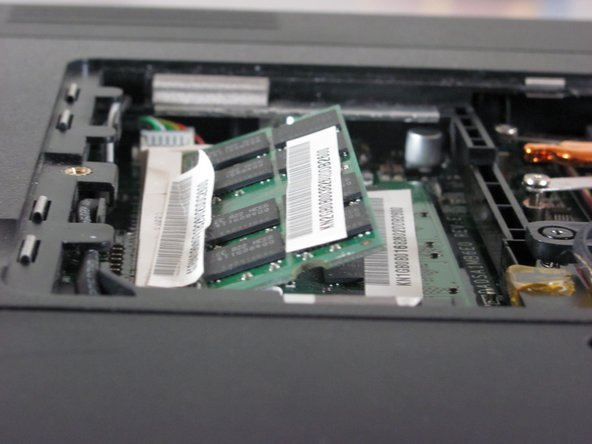

• To insert a new memory, slide the module into the slot at a 30 to 45 degree angle.
• Place the first module into the bottom slot then the next module into the top slot.
• These slots are keyed so verify that you are sliding the module in one direction.
• Verify that the new memory modules are designed for your specific Gateway Laptop.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
