HP Mini 1000 PRAM Battery Replacement

Prerequisite Only
This guide is only used as a prerequisite for other guides and is not a complete or useful guide when viewed independently.

Introduction

This guide is used as a prereq to other guides. (3rd for motherboard)

  1. HP Mini 1000 PRAM Battery Replacement, HP Mini 1000 PRAM Battery Replacement: step 1, image 1 of 1

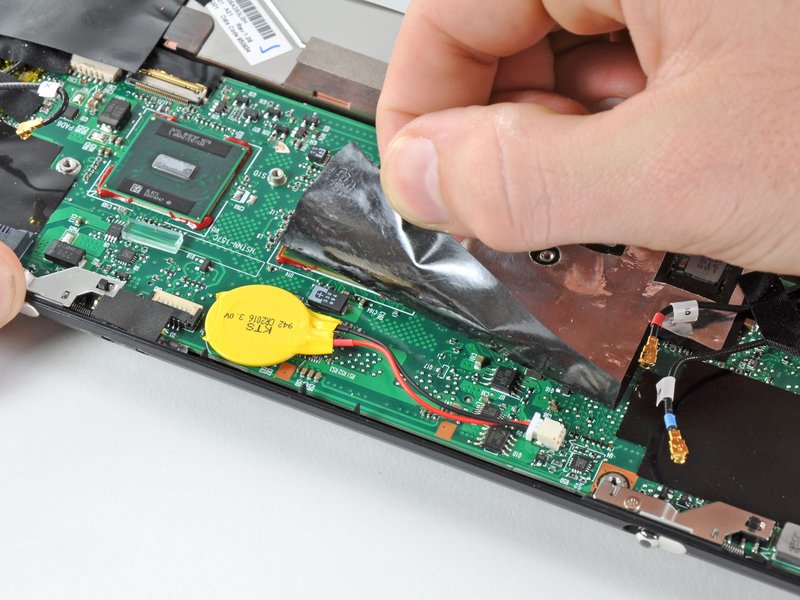

    • If present, carefully peel back the piece of black film attached to the heat sink to reveal the PRAM battery and its cable.

  3. HP Mini 1000 PRAM Battery Replacement: step 2, image 1 of 2 HP Mini 1000 PRAM Battery Replacement: step 2, image 2 of 2

    • Use a pair of tweezers to pull the PRAM battery connector out of its socket on the motherboard.

    • Pull the connector parallel to the face of the motherboard toward the fan side of the computer.

    • Use the flat end of a spudger to pry the PRAM battery off the adhesive securing it to the motherboard.

    • Remove the PRAM battery.

Conclusion

To reassemble your device, follow these instructions in reverse order.
