HP Mini 1000 RAM Replacement

HP Mini 1000 RAM Replacement

System

System

Last updated on September 17, 2016

No estimate
Easy

Introduction

Go to step 1

Use this guide to replace or upgrade the single PC2-4200 RAM stick on your Mini 1000.

What you need

Parts

Tools

Show more…

iFixit earns commission when you buy through these links.

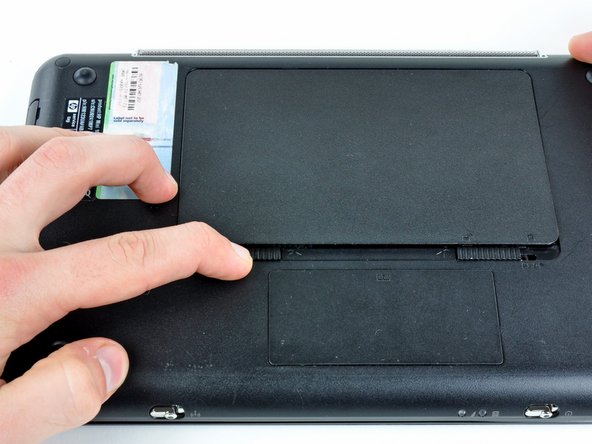

  1. HP Mini 1000 RAM Replacement, HP Mini 1000 RAM Replacement: step 1, image 1 of 2 HP Mini 1000 RAM Replacement, HP Mini 1000 RAM Replacement: step 1, image 2 of 2

    • With the case closed, place the Mini 1000 top-side down on a flat surface.

    • Push both of the battery release latches toward each other.

  2. HP Mini 1000 RAM Replacement: step 2, image 1 of 1

    • Lift the battery out of the Mini 1000 from the edge closest to the release latches.

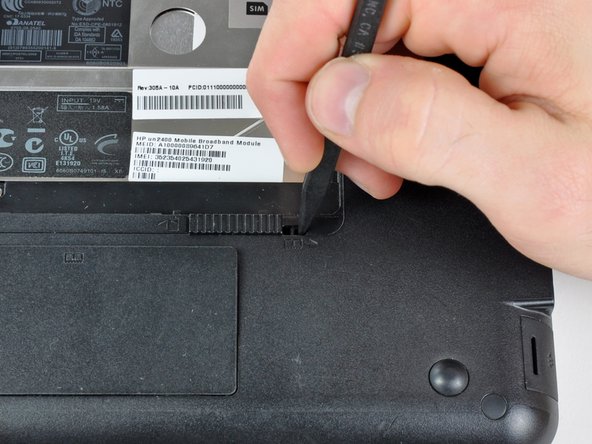

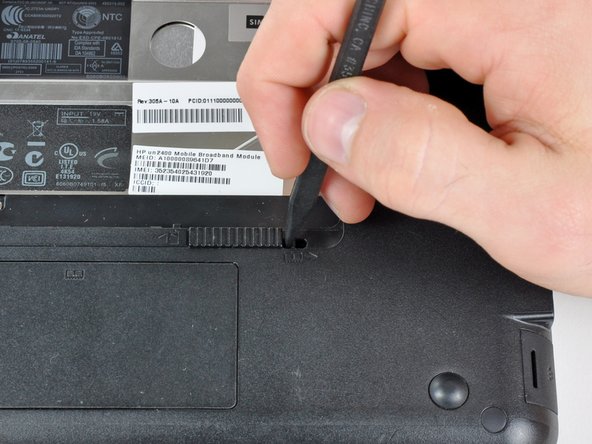

  4. HP Mini 1000 RAM Replacement: step 3, image 1 of 2 HP Mini 1000 RAM Replacement: step 3, image 2 of 2

    • Before proceeding, slide the right battery release latch to the unlocked position nearest the center of the computer.

    • Use the tip of a spudger to slide the RAM compartment cover release latch away from the center of the computer.

    • At this point, the edge of the RAM compartment cover nearest the battery compartment should pop up from the lower case.

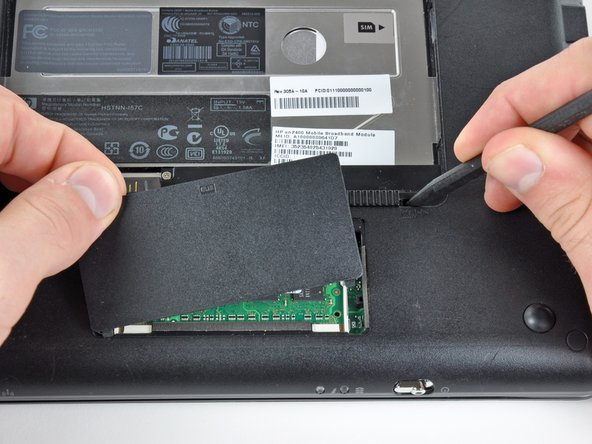

  5. HP Mini 1000 RAM Replacement: step 4, image 1 of 1

    • Remove the RAM compartment cover from the lower case.

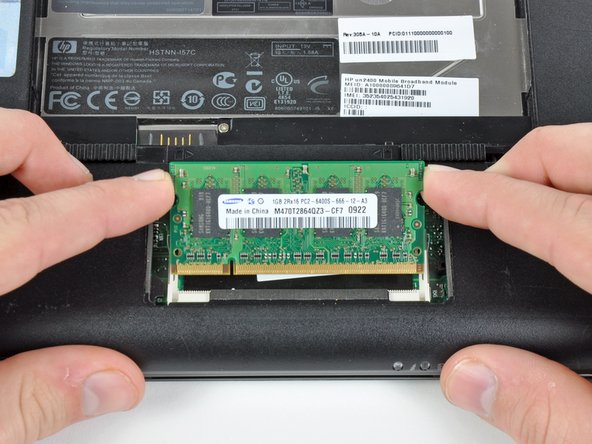

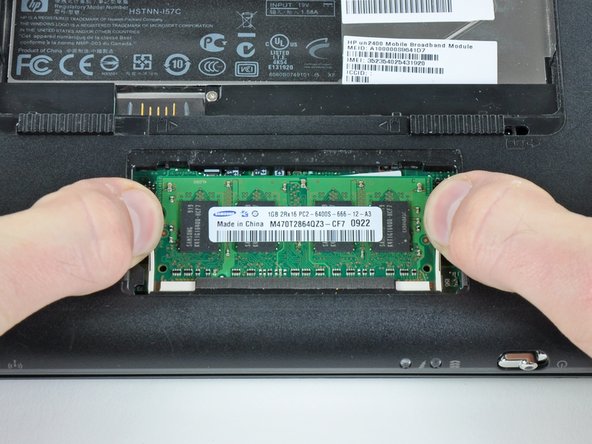

  6. HP Mini 1000 RAM Replacement: step 5, image 1 of 2 HP Mini 1000 RAM Replacement: step 5, image 2 of 2

    • Use your fingers to simultaneously pull both RAM retaining arms away from the center of the RAM chip.

    • The RAM chip should pop up slightly from its socket.

    • Pull the RAM chip out of its socket and remove it from the Mini 1000.

Conclusion

To reassemble your device, follow these instructions in reverse order.
