HP Pavilion ZD7000 Wi-Fi Card Replacement

Introduction

How to remove the Wi-Fi Card

What you need

  1. HP Pavilion ZD7000 Wi-Fi Card Replacement, HP Pavilion ZD7000 Wi-Fi Card Replacement: step 1, image 1 of 1

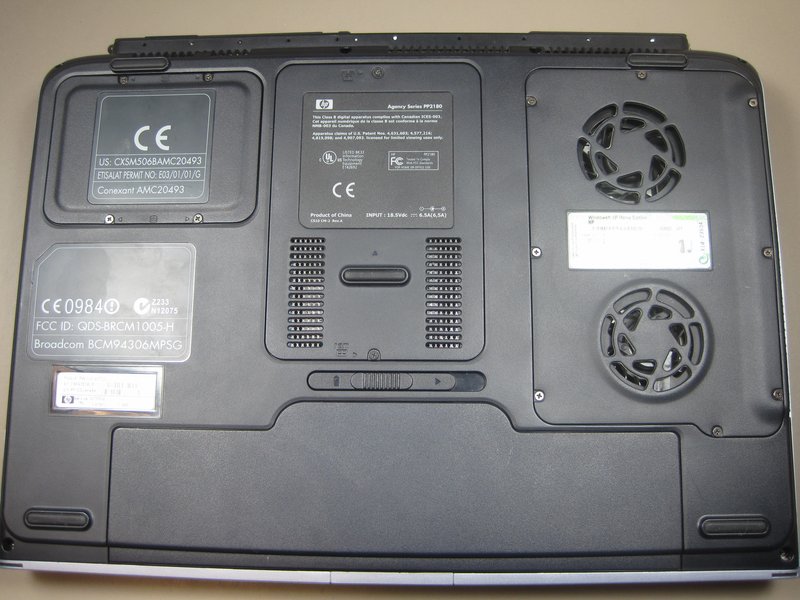

    • Begin by turning the laptop over so that you can see the bottom of the computer.

  2. HP Pavilion ZD7000 Wi-Fi Card Replacement: step 2, image 1 of 1

    • Slide the battery release switch to the right while simultaneously lifting up the battery.

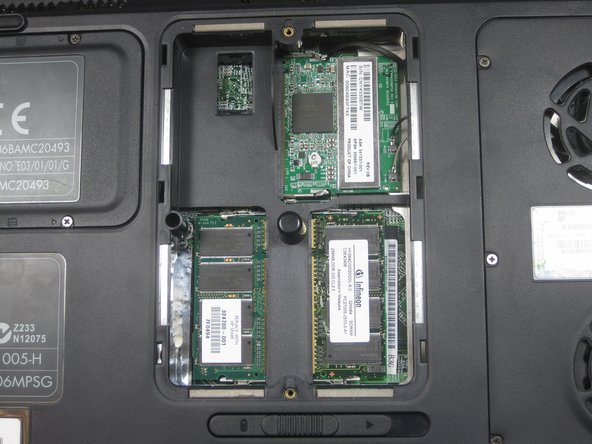

  4. HP Pavilion ZD7000 Wi-Fi Card Replacement: step 3, image 1 of 2 HP Pavilion ZD7000 Wi-Fi Card Replacement: step 3, image 2 of 2

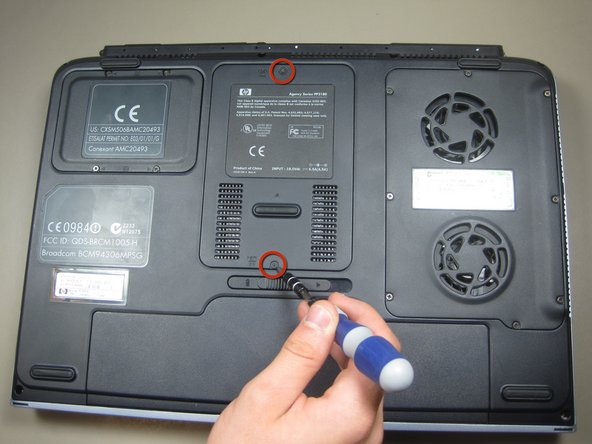

    • Unscrew the 2 screws from the plate that cover the Wi-Fi card.

    • Remove the cover.

  5. HP Pavilion ZD7000 Wi-Fi Card Replacement: step 4, image 1 of 2 HP Pavilion ZD7000 Wi-Fi Card Replacement: step 4, image 2 of 2

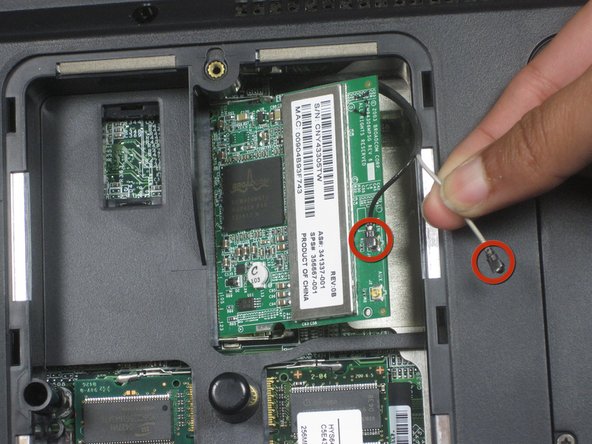

    • Disconnect these 2 antenna wires (which eventually connect to the monitor) from the Wi-Fi card.

    • For reassembly, note where the black and white cables connect to the card.

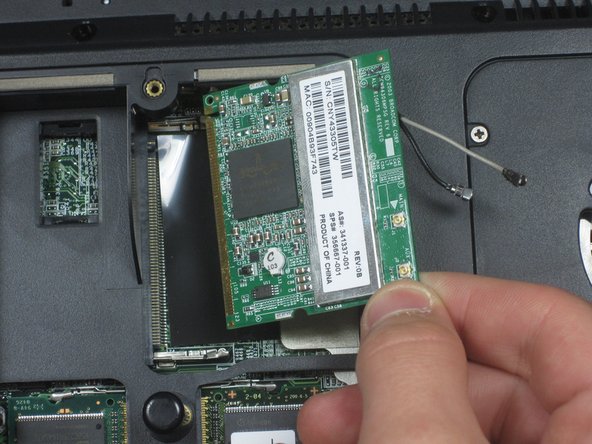

    • Release the Wi-Fi card from the laptop by pressing the metal hinges on either end of it.

    • Gently remove the card from laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
